Pioneer DJ TORAIZ-AS-1 Monophonic Analog Synthesizer

The TORAIZ-AS-1 is a monophonic analog synthesizer developed in collaboration with Dave Smith Instruments. Its sound engine is built on the Prophet-6's discrete analog circuitry, with two VCOs, a 4-pole resonant low-pass filter (self-oscillating), a 2-pole resonant high-pass filter, two ADSR envelope generators, a VCA, and an LFO.

Sound Engine

Each VCO produces continuously variable triangle, sawtooth, and pulse waveforms. The effects section inherits the Prophet-6's dual FX engine: bucket-brigade delay, ring modulation, chorus, phaser, and digital distortion. 495 preset programs are organized across 10 banks.

Sequencer and Performance

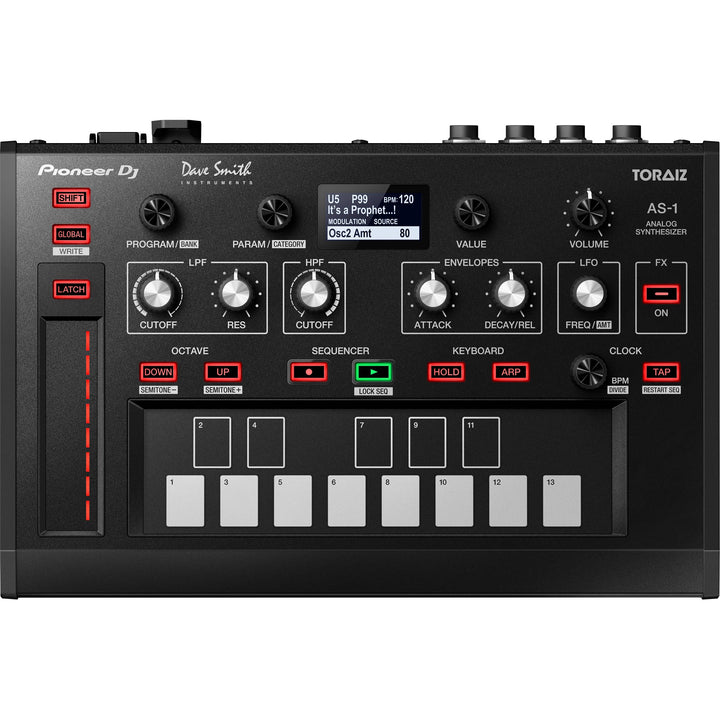

A built-in 64-step sequencer is stored per program, and the arpeggiator syncs to external clock sources. The 13-note touchpad keyboard and pitch/mod ribbon slider allow real-time performance control.

Specifications

• Polyphony: Monophonic
• Oscillators: 2 VCO (triangle, sawtooth, pulse)
• Filters: 4-pole LPF + 2-pole HPF
• Presets: 495 programs (10 banks)
• Sequencer: 64 steps per program
• Effects: Delay, ring mod, chorus, phaser, distortion

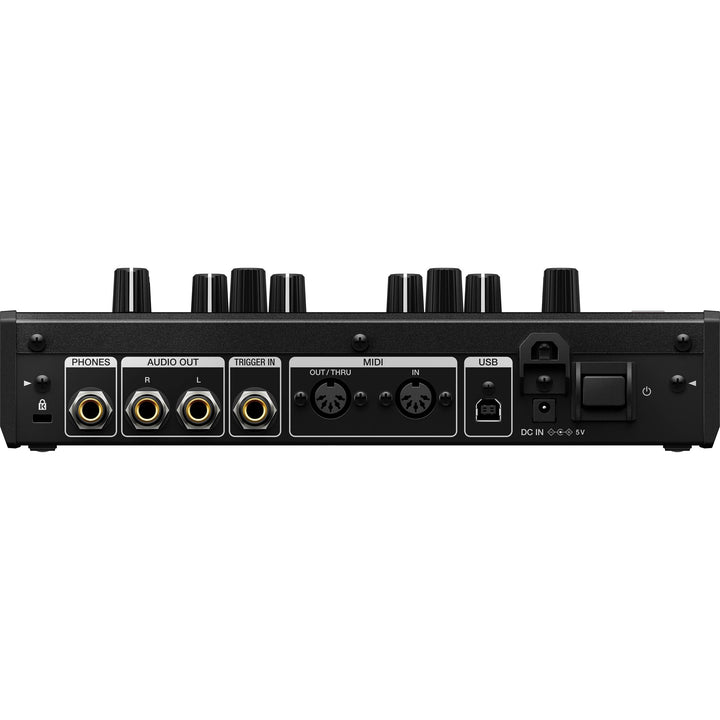

• Outputs: 2 × 1/4" (main), 1 × 1/4" (headphones)
• MIDI: In, Out/Thru
• USB: Type B
• Trigger input: 1 × 1/4" (pedal, trigger, gate)
