Messenger

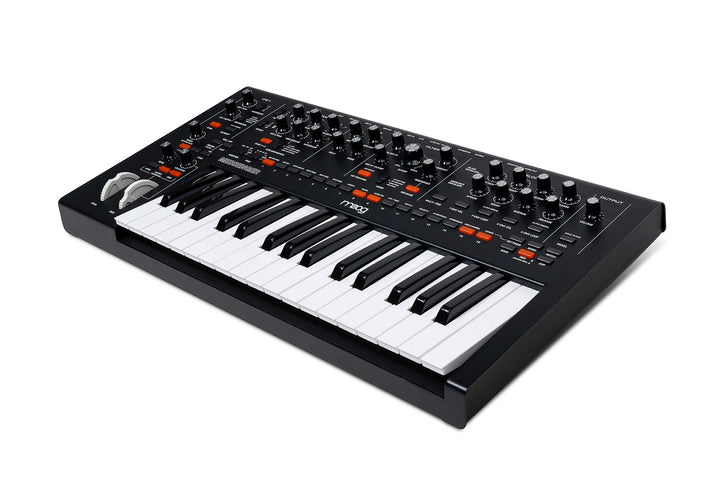

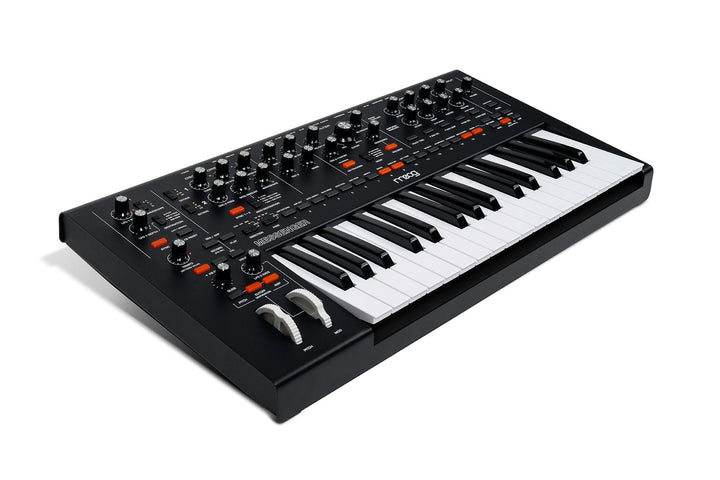

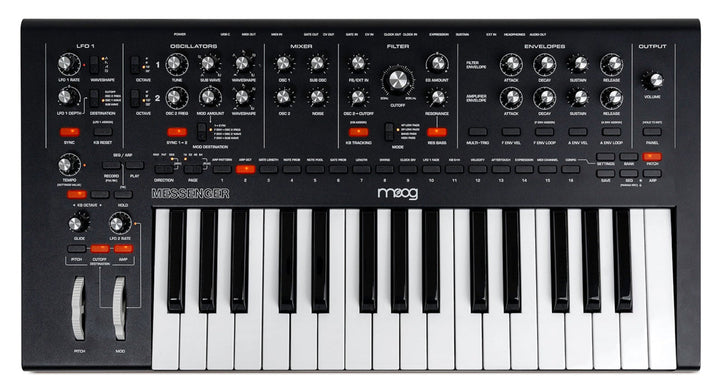

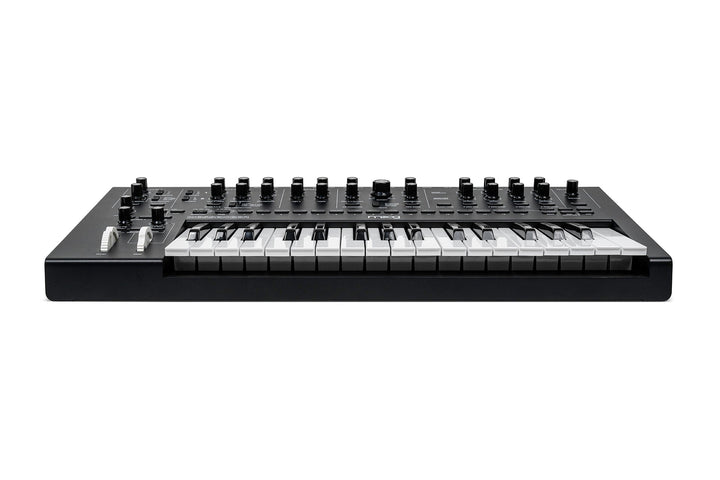

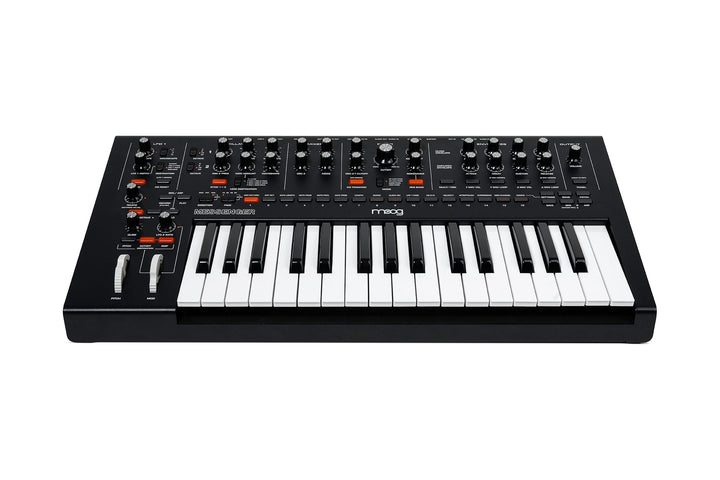

Messenger is a next-generation monophonic analog keyboard synthesizer from Moog. Packed full of innovative twists on beloved circuits, it blends the iconic Moog sound with flexible, modern features for today’s aspiring and professional musicians, producers, and sound designers.

Delivering massive sound in a compact package, Messenger features two oscillators with wave folding functionality, a sub-oscillator with continuously variable waveshapes, dual looping ADSR envelopes, 32 semi-weighted full-size keys with velocity and aftertouch and the legendary Moog ladder filter augmented with resonance bass compensation, multiple filter slopes, and true multimode functionality.

Equally suited for crafting soaring leads, delicate textures, and deep, rumbling basses, Messenger is a dynamic and approachable creative tool ready for the stage or studio.

Timeless and intuitive

Messenger builds on the DNA of Moog’s most iconic and prolific mono synths—Minimoog Model D, Voyager, Grandmother, Subsequent 37—and puts a new spin on a familiar format with innovative circuits and timeless analog sound.

A legend reborn

In a first for Moog, Messenger features a twist on the legendary ladder filter which, in addition to high-pass and band-pass responses, will toggle between preserving low end when resonance is increased or the traditional low-pass ladder filter response via the RES BASS switch.

Compositional powerhouse

Effortlessly record sequences of up to 64 steps, integrate chance operations, and introduce random fluctuations and parameter recording. Experiment with a plethora of arpeggiator patterns and cascade notes into infinity.

Sound design and modulation playground

Two loopable ADSR envelopes, two LFOs, and expanded frequency and audio rate modulation options via Oscillator 2 provide a wealth of modulation options and deeper assignable possibilities.

Inspiration at your fingertips

32 full-size semi-weighted keys with velocity and aftertouch, a robust metal panel, 256  presets, and knob-per-function controls mean Messenger is endlessly playable and ready to bring to your next gig.

Comprehensive connectivity

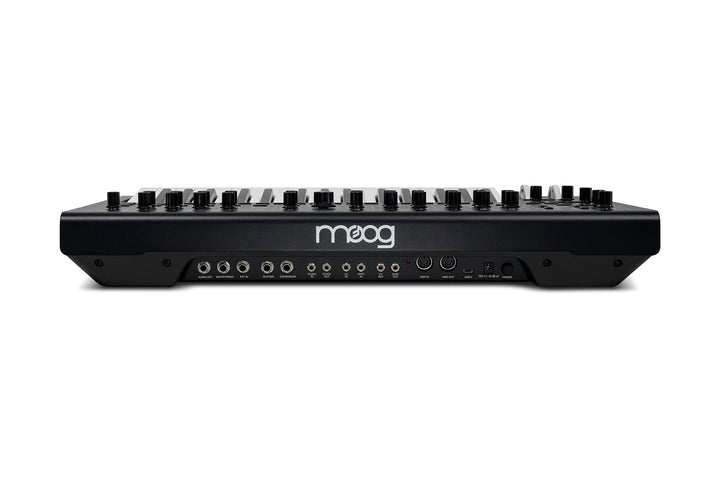

Messenger integrates seamlessly into any studio or live setup with six analog control voltage (CV) patch points, an external audio input to the filter, expression and sustain pedal inputs, and 5-pin DIN MIDI In/Out as well as MIDI over USB-C.

Features

• TYPE: Monophonic Analog Synthesizer
• TYPE OF KEYS: Semi-Weighted with Velocity and Aftertouch
• NUMBER OF KEYS: 32
• CONTROLLERS: Pitch Bend, Mod Wheel, Velocity, Aftertouch
• ANALOG SOUND SOURCES:

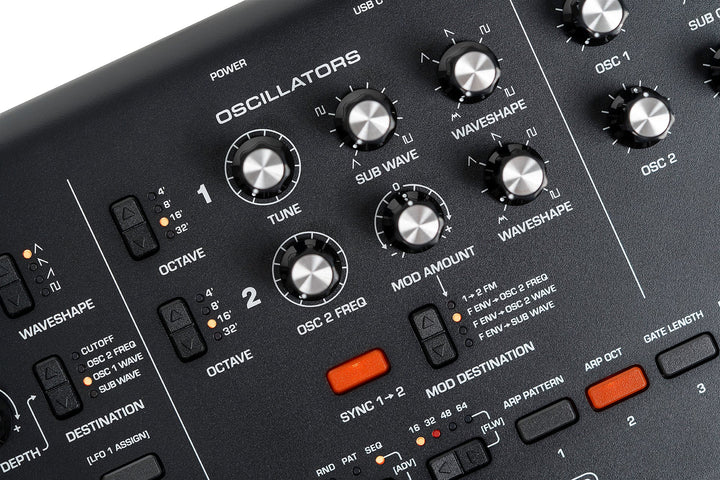

  • 2x Variable Waveshape Voltage-Controlled Oscillators with Wavefolder
  • 1x Variable Waveshape Sub Oscillator
  • 1x Analog White Noise Generator
  • 1x External Input/Filter Feedback
• ANALOG SIGNAL PROCESSORS
  • 1x Voltage-Controlled Multimode Moog Transistor Ladder Filter with Selectable Resonance Compensation
  • 1x Voltage-Controlled Amplifier
• ENVELOPES: 2x ADSR Loopable Envelopes
• LFOS:
  • 1x Selectable Waveshape LFO (LFO 1),
  • 1x Triangle Wave LFO (LFO 2)
• PRESETS: 256 patches - 16 banks, 16 patches per bank
• ARPEGGIATOR/SEQUENCER: 64 step sequence saveable per-patch
• AUDIO INPUT: 1x 6.5mm TS
• AUDIO OUTPUT: 1x 6.5mm TS, 1x 6.5mm TRS Headphone
• MIDI I/O: DIN In, DIN Out, USB-C
• CV/GATE CONNECTIONS:
  • 6x 3.5mm TS - CV/Gate In, CV/Gate Out,
  • Analog Clock In/Out
• PEDAL INPUTS: Sustain, Expression (6.5mm TRS)

• 2x Variable Waveshape Voltage-Controlled Oscillators with Wavefolder
• 1x Variable Waveshape Sub Oscillator
• 1x Analog White Noise Generator
• 1x External Input/Filter Feedback

• 1x Voltage-Controlled Multimode Moog Transistor Ladder Filter with Selectable Resonance Compensation
• 1x Voltage-Controlled Amplifier

• 1x Selectable Waveshape LFO (LFO 1),
• 1x Triangle Wave LFO (LFO 2)

• 6x 3.5mm TS - CV/Gate In, CV/Gate Out,
• Analog Clock In/Out

Specifications

• POWER
  • Included 12V DC (Center Positive)
  • Power Supply, 100-240V AC 50/60 Hz
• PRODUCT WEIGHT: 4.95 kg / 10.91 lbs
• PRODUCT DIMENSIONS
  • 58.50cm W x 32.16cm D x 9.65cm H (centimeters)
  • 23.03” W x 12.66” D x 3.80” H (inches)
• SHIPPING DIMENSIONS
  • 75.59cm W x 43.89cm D x 18.01cm H (centimeters)
  • 29.76” W x 17.28” D x 7.09” H (inches)
• SHIPPING WEIGHT: 7.5 kg (per case)

• Included 12V DC (Center Positive)
• Power Supply, 100-240V AC 50/60 Hz

• 58.50cm W x 32.16cm D x 9.65cm H (centimeters)
• 23.03” W x 12.66” D x 3.80” H (inches)

• 75.59cm W x 43.89cm D x 18.01cm H (centimeters)
• 29.76” W x 17.28” D x 7.09” H (inches)
