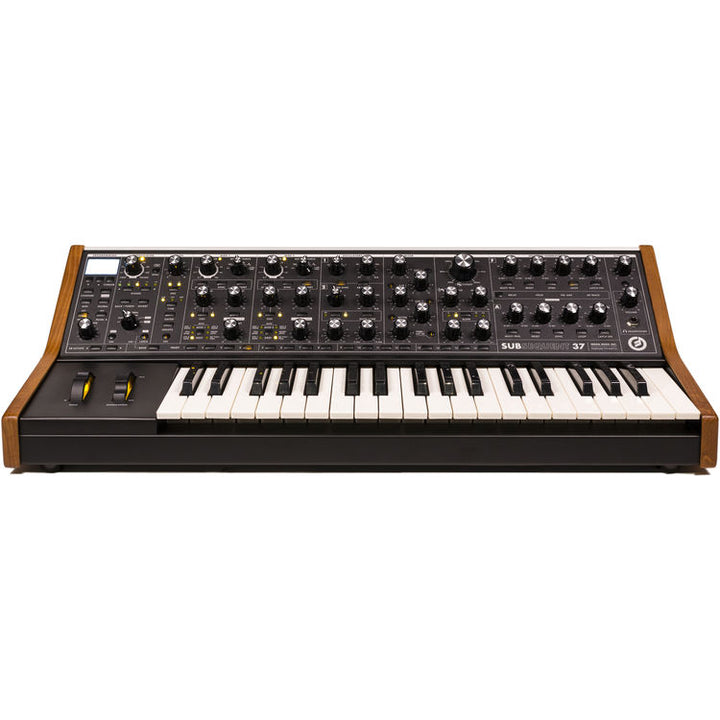

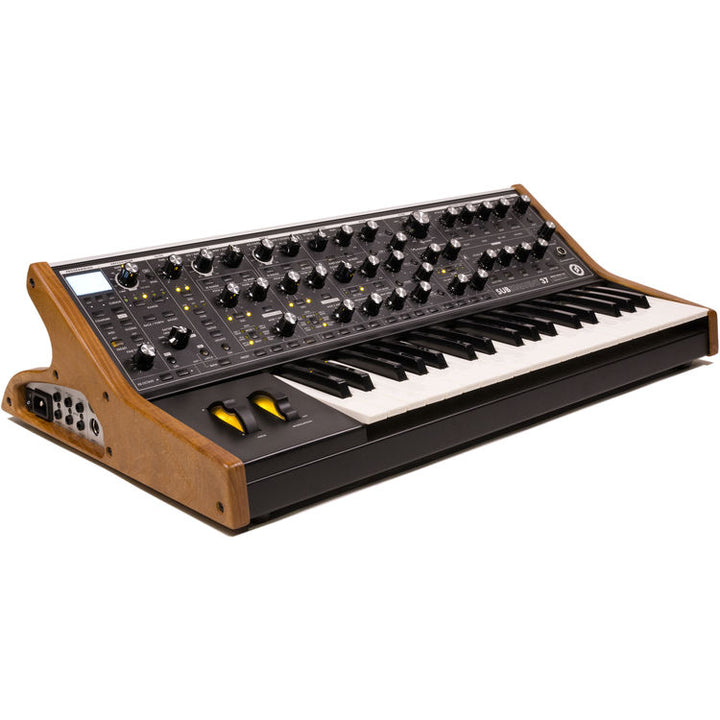

Subsequent 37

The Moog Subsequent builds upon the success of the original Sub 37 Tribute Edition synthesizer with several enhancements and is well suited for synthesizer enthusiasts, professional musicians, and sound designers. Upgrades include an updated sound engine for better sonic dimension—and more than twice the headroom of the original mixer—an updated keybed for a lightweight touch and swift action, velocity, aftertouch, and a higher-powered headphone amplifier. The filter's multidrive circuit has also been expanded for a wider range of dirtier tones.

The original sound engine and design is based on the Sub 37 Tribute Edition, which boasts a paraphonic synth voice and features the ability to play two notes at a time. It puts a full palette of sound-creation tools at your fingertips with its 40 knobs, 74 switches, and dedicated LCD display. The synth engine includes two oscillators and a sub oscillator for sound generation, and two LFOs for modulation. It also has an arpeggiator, step sequencer, glide, classic Moog ladder filter, and two ADSR envelope generators for sound-shaping. There are 256 presets available for saving patches.

Features

• Perform in Mono or Duo modes
• 37-note, velocity-sensitive keyboard with aftertouch
• Two modulation busses with assignable source and destinations
• DAHDSR (Delay, Attack, Hold, Decay, Sustain, Release) looping envelopes with sync
• 256 presets -16 banks of 16 patches
• Syncable arpeggiator and step sequencer
• Classic Moog Ladder Filter with resonance, multidrive, and selectable filter slopes
• Duo Mode: Allows oscillator 1 and oscillator 2 to be played independently
• Arpeggiator/Step Sequencer: User-programmable
• A fully featured mixer section contains dedicated controls and mutes for each sound source, as well as a level control for external audio input and feedback, which feeds the output of the filter directly back to the input of the mixer
• Also included are the powerful DAHDSR envelopes from the Sub Phatty with panel control of each extended function

Specifications

InstrumentSound Engine100% analogPolyphonySelectable monophonic or paraphonicKeybed37-note, semi-weighted with after-pressureLCD128 X 64-pixel LCD with white backlightControllersPitch Bend, Mod Wheel, After Pressure, VelocitySound Source2 x variable waveshape oscillators1 x square wave sub oscillator1 x analog noise generator1 x external input/filter feedbackOscillatorOscillator Calibration Range: 22 Hz to 6.8 kHz, (note range at 8' = 18 to 116)PortamentoGlide Module: Assign to Osc1/Osc2/BothType: LCR, LCT, EXP, Gated, LegatoFilter20 Hz to 20 kHz Moog Ladder Filter with 6/12/18/24 dB/oct filter slopes and multidriveTranspose±2 octavesArpeggiatorArpeggiator / Sequencer: Up, Down, Order, Random, Latching, Back/Forth, Invert, +/-2 Range, Tie, Rest, MIDI Sync, 64-note sequencerInputs and OutputsAudio Input: 1 x 1/4" / 6.35 mm TSAudio Output: 1 x 1/4" / 6.35 mm TSHeadphone Output: 1 x 1/4" / 6.35 mm TRS with separate volume controlPresets256 Presets: 16 banks x 16 presetsMIDI I/OMIDI In: 5-pin DIN connectorMIDI Out: 5-pin DIN connectorMIDI over USB: USB Type-BCV InterfaceCV/Gate Inputs: Filter CV, Pitch CV, Volume CV, KB Gate (1/4" / 6.35 mm)CV Destinations: KB Pitch (is also sequence pitch), Velocity, Aftertouch, Mod 1, Mod 1x Ctrl, Mod 2, Mod 2 x Ctrl, Filter EG, Amp EG, Pitch Wheel, Mod Wheel, Seq Mod, Duo PitchGate Destinations: KB Gate (is also sequence gate), Ext. Gate, Arp/Seq Clock, Arp/Seq Run/Stop, Arp/Seq Step 1 Trig, Filt EG Trigger, Amp EG Trigger, LFO 1 Rate, LFO 2 Rate

Instrument

100% analog

Selectable monophonic or paraphonic

37-note, semi-weighted with after-pressure

128 X 64-pixel LCD with white backlight

Pitch Bend, Mod Wheel, After Pressure, Velocity

2 x variable waveshape oscillators1 x square wave sub oscillator1 x analog noise generator1 x external input/filter feedback

Oscillator Calibration Range: 22 Hz to 6.8 kHz, (note range at 8' = 18 to 116)

Glide Module: Assign to Osc1/Osc2/BothType: LCR, LCT, EXP, Gated, Legato

20 Hz to 20 kHz Moog Ladder Filter with 6/12/18/24 dB/oct filter slopes and multidrive

±2 octaves

Arpeggiator / Sequencer: Up, Down, Order, Random, Latching, Back/Forth, Invert, +/-2 Range, Tie, Rest, MIDI Sync, 64-note sequencer

Audio Input: 1 x 1/4" / 6.35 mm TSAudio Output: 1 x 1/4" / 6.35 mm TSHeadphone Output: 1 x 1/4" / 6.35 mm TRS with separate volume control

256 Presets: 16 banks x 16 presets

MIDI In: 5-pin DIN connectorMIDI Out: 5-pin DIN connectorMIDI over USB: USB Type-B

CV/Gate Inputs: Filter CV, Pitch CV, Volume CV, KB Gate (1/4" / 6.35 mm)CV Destinations: KB Pitch (is also sequence pitch), Velocity, Aftertouch, Mod 1, Mod 1x Ctrl, Mod 2, Mod 2 x Ctrl, Filter EG, Amp EG, Pitch Wheel, Mod Wheel, Seq Mod, Duo PitchGate Destinations: KB Gate (is also sequence gate), Ext. Gate, Arp/Seq Clock, Arp/Seq Run/Stop, Arp/Seq Step 1 Trig, Filt EG Trigger, Amp EG Trigger, LFO 1 Rate, LFO 2 Rate

ModulationSourceSources: LFO (Triangle, Square, Saw, Ramp, Sample & Hold), Filter EG/PGMProgrammable Sources: Amp Env, Constant ON, Sine LFO, Noise LFO, Osc 1 Pitch, Osc 2 Pitch, Seq Note, Seq Vel, and Seq ModDestinationsDestinations: Osc 1 Pitch, Osc 2, Osc 1 & 2 Pitch, Filter, LFO Rate, VCA Level, Osc 1 Wave, Osc 2 Wave, Osc 1 & 2 Wave, Noise Level, EG Time/PGMProgrammable Destinations: Filter Resonance, Filter Drive, Filter Slope, Filter Env Amount, Filter Keyboard Amount, Osc 1 Level, Sub Osc Level, Osc 2 Level, External In/Feedback Level, Osc 1 On, Sub Osc On, Osc 2 On, Noise On, External In/Feedback On, Arp Rate, Arp Clock Division, Arp Range, Arp Back/Forth, Arp Ends, Arp Invert, Arp Gate Length, Arp Run, Glide Time, Glide OSC Choice, Glide Type, Glide Gate, Glide Legato, Glide On, LFO 1 Clock Division, LFO 1 Range, LFO 1 Sync, LFO 1 Keyboard Reset, LFO 1 Keyboard Track, Mod 1 Pitch Amount, Mod 1 Filter Amount, Mod 1 Programmable Amount, Mod 1 Programmable Destination, LFO 2 Clock Division, LFO 2 Range, LFO 2 Sync, LFO 2 Keyboard Reset, LFO 2 Keyboard Track, Mod 2 Pitch Amount, Mod 2 Filter Amount, Mod 2 Programmable Amount, Mod 2 Programmable Destination, Osc 1 Oct, Osc 2 Sync, Osc 2 Keyboard Reset, Osc 2 Oct, Osc 2 Keyboard Control, Osc 2 DUO Mode, Osc 2 Freq, Osc 2 Beat Freq, Filter Env Attack, Filter Env Decay, Filter Env Sus, Filter Env Release, Filter Env Delay, Filter Env Hold, Filter Env Vel Amount, Filter Keyboard Track, Filter Env Multitriggering, Filter Env Reset, Filter Env Sync, Filter Env Loop, Filter Env Latch, Amp Env Attack, Amp Env Decay, Amp Env Sus, Amp Env Release, Amp Env Delay, Amp Env Hold, Amp Env Vel Amount, Amp Keyboard Track, Amp Env Multitriggering, Amp Env Reset, Amp Env Sync, Amp Env Loop, Amp Env Latch, Output Volume, Bend Up, and Bend DownLFOLFO Panel Features: Hi/low range from .01 Hz to 1 kHz, MIDI Sync, KB ResetEnvelopesDAHDSR Envelopes with Multitrigger, Reset, Looping, MIDI Sync, Latch, and Variable control of EG Delay, Hold, Velocity Amount, KB Tracking

Modulation

Sources: LFO (Triangle, Square, Saw, Ramp, Sample & Hold), Filter EG/PGMProgrammable Sources: Amp Env, Constant ON, Sine LFO, Noise LFO, Osc 1 Pitch, Osc 2 Pitch, Seq Note, Seq Vel, and Seq Mod

Destinations: Osc 1 Pitch, Osc 2, Osc 1 & 2 Pitch, Filter, LFO Rate, VCA Level, Osc 1 Wave, Osc 2 Wave, Osc 1 & 2 Wave, Noise Level, EG Time/PGMProgrammable Destinations: Filter Resonance, Filter Drive, Filter Slope, Filter Env Amount, Filter Keyboard Amount, Osc 1 Level, Sub Osc Level, Osc 2 Level, External In/Feedback Level, Osc 1 On, Sub Osc On, Osc 2 On, Noise On, External In/Feedback On, Arp Rate, Arp Clock Division, Arp Range, Arp Back/Forth, Arp Ends, Arp Invert, Arp Gate Length, Arp Run, Glide Time, Glide OSC Choice, Glide Type, Glide Gate, Glide Legato, Glide On, LFO 1 Clock Division, LFO 1 Range, LFO 1 Sync, LFO 1 Keyboard Reset, LFO 1 Keyboard Track, Mod 1 Pitch Amount, Mod 1 Filter Amount, Mod 1 Programmable Amount, Mod 1 Programmable Destination, LFO 2 Clock Division, LFO 2 Range, LFO 2 Sync, LFO 2 Keyboard Reset, LFO 2 Keyboard Track, Mod 2 Pitch Amount, Mod 2 Filter Amount, Mod 2 Programmable Amount, Mod 2 Programmable Destination, Osc 1 Oct, Osc 2 Sync, Osc 2 Keyboard Reset, Osc 2 Oct, Osc 2 Keyboard Control, Osc 2 DUO Mode, Osc 2 Freq, Osc 2 Beat Freq, Filter Env Attack, Filter Env Decay, Filter Env Sus, Filter Env Release, Filter Env Delay, Filter Env Hold, Filter Env Vel Amount, Filter Keyboard Track, Filter Env Multitriggering, Filter Env Reset, Filter Env Sync, Filter Env Loop, Filter Env Latch, Amp Env Attack, Amp Env Decay, Amp Env Sus, Amp Env Release, Amp Env Delay, Amp Env Hold, Amp Env Vel Amount, Amp Keyboard Track, Amp Env Multitriggering, Amp Env Reset, Amp Env Sync, Amp Env Loop, Amp Env Latch, Output Volume, Bend Up, and Bend Down

LFO Panel Features: Hi/low range from .01 Hz to 1 kHz, MIDI Sync, KB Reset

DAHDSR Envelopes with Multitrigger, Reset, Looping, MIDI Sync, Latch, and Variable control of EG Delay, Hold, Velocity Amount, KB Tracking

General SpecificationsPower110 to 240 VAC, universal power supply with IEC connectorDimensions6.8 x 26.8 x 14.8" / 171.5 x 679.5 x 374.7 mmWeight22.0 lb / 10.0 kg

General Specifications

110 to 240 VAC, universal power supply with IEC connector

6.8 x 26.8 x 14.8" / 171.5 x 679.5 x 374.7 mm

22.0 lb / 10.0 kg

Packaging InfoPackage Weight26.65 lbBox Dimensions (LxWxH)30.5 x 17.25 x 9.75"

Packaging Info

26.65 lb

30.5 x 17.25 x 9.75"
