Description

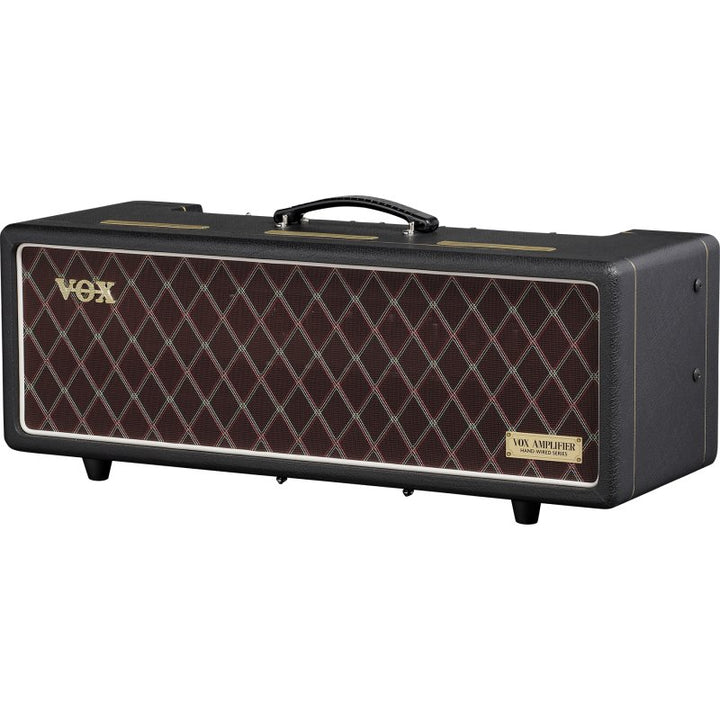

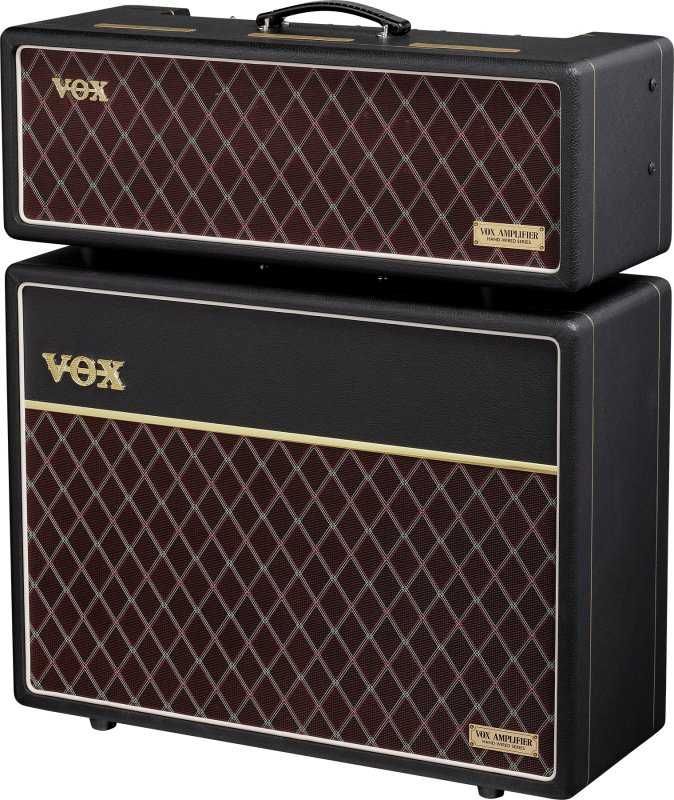

The AC30 Hand-Wired Head is the head version of the AC30 Hand-Wired, built from measurements of an original 1963 copper panel AC30. It pairs with the matching V212HWRX 2x12 cabinet or with a cabinet you already own.

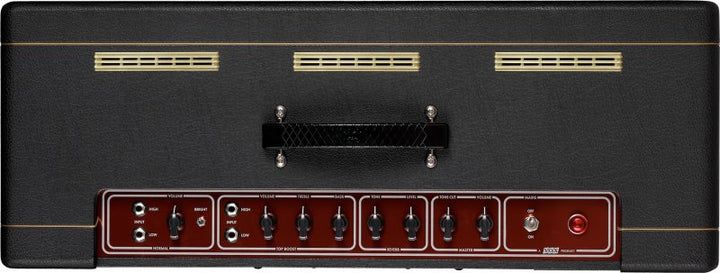

Four EL84 tubes give 30 watts into 8 or 16 ohms. It has a Normal channel with a Bright switch, a Top Boost channel with Treble, Bass and Volume, tube-driven spring reverb with Level and Tone, a FET-buffered effects loop that can be bypassed, and a master volume that drops out of the circuit when turned fully up.
Features
- Hand-wired circuitry with a custom-wound output transformer
- Power circuit designed to recreate the voltage sag of the 1963 original
- Normal channel with Bright switch
- Top Boost channel with Treble, Bass and Volume
- Tube-driven spring reverb with Level and Tone, footswitchable
- FET-buffered effects loop that can be bypassed
- Copper control panel and brass vent grilles
- VFS1 footswitch included
Specifications
- Type: Hand-wired all-tube guitar amp head
- Output power: 30W RMS into 8 or 16 ohms
- Tubes: 4 x ECC83/12AX7, 1 x ECC81/12AT7, 4 x EL84, 1 x GZ34 rectifier

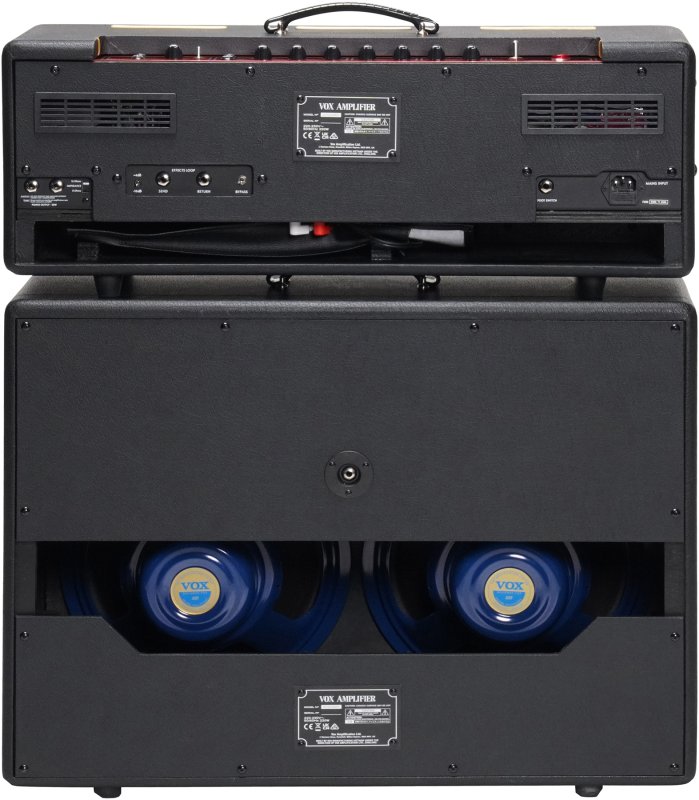

- Inputs: Normal input 1/4 in jacks (High and Low), Top Boost input 1/4 in jacks (High and Low), footswitch jack, return jack
- Outputs: 2 x 1/4 in speaker output jacks, send jack
- Dimensions (W x D x H): 27.76 x 10.35 x 11.89 in
- Weight: 43.43 lb
In the Box
- Power cable
- Owner's manual
- VFS1 footswitch
- Speaker cable
