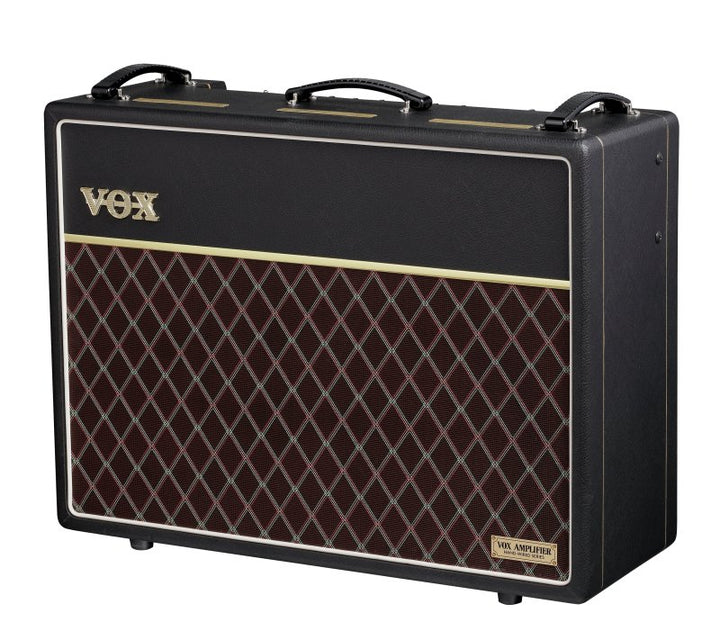

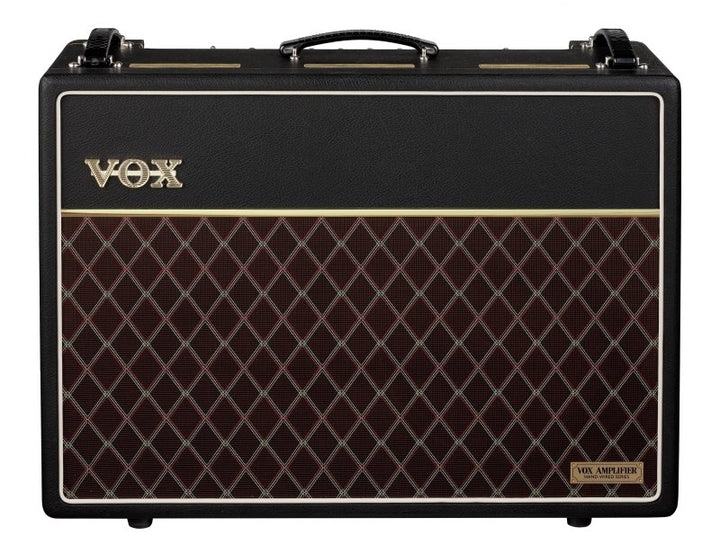

Vox AC30 Hand-Wired 30W 2x12 Tube Guitar Combo Amp (Celestion Alnico Blue)
Speaker
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
A few orders are not eligible: items that need specialty shipping (certain cases, stands and other gear that requires special handling), and orders shipping to Newfoundland and Labrador, the Northwest Territories or Nunavut.
Carriers sometimes charge far more for oversized freight to certain locations. In that rare case, we pay most of the extra and ask you to cover a small part.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm and Sezzle financing are available for most products. For Affirm, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Sezzle: eligible customers can split a purchase into 4 interest-free payments over 6 weeks. Approval and payment terms depend on the purchase amount and an eligibility check, may not be available in all provinces or territories, and are shown at checkout. Payment options are provided through Sezzle. For more information, please see sezzle.com/how-it-works.
Affirm: eligible customers can pay over time in monthly instalments. Your rate and available terms depend on an eligibility check based on creditworthiness, your purchase amount, and applicable provincial limits, and may not be available in all provinces or territories. Actual terms, the payment schedule, and any required down payment are shown at checkout. Payment options are provided through Affirm Canada Holdings Ltd. For more information, please see affirm.com/how-it-works.
Description
The AC30 Hand-Wired is a 30-watt all-tube combo with hand-wired circuitry and a custom-wound output transformer, based on an original 1963 copper panel AC30. Four EL84 power tubes and a GZ34 rectifier drive two 12-inch Celestion speakers in a 12 mm birch ply cabinet.

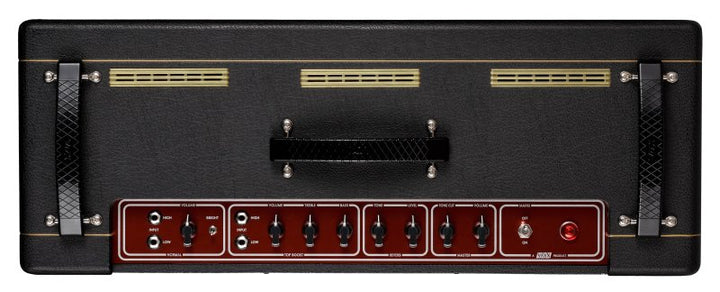

The Normal channel has a Bright switch, and the Top Boost channel has its own Treble, Bass and Volume. A tube-driven spring reverb with Level and Tone, a FET-buffered effects loop and a master volume complete the panel, and the loop and master volume can be bypassed. This version uses two Celestion Alnico Blue speakers, the speakers that helped make the AC30 famous, with bright highs and smooth overdrive.
Features
- Hand-wired circuitry with a custom-wound output transformer
- Power supply designed to recreate the voltage sag of the 1963 original
- Normal channel with Bright switch
- Top Boost channel with Treble, Bass and Volume
- Tube-driven spring reverb with Level and Tone, footswitchable
- FET-buffered effects loop that can be bypassed
- 12 mm birch ply cabinet
- Two speaker outputs and a detachable internal speaker connection
- VFS1 footswitch included
Specifications
- Type: Hand-wired all-tube guitar combo
- Output power: 30W RMS into 8 or 16 ohms
- Tubes: 4 x ECC83/12AX7, 1 x ECC81/12AT7, 4 x EL84, 1 x GZ34 rectifier
- Speakers: 2 x 12 in Celestion Alnico Blue, 8 ohms each
- Inputs: Normal input (High and Low), Top Boost input (High and Low), footswitch jack, return jack
- Outputs: 2 x power output jacks, send jack
- Cabinet: 12 mm birch ply
- Dimensions (W x D x H): 705 x 263 x 567 mm (27.76 x 10.35 x 22.32 in)
- Weight: 32.0 kg (70.55 lb)
In the Box
- Power cable
- Owner's manual
- VFS1 footswitch
