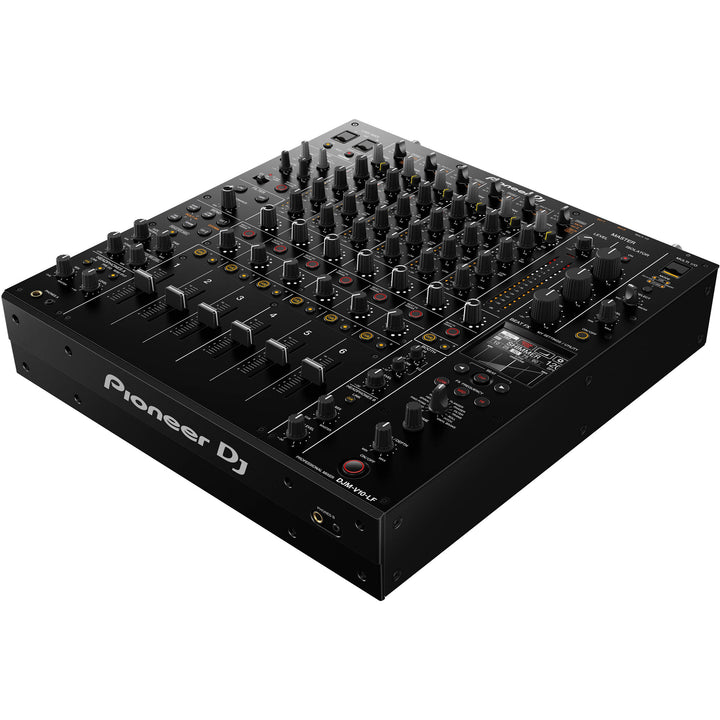

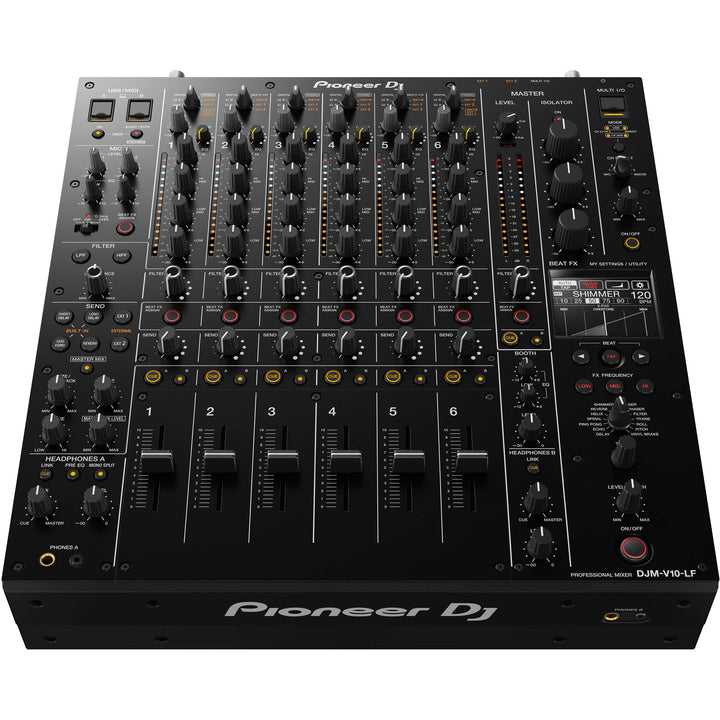

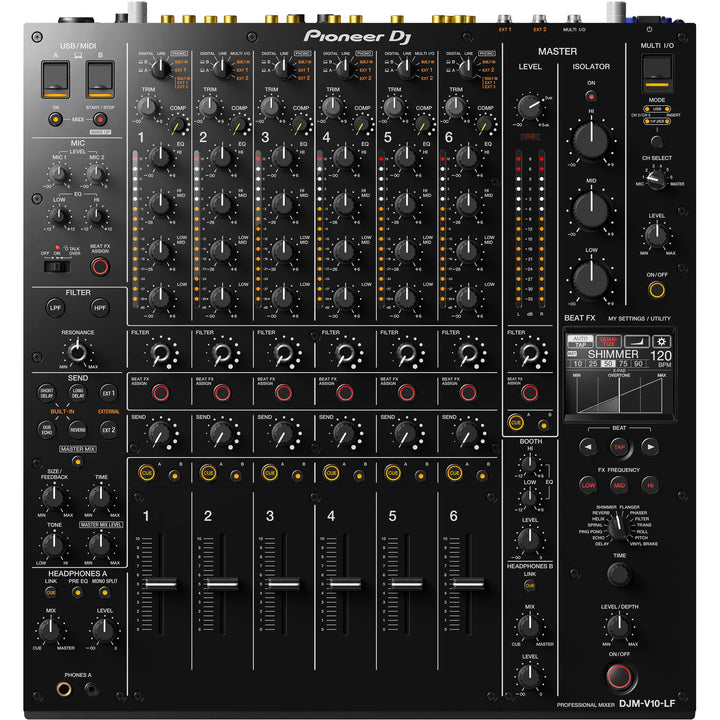

Pioneer DJ DJM-V10-LF Long Fader 6-channel DJ Mixer

The Pioneer DJ DJM-V10-LF 6-channel pro DJ mixer includes two classic fader curves from its predecessor - optimized to make the most of the extra length - plus an all-new curve preset that enables you to make fine adjustments to the volume of each channel and precisely control the output sound. The DJM-V10-LF features new, longer channel faders with optimized curves and a new custom-designed curve preset to enable you to perform smooth and accurate mixes. The 60 mm shaft slide faders enable you to control the volume of the audio source from each channel precisely.

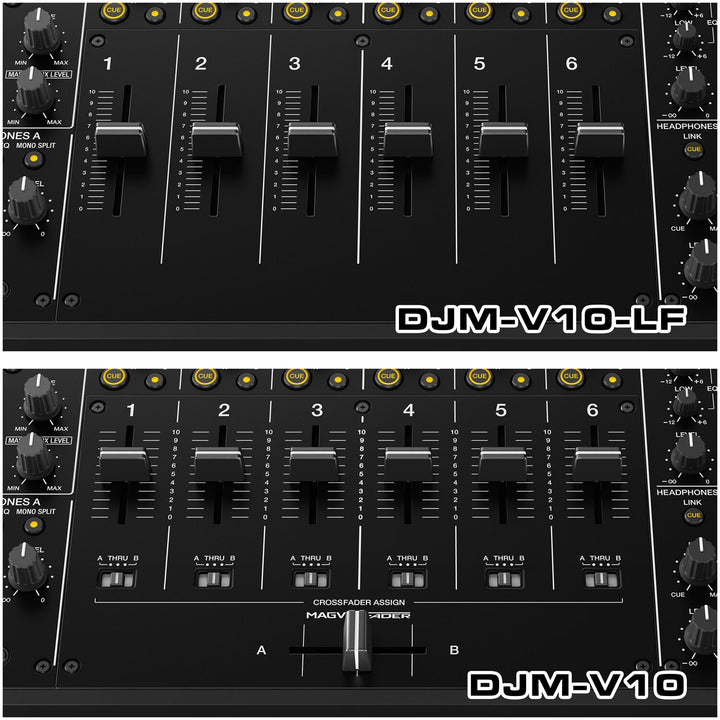

60mm Shaft Slide Faders

If you like to perform smooth, detailed mixes, you can enjoy a high level of control with the DJM-V10-LF. The crossfader from the DJM-V10 has been removed and brand-new 60 mm shaft slide faders have replaced the 45 mm ones on the channels.

Unique Fader Curve

The unit includes two classic fader curves from its predecessor - optimized to make the most of the extra length - plus an all-new curve preset that enables you to make fine adjustments to the volume of each channel and precisely control the output sound.

Elite Sound Quality

Feel the warmth of natural sound and hear every detail. Studio-quality 64-bit mixing and dithering processing, 32-bit high-quality A/D and D/A converters, a low-jitter clock circuit, and many other components all work to produce a full low-end, vibrant mids, and precise highs.

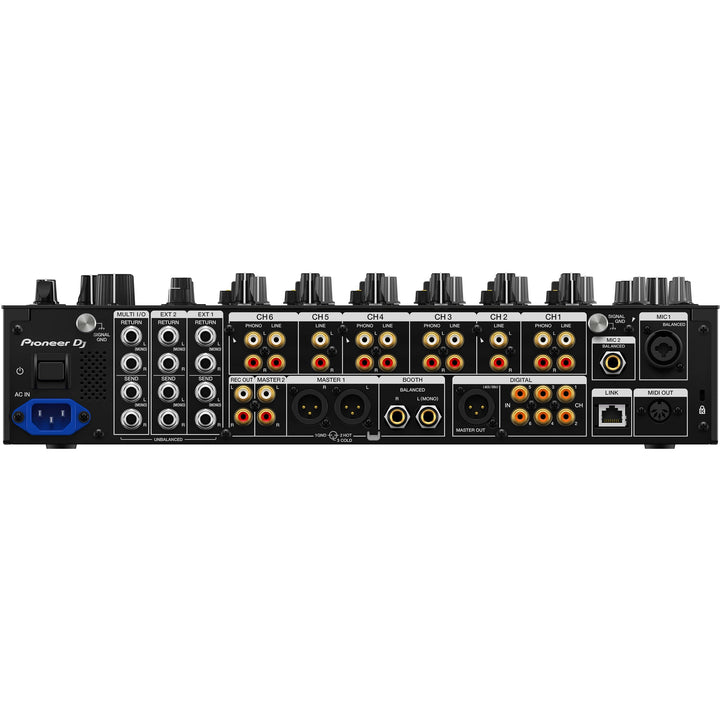

6 Channels with a Wide Range of Inputs

You're free to create your perfect setup with 6 channels and a host of different input types.

4-Band EQ and Compressor

Take full control of your mix with the newly developed 4-band EQ. A built-in compressor enables further adjustment of the loudness of your tracks.

Effects for More Creative Expression

The expanded send/return section enables you to add external FX, or even combine them with built-in FX. Create unique sounds; the possibilities are nearly limitless

3-Band Master Isolator

Effortlessly control the tone of your entire mix with the 3-band master isolator, featuring new boost/cut curves and adjustments to the crossover frequencies and other parameters. Grab the large dials and drive the crowd wild by drastically changing the sound.

Dual Headphones Output and Booth EQ

The DJM-V10-LF makes back-to-back monitoring simple and comfortable. You can tweak the sound in the DJ booth just the way you like.

Lockable Power Cable

A lockable power cord is included for added reliability and to avoid accidental disconnections. *In selected regions, a non-lockable power cable is supplied instead.

DJM-REC compatible

Record and archive your mixes via iPhone or iPad, upload your sounds to cloud services or effortlessly live-stream your sessions. Find out more.

rekordbox

Make full use of rekordbox's low-latency DVS feature for intuitive, smooth scratching. Find out more.

Serato DVS-ready

Use Serato DVS to control and scratch with CDJs or turntables (Serato DJ Club Kit license required, available separately).

TRAKTOR DVS-ready

Enjoy DVS control via Native Instruments' TRAKTOR PRO 3 (available separately) . Use it to intuitively control and scratch with digital audio files stored on your computer. Find out more about the Pioneer DJ Certified program.

ShowKontrol

The DJM-V10-LF supports the extended PRO DJ LINK ShowKontrol protocol. This enables DJs, technical producers, LJs, and VJs to use all the key information from the DJM-V10-LF, such as fader and knob positions, to align sound and visuals to create shows that blow audiences away.

Firmware Update Manager

You'll be automatically notified when firmware updates become available. You can download the Firmware Update Manager here.

Overview

If you like to perform smooth, detailed mixes, you can enjoy a high level of control with the DJM-V10-LF.

Specifications

• Frequency Range: 20 - 40000 Hz
• Sampling Rate: 96 kHz
• Width: 17.23 in
• Height: 4.25 in
• Depth: 18.39 in
• Weight: 26.24 lb
• A/D Converter: 32 bit
• D/A Converter: 32 bit
• S/N Ratio Line: 105 dB
• S/N Ratio Phono: 88 dB
• S/N Ratio Mic: 79 dB
• Distortion: < 0.005 % (LINE)
• EQ: 4 band
• EQ Range: [Hi/Low] -∞ ~ +6 dB / [Hi Mid/Low Mid] -26 dB ~ +6 dB dB
