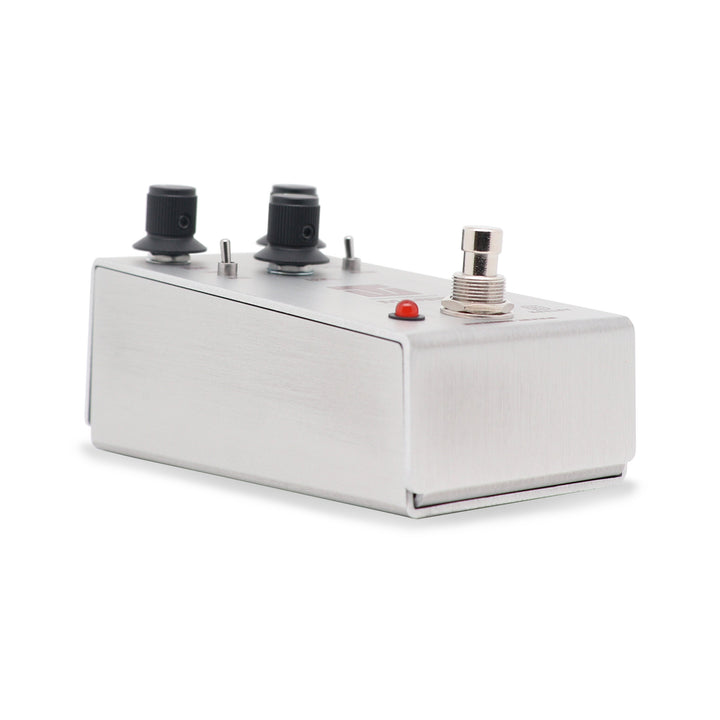

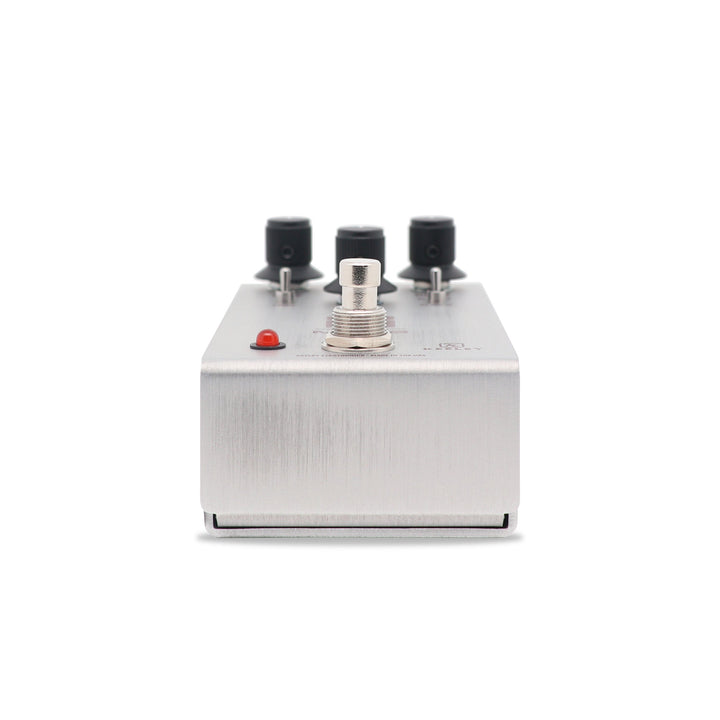

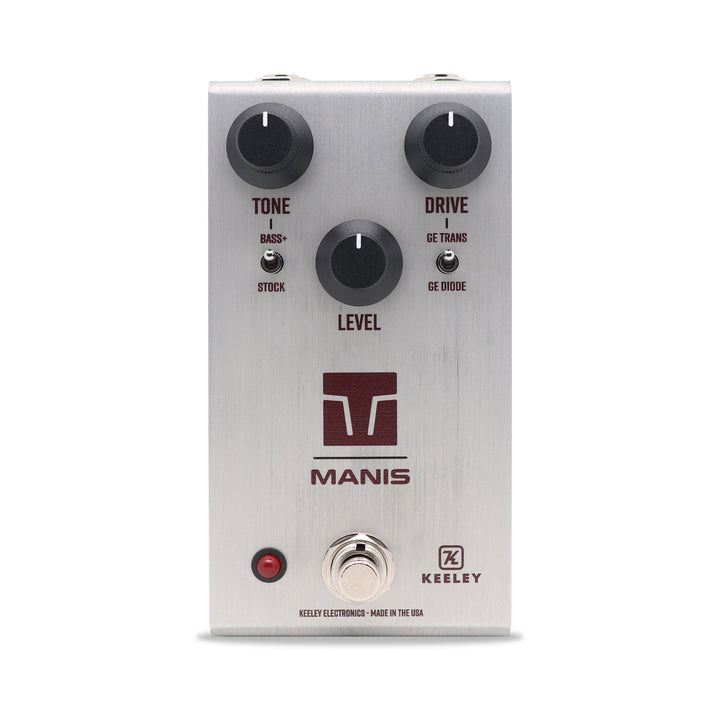

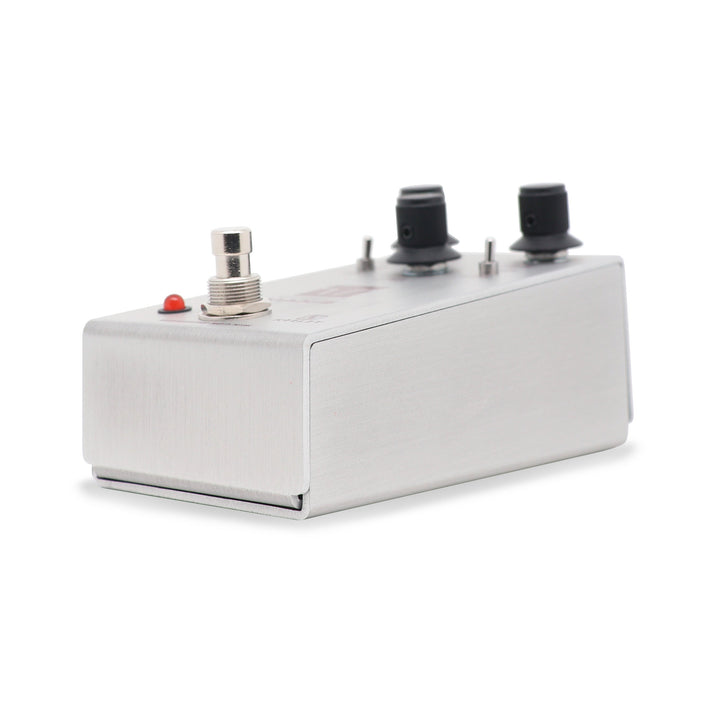

Keeley Manis Overdrive Pedal

Keeley pens the next chapter in the legend of the mythical Klone with the Manis Overdrive. The essential germanium diodes are at the heart of the myth and faithfully deliver iconic tones but that’s far from where the story ends. Toggle to swap in cold-war era germanium transistors for more sustain, saturation, and tube-like response that you can really feel under your fingertips. Maintain character and punch, dial down the upper-mid honk. Need more low-end? A dedicated bass boost switch lowers the cutoff an octave and adds 3dB, ideal for single coil low-end recovery. Built tough and uniquely capable of running on 18V for more headroom, a true first of its kind. The Manis is a modernized voltage-doubled hard clipping boost for purists & converts alike.

Features

• The Manis is a voltage-doubled Hard Clipping “clean boost”
• Ge-Trans Switch - Diodes or Transistors - Huge difference in feel with increased saturation and tube-like compression
• The Bass+ Switch - Lowers the frequency response by one octave and then pushes 3dB harder
• True-Bypass or Buffered Bypass/silent Switching - Whichever works best for your rig

Specifications

• Pedal Type: Overdrive Boost
• All Analog Drive Circuitry

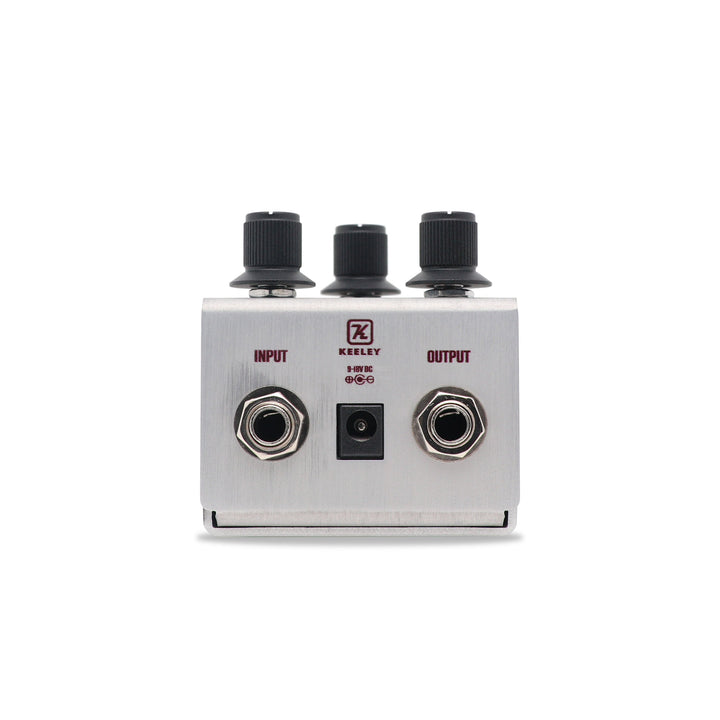

• Inputs/Outputs: TS ¼” jacks
• Input Impedance: 500k
• Output Impedance: 1k
• Bypass: True Bypass or Silent Buffered Bypass, user selectable
• Power Requirements: 9-18 VDC
• Current Draw: 15mA (power supply sold separately) - No battery
• Height: 2.7”
• Width: 2.6”
• Length: 5”
