Description

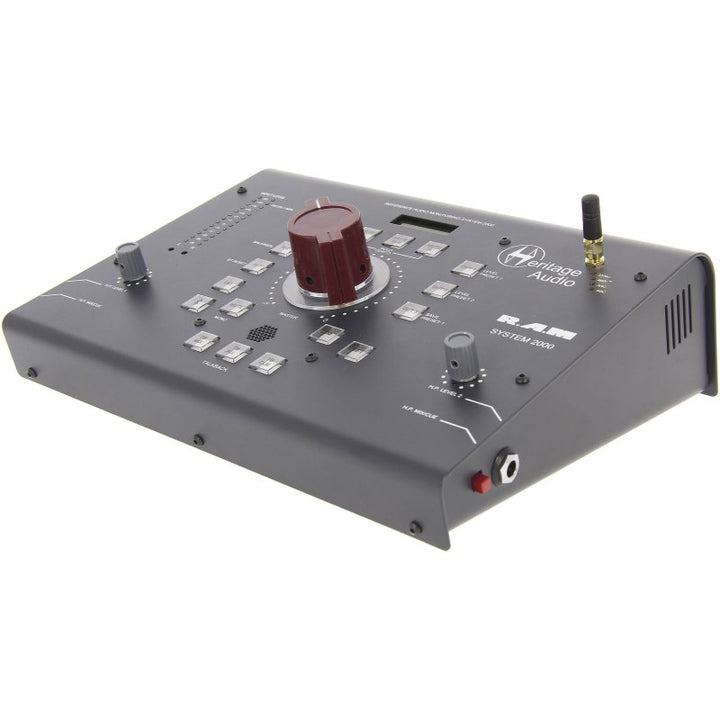

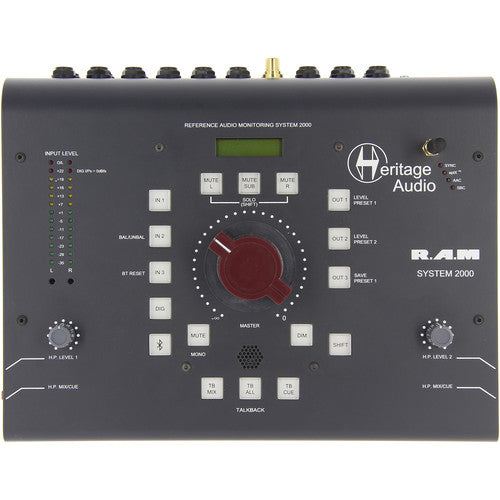

The Heritage Audio RAM System 2000 is a desktop monitor controller with 64-step gold-plated relay attenuation in 1 dB clicks, three analog input pairs, three speaker outputs, cue I/O, S/PDIF, Bluetooth, talkback, and two diamond-buffer headphone amps. The matching external supply is the PSU-03.
I/O and Level

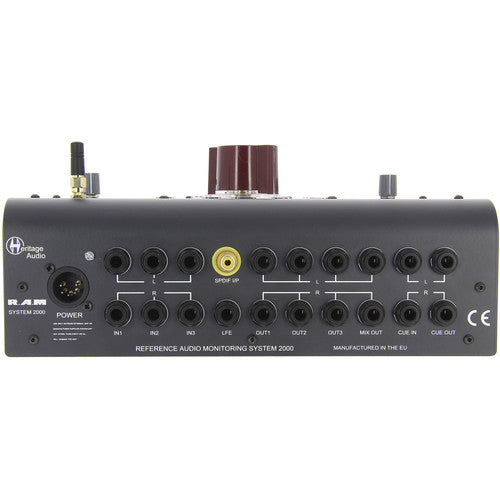

Three +4 dBu analog inputs (input 3 can switch to -10 dBu unbalanced), S/PDIF coax with Burr-Brown conversion up to 24-bit / 96 kHz, and Bluetooth (AAC, aptX, SBC) cover playback sources. Three stereo speaker outputs, a pre-fader mix out, independent cue I/O, and a shared subwoofer output cover the control room. Two user level presets store common monitoring volumes. Dim is -20 dB.
Specifications
- Attenuator: 64-step relay ladder, 1 dB
- Analog in: 3 stereo pairs, +4 dBu (input 3 switchable -10 dBu)
- Analog out: 3 stereo speakers, pre-fader mix, sub, cue
- Digital in: S/PDIF coax, 24-bit / 96 kHz
- Bluetooth: AAC, aptX, SBC
- Headphones: 2 diamond-buffer amps
- Max analog in: Greater than +27.5 dBu
- Noise: Better than -99 dBu
- THD: Better than 0.001% at 1 kHz
- Power supply: External PSU-03
In the Box
- Heritage Audio RAM System 2000
- PSU-03 external power supply
- Straight Bluetooth antenna
