Description

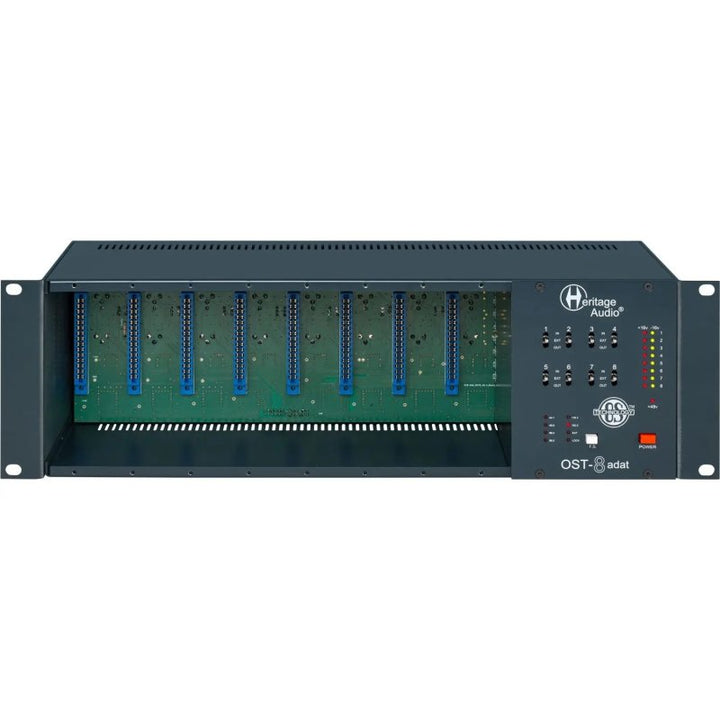

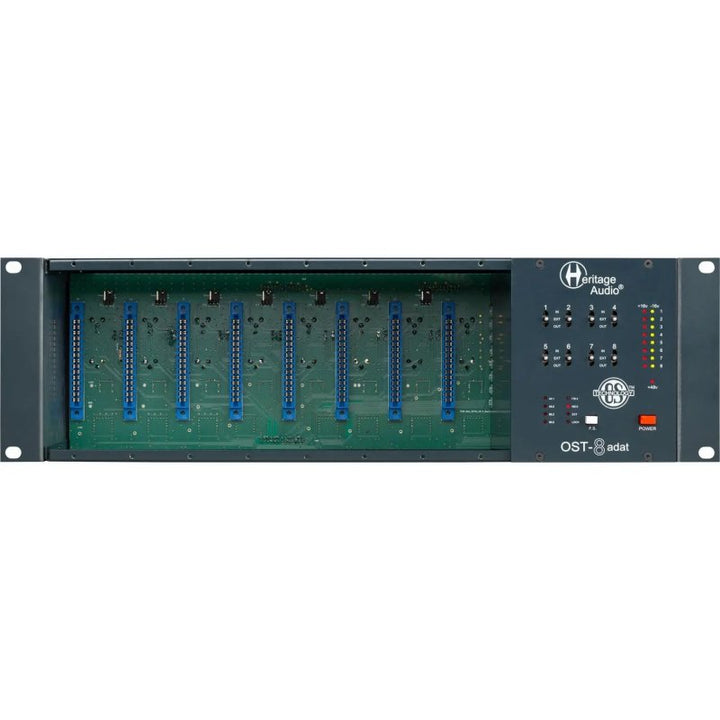

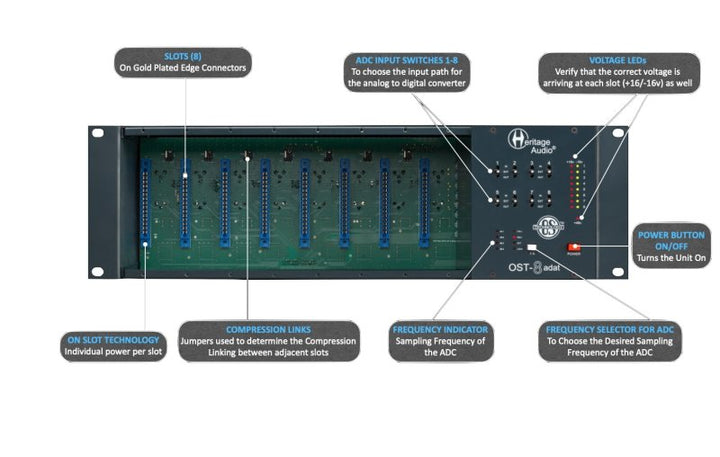

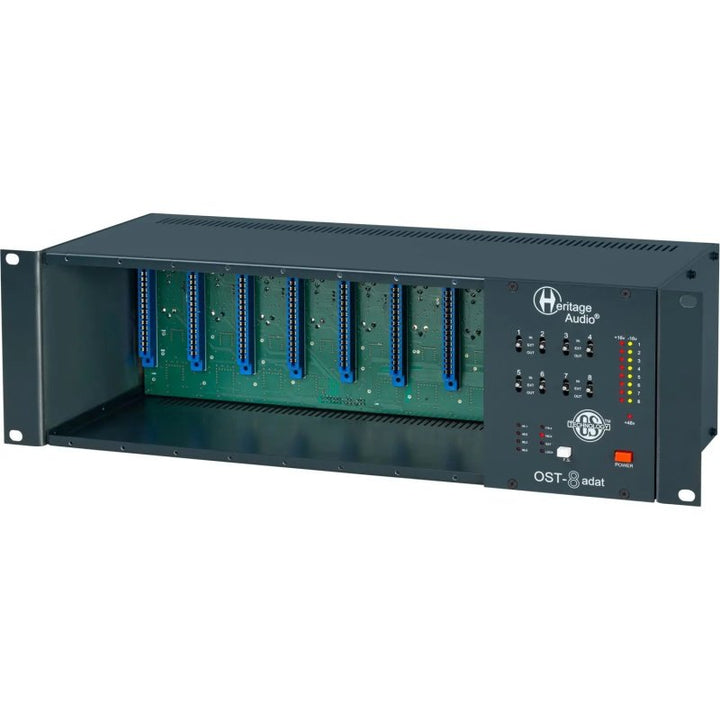

The Heritage Audio OST-8 ADAT is an 8-slot 500 Series enclosure with On Slot Technology and a built-in 24-bit / 192 kHz ADC feeding ADAT Lightpipe. Each slot has its own regulated supply and ±16 V LEDs. Per channel you can send the ADC the raw input, the module output, or an external analog feed, so the rack works as a converter on day one and as a processed analog front end as you fill slots.
Conversion and I/O

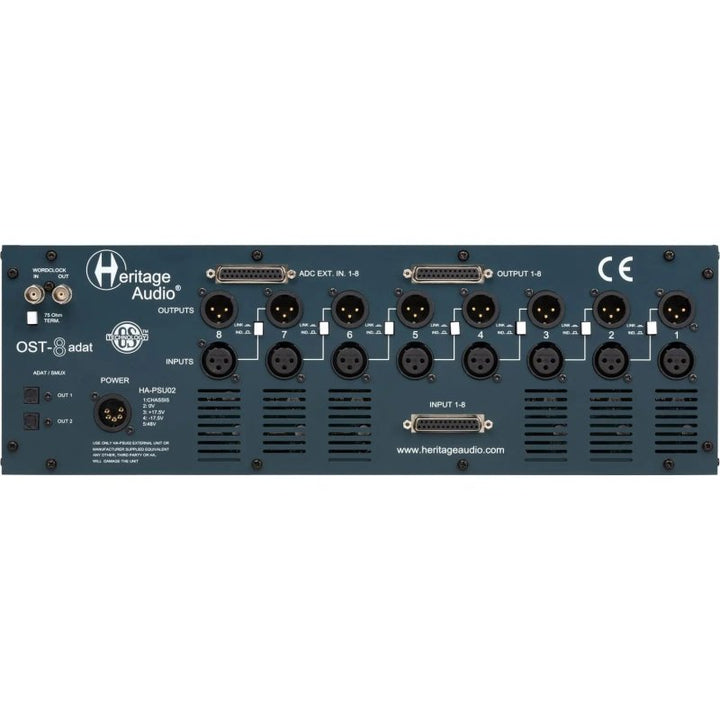

Two TOSLINK ports support S/MUX at 88.2/96 kHz (4+4) and 176.4/192 kHz (2+2). Word clock in/out on BNC lets the unit run as master or slave. Analog I/O is gold-plated XLR plus Tascam-pinout DB25. Maximum rails are 1.8 A or 400 mA per slot; phantom is 140 mA. Mains is 100-240 V AC.
Specifications
- Slots: 8 (double-wide compatible)
- ADC: 24-bit, 44.1-192 kHz
- Digital out: 2 x ADAT TOSLINK with S/MUX
- Word clock: BNC in/out
- Analog I/O: XLR and DB25 (Tascam)
- Audio rails: 1.8 A per rail or 400 mA per slot
- Phantom: 140 mA
- Mains: 100-240 V AC
