Description

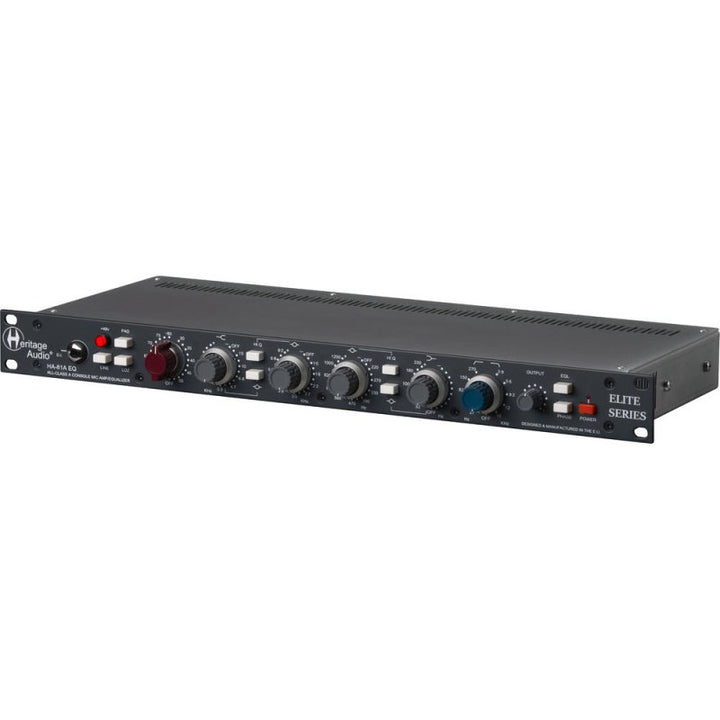

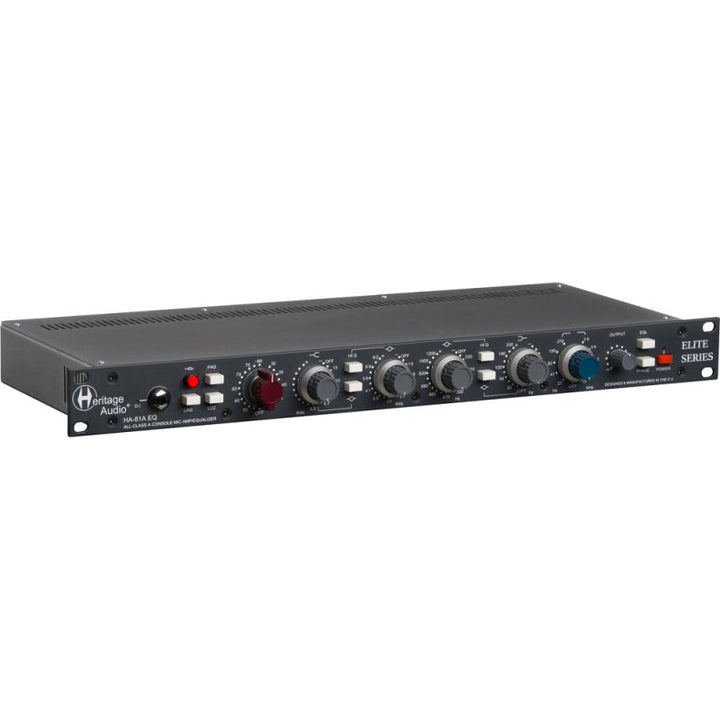

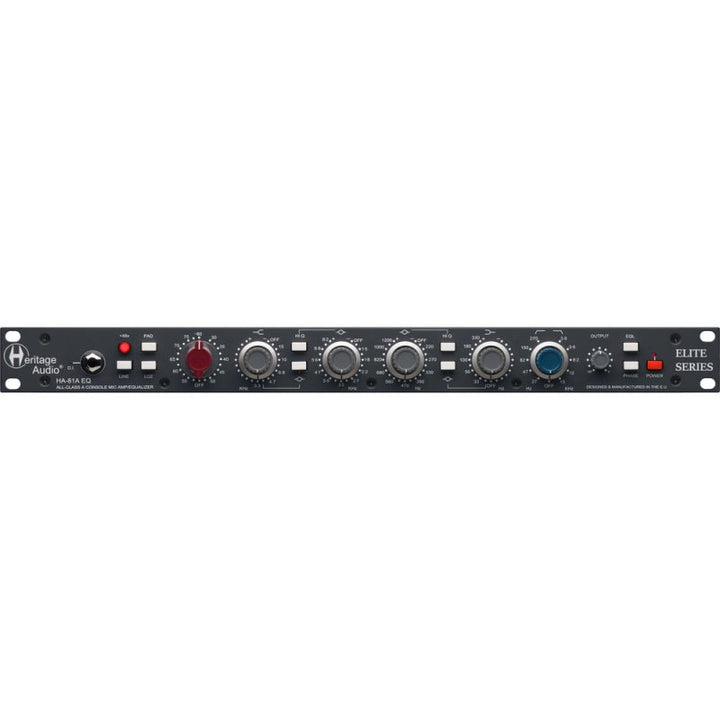

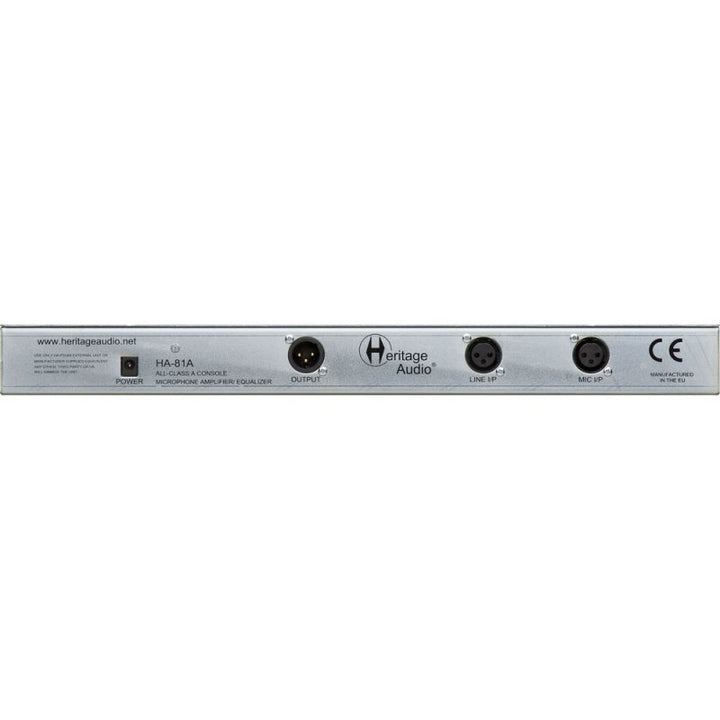

The Heritage Audio HA-81A Elite combines an 80 dB Class A 73-style mic preamp with a four-band 81-style inductor EQ and high/low-pass filters in one Elite Series rack unit. Carnhill St Ives transformers handle the balanced I/O. Rotary switches and concentric pots cover the EQ; the preamp has gain, output trim, 20 dB pad, polarity, and +48V.
81-Style Equalizer
High and low bands switch between shelf and bell. Both mid bands have dual Q and dedicated high-mid / low-mid ranges, for 40 frequency selections across the four bands. That is more surgical than a three-band 73 EQ without giving up inductor tone.
Specifications
- Format: Rackmount Elite Series
- Maximum gain: Greater than 80 dB
- EQ: 4-band inductor, HPF and LPF
- Mic input: Transformer balanced, HI 1200 Ω / LO 300 Ω
- Maximum output: Greater than +26.5 dBu into 600 Ω
- EIN: Less than -125 dBu at 80 dB mic gain
- Power: External PSU-04, less than 150 mA at 48 V DC
In the Box
- Heritage Audio HA-81A Elite
- PSU-04 external power supply
- IEC mains cable
