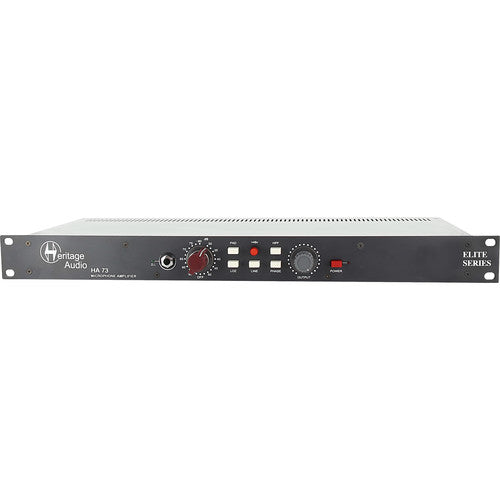

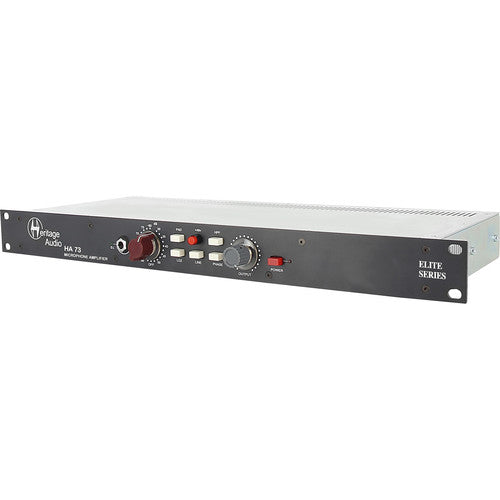

Heritage Audio HA-73 Elite Microphone Preamplifier
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
A few orders are not eligible: items that need specialty shipping (certain cases, stands and other gear that requires special handling), and orders shipping to Newfoundland and Labrador, the Northwest Territories or Nunavut.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm and Sezzle financing are available for most products. For Affirm, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Sezzle: eligible customers can split a purchase into 4 interest-free payments over 6 weeks. Approval and payment terms depend on the purchase amount and an eligibility check, may not be available in all provinces or territories, and are shown at checkout. Payment options are provided through Sezzle. For more information, please see sezzle.com/how-it-works.
Affirm: eligible customers can pay over time in monthly instalments. Your rate and available terms depend on an eligibility check based on creditworthiness, your purchase amount, and applicable provincial limits, and may not be available in all provinces or territories. Actual terms, the payment schedule, and any required down payment are shown at checkout. Payment options are provided through Affirm Canada Holdings Ltd. For more information, please see affirm.com/how-it-works.
Description
The Heritage Audio HA-73 Elite is a 1U 73-style microphone preamp with Carnhill transformers, 80 dB of Class A gain, a JFET DI, and a discrete high-pass filter. It is built in Spain to the same circuit targets as the 73JR II, in a rack chassis with an external power supply for lower noise.
Inputs and Controls

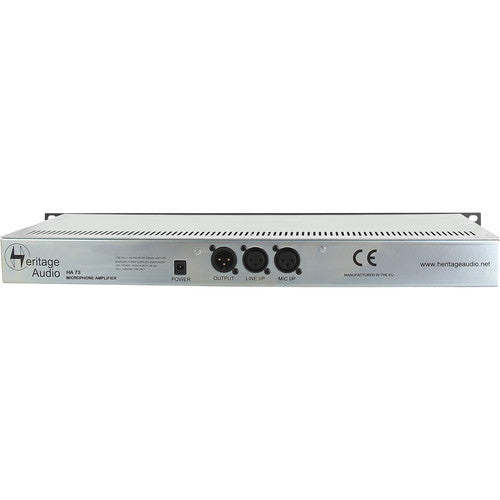

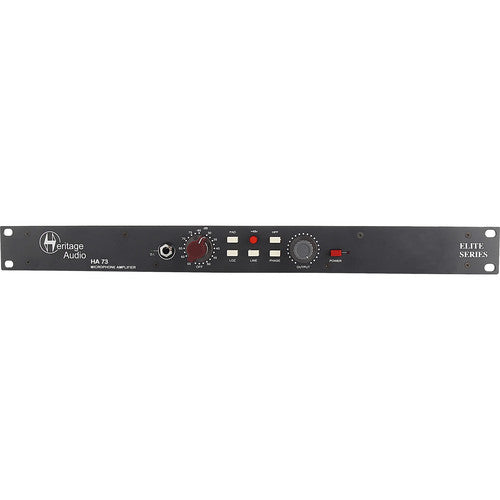

Dedicated mic, line, and instrument inputs sit behind transformer-balanced I/O. The front panel has gain, output trim, a 20 dB pad, polarity reverse, high-pass filter, and +48V phantom. The JFET DI is the same circuit used on the 73JR II.
Specifications
- Format: 1U rackmount, Elite Series
- Maximum gain: Greater than 80 dB
- Mic input: Transformer balanced, HI 1200 Ω / LO 300 Ω
- Line input: 10 kΩ, transformer balanced
- Maximum output: Greater than +26.5 dBu into 600 Ω
- EIN: Less than -125 dBu
- THD: Less than 0.025% at 1 kHz
- Frequency response: 20 Hz (+0.3 dB) to 20 kHz (-0.2 dB)
- Power: External PSU-04, less than 95 mA at 48 V DC
In the Box
- Heritage Audio HA-73 Elite
- PSU-04 external power supply
- IEC mains cable
