Description

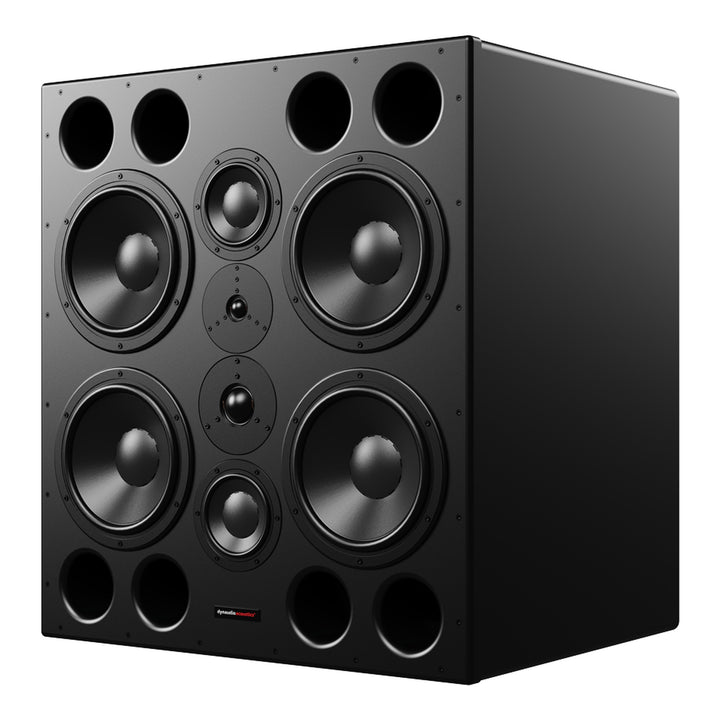

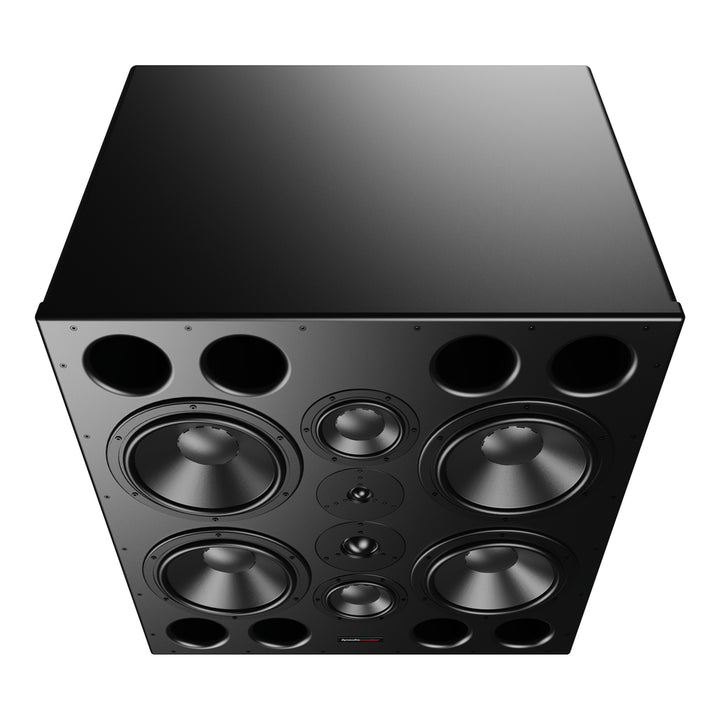

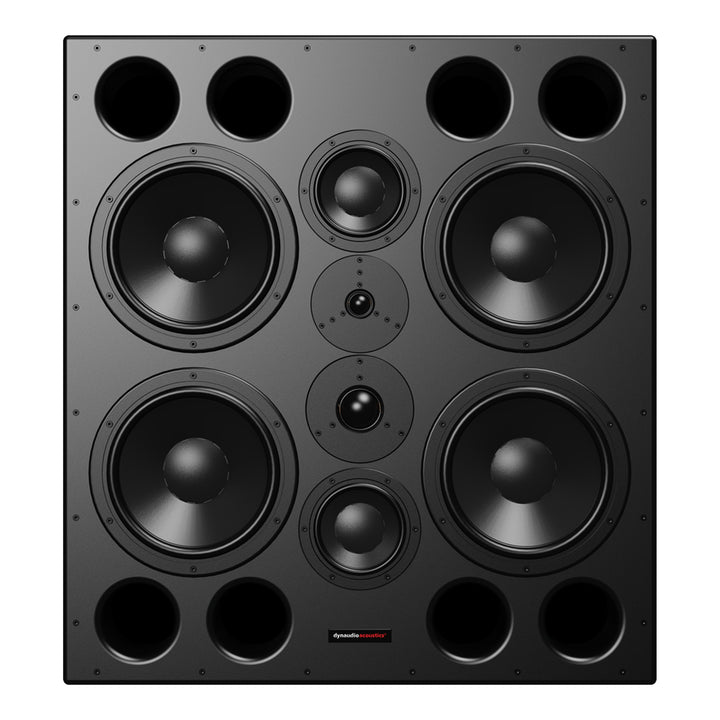

The Dynaudio Acoustics M4 MkII is a 4-way main monitor for large music recording and mixing rooms. Four 300 mm MSP woofers carry the bass, two 170 mm MSP drivers cover the low mids, and an Esotar soft dome and the Esotar 3 tweeter handle the upper mids and highs. A stereo pair reaches 130 dB at 2 meters with distortion held to 1% at 90 dB.
Drivers and Crossover
The woofers use 100 mm ferrofluid-cooled voice coils and run as two pairs, each pair on its own amplifier channel. The low-mid drivers have 75 mm voice coils and neodymium magnets, and both Esotar units use double-magnet motors. External crossovers split the signal at 250 Hz and 2 kHz, and a high-power passive network in the cabinet joins the upper mid and tweeter at 5 kHz.
Amplification and Installation
The M4 MkII has no built-in amplifiers. Each speaker takes four channels of 500 to 1,000 W, and Dynaudio recommends its DA40/80 DSP or DCA800/1400 amplifiers. The cabinet is usually flush-mounted in a wall, which adds low-frequency output, and it can also stand free. Dynaudio gives 2 to 6 meters as the listening distance and recommends that a qualified engineer carry out the final alignment.
Features
- 4-way hybrid design for large control rooms
- Four 300 mm MSP woofers with 100 mm ferrofluid-cooled voice coils
- Two 170 mm MSP low-mid drivers with neodymium magnets
- Esotar soft-dome upper midrange and Esotar 3 tweeter with double-magnet motors
- 130 dB maximum SPL at 2 m from a stereo pair
- Flush-mount or free-standing installation
- 4 mm binding posts
Specifications
- Type: 4-way hybrid, external amplification
- Application: Music recording and mixing
- Frequency response: 35 Hz to 20 kHz
- Maximum SPL: 130 dB at 2 m (stereo)
- Crossover frequencies: 250 Hz, 2 kHz, 5 kHz
- Total harmonic distortion: 1% at 90 dB
- Tweeter: Esotar 3
- Upper midrange: Esotar soft dome
- Low midrange: 2 x 170 mm MSP
- Woofers: 4 x 300 mm MSP
- Impedance: LF 2 x 4 ohms, LMF 4 ohms, MF/HF 4 ohms
- Recommended amplifier power: Four channels per speaker, 500 to 1,000 W per channel
- Amplifier recommendation: Dynaudio Acoustics DA40/80 DSP, DCA800/1400
- Connectors: 4 mm binding posts
- Dimensions (H x W x D): 900 x 850 x 680 mm (35.4 x 33.5 x 26.8 in)
- Weight: 145 kg (320 lb)
- Finish: Black textured paint
