Description

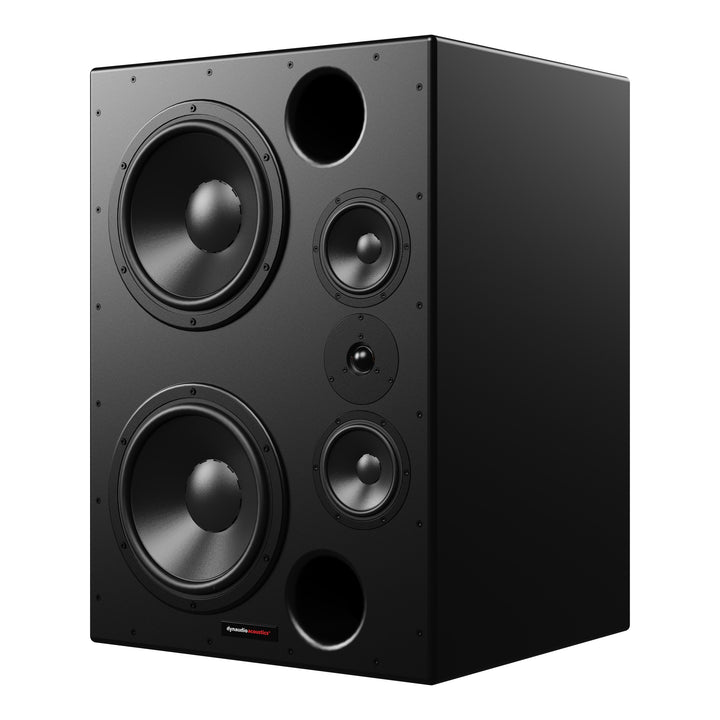

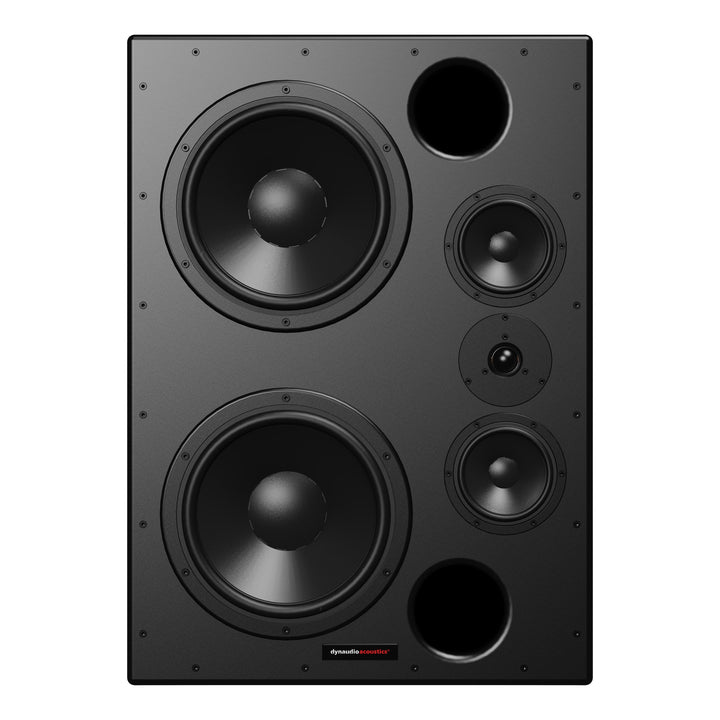

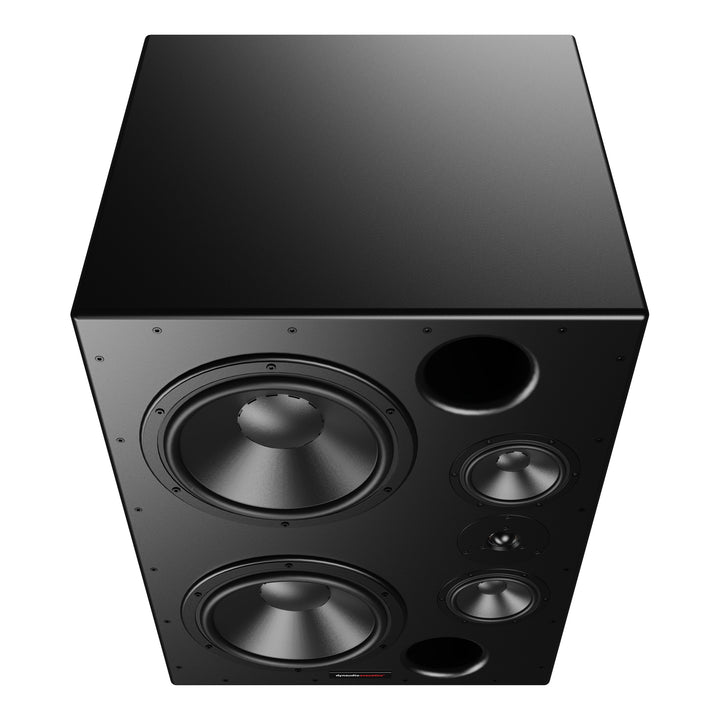

The Dynaudio Acoustics M3 MkII is a three-way main monitor for small to medium music rooms and film dubbing theaters, built to run continuously at high power. Two 30 cm MSP woofers, two 15 cm MSP midrange drivers and a high-power Esotar 3 dome tweeter cover 35 Hz to 20 kHz and reach 123 dB at 2 meters with a stereo pair. It is a passive speaker, and Dynaudio recommends two amplifier channels of 500 to 1000 W per speaker.
Design
Dynaudio designed the M3 MkII to eliminate cone break-up, thermal compression and phase misalignment at high levels, so the response stays full and flat as the volume goes up. The Esotar 3 tweeter also appears in Dynaudio's high-end home and theater speakers. The system is driven two-way active, with a passive network inside the cabinet dividing the midrange and tweeter. Dynaudio's DA40 DSP amplifier or a pair of DCA800 amplifiers with filters handle the active split.
Installation
The M3 MkII can stand on stands or be flush-mounted in a wall, which raises its low-frequency output. Dynaudio puts the best listening distance at 1.5 to 5 meters, measured from the center of the tweeter, and the woofers can sit on the inside or the outside of the pair to suit the room. The speaker connects through gold screw-down 4 mm binding posts, and no cabling is supplied, since every installation is built to the room. Dynaudio recommends that a qualified engineer with measurement gear carries out the final setup and alignment.
Features
- High-power Esotar 3 dome tweeter, two 15 cm MSP midrange drivers and two 30 cm MSP woofers
- Designed for continuous high-power operation
- 3-way hybrid design: active split for the woofers, passive network for midrange and tweeter
- 123 dB maximum SPL at 2 m (stereo)
- 35 Hz to 20 kHz frequency response
- Stand or flush mounting
- Black textured paint finish
Specifications
- Application: Music and post-production
- Type: 3-way hybrid
- Frequency response: 35 Hz to 20 kHz
- Maximum SPL: 123 dB at 2 m (stereo)
- Crossover frequencies: 400 Hz and 3900 Hz
- Total harmonic distortion: 1% at 90 dB
- Impedance: 4 ohms LF, 4 ohms MF/HF
- Recommended amplifier power: Two channels per speaker, 500 to 1000 W per channel
- Recommended amplifiers: Dynaudio Acoustics DA40 DSP, DCA800 (with filters)
- Tweeter: Esotar 3 soft dome
- Midrange: 2 x 15 cm MSP
- Woofers: 2 x 30 cm MSP
- Connectors: 4 mm binding posts
- Dimensions (H x W x D): 775 x 555 x 505 mm (30.5 x 21.9 x 19.9 in)
- Weight: 65 kg (143.3 lb)
- Finish: Black textured paint
