Dynaudio LYD 48 8" 3-Way Active Studio Monitor (White, Left)
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
A few orders are not eligible: items that need specialty shipping (certain cases, stands and other gear that requires special handling), and orders shipping to Newfoundland and Labrador, the Northwest Territories or Nunavut.
Carriers sometimes charge far more for oversized freight to certain locations. In that rare case, we pay most of the extra and ask you to cover a small part.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm and Sezzle financing are available for most products. For Affirm, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Sezzle: eligible customers can split a purchase into 4 interest-free payments over 6 weeks. Approval and payment terms depend on the purchase amount and an eligibility check, may not be available in all provinces or territories, and are shown at checkout. Payment options are provided through Sezzle. For more information, please see sezzle.com/how-it-works.
Affirm: eligible customers can pay over time in monthly instalments. Your rate and available terms depend on an eligibility check based on creditworthiness, your purchase amount, and applicable provincial limits, and may not be available in all provinces or territories. Actual terms, the payment schedule, and any required down payment are shown at checkout. Payment options are provided through Affirm Canada Holdings Ltd. For more information, please see affirm.com/how-it-works.
Description

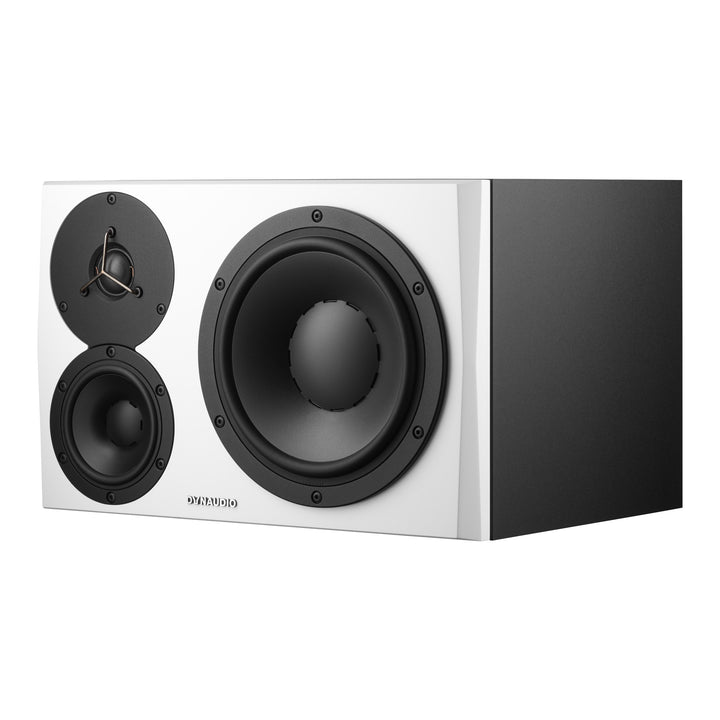

The Dynaudio LYD 48 is the largest monitor in the LYD series, a 3-way active design for near or midfield listening in project and professional studios. An 8-inch MSP woofer, a 4-inch MSP midrange and a 1.1-inch soft-dome tweeter each run from their own Class-D amplifier, 80 W for the woofer and 50 W each for the midrange and tweeter, through a 24-bit/96 kHz DSP signal path. It plays to 112 dB maximum SPL as a pair, with response down to 50 Hz. This listing is the left speaker in White Satin.
Left and Right Models

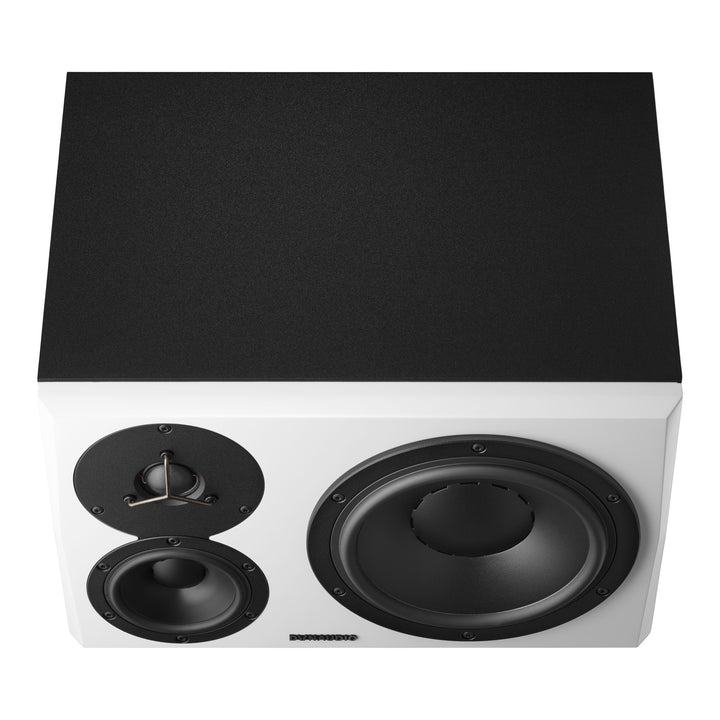

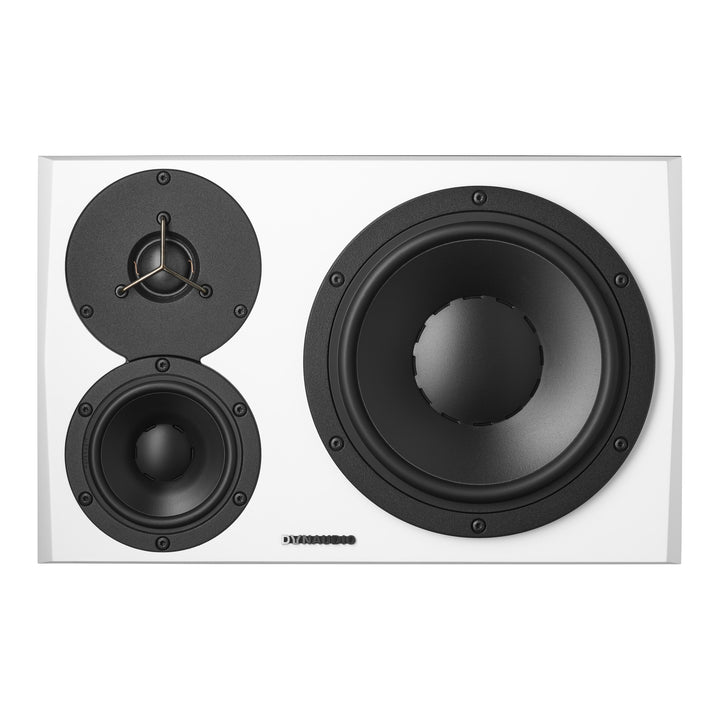

The LYD 48 lies horizontally, and Dynaudio builds it in dedicated left and right versions. The left speaker carries its woofer on the right side of the baffle, so when the pair is set up, both woofers sit on the inside, which is the placement the LYD manual recommends. Pair it with the LYD 48 right speaker in the same finish. The manual puts the ideal listening distance at 1.5 to 2.5 m.
Tuning to Your Room

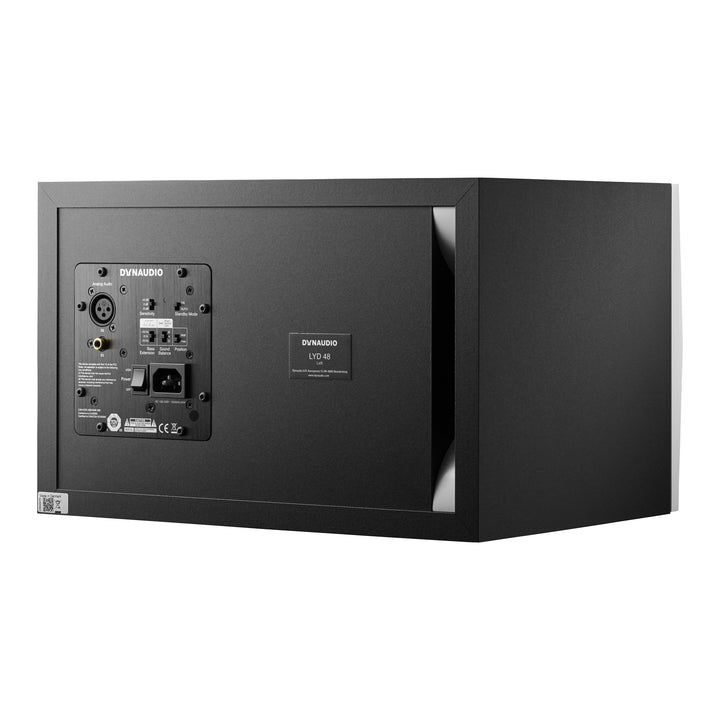

Three DSP switches on the rear panel adapt the LYD 48 to the room. Bass Extension moves the low-frequency cutoff 10 Hz lower or higher, trading bass reach against maximum level. Sound Balance tilts the response by 1.5 dB at either end of the spectrum for a brighter or darker voicing, and Position applies a boundary filter for speakers placed within 50 cm of a wall.
Features
- 3-way design with 8" MSP woofer, 4" MSP midrange and 1.1" soft-dome tweeter
- Tri-amplified: 80 W woofer, 50 W midrange and 50 W tweeter, Class-D
- 24-bit/96 kHz DSP signal path
- Horizontal cabinet in dedicated left and right versions
- Bass Extension switch: -10 Hz, 0 Hz or +10 Hz
- Sound Balance switch: Bright, Neutral or Dark
- Position switch: Free or Wall (within 50 cm of a wall)
- Input sensitivity switch: +6 dB, 0 dB or -6 dB
- Auto standby mode
- Balanced XLR and unbalanced RCA inputs
- Made in Denmark
Specifications
- Type: Active 3-way near and midfield monitor
- Woofer: 8" MSP
- Midrange: 4" MSP
- Tweeter: 1.1" soft dome
- Amplifier power: 80 W woofer, 50 W midrange, 50 W tweeter, Class-D
- Crossover: DSP-based, 460 Hz and 5.5 kHz
- Frequency range: 50 Hz to 21 kHz (+/-3 dB)
- Maximum SPL: 112 dB (1 m, pair)
- Sensitivity: 100 mV for 85 dB SPL at 1 m (0 dB setting)
- Enclosure: Bass reflex, rear port
- Inputs: XLR balanced, RCA unbalanced
- Power: 100-240 V AC, 50/60 Hz
- Power consumption: 100 W maximum, 0.5 W standby
- Dimensions (W x H x D): 369 x 234 x 328 mm (14.5 x 9.2 x 12.9 in)
- Weight: 12 kg (26.5 lbs)
- Orientation: Horizontal, left speaker
- Finish: White Satin
- Sold as: Single speaker
