Description

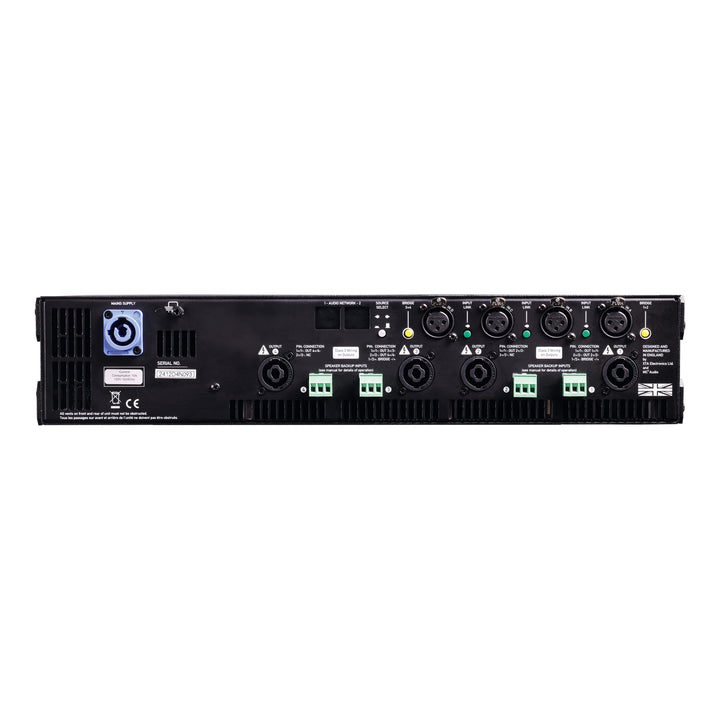

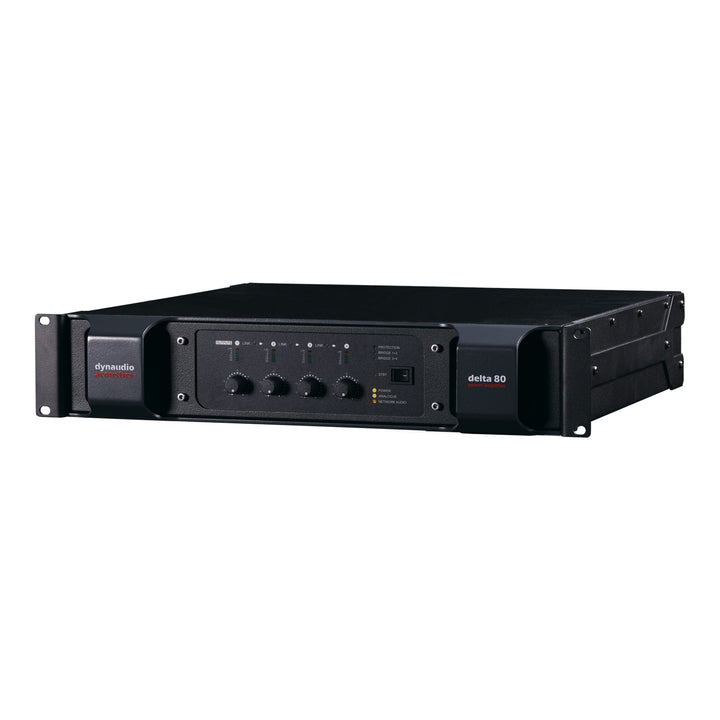

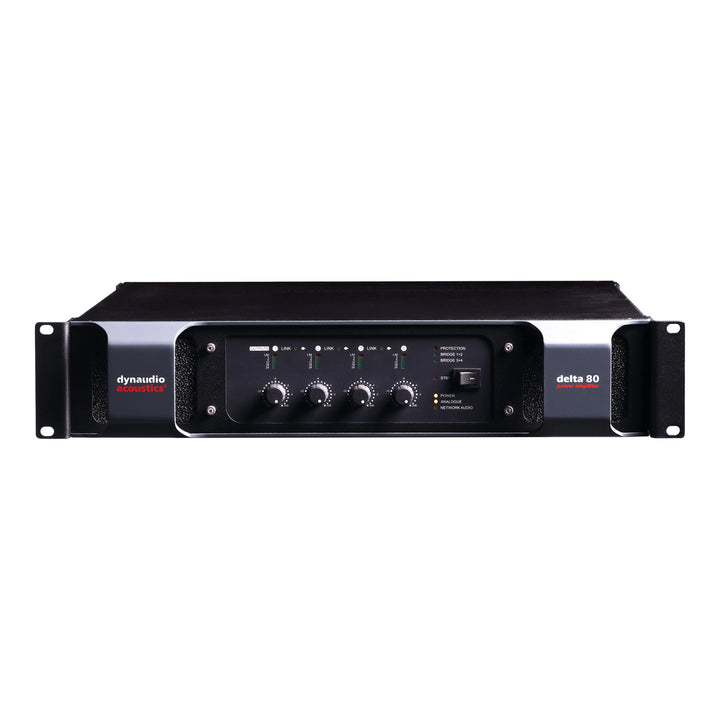

The Dynaudio Delta 80 is a four-channel 2U power amplifier for studios and installations that handle processing elsewhere and need clean power for passive monitors. It delivers 2000 W per channel into 4 ohms, or 4000 W from a bridged pair, with THD below 0.18% at 1 kHz. Setup stays simple, with four balanced XLR inputs, a level control for each channel on the front panel and speakON outputs on the back. This is the 120 V model.
Working with Delta DSP
The Delta 80 has no onboard processing of its own. A Delta DSP amplifier can feed it processed signal from its four auxiliary outputs, so one DSP model runs crossovers and EQ for a stereo four-way system. With the optional Dante card fitted, a rear-panel switch moves all four channels from the XLR inputs to the network, with 24-bit/96 kHz conversion.
Protection and Backup
Every channel has a limiter, and the amplifier protects itself and the speakers against short circuits, DC and overheating. Depending on the fault, protection mutes all four channels or one channel pair. A short circuit on an output mutes only its own pair, 1+2 or 3+4, and the other two channels keep playing. Speaker backup inputs on the rear panel connect a redundant backup amplifier.
Features
- Four channels, 2000 W per channel into 4 ohms
- Channel pairs 1+2 and 3+4 bridge for 4000 W into 4 ohms
- Four balanced XLR inputs with rear-panel link switches
- Rear-panel source switch for analog or Dante network audio (the Dante card is an option)
- Level control and signal meter with limit indicator on each channel
- speakON outputs, with the channel 1 and 3 sockets also carrying channels 2 and 4 for bi-amping or bridging over one NL4 cable
- Speaker backup inputs for a redundant backup amplifier
- Standby mode powers down the amplifier channels
- Limiters, short-circuit, DC and thermal protection, and mains inrush control
- Variable-speed fans with front-to-rear airflow and a cleanable front filter
Specifications
- Channels: 4
- Output power per channel: 1000 W at 8 ohms, 2000 W at 4 ohms, 2200 W at 2.7 ohms, 2000 W at 2 ohms
- Output power, bridged: 4000 W at 8 ohms, 4000 W at 4 ohms
- Minimum load: 2 ohms with reduced output (4 ohms bridged)
- THD (1 dB below maximum output): below 0.18% at 1 kHz, below 0.2% from 20 Hz to 20 kHz
- Frequency response: 20 Hz to 20 kHz (+0/-0.5 dB)
- Gain: 32 dB
- Sensitivity for maximum power: 8.2 dBu
- Input impedance: 20 kilohms, active balanced
- Input CMRR: above 60 dB
- Damping factor: above 400 (1 kHz, 8 ohms)
- Inputs: 4 x balanced XLR
- Outputs: 4 x Neutrik speakON
- Current draw: 8.2 A nominal at 120 V into 4 ohms, below 5 W in standby
- Mains: 120 V, powerCON inlet
- Rack size: 2U, 19 in
- Dimensions (H x W x D): 88 x 482 x 428 mm (3.5 x 19.0 x 16.9 in)
- Weight: 10.1 kg (22.3 lbs)
- Shipping weight: 11.6 kg (25.6 lbs)
