Description

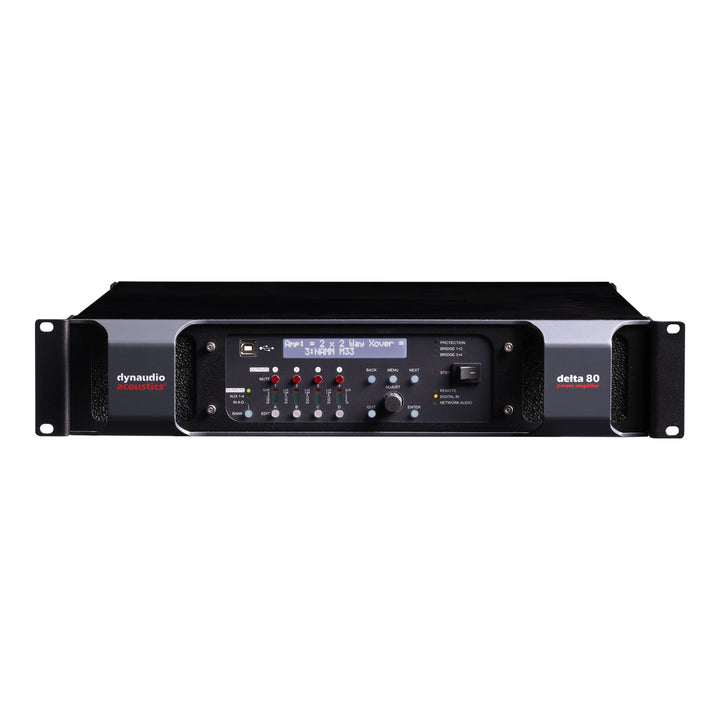

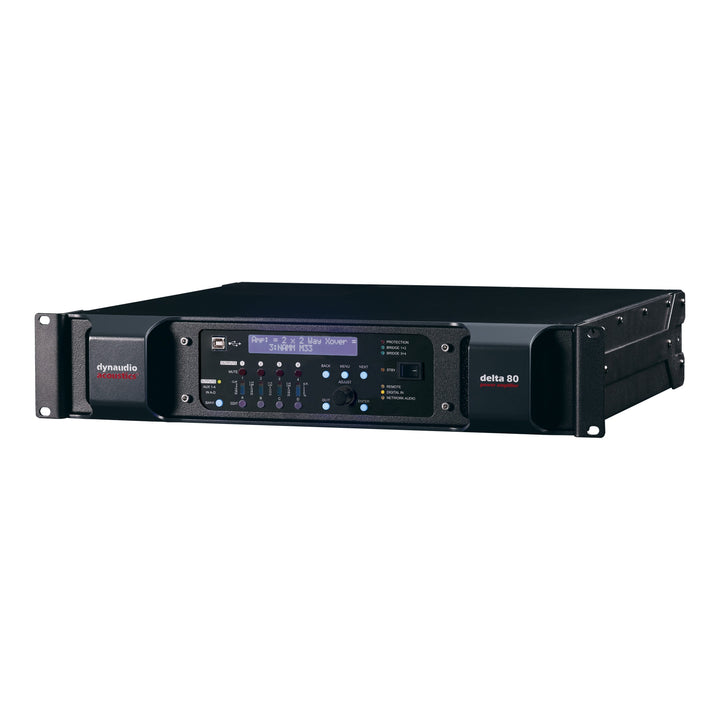

The Dynaudio Delta 80 DSP is a four-channel 2U power amplifier with built-in processing, made for studios and installations that run passive monitors. It delivers 2000 W per channel into 4 ohms, or 4000 W from a bridged pair, with THD below 0.18% at 1 kHz. Onboard EQ, crossovers, delay and limiting handle room tuning and multi-way splits without an outboard processor. Dynaudio names the Delta 80 DSP as an amplifier option for its Dynaudio Acoustics M3FX monitors. This is the 120 V model.
Processing and Control
Each input has eight parametric EQ bands and three bands of dynamic EQ. Each output adds nine more parametric bands, Butterworth, Bessel or Linkwitz-Riley crossover filters up to 48 dB per octave, FIR filtering, up to 650 ms of delay, and program and peak limiters. Settings are edited on the front-panel display, from a computer over USB, Ethernet or RS485, or wirelessly from an iPad with the DeltaDirect app.
Inputs, Outputs and Backup

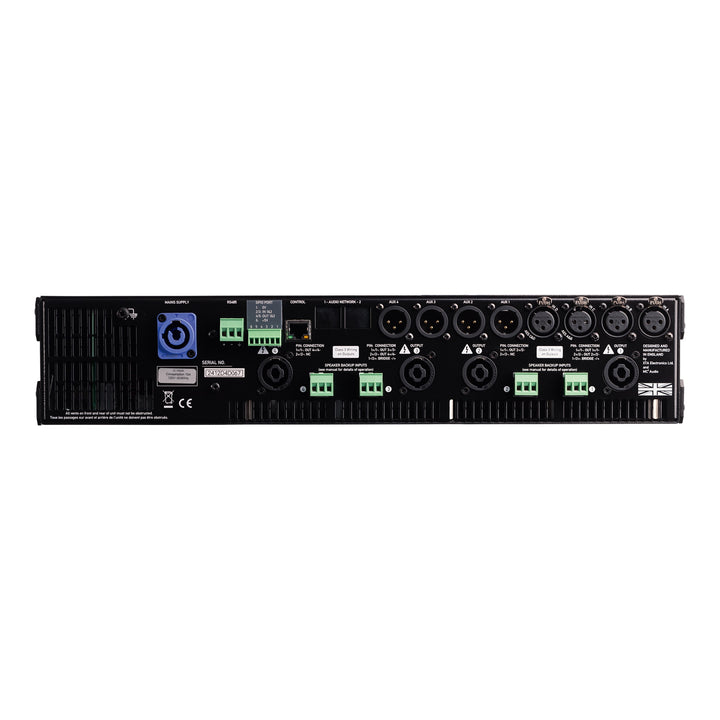

Four balanced XLR inputs take analog signal, and inputs C and D switch to AES3 digital with a stereo pair on each, so an analog feed can stay patched as a fallback. Four auxiliary XLR outputs run their own processing channels and can drive a non-DSP Delta amplifier for a stereo four-way system. An optional Dante card adds four network inputs and four network outputs. Speaker backup inputs on the rear panel connect a redundant backup amplifier.
Features
- Four channels, 2000 W per channel into 4 ohms
- Channel pairs 1+2 and 3+4 bridge for 4000 W into 4 ohms
- 8 parametric and 3 dynamic EQ bands per input
- 9 parametric EQ bands, crossover filters, FIR filtering, delay and limiters per output
- Four independently processed auxiliary XLR outputs
- Analog XLR inputs, with inputs C and D switchable to AES3
- Optional Dante card with four network inputs and four network outputs
- Control from the front panel, USB, Ethernet, RS485, AudioCore software and the DeltaDirect iPad app
- GPIO port with two inputs and two outputs for memory recall, standby, mutes and level control
- Settings stored as memories, with a password-protected front-panel lock
- Speaker backup inputs for a redundant backup amplifier
- Standby mode powers down the amplifier channels and keeps the DSP running
- Limiters, short-circuit, DC and thermal protection, and mains inrush control
- Variable-speed fans with front-to-rear airflow and a cleanable front filter
Specifications
- Channels: 4
- Output power per channel: 1000 W at 8 ohms, 2000 W at 4 ohms, 2200 W at 2.7 ohms, 2000 W at 2 ohms
- Output power, bridged: 4000 W at 8 ohms, 4000 W at 4 ohms
- Minimum load: 2 ohms with reduced output (4 ohms bridged)
- THD (1 dB below maximum output): below 0.18% at 1 kHz, below 0.2% from 20 Hz to 20 kHz
- Frequency response: 20 Hz to 20 kHz (+0/-0.5 dB)
- Gain: 32 dB
- Sensitivity for maximum power: 8.3 dBu
- Input impedance: 20 kilohms, active balanced
- Input CMRR: above 60 dB
- Damping factor: above 400 (1 kHz, 8 ohms)
- DSP sample rate: 96 kHz
- AES3 input sample rates: 32 kHz to 192 kHz
- Auxiliary outputs: active balanced XLR, +18 dBu maximum, above 114 dB dynamic range
- Delay: up to 650 ms per input and per output
- Crossover filters: Bessel and Butterworth 6 to 48 dB per octave, Linkwitz-Riley 12, 24 and 48 dB per octave
- Current draw: 8.2 A nominal at 120 V into 4 ohms, below 5 W in standby
- Mains: 120 V, powerCON inlet
- Rack size: 2U, 19 in
- Dimensions (H x W x D): 88 x 482 x 428 mm (3.5 x 19.0 x 16.9 in)
- Weight: 10.3 kg (22.7 lbs)
- Shipping weight: 11.8 kg (26.0 lbs)
