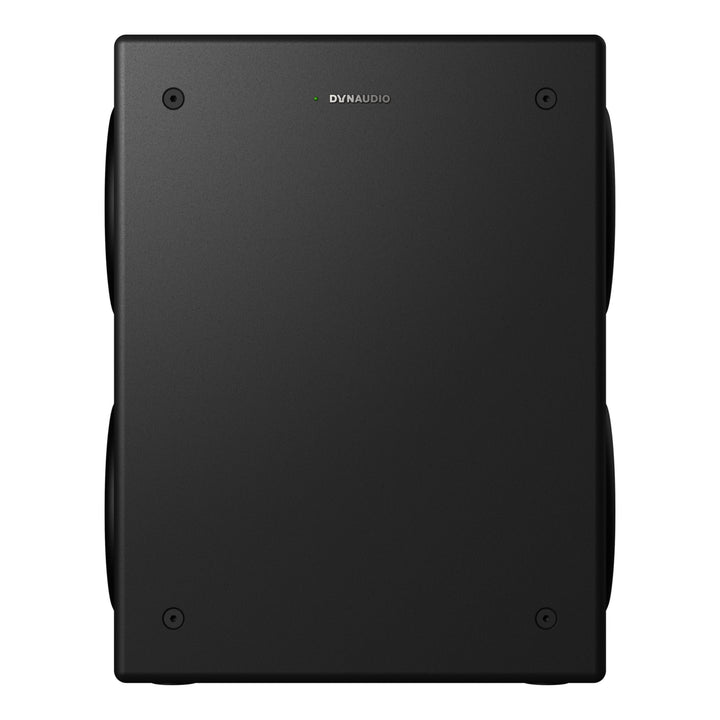

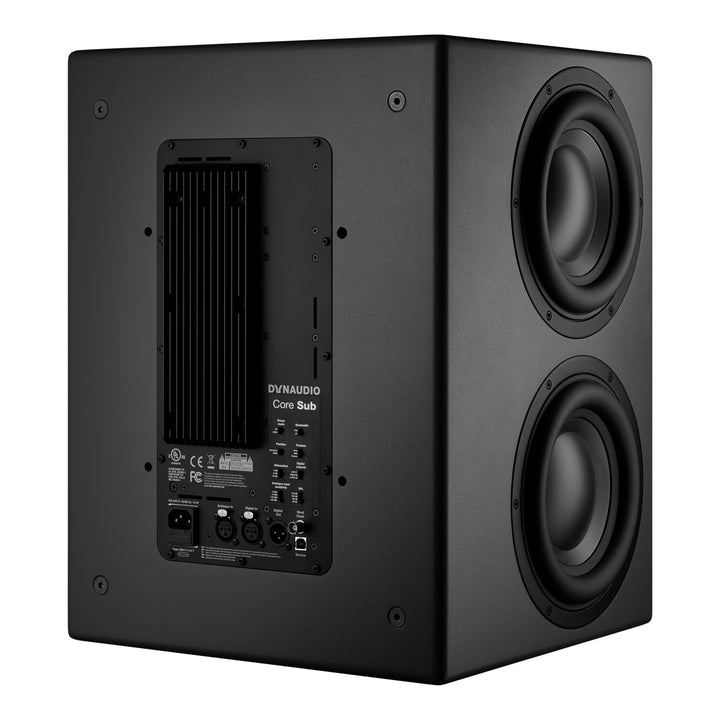

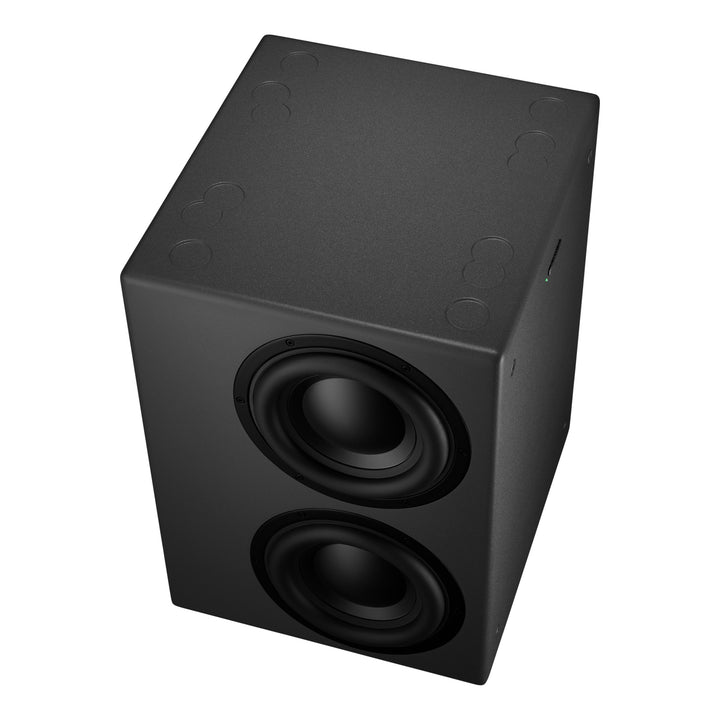

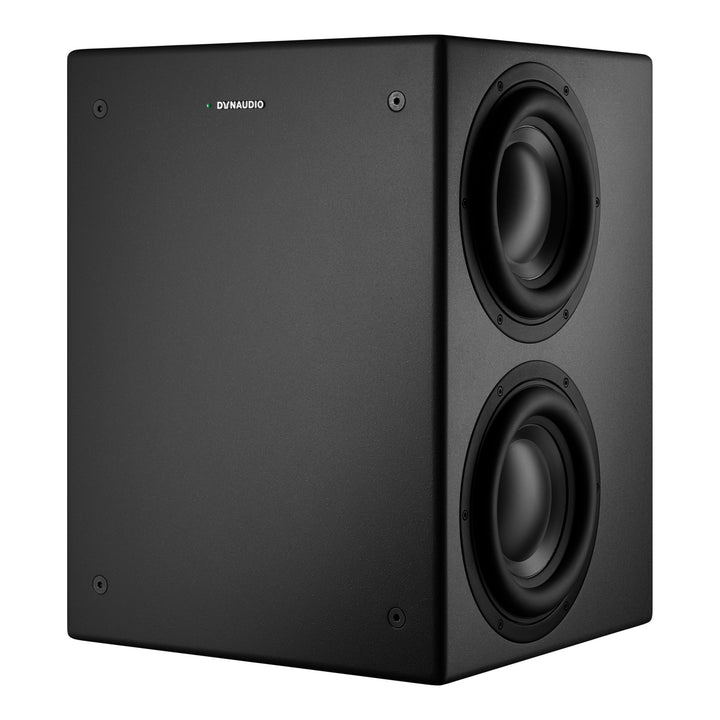

Dynaudio Core Sub Active Studio Subwoofer (Dark Grey)
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
A few orders are not eligible: items that need specialty shipping (certain cases, stands and other gear that requires special handling), and orders shipping to Newfoundland and Labrador, the Northwest Territories or Nunavut.
Carriers sometimes charge far more for oversized freight to certain locations. In that rare case, we pay most of the extra and ask you to cover a small part.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm and Sezzle financing are available for most products. For Affirm, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Sezzle: eligible customers can split a purchase into 4 interest-free payments over 6 weeks. Approval and payment terms depend on the purchase amount and an eligibility check, may not be available in all provinces or territories, and are shown at checkout. Payment options are provided through Sezzle. For more information, please see sezzle.com/how-it-works.
Affirm: eligible customers can pay over time in monthly instalments. Your rate and available terms depend on an eligibility check based on creditworthiness, your purchase amount, and applicable provincial limits, and may not be available in all provinces or territories. Actual terms, the payment schedule, and any required down payment are shown at checkout. Payment options are provided through Affirm Canada Holdings Ltd. For more information, please see affirm.com/how-it-works.
Description
The Dynaudio Core Sub is the full-size subwoofer for the Core range of reference monitors. Four side-firing 9-inch MSP+ Hybrid Drive woofers sit in a sealed cabinet with 2 x 500 W of Pascal Class D amplification, and the response stays within 3 dB from 15 Hz to 160 Hz. It runs on the same DSP and electronics as the Core monitors, so it matches their tonality and setup, from extending a single speaker through 2.1 bass management to a theatrical LFE channel.
Hybrid Drive Woofers
The MSP+ Hybrid Drive is made mainly of aluminum for stiffness. A paper damping layer on the back and a Magnesium Silicate Polymer cap on the front stop the aluminum from ringing, which keeps the bass tight and controlled. It is an improved version of the driver in Dynaudio's 18S subwoofer.
Setup and Placement
The Bandwidth switch engages an 80 Hz low-pass filter to match a Core monitor set to its 80 Hz high-pass, and Position switches compensate for soffit, wall and corner placement. An Attenuation switch handles systems with two or four subwoofers, and the Digital Channel switch picks left, right or left plus right from the AES3 stream. Up to three Core Subs stack, indentations on top locate a Core monitor, and VESA points allow wall mounting.
Features
- Four side-firing 9-inch MSP+ Hybrid Drive woofers
- Sealed enclosure
- Two Pascal Class D amplifiers, 500 W each
- Core DSP with 80 Hz low-pass, position and boundary filters
- Attenuation switch for two- or four-subwoofer systems
- Analog XLR and AES3 inputs, AES3 pass-through output and word clock input
- Stacks up to three high, with top indentations for Core monitors
- VESA mounting points
- Auto on/off standby
- Drivers made in Denmark, each subwoofer calibrated at the factory
Specifications
- Type: Active subwoofer, sealed
- Woofers: 4 x 9-inch MSP+ Hybrid Drive
- Amplifiers: Pascal Class D, 2 x 500 W
- Frequency response (±3 dB): 15 Hz to 160 Hz
- Frequency response (-6 dB): 14 Hz to 165 Hz
- Maximum SPL: 106 dB at 1 m anechoic, 112 dB half space
- Inputs: Balanced analog XLR, AES3 digital XLR, BNC word clock (75 ohm)
- Output: AES3 XLR pass-through
- Digital resolution: Up to 24-bit/192 kHz (32, 44.1, 48, 96 and 192 kHz), no sample-rate conversion
- Service port: USB Type B for firmware updates
- Power: 100 to 120 V or 200 to 240 V, 50/60 Hz, 0.5 W standby
- Dimensions (W x H x D): 390 x 514 x 365 mm (15 3/8 x 20 x 14 3/8 in)
- Weight: 48 kg (105.8 lb)
- Finish: Dark Grey
- Units per box: 1
