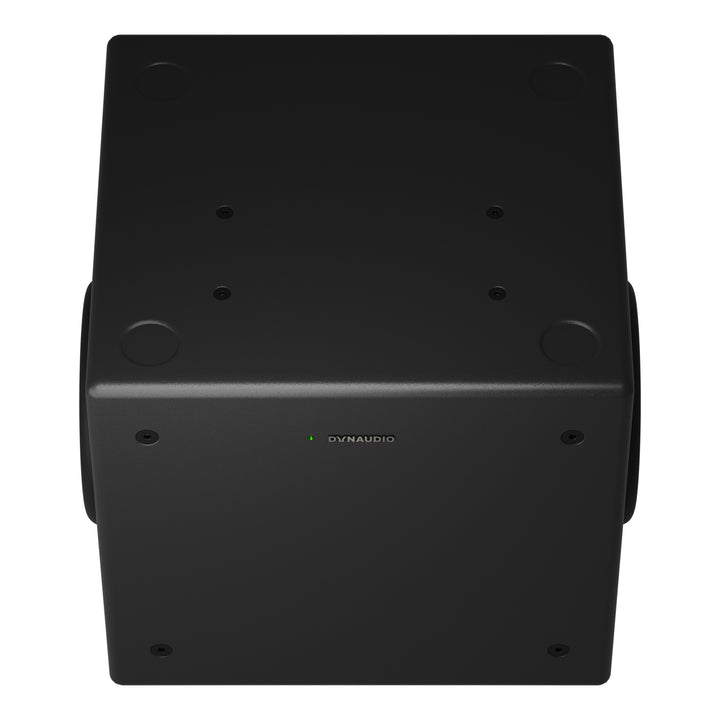

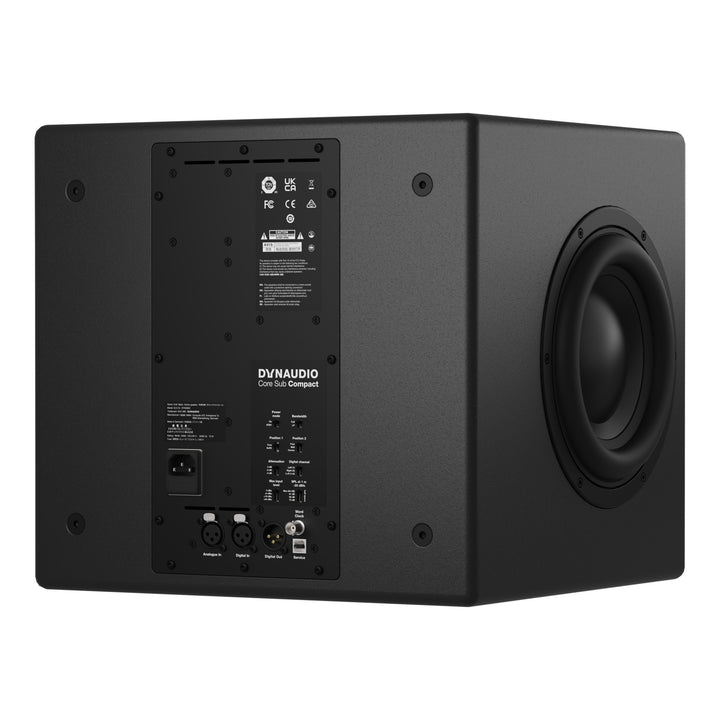

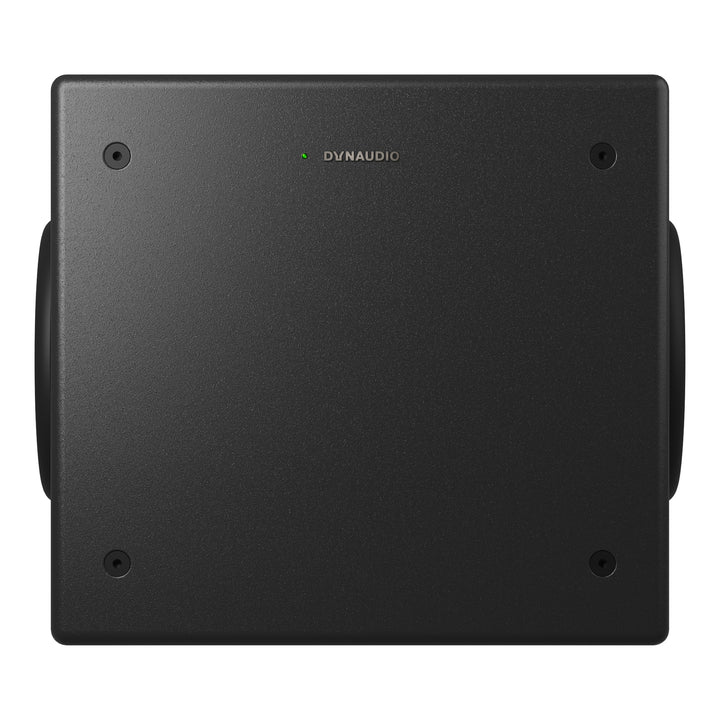

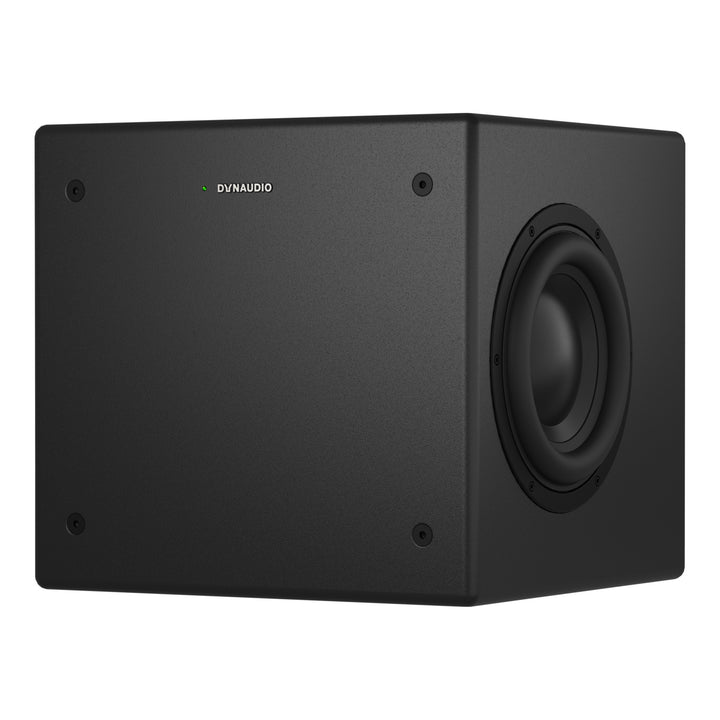

Dynaudio Core Sub Compact Active Studio Subwoofer (Dark Grey)
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
A few orders are not eligible: items that need specialty shipping (certain cases, stands and other gear that requires special handling), and orders shipping to Newfoundland and Labrador, the Northwest Territories or Nunavut.
Carriers sometimes charge far more for oversized freight to certain locations. In that rare case, we pay most of the extra and ask you to cover a small part.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm and Sezzle financing are available for most products. For Affirm, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Sezzle: eligible customers can split a purchase into 4 interest-free payments over 6 weeks. Approval and payment terms depend on the purchase amount and an eligibility check, may not be available in all provinces or territories, and are shown at checkout. Payment options are provided through Sezzle. For more information, please see sezzle.com/how-it-works.
Affirm: eligible customers can pay over time in monthly instalments. Your rate and available terms depend on an eligibility check based on creditworthiness, your purchase amount, and applicable provincial limits, and may not be available in all provinces or territories. Actual terms, the payment schedule, and any required down payment are shown at checkout. Payment options are provided through Affirm Canada Holdings Ltd. For more information, please see affirm.com/how-it-works.
Description
The Dynaudio Core Sub Compact is half the size of the Core Sub, made for studios and immersive rooms where floor and wall space is short. Two 9-inch MSP+ Hybrid Drive woofers in a sealed cabinet each have their own 280 W Pascal Class D amplifier, and the response stays within 3 dB from 16 Hz to 200 Hz. It uses the same amplifier module and DSP as the rest of the Core family, so it matches the Core monitors in any system from 2.1 to 9.1.6.
Opposed Drivers
The two woofers work in an opposed layout, which keeps cabinet vibration down even at maximum level. Each Hybrid Drive has a stiff aluminum core with paper damping on the rear and a Magnesium Silicate Polymer cap on the front to stop ringing, driven by a ferrite magnet system.
Setup and Placement
The Bandwidth switch engages an 80 Hz low-pass filter to match a Core monitor set to its 80 Hz high-pass, and the level switch offers 79, 85, 91 and 94 dB settings for calibrated rooms. The Core Sub Compact fits under or behind a desk, sits under a Core speaker using the indentations on top, or goes on a wall with a standard VESA bracket. Several can run in one room for more even bass.
Features
- Two opposed 9-inch MSP+ Hybrid Drive woofers
- Sealed enclosure
- Two Pascal Class D amplifiers, 280 W each
- Core DSP with 80 Hz low-pass, position and boundary filters
- Attenuation switch for two- or four-subwoofer systems
- Analog XLR and AES3 inputs, AES3 pass-through output and word clock input
- Top indentations locate a Core monitor
- VESA wall mounting
- Auto on/off standby
Specifications
- Type: Active subwoofer, sealed
- Woofers: 2 x 9-inch MSP+ Hybrid Drive
- Amplifiers: Pascal Class D, 2 x 280 W
- Frequency response (±3 dB): 16 Hz to 200 Hz
- Frequency response (-6 dB): 15 Hz to 230 Hz
- Maximum SPL: 100 dB at 1 m anechoic, 106 dB half space
- Inputs: Balanced analog XLR, AES3 digital XLR, BNC word clock (75 ohm)
- Output: AES3 XLR pass-through
- Digital resolution: Up to 24-bit/192 kHz (32, 44.1, 48, 96 and 192 kHz), no sample-rate conversion
- Service port: USB Type B for firmware updates
- Power: 100 to 240 V, 50/60 Hz, 0.48 W standby
- Dimensions (W x H x D): 390 x 360 x 365 mm (15 3/8 x 14 x 14 3/8 in)
- Weight: 26.1 kg (57.5 lb)
- Finish: Dark Grey
- Units per box: 1
