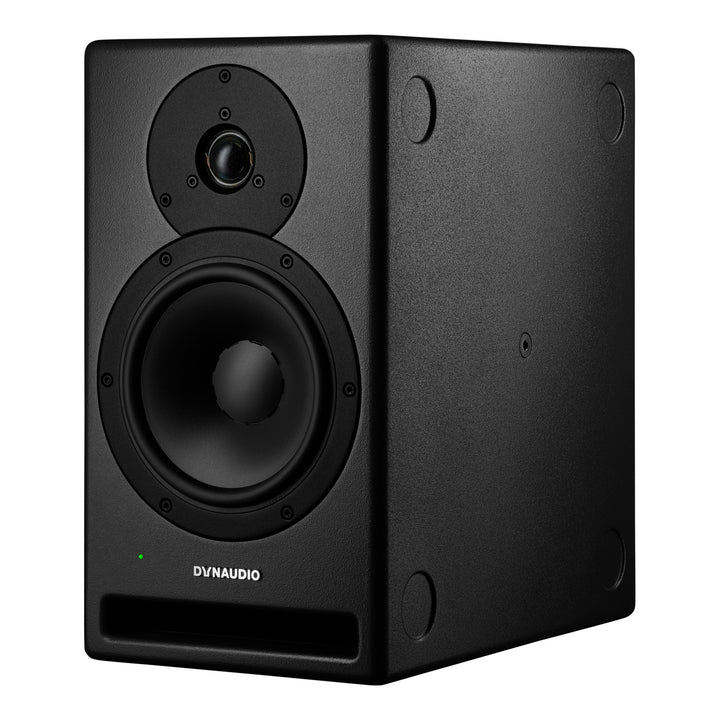

Dynaudio Core 7 2-Way Active Studio Monitor (Dark Grey)

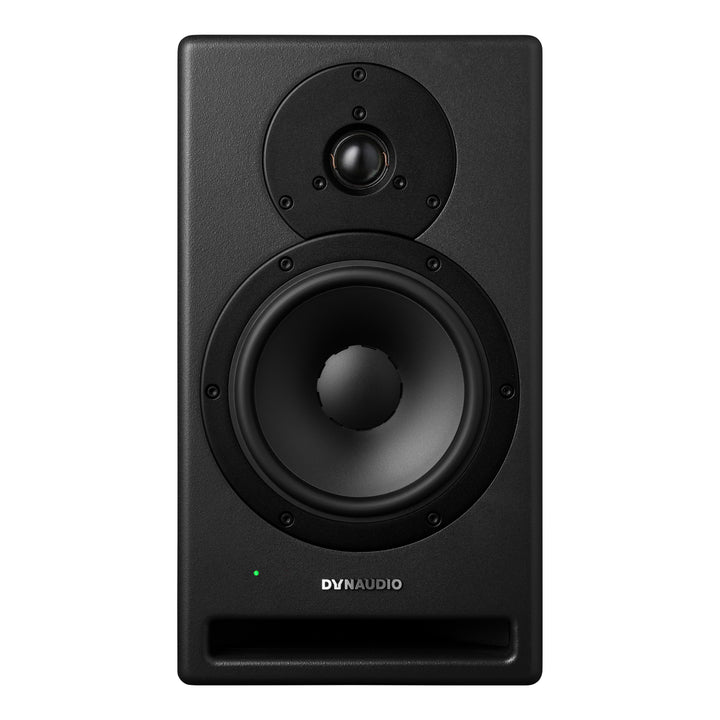

The Dynaudio Core 7 is a 2-way active reference monitor for recording, mixing and mastering rooms, broadcast trucks, dub stages and immersive mix rooms. A 7-inch MSP mid/woofer and a 28 mm Esotar Pro soft-dome tweeter with a Hexis inner dome each have their own Pascal Class D amplifier, 500 W and 150 W. The Core 7 reaches 118 dB in half space and covers 40 Hz to 27 kHz within 3 dB, and a 32 mm front baffle keeps the cabinet stiff and inert.

Tuning to the Room

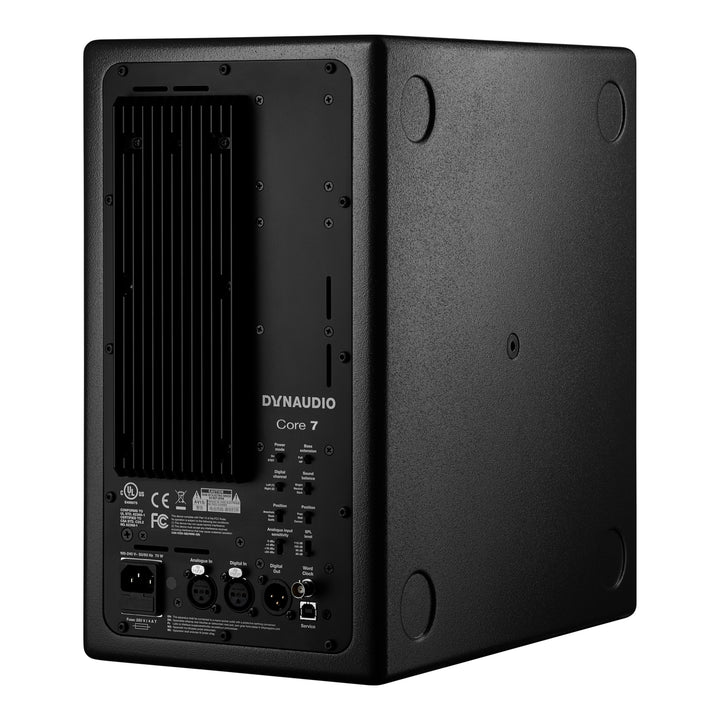

Switches on the rear panel set the DSP for where the Core 7 sits. Position 1 chooses Anechoic, Desk or Soffit, Position 2 corrects the bass for a wall or corner within 50 cm, and the Sound Balance switch tilts the whole response by 1.5 dB at each end toward Bright or Dark while keeping the phase between the drivers intact. A Bass Extension switch adds an 80 Hz high-pass filter with time alignment for use with a Core Sub or Core Sub Compact.

Levels and Placement

A four-position switch matches the analog input to the maximum output of your interface or console, from 0 to +24 dBu. A second switch sets the level a -20 dBFS signal produces at 1 m (85, 91, 96 or 101 dB), so every Core speaker in a room can share one calibrated reference. On the AES3 input the Core 7 runs at the incoming sample rate with no sample-rate conversion and locks to the AES clock or to an external word clock.

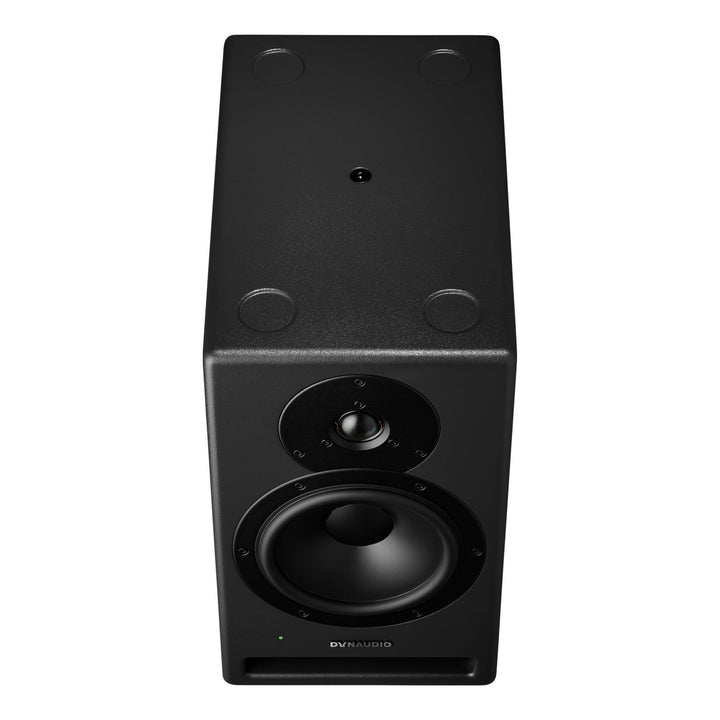

Analog signals are converted at 24 bits and processed at 192 kHz in 64-bit DSP. The cabinet has indentations on all four sides, so the Core 7 can stand upright, lie on its side or run inverted with the woofer on top. Dynaudio's Core Mounting Bracket (Type 1) holds it in surround and immersive layouts.

Features

• 2-way active design with a DSP crossover at 2,300 Hz
• 28 mm Esotar Pro soft-dome tweeter with Hexis inner dome
• 7-inch MSP (Magnesium Silicate Polymer) mid/woofer
• Pascal Class D amplification, 500 W woofer and 150 W tweeter
• Position, boundary and Sound Balance DSP filters
• 80 Hz Bass Extension high-pass for use with a Core subwoofer
• Analog XLR and AES3 inputs, AES3 pass-through output and word clock input
• 32 mm front baffle and indentations on all four sides
• Drivers made in Denmark, each speaker calibrated at the factory

Specifications

• Type: 2-way active nearfield monitor, front-loaded bass reflex
• Tweeter: 1.1-inch (28 mm) Esotar Pro soft dome with Hexis
• Mid/woofer: 7-inch MSP
• Amplifiers: Pascal Class D, 500 W woofer, 150 W tweeter
• Crossover: 2,300 Hz, DSP-based
• Frequency response (±3 dB): 40 Hz to 27 kHz
• Frequency response (-6 dB): 36 Hz to 29 kHz
• Maximum SPL: 112 dB at 1 m anechoic, 118 dB half space
• Inputs: Balanced analog XLR, AES3 digital XLR, BNC word clock (75 ohm)
• Output: AES3 XLR pass-through
• Digital resolution: Up to 24-bit/192 kHz (32, 44.1, 48, 96 and 192 kHz), no sample-rate conversion
• Service port: USB Type B for firmware updates
• Power: 100 to 240 V, 50/60 Hz
• Dimensions (W x H x D): 220 x 390 x 355 mm (8 5/8 x 15 3/8 x 14 in)
• Weight: 14.6 kg (32.1 lb)
• Finish: Dark Grey
• Speakers per box: 1
