Dynaudio Core 5 2-Way Active Studio Monitor (Dark Grey)

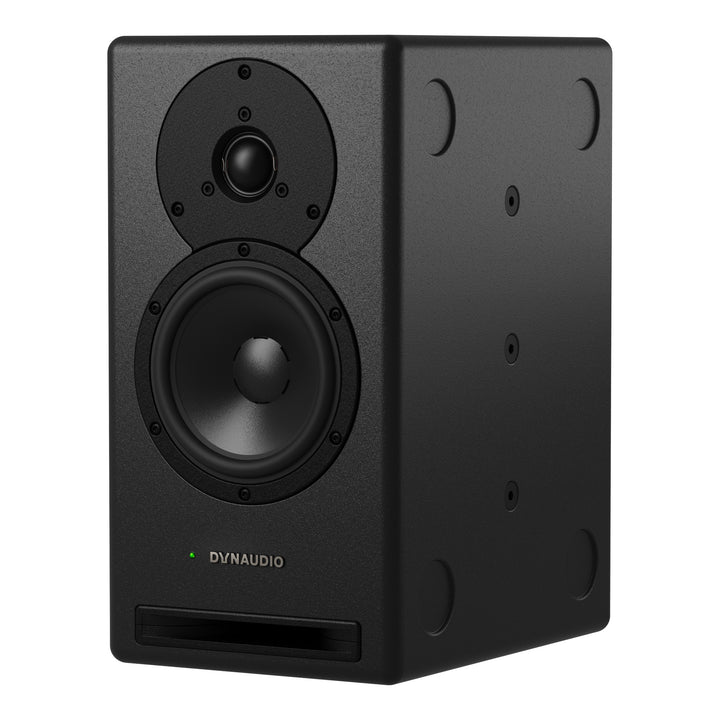

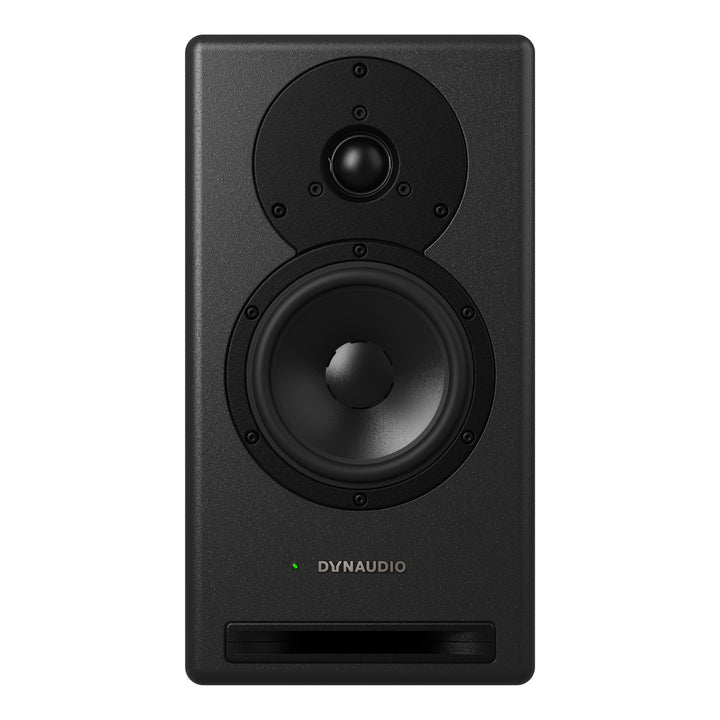

The Dynaudio Core 5 is the smallest speaker in Dynaudio's Core range of professional reference monitors, a 2-way active nearfield design for small control rooms, edit suites, OB trucks and immersive rooms that need many speakers in one space. Each cabinet carries a 5-inch MSP woofer and a 28 mm Cerotar Pro soft-dome tweeter with a Hexis inner dome, each driven by its own 280 W Pascal Class D amplifier. It reaches 110 dB in half space and takes both analog XLR and AES3 digital signals.

Tuning to the Room

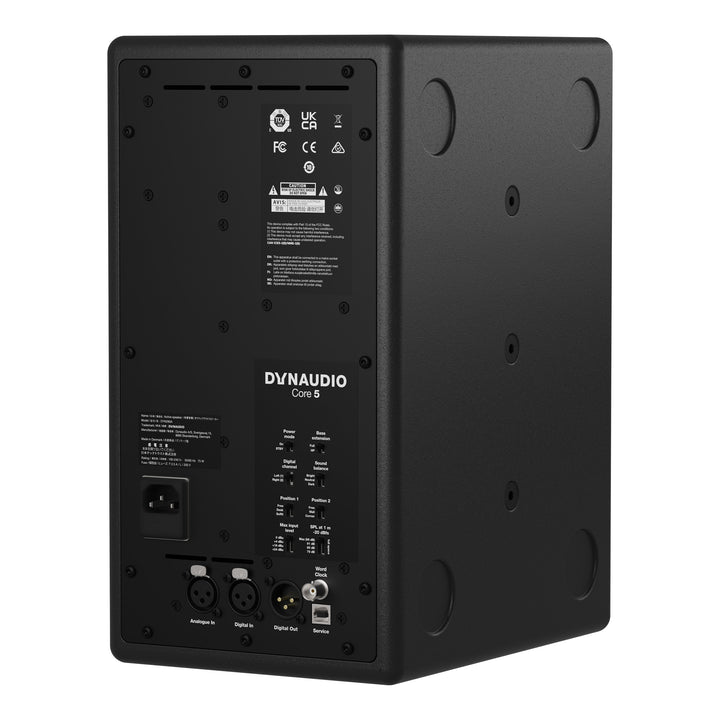

Switches on the rear panel set the DSP for where the Core 5 sits. Position 1 chooses Anechoic, Desk or Soffit, Position 2 corrects the bass for a wall or corner within 50 cm, and the Sound Balance switch tilts the whole response by 1.5 dB at each end toward Bright or Dark while keeping the phase between the drivers intact. A Bass Extension switch adds an 80 Hz high-pass filter with time alignment for use with a Core Sub or Core Sub Compact.

Levels and Placement

A four-position switch matches the analog input to the maximum output of your interface or console, from 0 to +24 dBu. A second switch sets the level a -20 dBFS signal produces at 1 m (79, 85, 91 or 96 dB), so every Core speaker in a room can share one calibrated reference. On the AES3 input the Core 5 runs at the incoming sample rate with no sample-rate conversion and locks to the AES clock or to an external word clock.

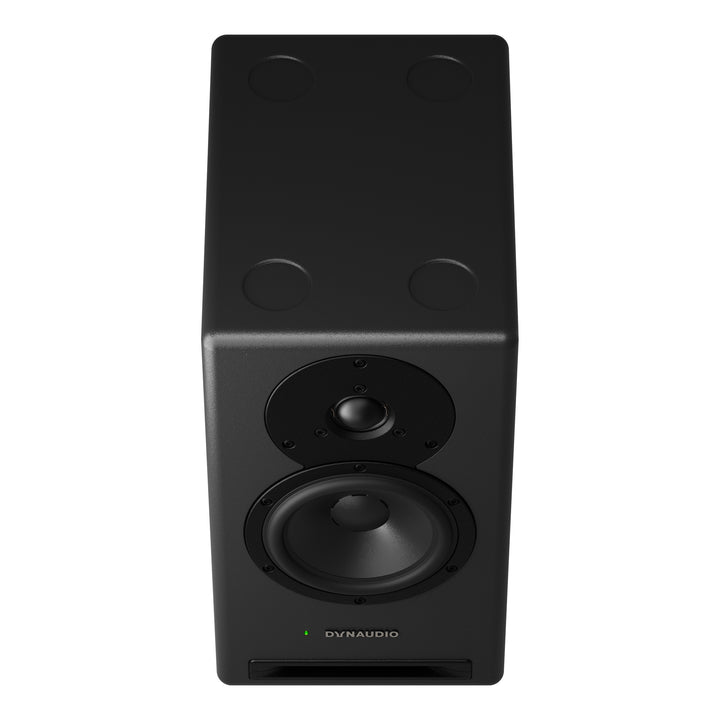

Indentations in the cabinet locate the Core 5 on other Core speakers and subwoofers. It can stand on a desk or stand, hang vertically or horizontally from Dynaudio's Core Mounting Bracket (Type 2), or run inverted with the woofer above the tweeter.

Features

• 2-way active design with a DSP crossover at 3,800 Hz
• 28 mm Cerotar Pro soft-dome tweeter with Hexis inner dome
• 5-inch MSP (Magnesium Silicate Polymer) woofer
• Two Pascal Class D amplifiers, 280 W each
• Position, boundary and Sound Balance DSP filters
• 80 Hz Bass Extension high-pass for use with a Core subwoofer
• Analog XLR and AES3 inputs, AES3 pass-through output and word clock input
• Power-saving standby after 20 minutes without signal
• Drivers made in Denmark, each speaker calibrated at the factory

Specifications

• Type: 2-way active nearfield monitor, front-loaded bass reflex
• Tweeter: 1.1-inch (28 mm) Cerotar Pro soft dome with Hexis
• Woofer: 5-inch MSP
• Amplifiers: Pascal Class D, 280 W woofer, 280 W tweeter
• Crossover: 3,800 Hz, DSP-based
• Frequency response (±3 dB): 46 Hz to 26 kHz
• Frequency response (-6 dB): 42 Hz to 29 kHz
• Maximum SPL: 104 dB at 1 m anechoic, 110 dB half space
• Inputs: Balanced analog XLR, AES3 digital XLR, BNC word clock (75 ohm)
• Output: AES3 XLR pass-through
• Digital resolution: Up to 24-bit/192 kHz (32, 44.1, 48, 96 and 192 kHz), no sample-rate conversion
• Service port: USB Type B for firmware updates
• Power: 100 to 240 V, 50/60 Hz, 0.48 W standby
• Dimensions (W x H x D): 190 x 353 x 265 mm (7.5 x 14 x 10.4 in)
• Weight: 8.6 kg (19 lb)
• Finish: Dark Grey
• Speakers per box: 1
