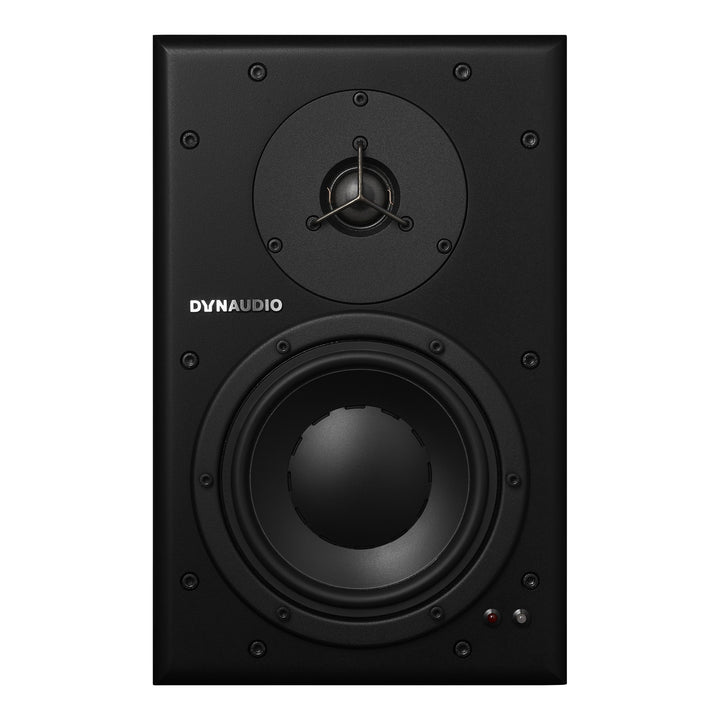

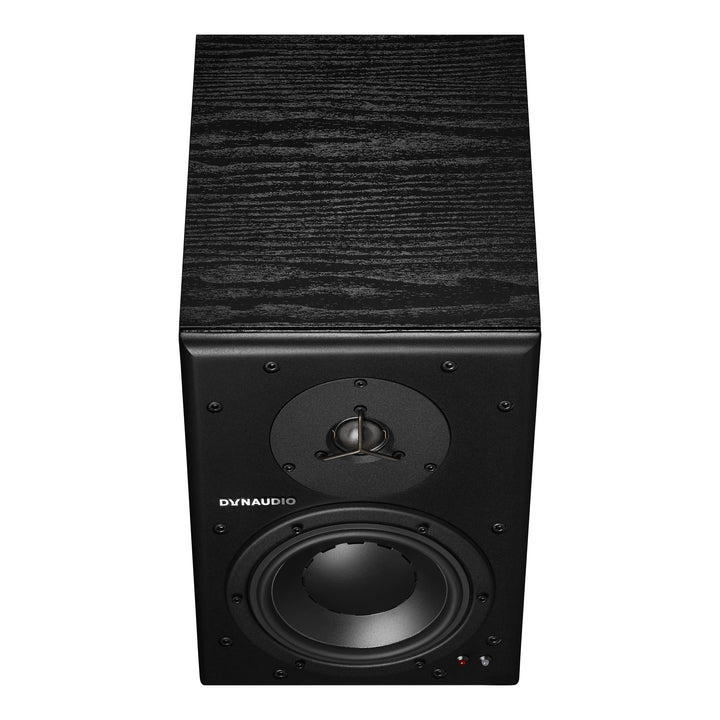

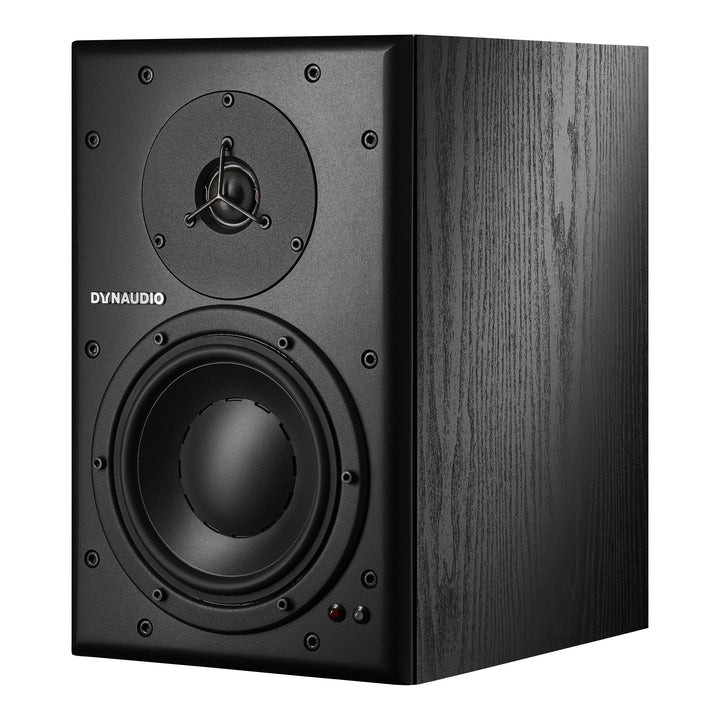

Dynaudio BM6A Studio Monitor
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
A few orders are not eligible: items that need specialty shipping (certain cases, stands and other gear that requires special handling), and orders shipping to Newfoundland and Labrador, the Northwest Territories or Nunavut.
Carriers sometimes charge far more for oversized freight to certain locations. In that rare case, we pay most of the extra and ask you to cover a small part.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm and Sezzle financing are available for most products. For Affirm, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Sezzle: eligible customers can split a purchase into 4 interest-free payments over 6 weeks. Approval and payment terms depend on the purchase amount and an eligibility check, may not be available in all provinces or territories, and are shown at checkout. Payment options are provided through Sezzle. For more information, please see sezzle.com/how-it-works.
Affirm: eligible customers can pay over time in monthly instalments. Your rate and available terms depend on an eligibility check based on creditworthiness, your purchase amount, and applicable provincial limits, and may not be available in all provinces or territories. Actual terms, the payment schedule, and any required down payment are shown at checkout. Payment options are provided through Affirm Canada Holdings Ltd. For more information, please see affirm.com/how-it-works.
Description
The Dynaudio BM6A is a two-way active nearfield monitor from the Classic BM range, made for mixing at close range on stands or a console meter bridge. A 170 mm MSP woofer and a 28 mm soft dome tweeter each have their own 100 W discrete MOSFET amplifier, fed by a fourth-order phase-aligned electronic crossover at 2.2 kHz. The response runs from 41 Hz to 21 kHz.
Low-Frequency Control

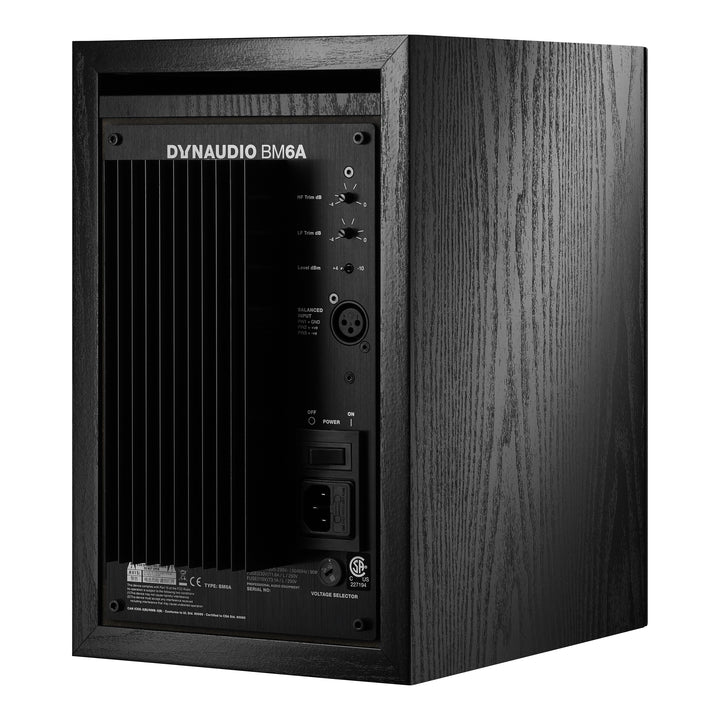

The LF trim uses an equalizer that trades bass level for extension. Turn it down for a deeper, critically damped low end, or up for more level with less extension. A separate HF trim adjusts the range above 3 kHz by up to 5 dB, and an input switch matches +4 or -10 sources.
Protection
A protection circuit disconnects the drivers on thermal overload or DC at the outputs, and an optical limiter keeps sustained overload away from the tweeter while transients pass through. Front LEDs show power or fault status and clipping in the woofer amplifier. The matte cabinet has radiused front edges to reduce boundary effects.
Features
- 170 mm MSP woofer with aluminum voice coil
- 28 mm soft dome tweeter
- Two discrete MOSFET amplifiers, 100 W each
- Fourth-order phase-aligned electronic crossover at 2.2 kHz
- LF trim that trades level for low-frequency extension
- HF trim and input sensitivity switch
- Power/fault and clip LEDs on the front baffle
- DC and thermal protection, optical limiter on the tweeter
- Handcrafted drivers, made in Denmark
Specifications
- Type: 2-way active nearfield monitor
- Woofer: 170 mm MSP
- Tweeter: 28 mm (1.1") soft dome
- Amplifiers: 2 x 100 W, discrete MOSFET
- Crossover: 2200 Hz, 4th order, phase-aligned
- Frequency response: 41 Hz to 21 kHz (+/- 3 dB)
- Maximum SPL: 118 dB (1 m, pair)
- Bass loading: Rear-ported bass reflex
- Input: Balanced XLR
- Power consumption: 200 W maximum
- Dimensions (W x H x D): 217 x 338 x 321 mm (8 1/2 x 13 1/4 x 12 5/8 in)
- Weight: 11 kg (24.3 lb)
In the Box
- Dynaudio BM6A monitor
- Power cable
