Description

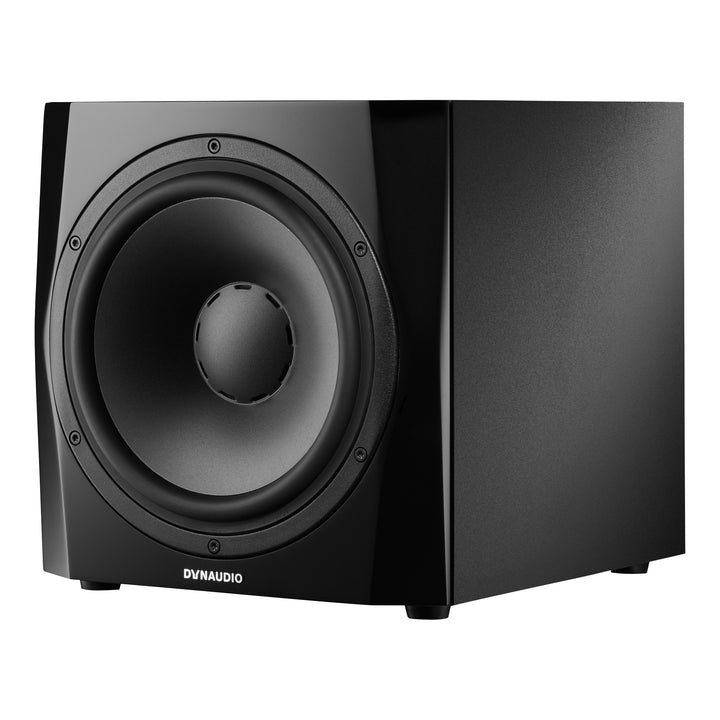

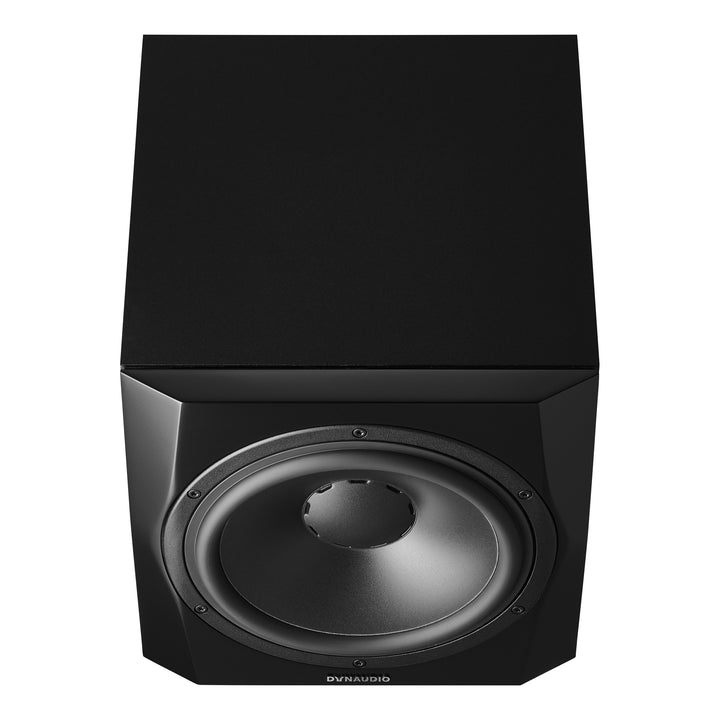

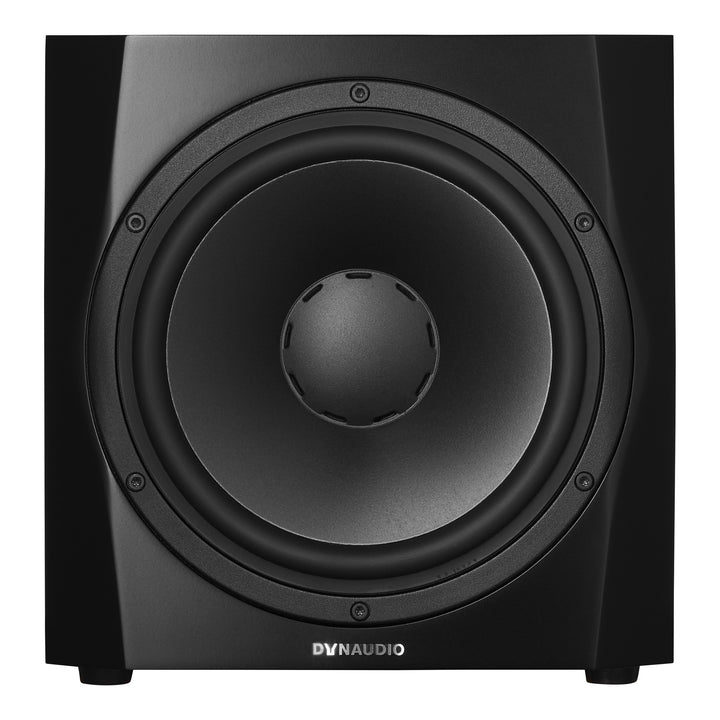

The Dynaudio 9S is a compact active subwoofer made to extend LYD, Classic BM and other Dynaudio studio monitors in stereo or surround setups. A 9-inch long-throw MSP woofer in a sealed cabinet with a 37 mm double front baffle reaches down to 22 Hz, driven by a 300 W Class D amplifier. The 9S replaces the BM 9S II at about the same size, and Dynaudio rates its performance closer to the larger BM 14S II.
Crossover and Connections

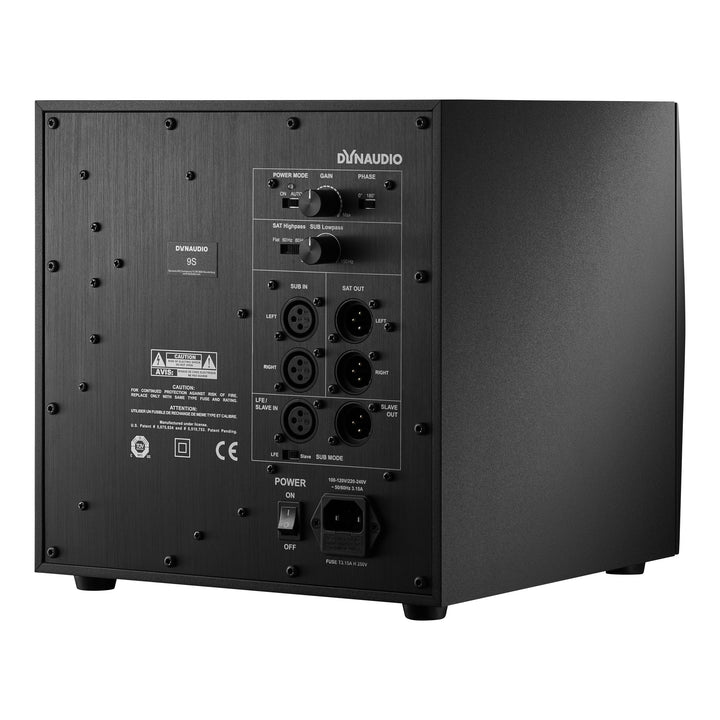

Run a full-range stereo signal into the SAT/SUB inputs and the 9S plays the bass, while its SAT outputs pass the signal on to your monitors through a high-pass filter set flat, at 60 Hz or at 80 Hz. A low-pass control sets the sub's upper limit anywhere from 50 to 150 Hz. A separate LFE input takes the low-frequency channel of a surround mix, and the Slave output feeds a second 9S that follows the first unit's gain and phase.
Features
- 9-inch long-throw MSP woofer
- 300 W Class D amplifier
- Sealed black vinyl cabinet with 37 mm front baffle
- Variable low-pass filter from 50 to 150 Hz
- SAT outputs with high-pass filter: flat, 60 Hz or 80 Hz
- LFE input and Slave output for multiple subwoofers
- Phase switch, 0 or 180 degrees
- Auto mode turns the sub on with signal and returns it to standby after 15 to 20 minutes of silence
Specifications
- Type: Active subwoofer, sealed enclosure
- Woofer: 9" (24 cm) long-throw MSP
- Amplifier: 300 W Class D
- Frequency range: 22 Hz to 175 Hz (+/- 3 dB)
- Maximum SPL: 106 dB
- Inputs: 1 x XLR LFE/Slave, 2 x XLR stereo
- Outputs: 1 x XLR Slave, 2 x XLR SAT
- Low-pass filter: 50 Hz to 150 Hz
- High-pass filter (SAT outputs): Flat, 60 Hz or 80 Hz
- Phase: 0 or 180 degrees
- AC power: 100-120 V / 200-240 V, 50/60 Hz
- Power consumption: 350 W maximum, under 0.5 W standby
- Dimensions (W x H x D): 266 x 276 x 320 mm (10.5 x 10.9 x 12.6 in)
- Weight: 10.5 kg (23.1 lb)
In the Box
- Dynaudio 9S subwoofer
- AC mains cable
- Owner's manual
