Audient ASP880 8-Channel Microphone Preamplifier and ADC
Model
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description

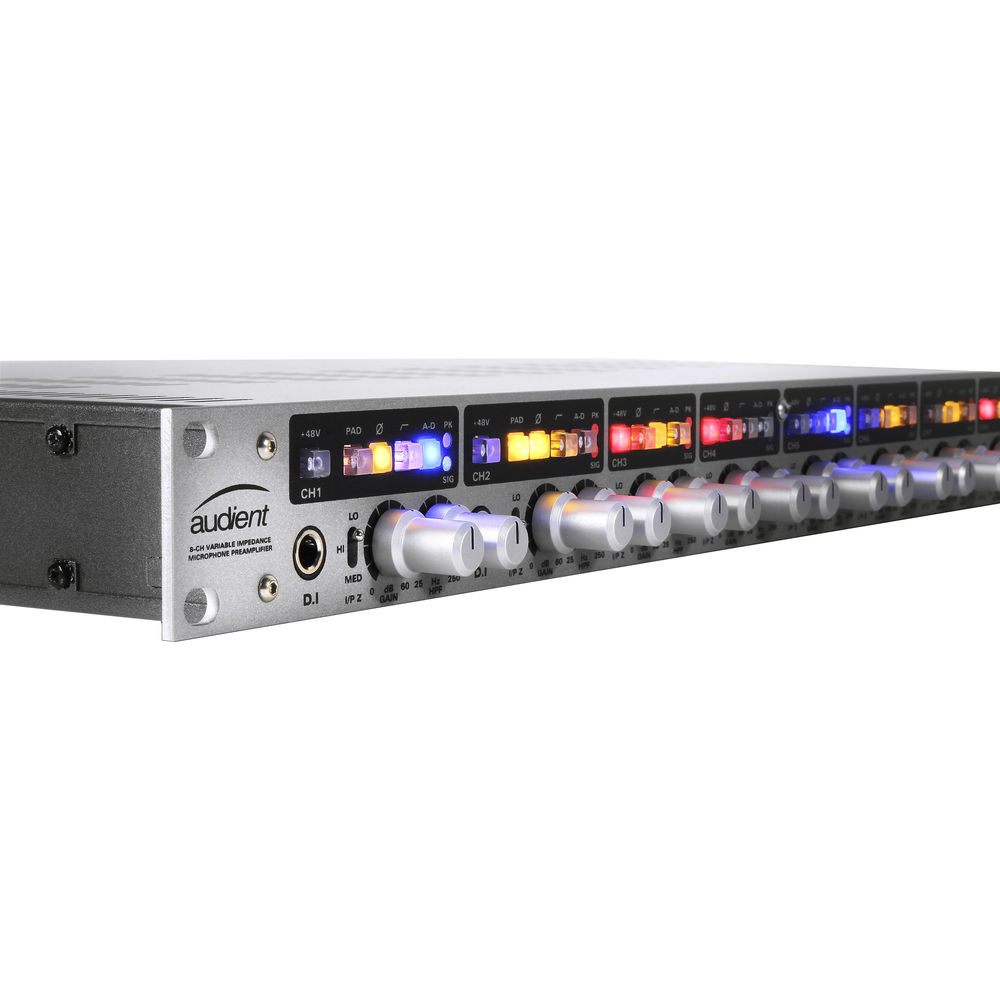

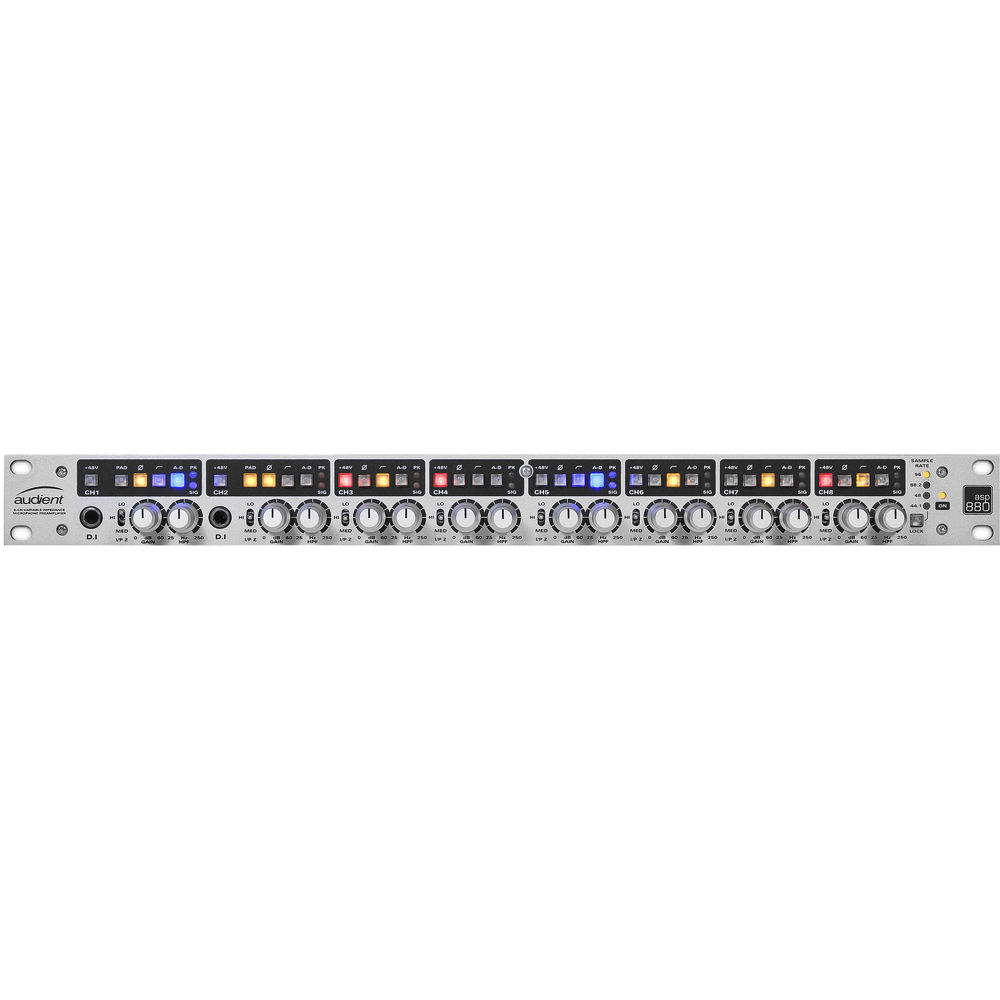

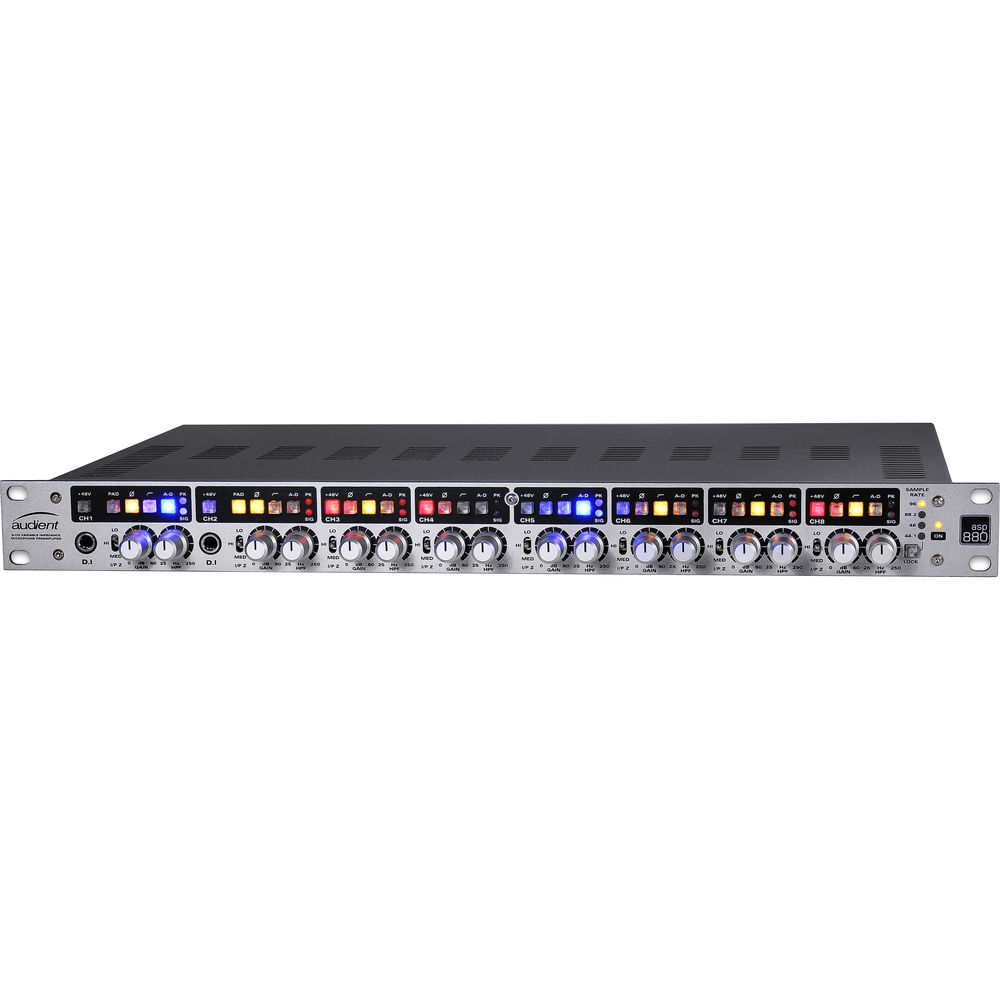

The Audient ASP880 is an 8-channel microphone preamplifier and analog-to-digital converter featuring Class-A Audient console preamps, Burr Brown conversion, variable high-pass filters, insert points on every channel, and two front-panel JFET instrument inputs. It supports ADAT, AES, and S/PDIF digital outputs for flexible integration with any recording interface or DAW.

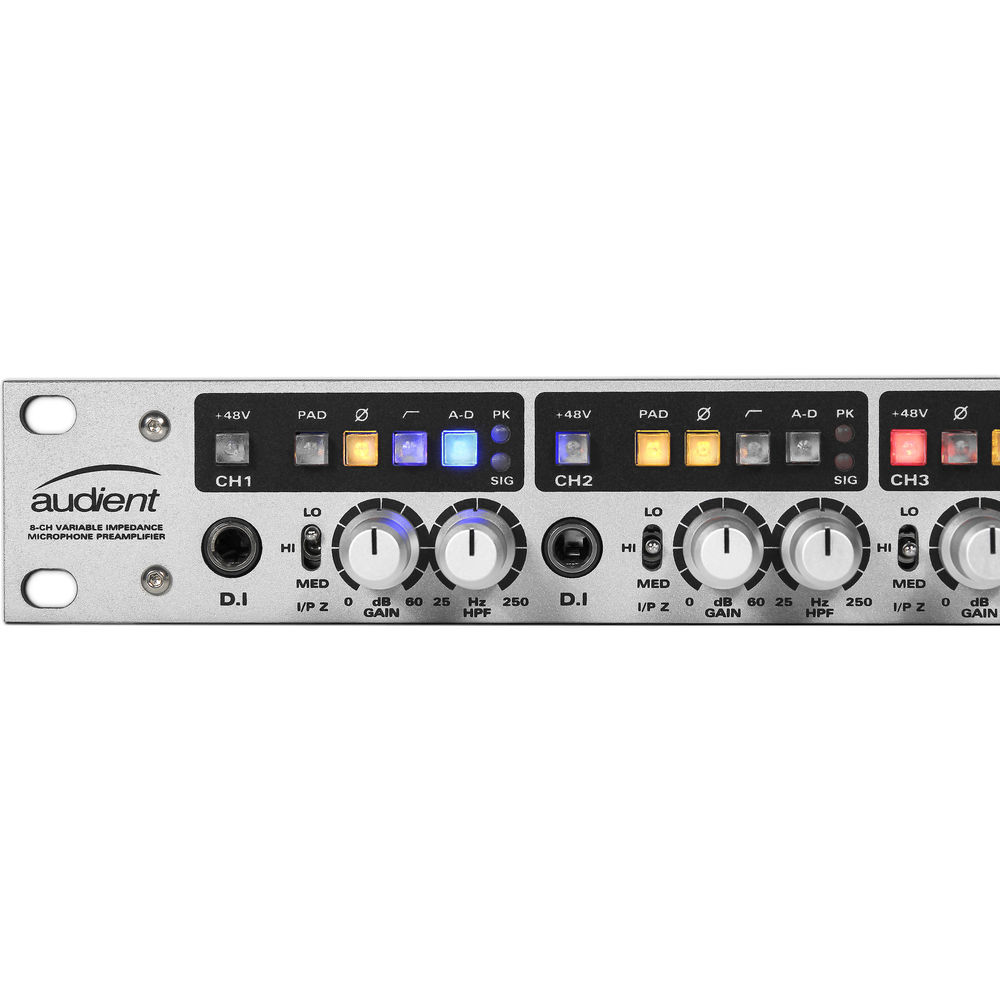

Preamps and Processing
- Mic preamps: 8 Class-A Audient console preamps
- Instrument inputs: 2 front-panel discrete JFET DI
- High-pass filter: Variable 25 to 250 Hz per channel
- Insert points: 8 balanced send/return pairs (between preamp and ADC)
- Phantom power: +48V switchable per channel
- Pad: Switchable per channel
- Polarity reverse: Switchable per channel
- Variable impedance: For ribbon microphone matching
Conversion and Digital Output

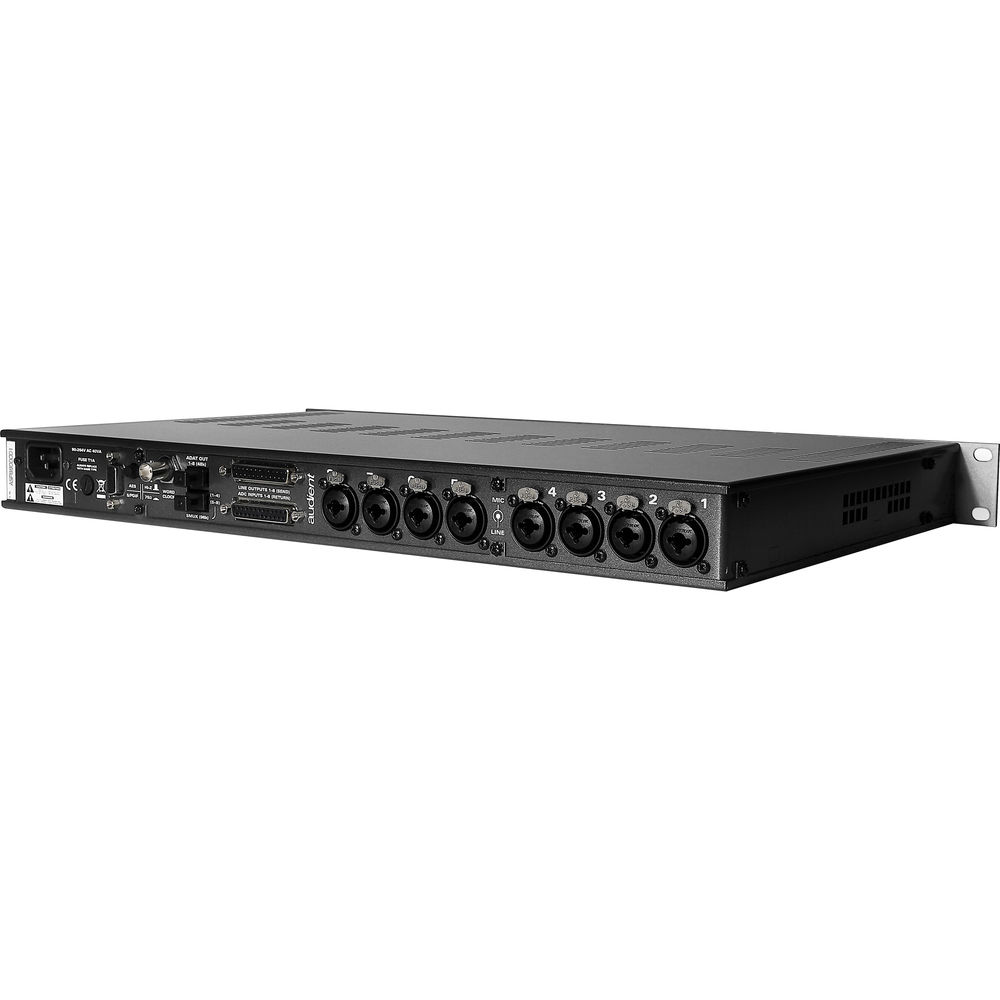

- Digital outputs: 2x ADAT (SMUX at high sample rates), AES, S/PDIF (DB-9)
- Word clock input: BNC with 75-ohm termination
- Analog outputs: 8 balanced on DB25
Specifications
- Mic gain: -10 to +60 dB
- ADC dynamic range: 113 dB unweighted / 115 dB A-weighted (Burr Brown)
- Sample rates: 44.1 to 96 kHz
- Mic EIN: < -127.5 dBu
- THD+N: < 0.003% at 0 dBu
- Max input level: +22 dBu (+37 dBu with pad)
- Power: Internal SMPS, fanless (90-264V AC auto-switching)
- Form factor: 1U rackmount, all-metal enclosure
- Dimensions: 482 x 321 x 44 mm (19.0 x 12.6 x 1.7")
- Weight: 4.0 kg (8.8 lb)
In the Box
- Audient ASP880
- IEC mains power cable
- Quick Start Guide
