Description

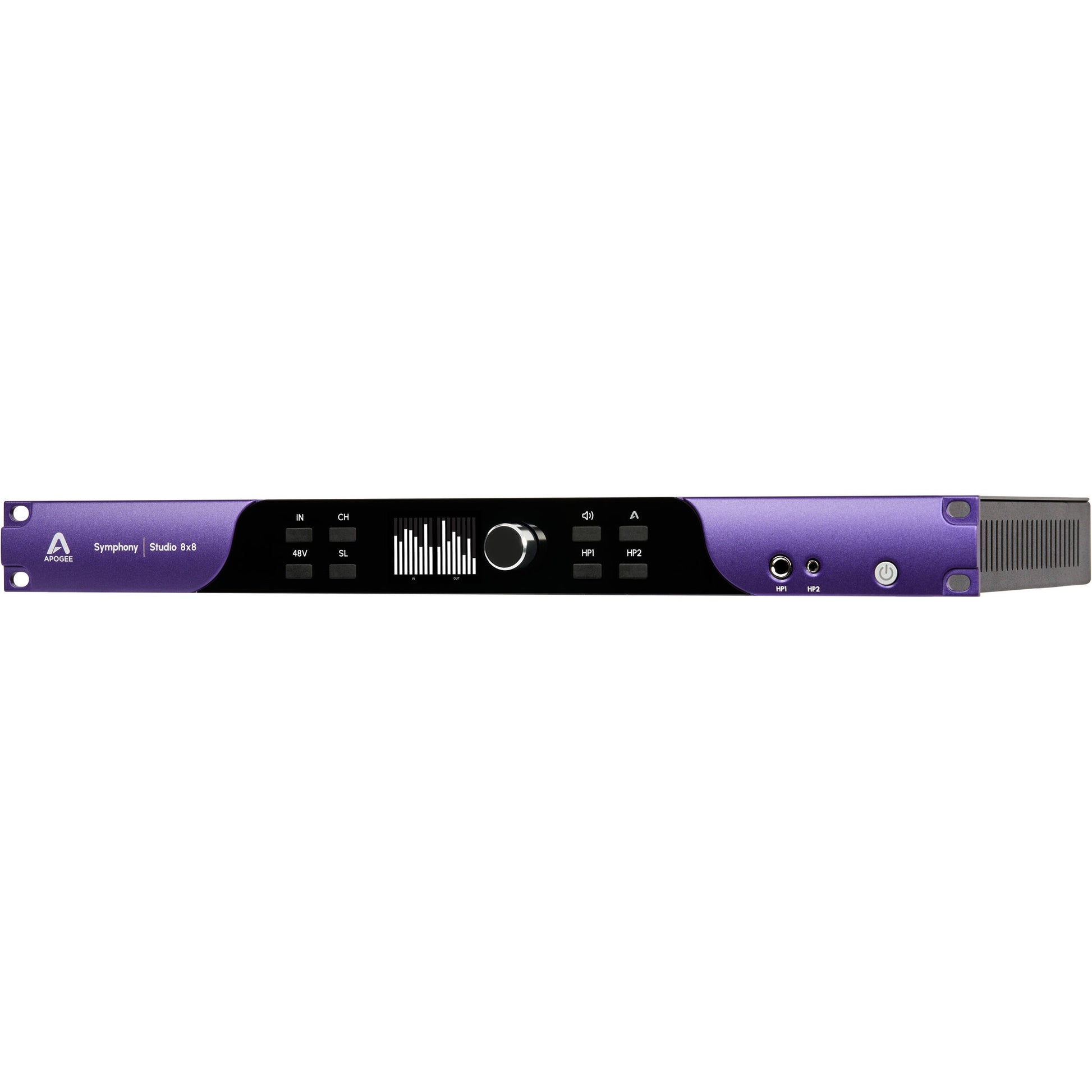

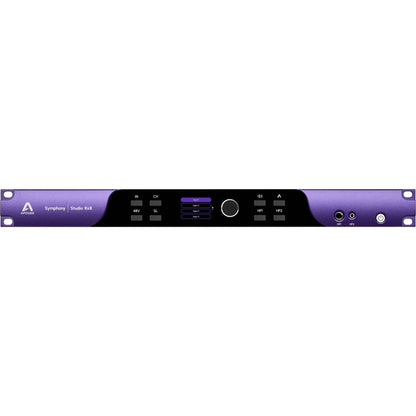

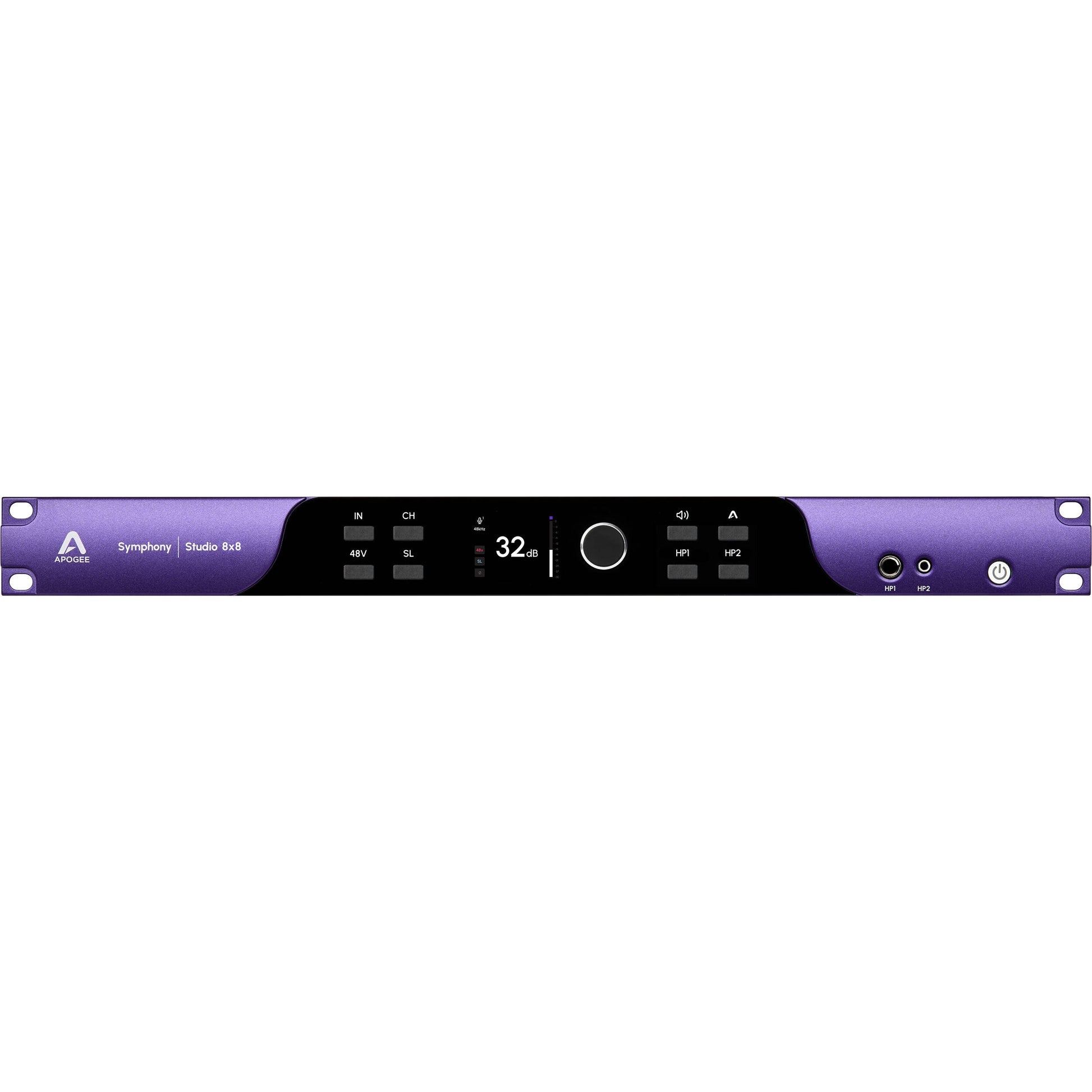

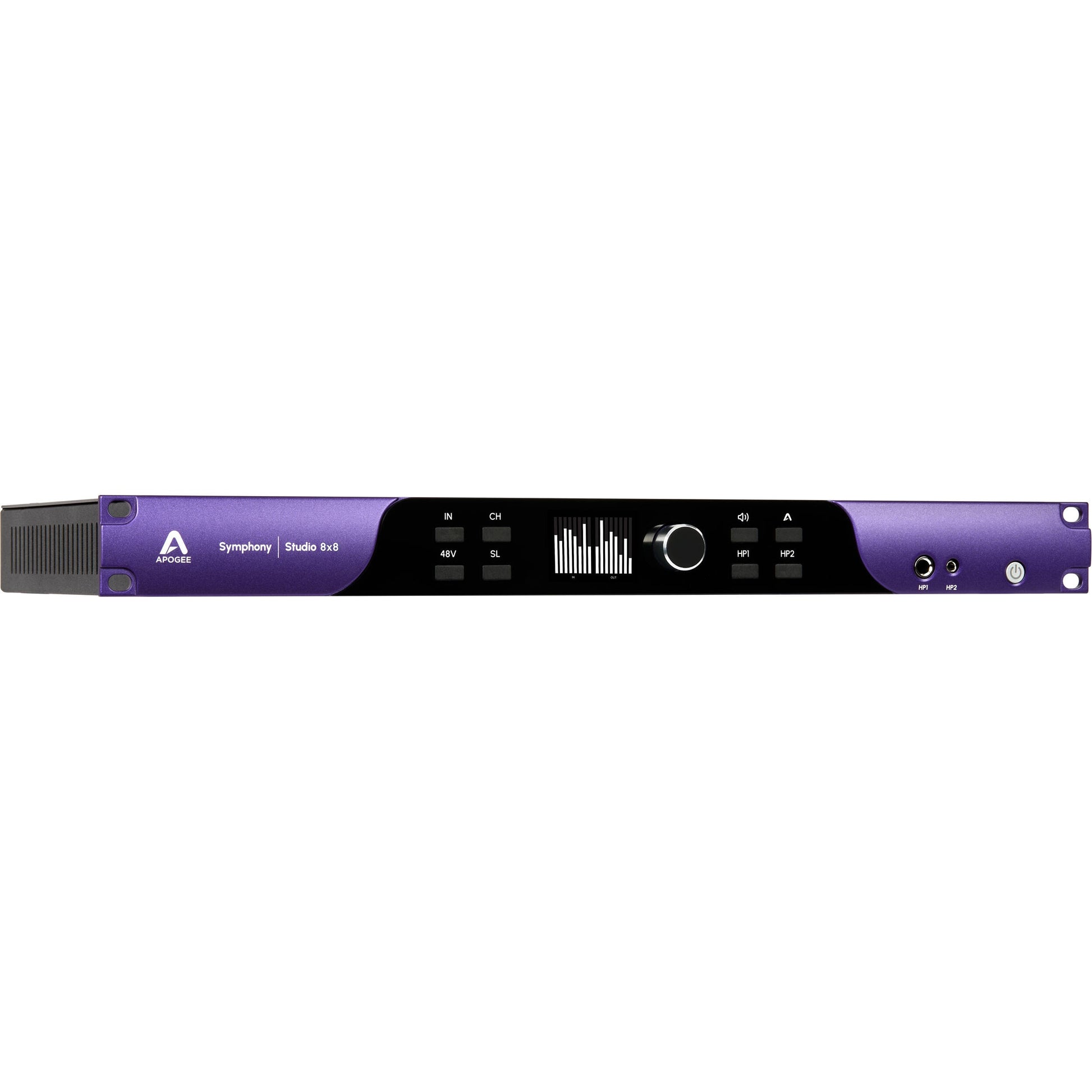

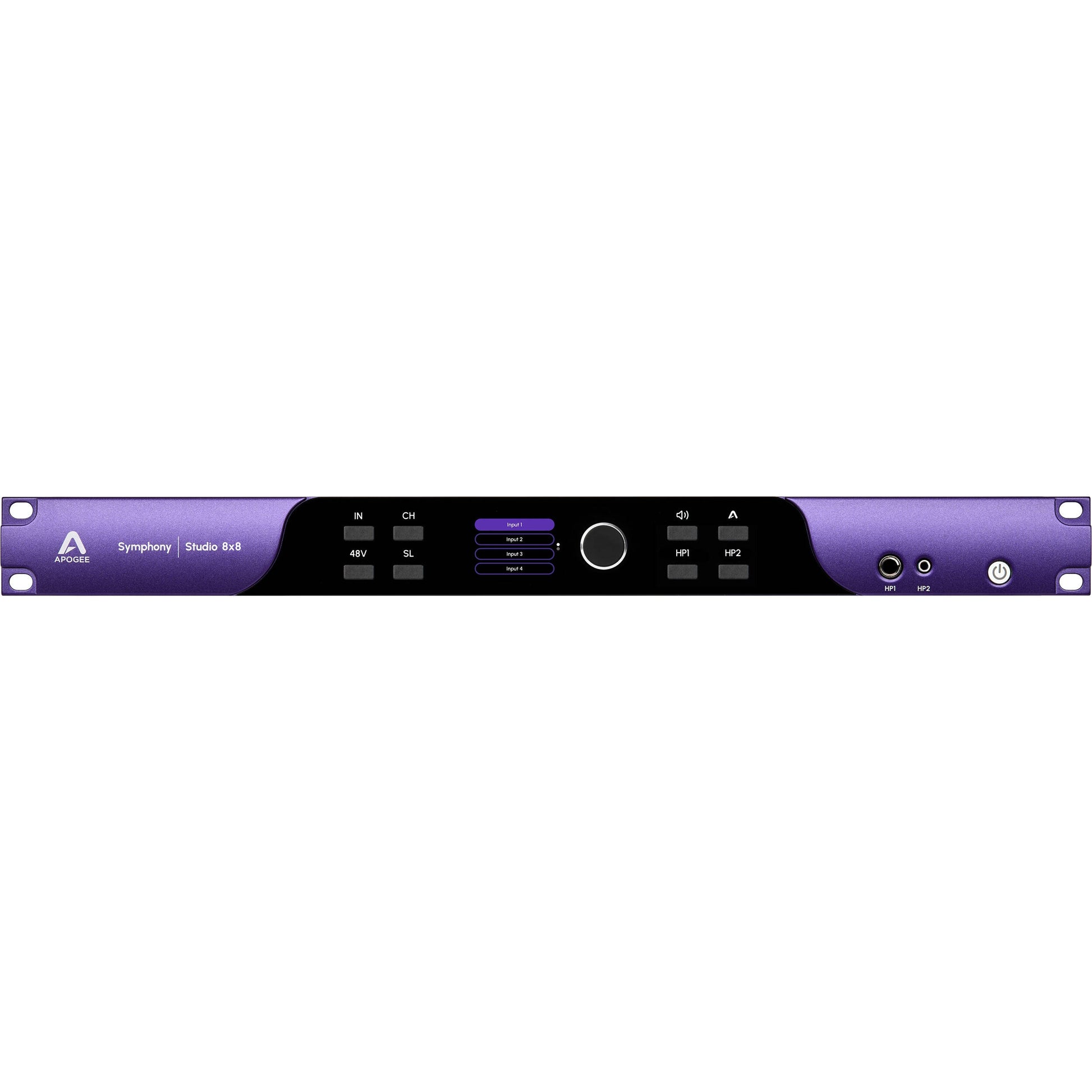

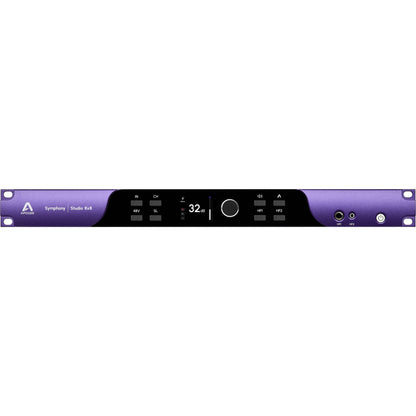

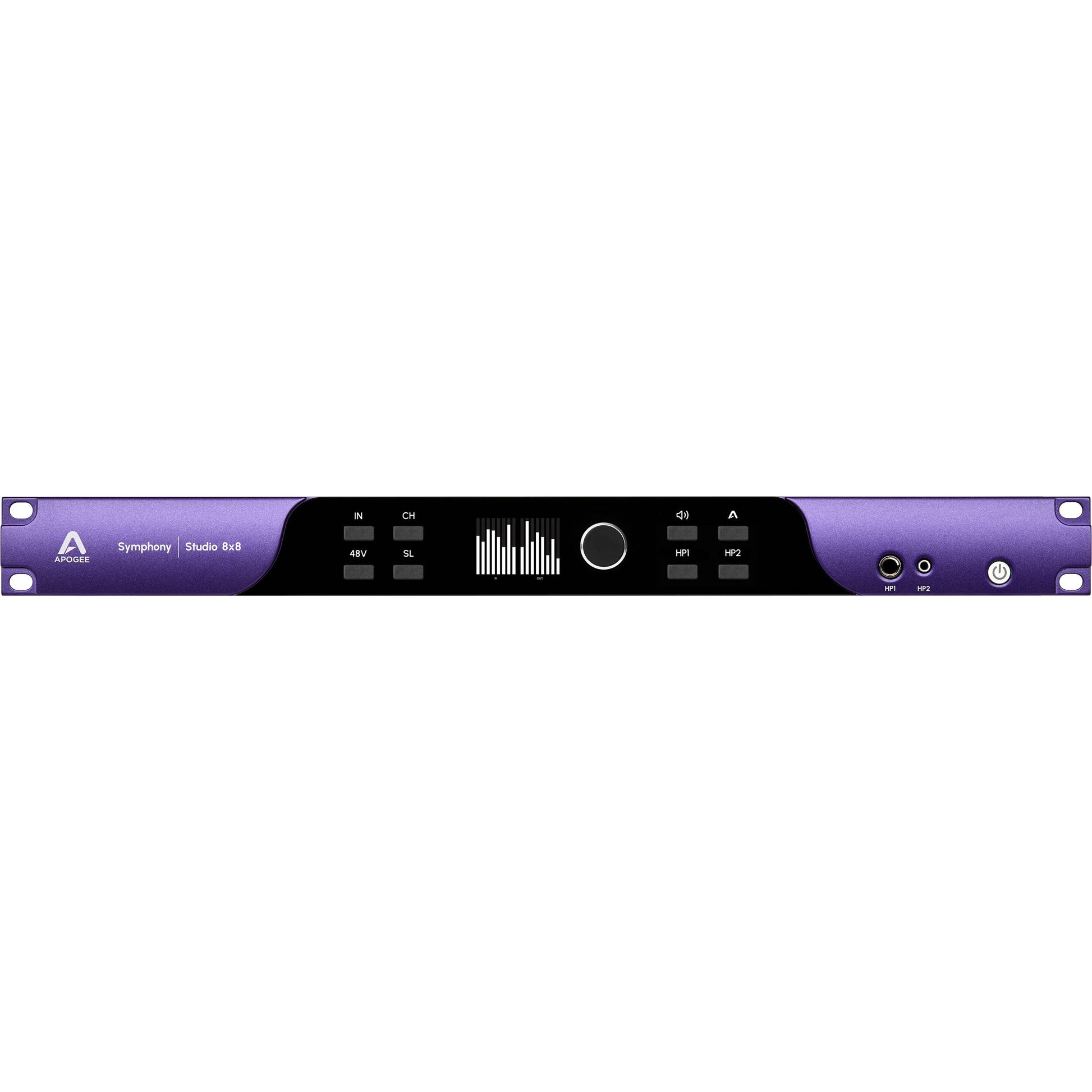

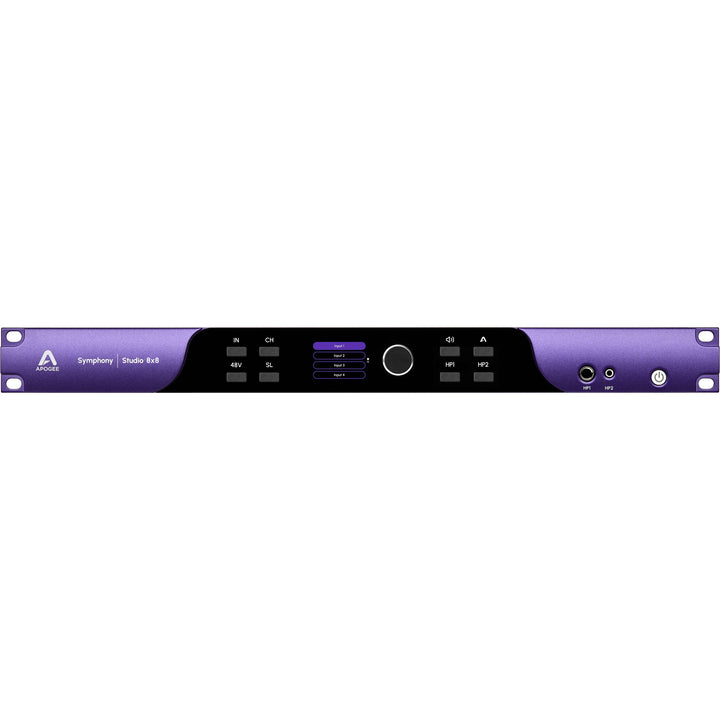

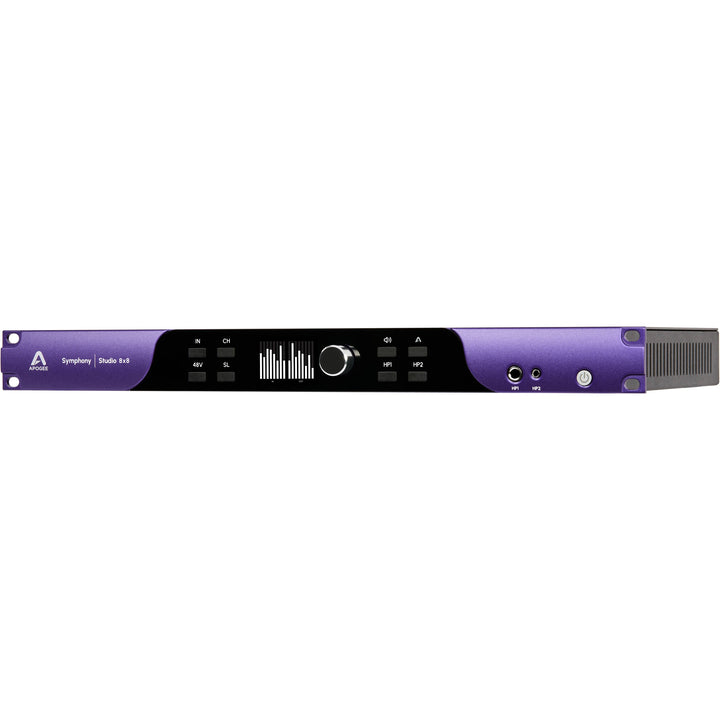

The Apogee Symphony Studio 8x8 is a 1U rackmount USB-C audio interface with eight microphone/line inputs and eight line outputs. The balanced I/O count suits tracking a band, a drum kit, or a multi-microphone room while still driving a surround monitor setup up to 7.1.
Inputs and Outputs

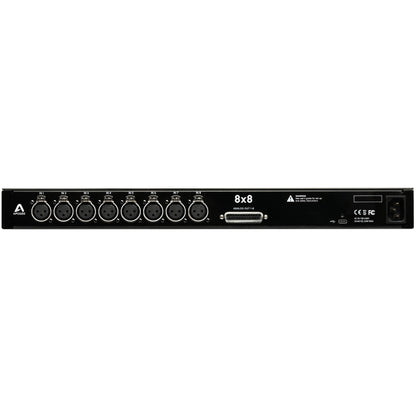

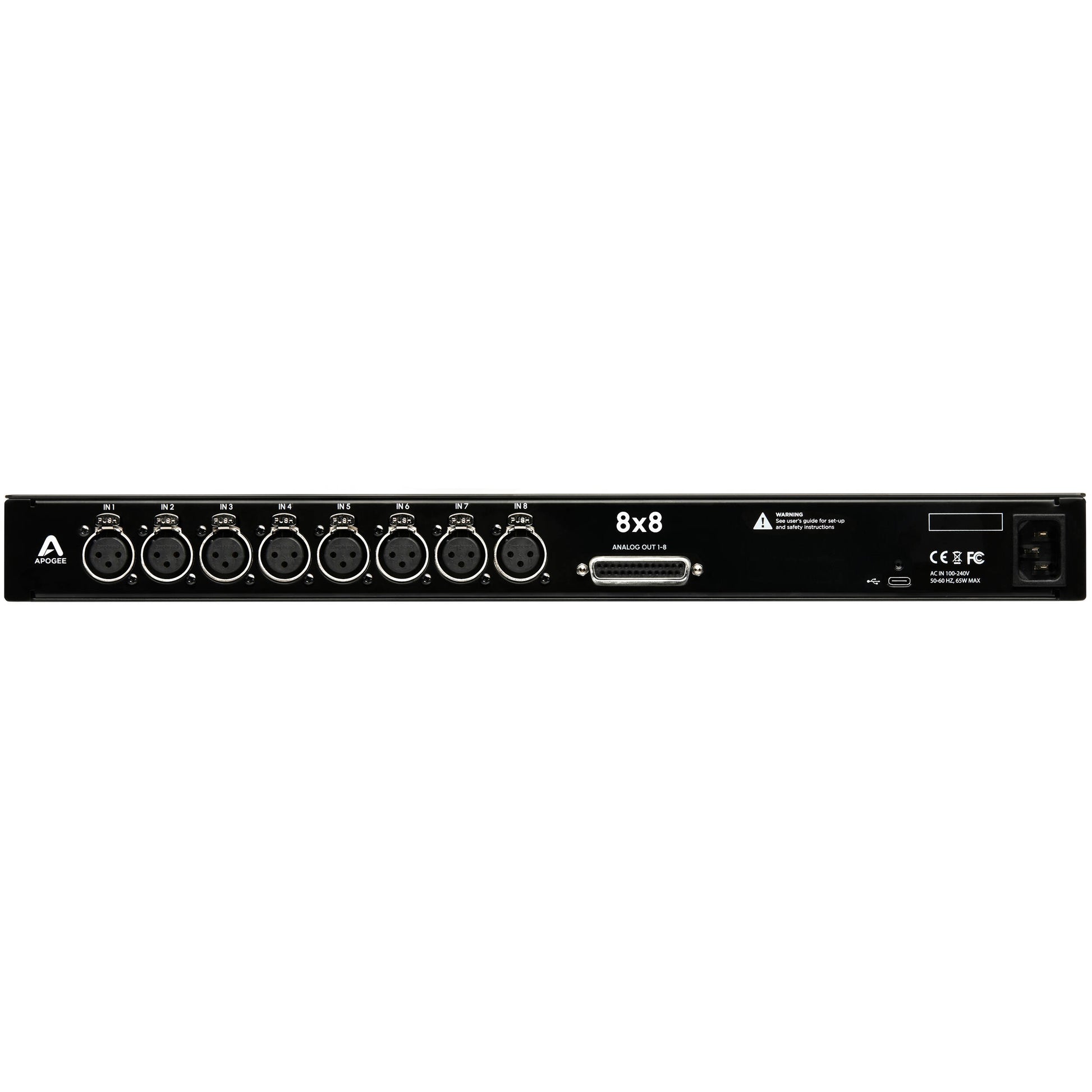

Eight mic/line inputs with up to 75 dB of preamp gain and +48V phantom power cover multi-microphone sessions without an external preamp rack. Eight balanced line outputs feed stereo or surround monitoring up to 7.1, and two headphone outputs can be addressed independently for performer and engineer cues.
Onboard DSP
Every input has a DSP channel strip with EQ and dynamics that runs on the interface, so you can monitor or record processed signal without plug-in latency. The outputs have their own DSP for Room EQ, per-output delay for speaker alignment, and bass management, which matters when the monitor setup is a surround or immersive array rather than a single stereo pair.
Specifications
- Analog inputs: 8 mic/line
- Analog outputs: 8 line outputs
- I/O summary: 8 in x 8 out
- Mic preamps: up to 75 dB gain, +48V phantom power
- Conversion: Symphony I/O Mk II grade, 24-bit / up to 192 kHz
- Input DSP: channel strip with EQ and dynamics per input
- Output DSP: Room EQ, delay, bass management
- Immersive monitoring: up to 7.1 surround
- Headphone outputs: 2, independently addressable
- Host: USB-C, class compliant (no driver required)
- Power: 90 to 240V AC, internal supply
- Rack size: 1U
- Dimensions: 482.6 x 308 x 44 mm (19" x 12.125" x 1.73")
- Weight: 4.5 kg (10 lb)
In the Box
- Apogee Symphony Studio 8x8
- IEC power cable
- USB-C cable
- Quick start guide
