Description
The Warm Audio WA273-EQ is a dual-channel, Class A microphone preamplifier with inductor-based 3-band equalizer, recreating the complete 1073-style British console channel strip. With 80 dB of gain, custom Carnhill UK transformers, and Blore Edwards UK dual-concentric EQ potentiometers, the WA273-EQ delivers both the preamp warmth and the musical EQ shaping of the original in a 2U rack format.
3-Band Inductor EQ
Each channel features a 3-band inductor-based equalizer with Blore Edwards dual-concentric switch potentiometers manufactured in the UK:
- Low band boost/cut: 35, 60, 110, 220 Hz
- Mid band boost/cut: 360, 700, 1600, 3200, 4800, 7200 Hz
- High band boost/cut: 10, 12, 16 kHz
The high band includes additional frequency points beyond the vintage 1073 for greater flexibility.
Preamp Section

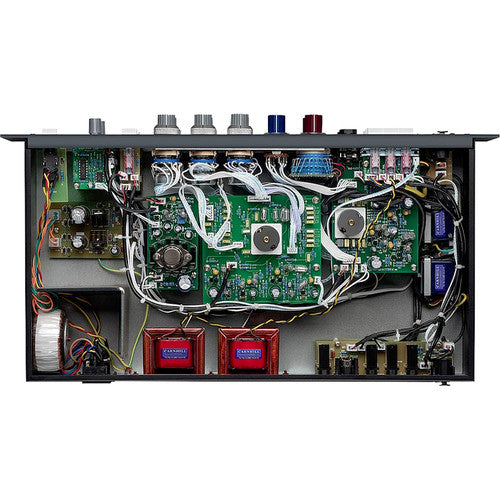

Each channel features a hand-wired, fully discrete Class A signal path with custom Carnhill UK input and output transformers. The 22-position resistor-stepped gain switch provides 80 dB of range, while the Tone button toggles input transformer impedance for tonal variation. A four-position inductor-based high-pass filter at 50, 80, 160, and 300 Hz handles low-frequency cleanup. Front and rear XLR mic inputs, TRS line input, TS instrument input, and balanced send/return inserts provide flexible connectivity, with 48V phantom power, polarity inversion, and ground lift per channel.
Specifications
- Type: Dual-channel, Class A, 1073-style British mic/line/instrument preamp with 3-band EQ
- Topology: Fully discrete, hand-wired, hand-assembled
- Transformers: Carnhill UK (input and output)
- EQ potentiometers: Blore Edwards UK (dual-concentric)
- Gain: 80 dB (resistor-stepped)
- High-pass filter: 4-position (50, 80, 160, 300 Hz)
- Tone button: Input transformer impedance switch
- Phantom power: +48V per channel
- Polarity switch: Yes
- Ground lift: Yes
- EIN: -111 dBu (unweighted)

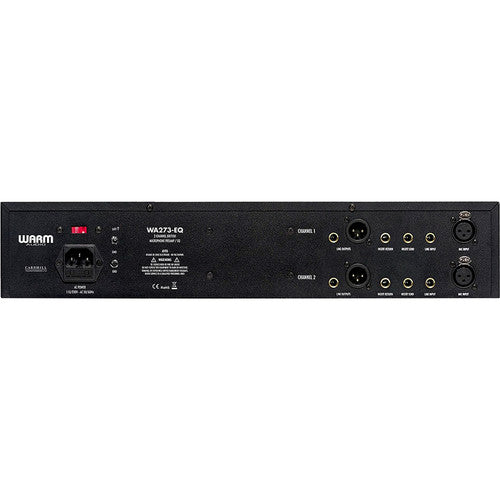

- Inputs per channel: XLR mic (front and rear), TRS line, TS instrument, TS insert send/return
- Outputs per channel: XLR, TRS
- Frequency response: 20 Hz - 20 kHz (+/- 0.5 dB)
- Power: 115/230V, internal IEC
- Rack size: 2U, 19"
- Dimensions: 483 x 89 x 279 mm (19 x 3.5 x 11")
- Weight: 7.3 kg (16 lbs)
In the Box
- Warm Audio WA273-EQ
- IEC power cable
