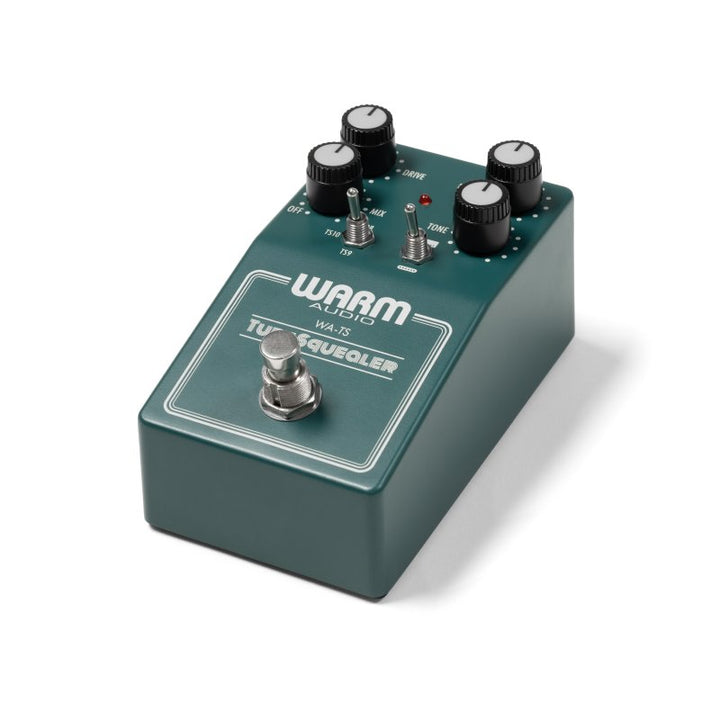

Warm Audio Tube Squealer Three-Mode Overdrive Pedal

The Warm Audio Tube Squealer recreates three classic Japanese soft-clipping overdrive circuits in a single pedal: the 808, TS9, and TS10. Each mode switches the internal circuitry to deliver the authentic voicing of the original design, not a simple re-EQ.

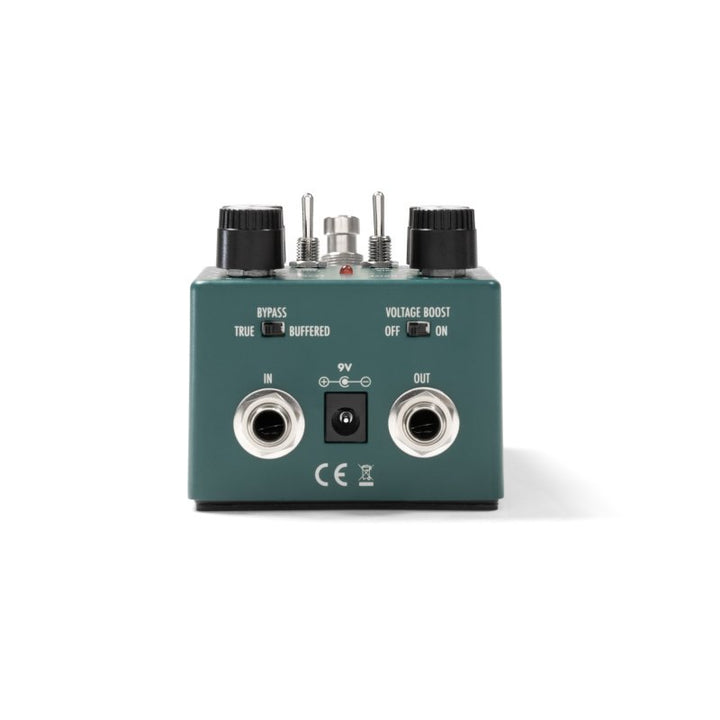

The Tube Squealer has three distinct signal paths. The 808 and TS10 share the same JRC4558-based drive stage, with the TS10 adding an extra resistor to match its original circuit for silky, sparkly overdrive. The TS9 uses its own drive stage built around a JRC4580 op-amp for the focused, compressed punch that defined 1980s rock tone. All three modes share a common JRC4558 tone stage. The Mix knob blends clean signal with the driven output, a popular modification that preserves low-end definition and pick attack. The Pickup Voicing switch shifts the midrange emphasis at approximately 800 Hz to better suit humbuckers (lower-mid focus) or single-coils (upper-mid clarity). An external voltage doubler raises headroom from 9V to 18V for cleaner boost tones and wider dynamics before saturation. A rear-mounted switch selects true or buffered bypass.

Specifications

• Circuit: 100% analog, selectable true/buffered bypass

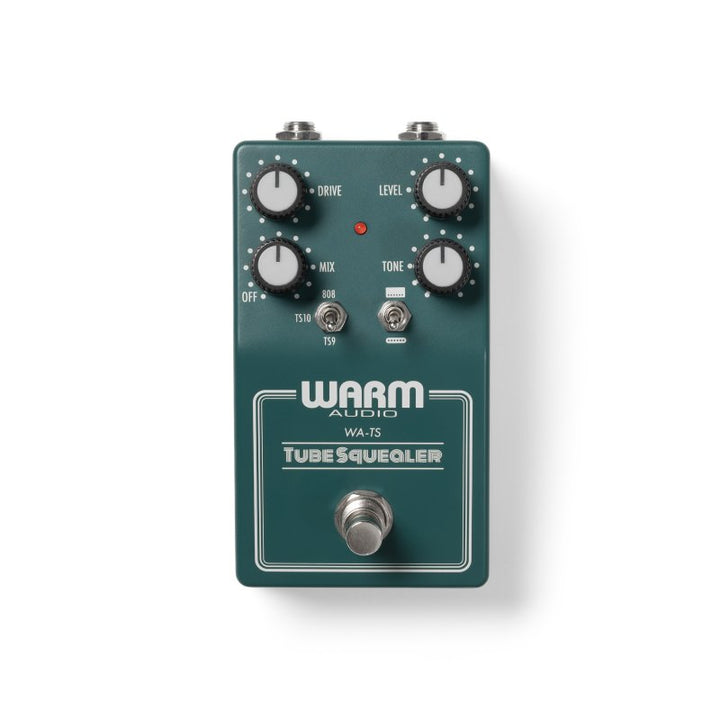

• Controls: Level, Drive, Tone, Mix, Pickup-Voicing selector, Circuit selector (808 / TS9 / TS10), Voltage Boost, Bypass selector
• Components: 2 ICs (JRC4558 and JRC4580 op-amps), 3 discrete transistors, 2 JFETs, 4 diodes, switch-cap voltage doubler
• Input impedance: 500k ohm
• Output level (max): +2.1 dBu at 9V, +9 dBu at 18V
• Power draw: 12 mA (standard), 25 mA (boosted)
• Power: 9V center-negative DC adapter
• I/O: 1/4" input and output
• Dimensions: 130 x 70 x 67 mm (5.1 x 2.75 x 2.63")
• Weight: 0.45 kg (1 lb)
