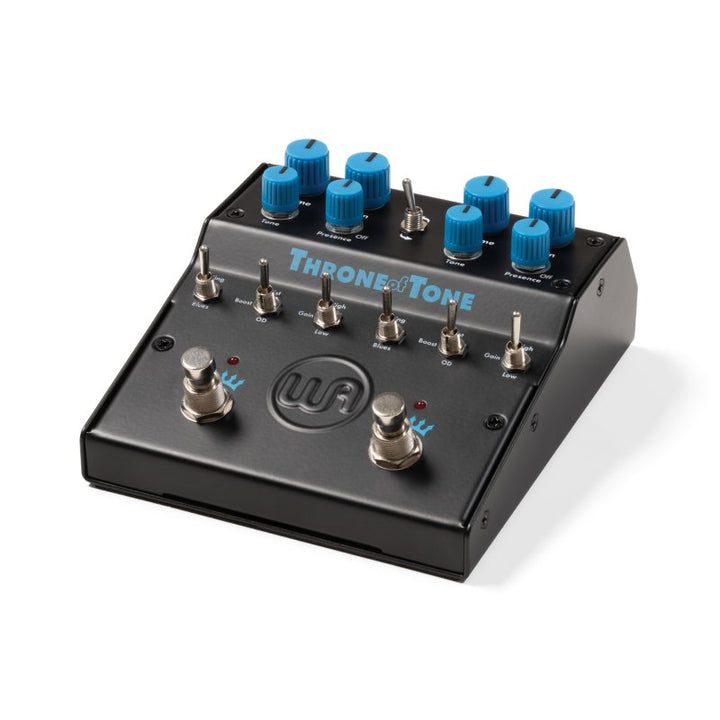

WA-TOT

The Throne Of Tone combines two of the greatest British amp-inspired blues circuits of all time in one dual-sided overdrive pedal. Designed for ultimate flexibility, it offers two classic voicings, low/high gain settings, and three drive modes, including boost, overdrive, and distortion, per side. Independent tone and presence controls plus a selectable voltage boost allow precision shaping from subtle breakup to soaring leads. External true-bypass switching, premium all-analog components, and 100% hand-testing in Austin Texas ensure that the Throne Of Tone delivers authentic amp-like response and flexible tone shaping. Perfect for stacking sides, boosting breakup amps, or creating versatile drive palettes, Throne Of Tone rightfully earns its place in overdrive royalty.

Two Of The Greatest Amp-Inspired Circuits In One Pedal
The Warm Audio Throne Of Tone is a dual-sided, British-Amp tone inspired pedal with multiple modes for gain, drive level, and voicings. Paying tribute to the greatest British Blues sonic profiles in all of guitar history, the Throne Of Tone delivers all of that mid-gain amp "breaking" tone found on the most celebrated vintage amps and boutique pedal recreations.

Dual-Voicings & Gain Levels + Three Drive Modes
The Throne Of Tone offers two classic voicings with both low and high gain levels, and three drive modes - boost, OD, & distortion. Like the original amps and tributary pedals, the Throne Of Tone easily goes into British-inspired breakup with asymmetrical clipping reminiscent of those old tube amps going beyond their stock clean tones. With this amount of flexibility without menu-diving, Throne Of Tone lets the creativity flow and makes crafting tones easy.

Presence, Voltage Control, & True-Bypass
Throne Of Tone adds a 500Hz -2.3kHz presence knob on each side of the pedal, providing even more tonal flexibility in addition to the standard tone control. The rear-mounted external (9v-18v) voltage doubler makes it easy to dial in extra headroom on the pedal. The Throne Of Tone is 100% true-bypass including the send/return jacks for adding a pedal in between the circuits. For easy tone adjustments on the fly, all features are externally controllable - no need to open the pedal to make adjustments.

Premium Components, 100% Analog Circuitry
The Throne Of Tone uses 24 diodes plus JRC4580 and TL072 op-amps, combining two 100% analog circuits delivering no-compromise tone in a feature-rich package.

Hand-Tested In Austin, TX
Like all Warm Audio gear, the WA-TOT has a 5-year warranty, and is meticulously hand-tested and inspected by trained technicians with a passion for making music in Austin, TX USA.


Specifications

• A Tribute To Two Of The Greatest Mid-Gain Amp-Inspired Circuits Of All Time Together In One Pedal
• Dual-Sided British-Inspired Overdrive With Multiple Voicings, Gain Levels, and Drive Modes Plus Added Presence & Voltage Boost Control

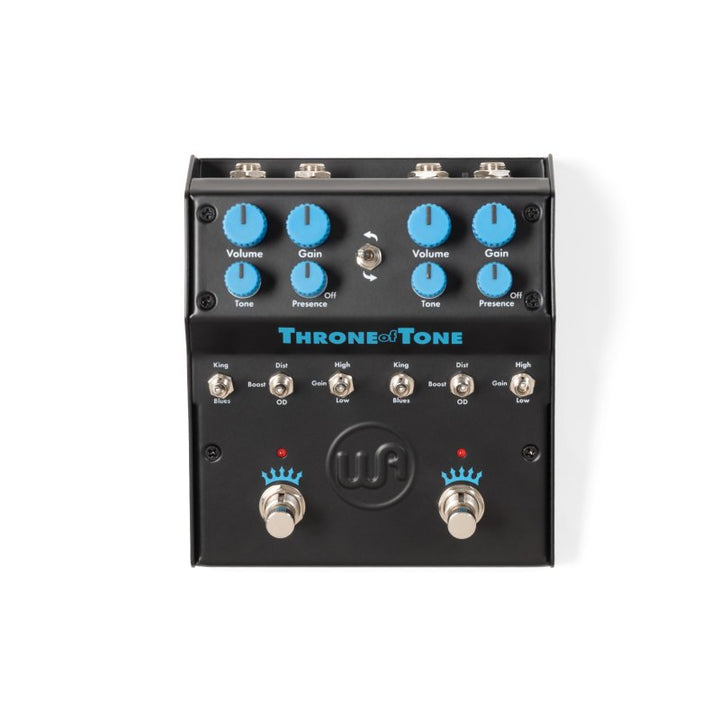

• Controls: Per-Side: Volume, Gain, Tone, Presence, Voicing Select, Drive Mode Select, Gain Level Select, On/Off, Global: Voltage Boost, FX Order Swap
• Components: (4X) IC's (Including JRC4580 and TL072 Op-Amps), (24X) Diodes And A Dual Switch Cap Voltage Doubler Supply.
• Power consumption: 24mA Standard Voltage, 43mA Boosted
• Input sensitivity: 1M Ω
• Output Level (Max): +7.1dBu @9V, +14.6dBu @ 18V

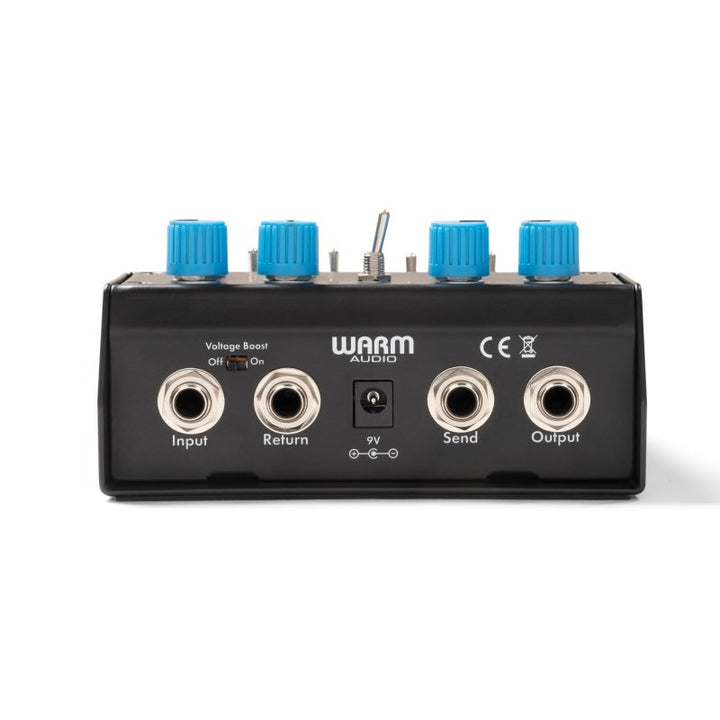

• Jacks: 1/4" Mono (Single) Input & Output, Unbalanced Send & Return Jacks, 9V Center-Negative Power
• Dimensions: 6.75 x 5 x 2.63"
• Weight: 2.4 lbs
