Description

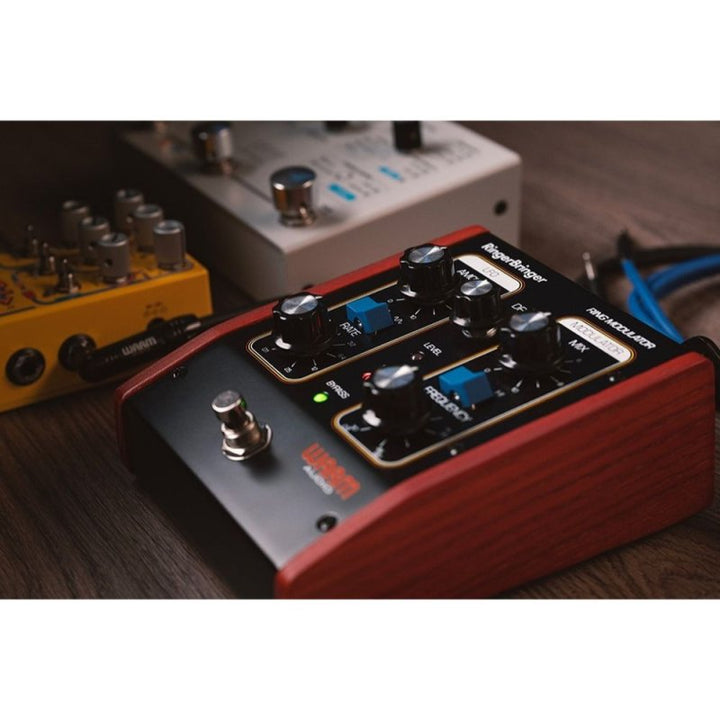

The Warm Audio RingerBringer is a 100% analog ring modulation pedal that recreates the tonal range and control set of a classic boutique ring modulator. From subtle lo-fi tremolo to piercing, otherworldly ring-mod effects, the RingerBringer generates layered frequencies and harmonics using a true-to-spec analog signal path.
The internal sine oscillator operates in two frequency ranges: Lo (0.6 Hz to 80 Hz) for tremolo and subtle modulation effects, and Hi (30 Hz to 4 kHz) for classic metallic ring-mod tones. The LFO section offers Amount and Rate controls with a Sine/Square waveform switch to shape the modulation character. The Mix knob crossfades between dry and effected signal, while the Frequency control sets the carrier oscillator pitch. A universal Drive control adds harmonic saturation to the input signal before modulation. Four CV inputs (Rate, Amount, Mix, Freq) accept expression pedals or external control voltages, and a Carrier In/Out allows replacing the internal oscillator with an external signal source. The LFO Out sends the internal LFO to other pedals or synths. The retro-styled enclosure features faux-wood side panels and a black control surface.

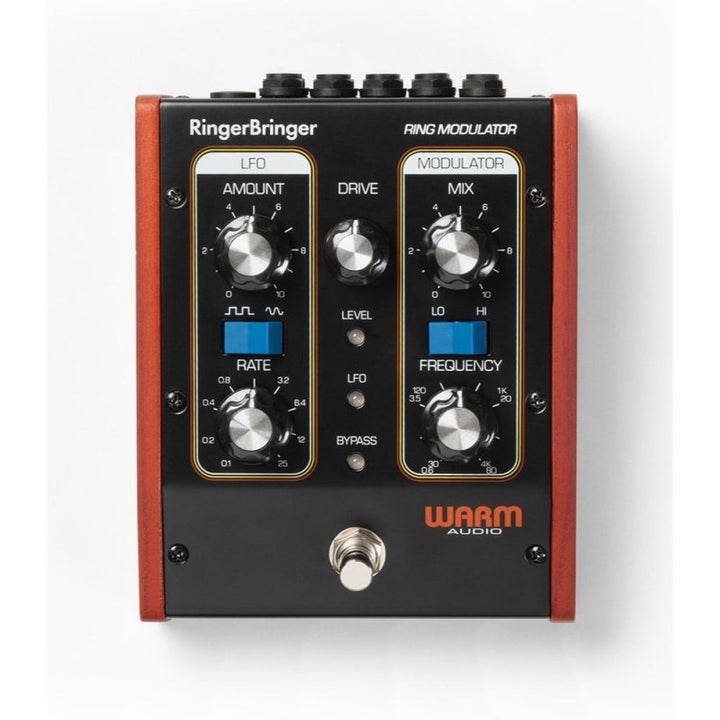

Controls
- LFO: Amount, Rate, Sine/Square wave switch
- Modulation: Mix, Frequency, Lo/Hi switch
- Drive: Universal drive control (always active)
- CV inputs: Rate, Amount, Mix, Freq
Specifications
- Circuit: 100% analog, buffered bypass
- Components: LM13700M and TL072ACDR op-amps, hand-selected DMMT3906W and MMBT3904 transistors
- Carrier frequency range: Lo: 0.6 Hz to 80 Hz, Hi: 30 Hz to 4 kHz
- Output impedance: 600 ohm
- Power draw: 100 mA
- Power: 9V battery or 9V center-negative DC adapter

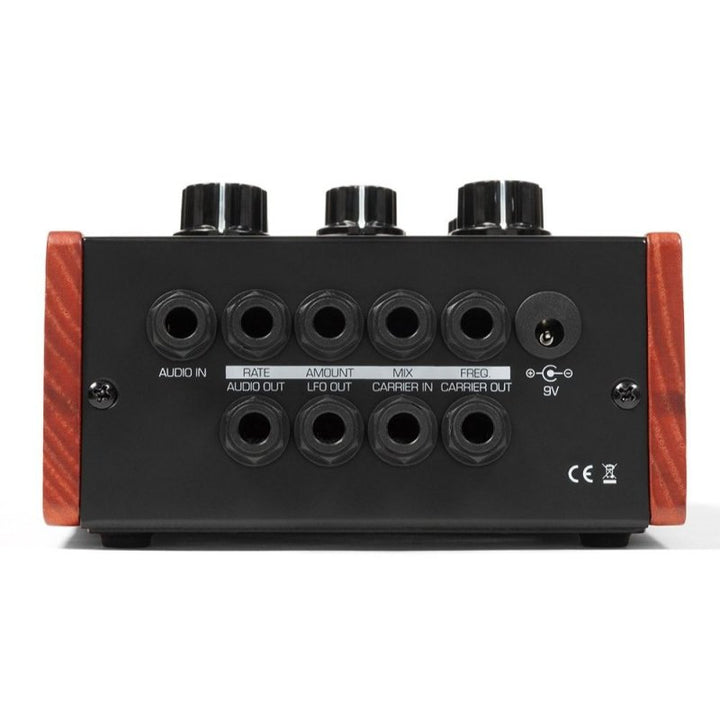

- I/O: 1/4" Audio In, Audio Out, LFO Out, Carrier In/Out
- Enclosure: Black panel with retro faux-wood sides
- Dimensions: 165 x 133 x 76 mm (6.5 x 5.25 x 3")
- Weight: 0.86 kg (1.9 lb)
