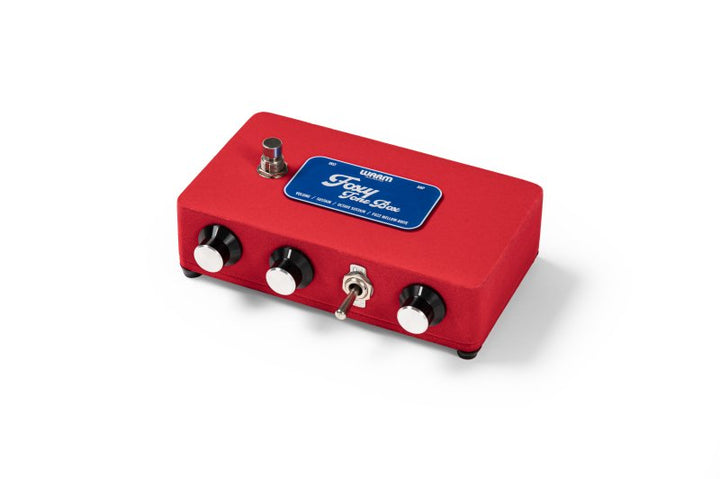

Warm Audio Foxy Tone Box Octave Fuzz Pedal (Red)

The Warm Audio Foxy Tone Box is a recreation of a beloved 1970s octave fuzz pedal, built with NOS Fairchild 2N3565 transistors and a true-to-original analog circuit. This limited edition features a custom red velvet-covered enclosure. The circuit is identical to the standard Foxy Tone Box.

Each unit is hand-assembled with NOS Fairchild 2N3565 transistors, germanium 1N34A diodes, high-watt carbon resistors, and film capacitors on a gold-plated PCB. The Sustain control adjusts from choppy, bit-crushed textures at lower settings to liquid, singing sustain when maxed. The Fuzz knob sweeps from mellow (dark, bass-heavy) to brite (cutting, treble-forward), making it easy to adapt between single-coil and humbucker pickups. Engaging the Octave Sustain footswitch adds a pronounced upper-octave harmonic that tracks best above the 12th fret for searing lead tones. The circuit draws only 1.5 mA, so a single 9V battery lasts for extended sessions.

Specifications

• Circuit: 100% analog, fully discrete signal path, true bypass

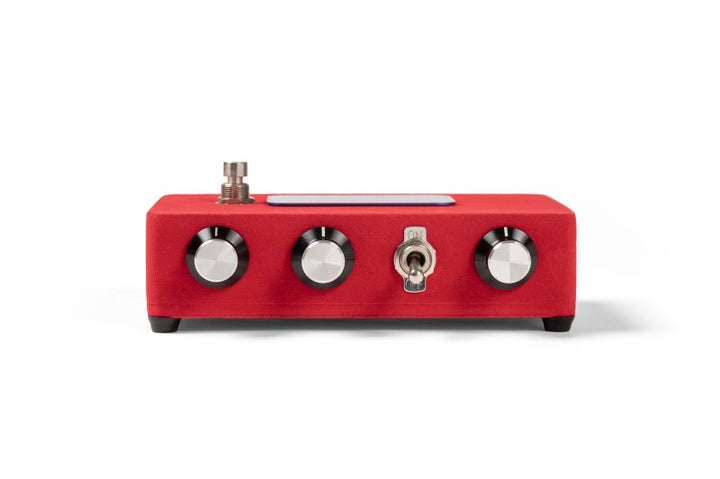

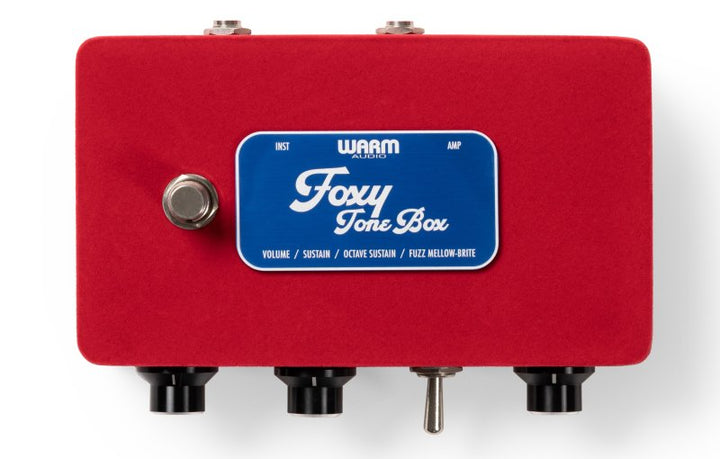

• Controls: Volume, Sustain, Fuzz (Mellow to Brite), Octave Sustain switch
• Components: NOS Fairchild 2N3565 transistors, germanium 1N34A diodes, carbon resistors, film capacitors
• Power draw: 1.5 mA
• Power: 9V battery or 9V center-negative DC adapter (included)

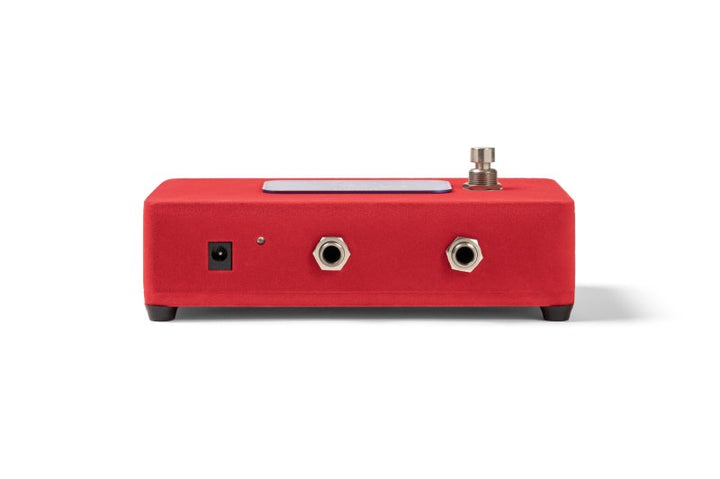

• I/O: 1/4" input and output
• Enclosure: Red velvet-covered limited edition housing
• Dimensions: 165 x 95 x 38 mm (6.5 x 3.75 x 1.5")
• Weight: 0.64 kg (1.4 lb)

In the Box

• Warm Audio Foxy Tone Box (Red)
• 9V DC adapter
