Warm Audio WA-DI-P Passive Direct Box
Condition
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description
The Warm Audio WA-DI-P is a passive direct box built around a custom-wound CineMag USA transformer. It converts high-impedance instrument signals from guitars, basses, and keyboards into balanced, low-impedance mic-level output without requiring external power. The transformer handles all signal conversion passively, preserving the natural harmonic character of your instrument through long cable runs and into any mixer or interface.
Specifications
- Type: Passive
- Transformer: Custom CineMag USA
- Frequency response: 20 Hz to 70 kHz (+/- 0.5 dB)
- THD: 0.01% from 20 Hz to 100 Hz, less than 0.004% from 100 Hz to 20 kHz
- Input impedance: 1 M Ohm
- Output impedance: 600 Ohms, balanced, mic level
- Pad: Variable, -3 dB to -30 dB

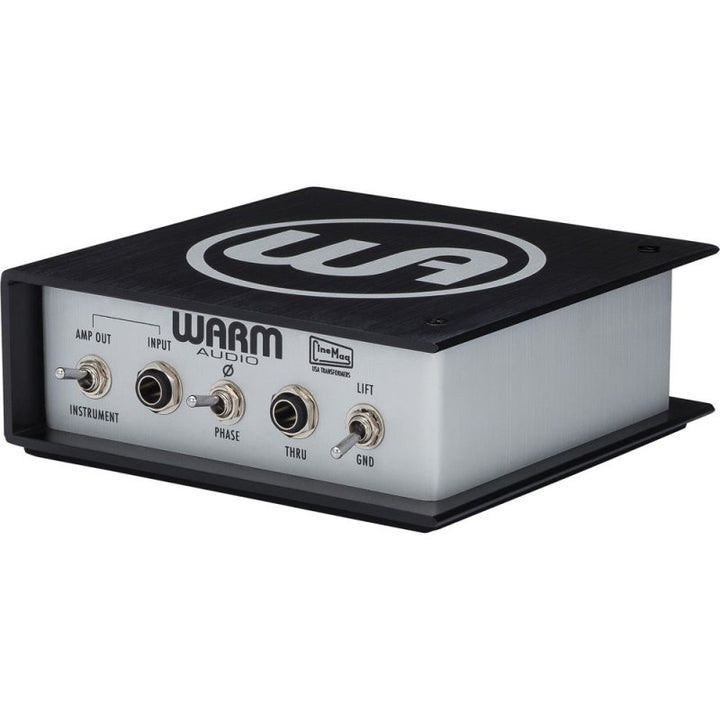

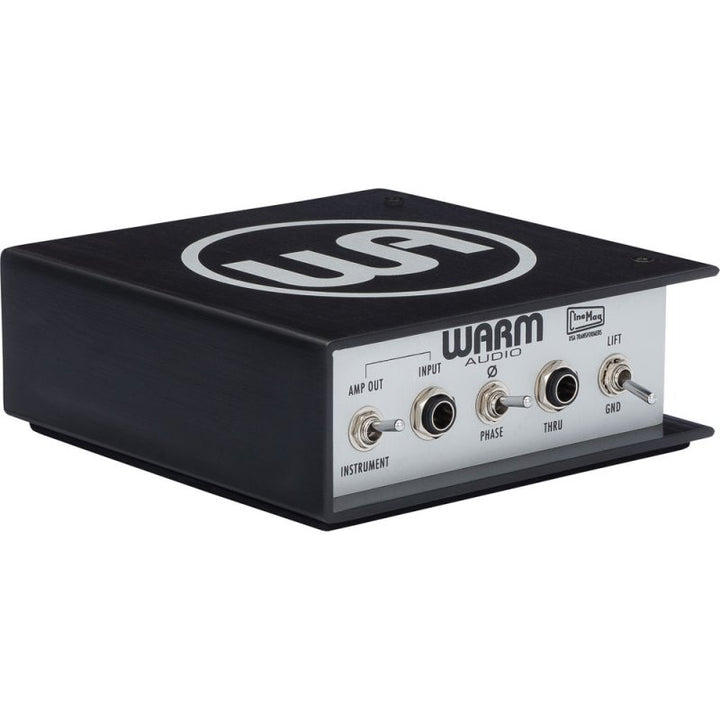

- Input: 1 x 1/4" TS (instrument)
- Output: 1 x XLR (balanced), 1 x 1/4" TS (thru)
- Switches: Phase reverse, ground lift, amp/instrument
- Power: None required (passive operation)

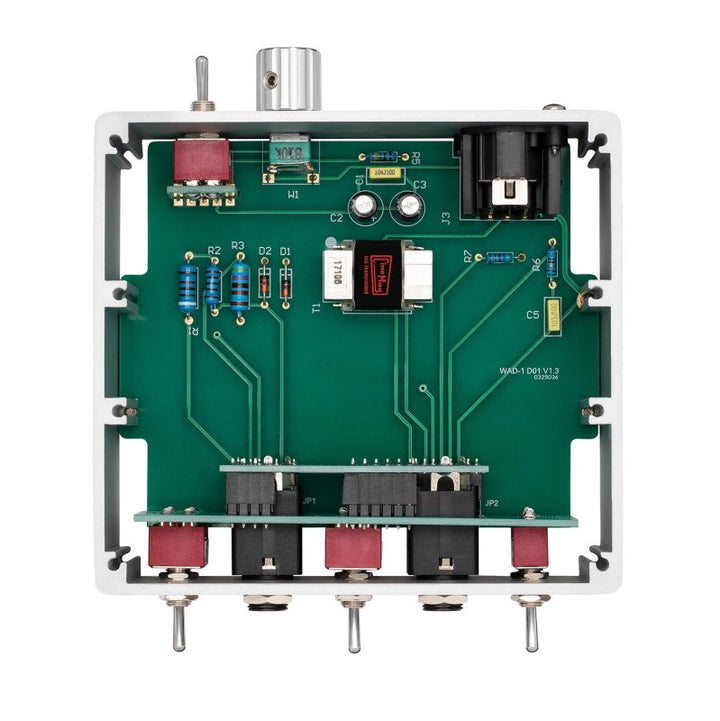

- Construction: Extruded aluminum chassis, gold-plated PCB traces
- Dimensions: 190 x 190 x 70 mm (7.5 x 7.5 x 2.75")
- Weight: 0.5 kg (1.1 lb)
In the Box
- Warm Audio WA-DI-P Passive Direct Box
