Warm Audio WA-DI-A Active Direct Box
Condition
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description

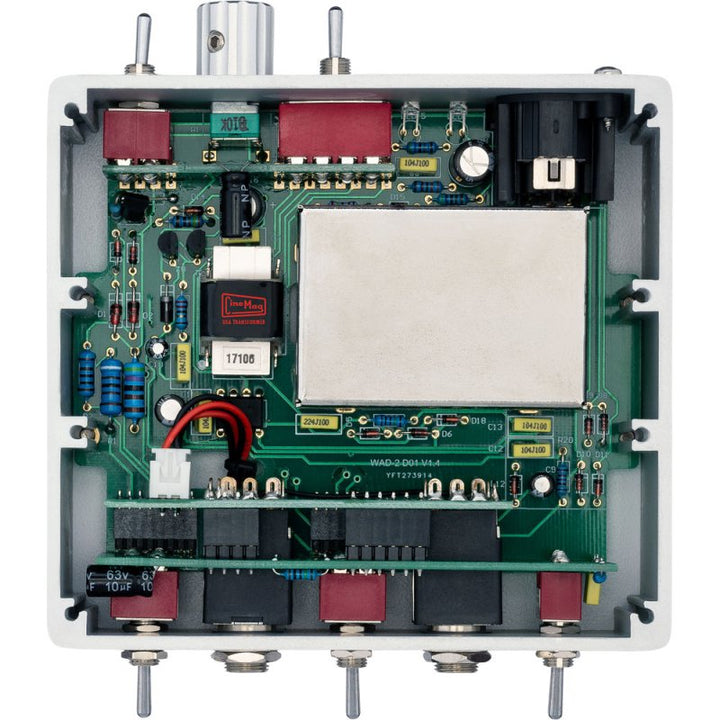

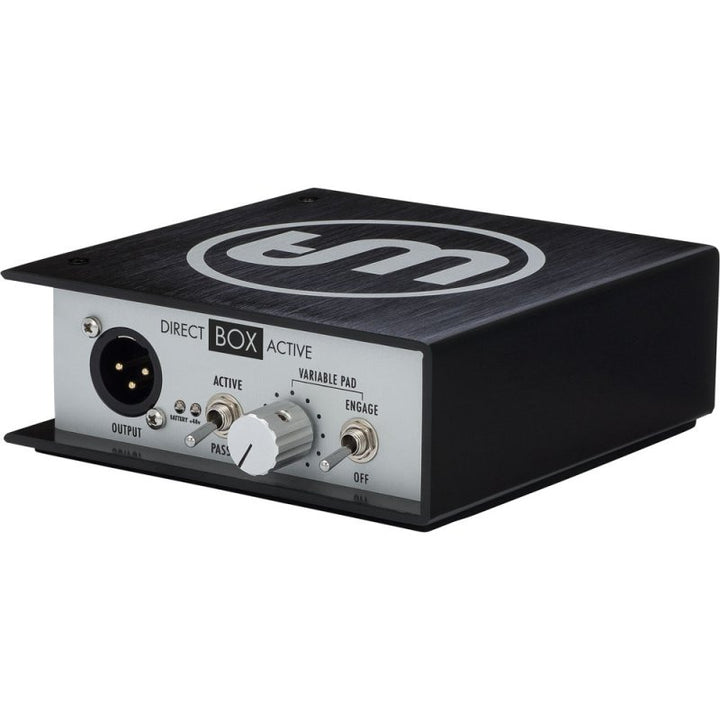

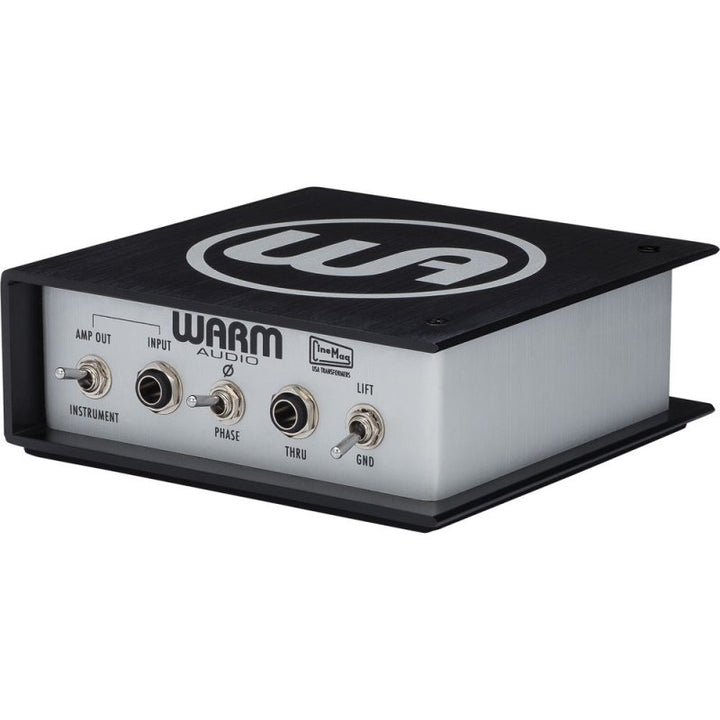

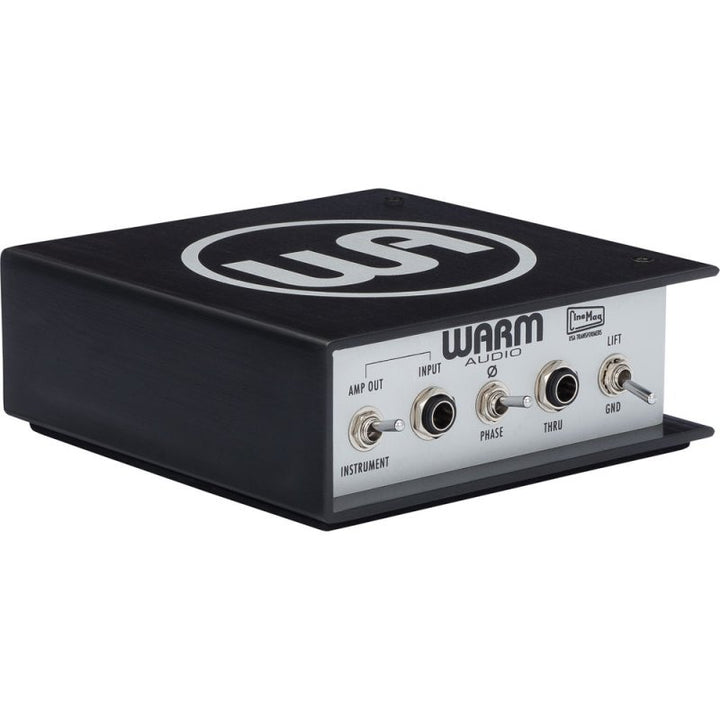

The Warm Audio WA-DI-A is an active direct box built around a custom-wound CineMag USA transformer and 100% Class-A discrete analog circuitry. It converts high-impedance instrument signals from guitars, basses, and keyboards into balanced, low-impedance mic-level output without degrading the source tone. The unit operates in active mode via 48V phantom power or dual 9V batteries (1,600+ hours of battery life), and can also be switched to passive mode for added versatility.
Specifications
- Type: Active (switchable to passive)
- Transformer: Custom CineMag USA
- Frequency response: 10 Hz to 90 kHz (+/- 0.5 dB)
- THD: 0.01% from 20 Hz to 50 Hz, less than 0.003% from 50 Hz to 20 kHz
- Input impedance: 1 M Ohm
- Output impedance: 600 Ohms, balanced, mic level
- Pad: Variable, -3 dB to -30 dB
- Input: 1 x 1/4" TS (instrument)
- Output: 1 x XLR (balanced), 1 x 1/4" TS (thru)

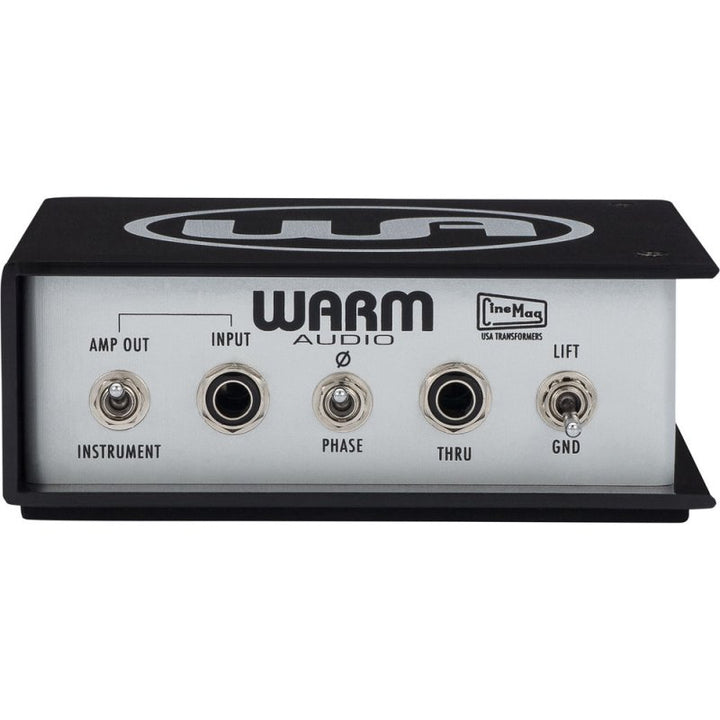

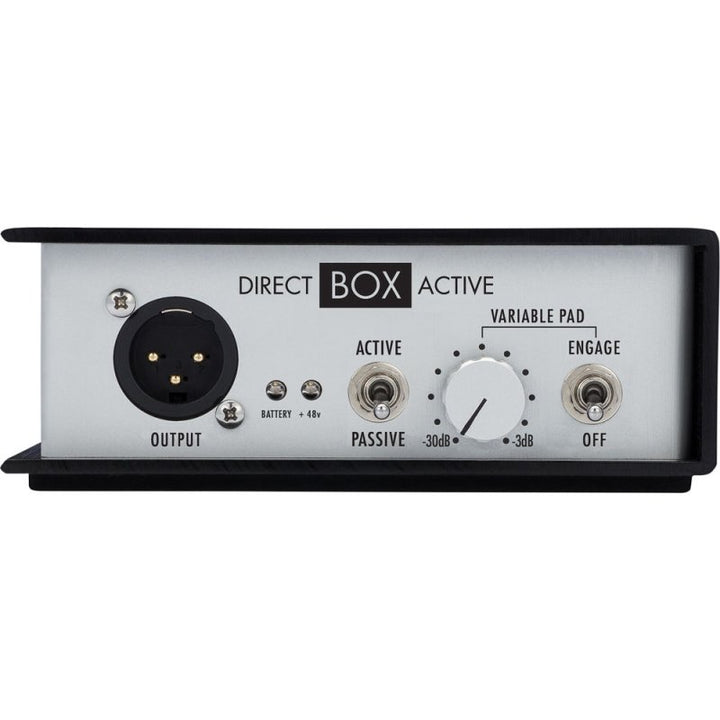

- Switches: Phase reverse, ground lift, amp/instrument, active/passive
- Power: 48V phantom (auto-sensing) or 2 x 9V batteries
- Construction: Extruded aluminum chassis, gold-plated PCB traces
- Dimensions: 190 x 190 x 70 mm (7.5 x 7.5 x 2.75")
- Weight: 0.5 kg (1.1 lb)
In the Box
- Warm Audio WA-DI-A Active Direct Box
