Warm Audio WA-47 Large-Diaphragm Tube Condenser Microphone (Titanium)
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description

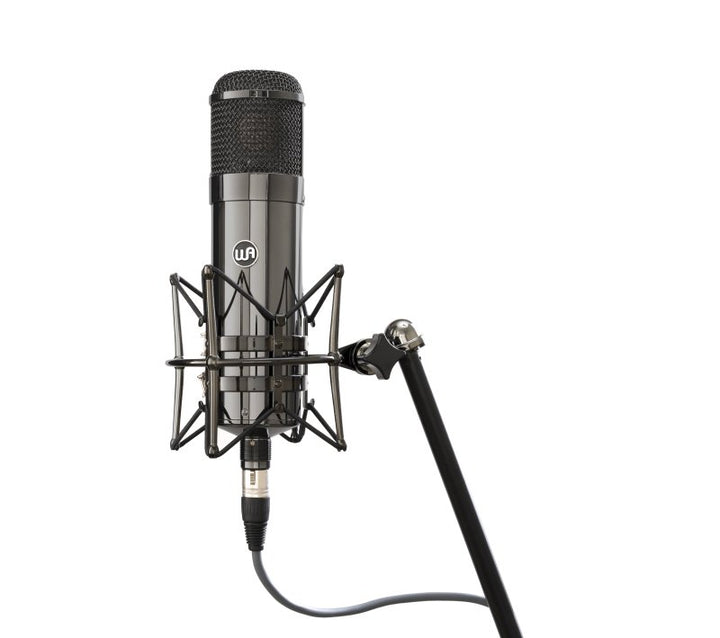

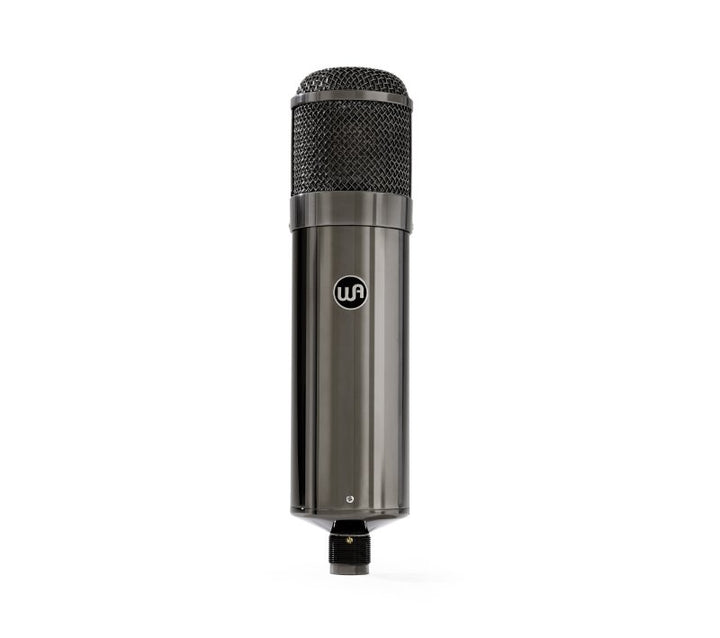

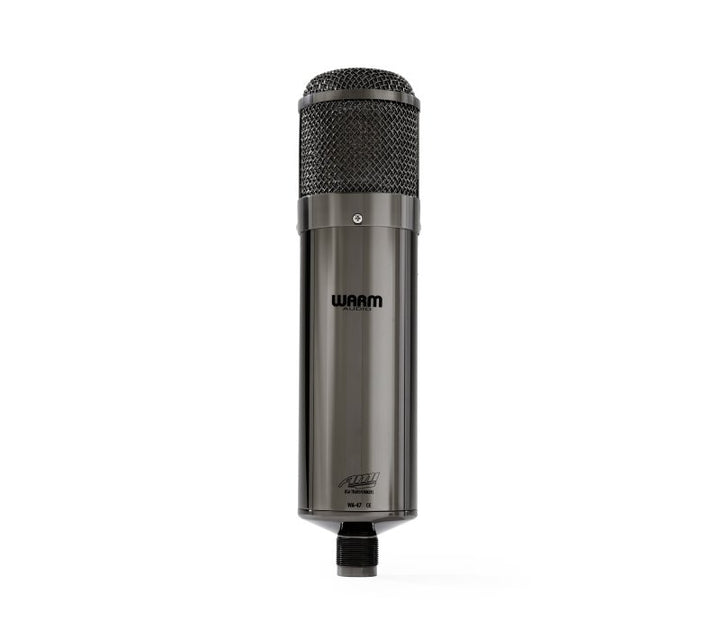

The Warm Audio WA-47 (Titanium) is a limited-edition finish of the WA-47 large-diaphragm tube condenser microphone, an authentic reproduction of the classic U47. The WA-47 uses a custom K47-style dual-diaphragm capsule, a JJ 5751 vacuum tube, and a TAB-Funkenwerk (AMI) USA output transformer to deliver deep bass, rich midrange, and smooth highs. Nine polar patterns selectable from the external power supply provide versatility from close-up vocal recording to distant room capture. This titanium-style finish version is functionally identical to the standard WA-47.
The JJ 5751 is a low-gain, low-noise tube that allows more of the capsule and transformer character to come through in the signal, giving the WA-47 the unmistakable tonal signature of a vintage 47-style microphone without modern coloration. The K47-style capsule (WA-47-B-80V) is manufactured in Australia with the same hole pattern and frequency response profile as the original, using 6-micron gold-sputtered NOS Mylar diaphragms. Nine polar patterns, selected from the external power supply, span cardioid, omnidirectional, and figure-8 with six intermediate positions for precise room interaction control.
The WA-47 circuit uses WIMA film capacitors, an imported Solen French capacitor on the output, and a polystyrene coupling capacitor. The 5-meter Gotham GAC-7 cable connecting the microphone to its power supply uses premium seven-conductor construction for reliable signal transfer.
Specifications
- Type: Tube condenser
- Capsule: K47-style (WA-47-B-80V), dual diaphragm, single backplate, gold-sputtered, 6-micron NOS Mylar
- Tube: JJ 5751
- Transformer: TAB-Funkenwerk (AMI) USA
- Polar patterns: 9 (cardioid, omni, figure-8 + 6 intermediate)
- Frequency response: 20 Hz to 20 kHz
- Max SPL: 140 dB (<0.5% THD)
- Output impedance: 200 Ohms
- Self-noise: 11 dBA
- S/N ratio: 82 dBA
- Dynamic range: 130 dBA
- Cable: Gotham 5 m GAC-7, 7-pin
- Finish: Titanium-style (limited edition)
- Mic dimensions: 254 x 60 mm (10" x 2.36")
- Total weight: 4.08 kg (9 lb) including PSU, shockmount, and cables

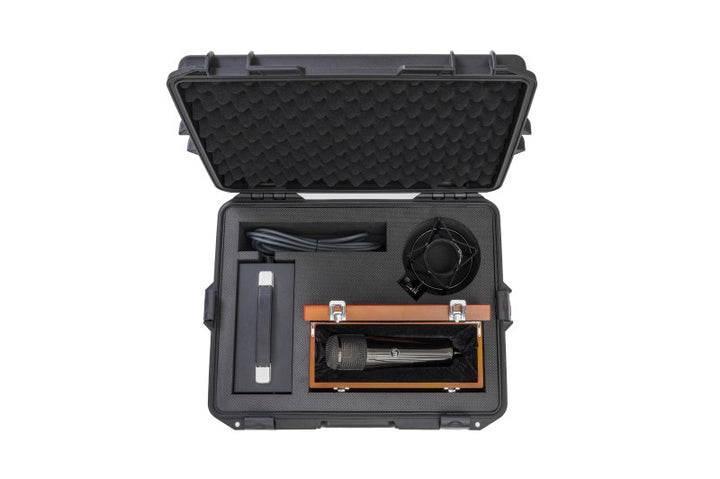

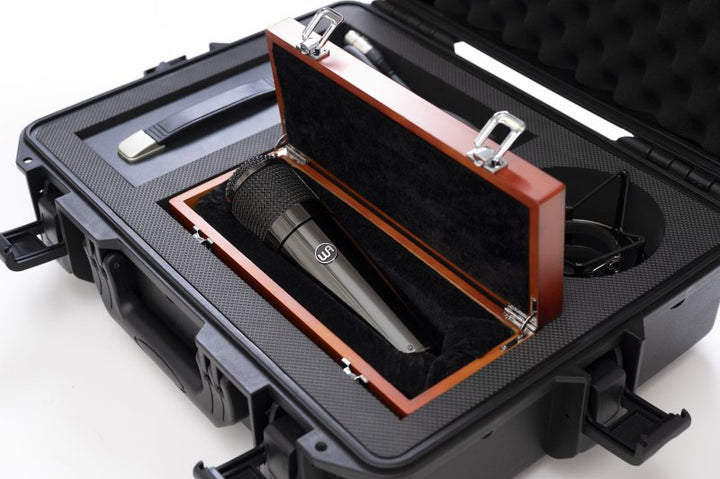

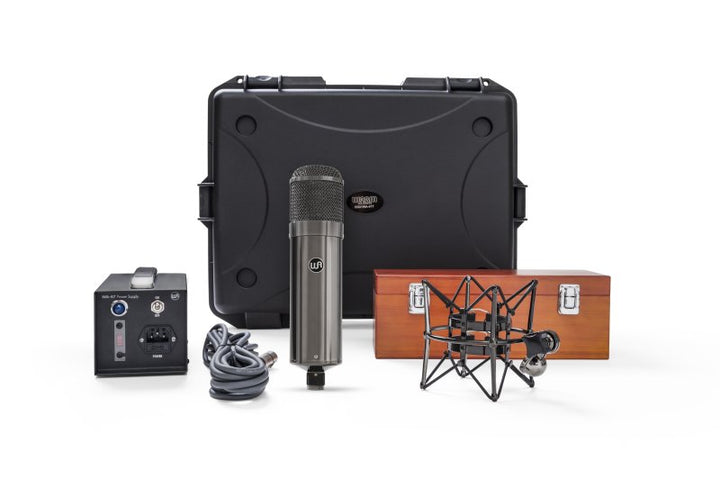

In the Box
- WA-47 microphone (titanium finish)
- External power supply with IEC cable
- Shockmount
- Gotham 5 m 7-pin GAC-7 cable
- Wood storage box
