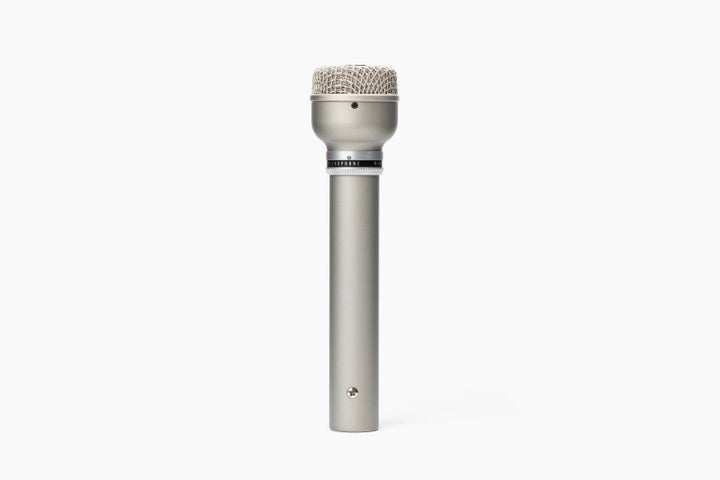

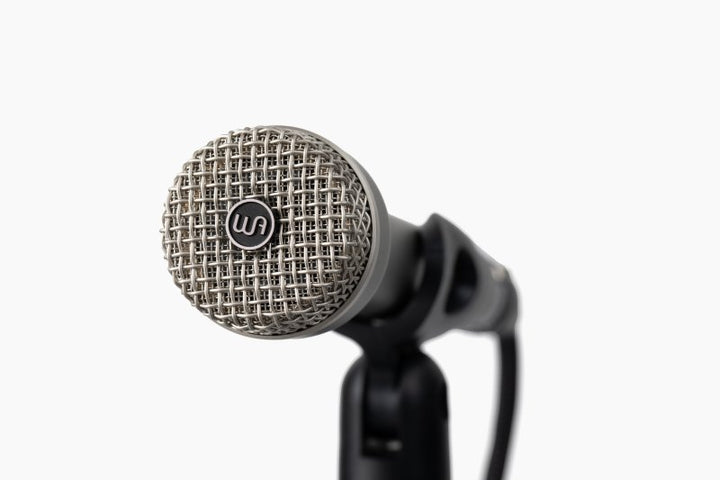

Warm Audio WA-19 Dynamic Studio Microphone (Nickel)

The Warm Audio WA-19 is a dynamic cardioid studio microphone that recreates the AKG D19, one of the most favored studio and live dynamic mics of the 1960s. Featuring a custom, hand-assembled brass humbucking capsule, the WA-19 combines the noise rejection and rugged construction of a dynamic with top-end clarity more commonly associated with condenser microphones.

Design

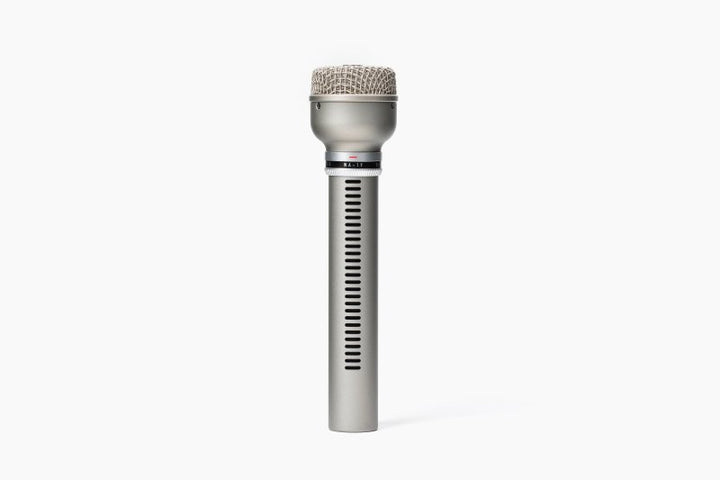

The WA-19's pencil-style body includes ventilated side slots that reduce proximity effect, making it easy to position close to loud sources without boomy bass buildup. A variable acoustic high-pass filter ring on the body cuts up to 10 dB at 50 Hz, tightening the tone and adding upper-midrange emphasis without electronic phase shift. The humbucking coil design provides strong off-axis rejection, particularly in the bass and lower midrange, making it well suited for snare, overheads, acoustic guitar, vocals, and guitar cabs.

Applications

With a 30 Hz to 18 kHz frequency response and 145 dB max SPL, the WA-19 handles everything from close-miked snare and toms to guitar amplifiers and brass instruments. The compact pencil form factor and lightweight 200 g body allow flexible placement in tight spaces where larger dynamics would not fit, and the included mic clip and protective pouch make it ready for both studio and live use.

Specifications

• Type: Dynamic cardioid studio microphone
• Capsule: Custom humbucking dynamic cardioid, hand-assembled
• Polar pattern: Cardioid
• Frequency response: 30 Hz - 18 kHz
• Max SPL: 145 dB
• Sensitivity: -53 dB +/- 3 dB at 1 kHz (0 dB = 1V/Pa)
• Impedance: 200 Ohms
• High-pass filter: Variable acoustic, 0 to -10 dB at 50 Hz
• Connector: XLR
• Color: Nickel
• Dimensions: 152 mm (6") length, 35 mm (1.4") diameter
• Weight: 0.2 kg (0.5 lbs)

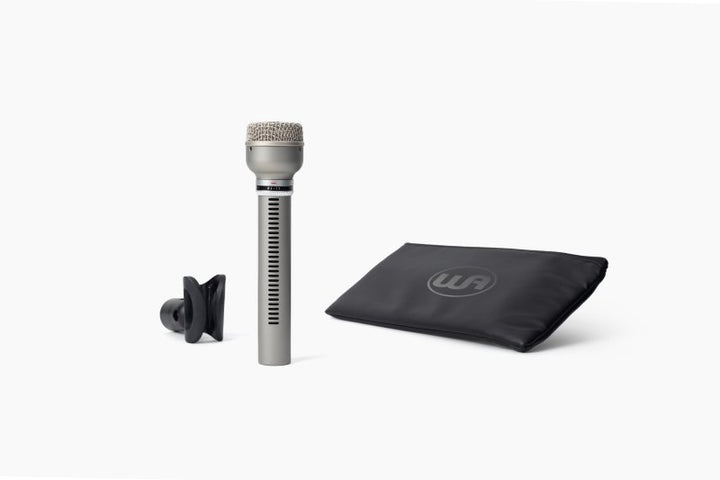

In the Box

• Warm Audio WA-19 (Nickel)
• Mic clip
• Protective pouch
