Description

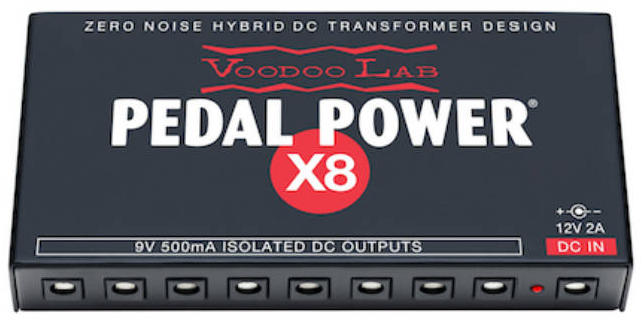

The Voodoo Lab Pedal Power X8 is an ultra-compact eight-output isolated supply with the same hybrid DC transformer design, linear regulation, and multi-pole filtering as the X4 series. Each output delivers up to 500 mA of clean 9V for vintage stomps and high-current DSP effects. Optional voltage-doubler cables combine outputs for 18V pedals when you need higher voltage without a second brick.
The low-profile chassis mounts under small to medium boards, including Pedaltrain Nano/Metro, with included 3M Dual Lock. Power from the included 12V 2A universal adapter (100-240VAC) for international touring, or from a Pedal Power 3 X-LINK / 12V source for cable-free expansion off a host supply.
Compared with the X4, you get a full eight isolated outs in a chassis that is still thin enough for under-board mounting, which makes X8 the usual choice for Small and Small-EX travel boards that outgrow four outputs.
Specifications
- Outputs: 8 isolated (8x 9V 500 mA)
- Design: Hybrid DC transformer, linear regulation, multi-pole filtering
- Input: Included 12V 2A AC adapter (100-240VAC) or X-LINK / 12V Pedal Power source
- 18V: Via optional voltage doubler cable
- Dimensions: 5.5 x 2.75 x 1" (140 x 70 x 25 mm)
- Weight: 8 oz (0.23 kg)
In the Box
- Pedal Power X8
- 12V 2A AC adapter (PS1220) with detachable line cord
- PPPK-8 standard polarity DC cable pack
- 3M Dual Lock mounting tape
