Description
The Pedal Power X4-18V Expander Kit adds two isolated 9V (500 mA) and two isolated 18V (200 mA) outputs to a host Pedal Power with a 12V high-current source. It is the same X4-18V hardware as the standalone unit, without the AC adapter, so expansion stays on one AC inlet.
Choose this kit when the board needs dedicated 18V feeds plus a couple of extra 9V outs, and the host already has spare 12V / X-LINK current. Mounts with Dual Lock; add a PS1210 later if you want standalone operation.
Compatible host examples include Pedal Power 3 / 3 Plus X-LINK ports and other Pedal Power models that offer a 12V high-current feed. Total available current follows whatever the host can spare on that 12V source.
Specifications
- Outputs: 4 isolated (2x 9V 500 mA, 2x 18V 200 mA; total limited by host)
- Input: 12V DC via included PPBAR from host Pedal Power (no AC adapter included)
- Dimensions: 3.38 x 2.75 x 1" (86 x 70 x 25 mm)
- Weight: 4 oz (0.11 kg)

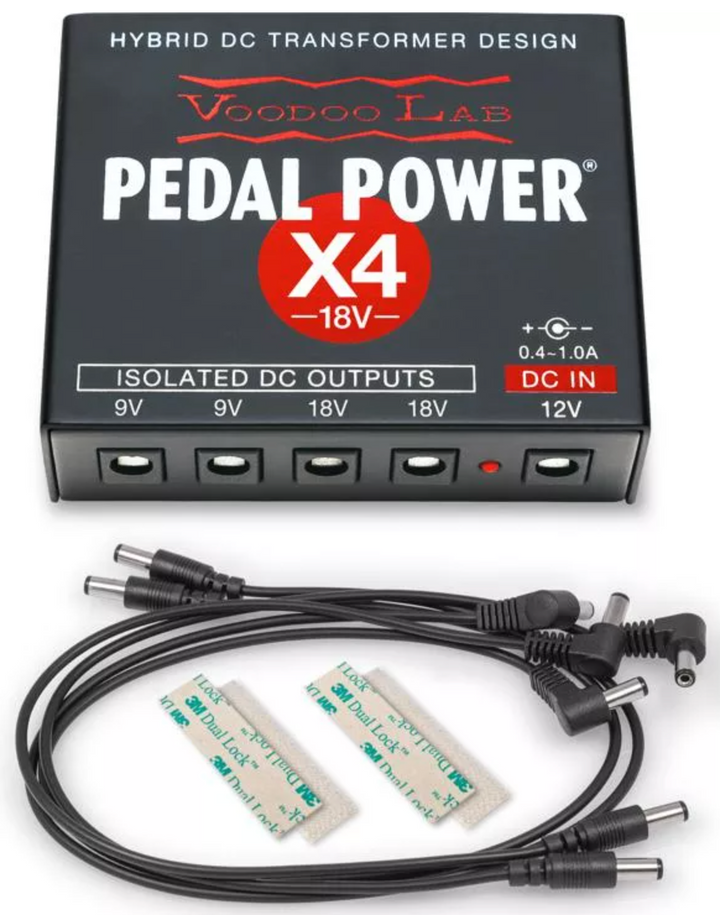

In the Box
- Pedal Power X4-18V Expander
- PPBAR 18" 12V input cable
- 2x PPBAR-RS (18") and 2x PPBAR-RS12 (12") DC cables
- 3M Dual Lock mounting tape
