Description

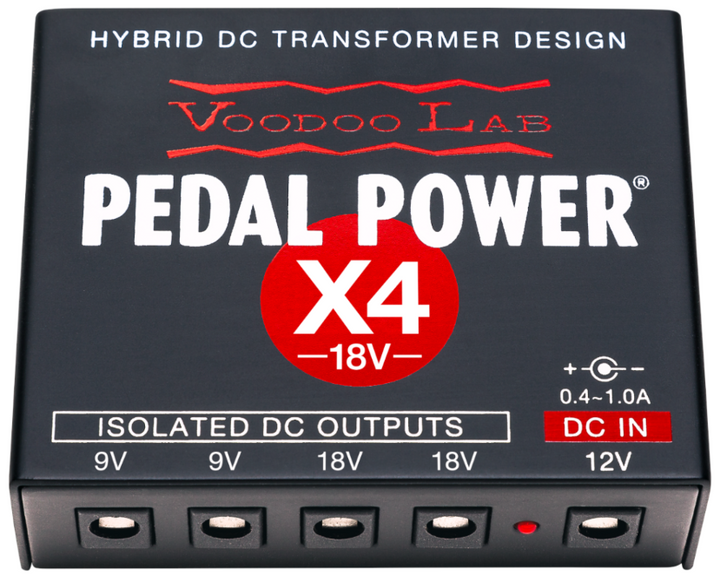

The Voodoo Lab Pedal Power X4-18V matches the X4's ultra-compact chassis and hybrid DC transformer design, but splits the four isolated outputs into two 9V (500 mA) and two 18V (200 mA) sections. That mix covers pedals that need higher voltage headroom alongside standard 9V stomps without a separate 18V brick.
Use the included universal 100-240VAC adapter standalone for travel, or feed it from a Pedal Power 12V / X-LINK source as an expander when the main supply is already on the board. Mounts with 3M Dual Lock on small boards such as Dingbat Tiny and Pedaltrain Nano.
Specifications
- Outputs: 4 isolated (2x 9V 500 mA, 2x 18V 200 mA)
- Design: Hybrid DC transformer, linear regulation, multi-pole filtering
- Input: Included 12V 1A AC adapter (100-240VAC) or any 12V 400 mA+ Pedal Power / X-LINK source
- Dimensions: 3.38 x 2.75 x 1" (86 x 70 x 25 mm)
- Weight: 4 oz (0.11 kg)
In the Box
- Pedal Power X4-18V
- 12V 1A AC adapter with detachable line cord
- 2x PPBAR-RS (18") and 2x PPBAR-RS12 (12") DC cables
- 3M Dual Lock mounting tape
