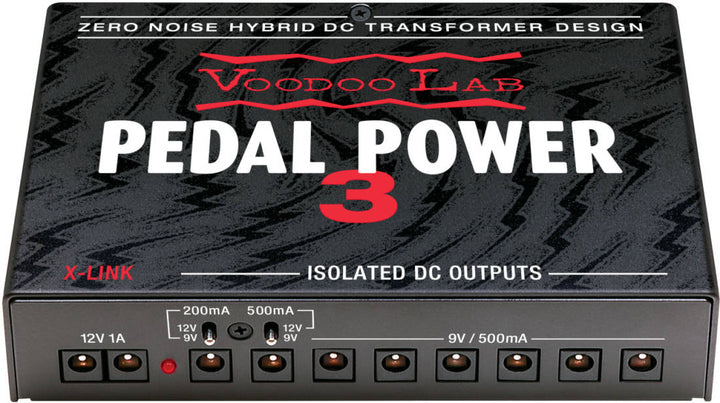

Voodoo Lab PP3 Pedal Power 3 8-Output Isolated Guitar Pedal Power Supply
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description
The Voodoo Lab Pedal Power 3 is a lightweight, high-current isolated supply with a hybrid DC transformer design that combines linear regulation with organic and polymer filtering for zero-noise operation. It runs on 100-240VAC for international touring and properly powers everything from sensitive vintage stomps to modern high-current DSP pedals without the guesswork of mismatched wall warts.
Eight galvanically isolated outputs eliminate ground hum and unwanted interaction between pedals. Six deliver 9V at up to 500 mA; two are switchable between 9V and 12V when a pedal needs the extra headroom. Optional voltage-doubler cables combine outputs for 18V or 24V pedals so you do not need a second supply for a handful of high-voltage units.
Expansion
Two X-LINK ports expand the system with Pedal Power X4 or X8 units using a single host AC connection, or feed high-current 12V devices from the shared X-LINK current budget. That keeps cable clutter down on travel boards while preserving full isolation on every pedal output.
Specifications
- Outputs: 8 isolated (6x 9V 500 mA, 2x 9V/12V 500 mA)
- Design: Hybrid DC transformer, linear regulation, multi-pole filtering
- Input: IEC, 100-240VAC 50/60 Hz
- Expansion: 2x X-LINK ports
- 18V/24V: Via optional voltage doubler cable
- Dimensions: 6 x 3.5 x 1.5" (152 x 89 x 38 mm)
- Weight: 0.9 lb (0.41 kg)
In the Box
- Pedal Power 3
- PPPK-8 standard polarity DC cable pack
- Detachable IEC power cord
