Description

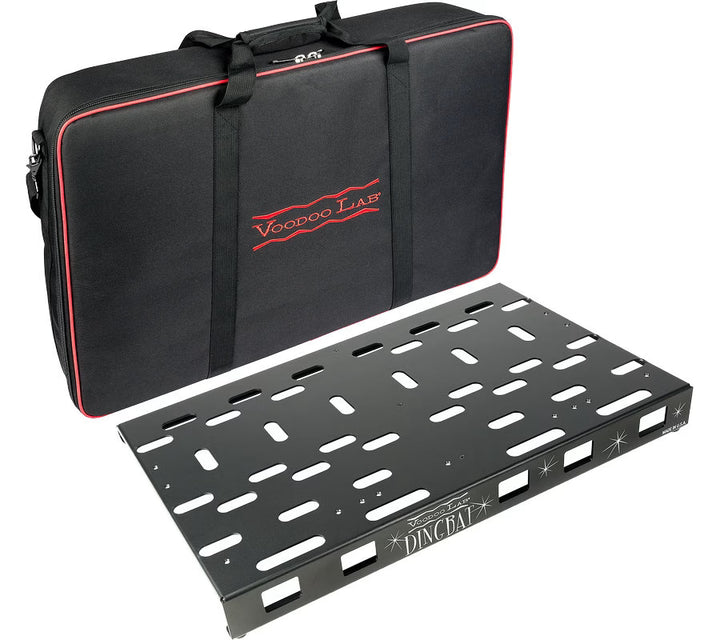

Complete pedalboard power package combining the Voodoo Lab Dingbat Large with a factory-installed Pedal Power Mondo. The board is CNC-machined from American 6061-T6 aircraft-grade aluminum in Sonoma County, California, with the patented rail design for under-board cable management. The power supply mounts underneath with included brackets, so the playing surface stays clear for pedals.
DC power cables ship with the supply, and a tour-grade padded gig bag is included so the package is ready to load out once pedals are attached. This is the factory-built route when you want a matched Dingbat and Pedal Power instead of sourcing board, brackets, and supply separately.
In the Box

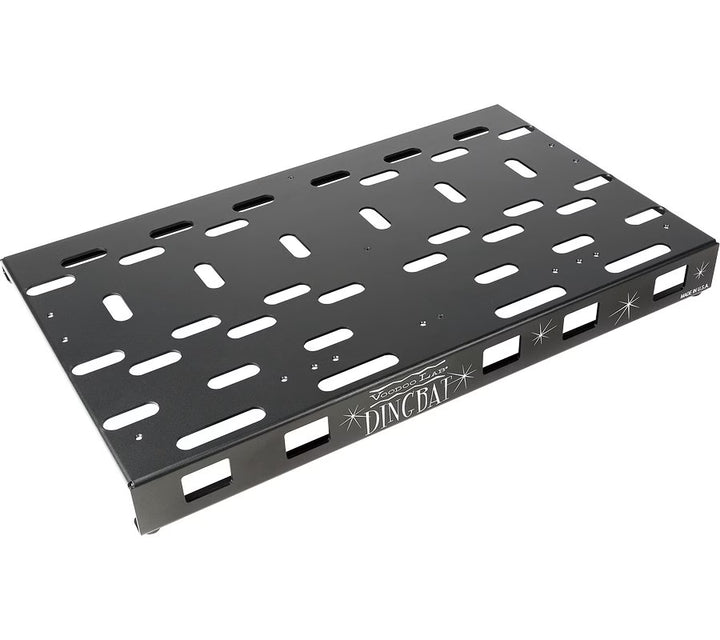

- Voodoo Lab Dingbat Large pedalboard
- Voodoo Lab Pedal Power Mondo (factory-installed) with DC cables

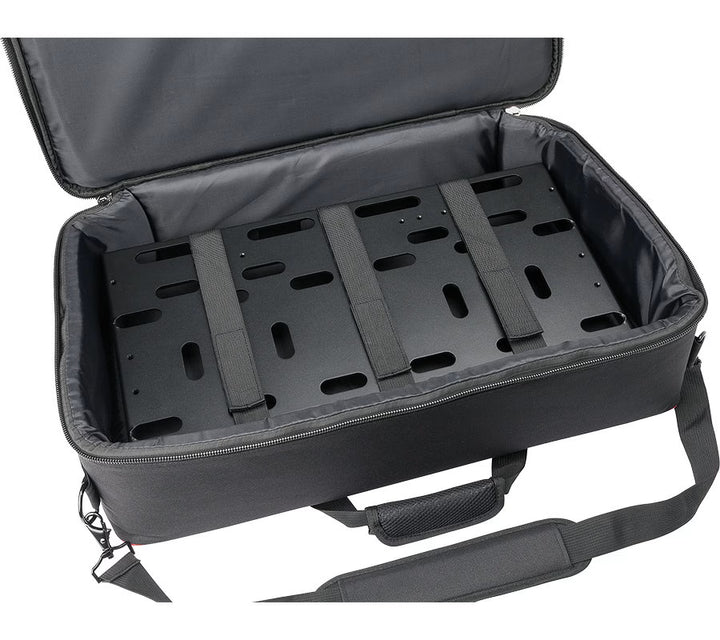

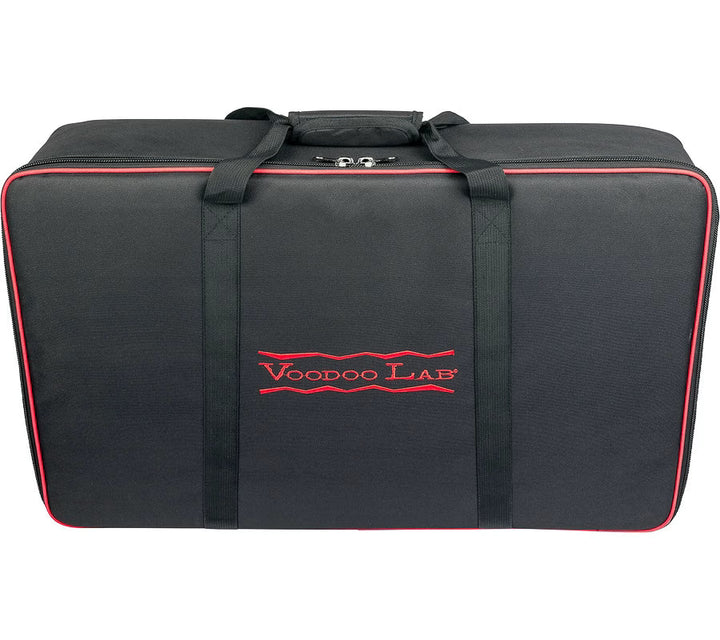

- Tour-grade padded gig bag
- Mounting hardware
- Adhesive-backed hook-and-loop tape
- UV-resistant cable ties
- 4-way adhesive tie mounts
Specifications
- Board dimensions: 25.75 x 15.5 x 2.75" (654 x 394 x 70 mm)
- Board weight: 5.75 lb (2.61 kg)
- Board material: 6061-T6 aircraft-grade aluminum
- Typical capacity: 10-16 effects
- Power supply: 12 isolated high-current outputs with SAG, fan cooling, and courtesy AC
- Second PSU position: Available with optional BDB brackets
- Soft case: 29 x 18 x 7" (737 x 457 x 178 mm), 4.2 lb (1.91 kg)
- Origin: Board made in Sonoma County, California, USA
