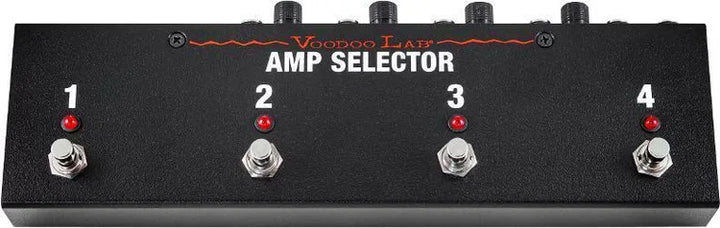

Voodoo Lab AMP SELECTOR PRO Isolated Output Switch/Blend Programmable With MIDI

As leaders in reliable power and signal management solutions for touring rigs worldwide, Voodoo Lab delivers its quality craftsmanship and technological expertise directly to your pedalboard with the Amp Selector PRO. This active signal management pedal expands the possibilities of your rig, allowing you to route to multiple destinations without loading down your pickups, ground hum, or noisy switching. Studio-quality buffers deliver a strong signal with low noise and exceptional clarity, while custom nickel-core isolated transformers preserve the nuances of your guitar tone. Designed with independent control and preset switching via MIDI, individual level controls, and Voodoo Lab's Quiet Switching technology, cleanly and quietly directing your amp signal has never been easier, while a separate Thru output allows for DI, console routing, and re-amping. Whether running four amps, combining tube amps and modelers, or re-amping in the studio, Voodoo Lab's Amp Selector PRO supports whatever your rig demands.

Three modes, seamless control

Guitarists agree: the Amp Selector PRO allows their rig to seamlessly adapt to their changing needs, whether they’re running multiple amps onstage or re-amping their rig in the studio. Amp Selector offers two modes as a standalone pedal: Direct Access mode provides instant on/off control to each output at will, and Preset mode programs each footswitch to turn multiple outputs on or off at once. Finally, the Amp Selector PRO’s MIDI In and Out ports integrate with other MIDI equipment, capable of both sending and receiving messages to change outputs and control outboard gear. Each output also has its own dedicated level control and ground-lift switch to blend each amp’s signal to taste without ground noise interference, while the global Phase Inverter revitalizes thin, hollowed-out tone.

Features

• Active amp switching pedal with low noise and full-bandwidth tone for amp pairing, switching, and re-amping
• Studio-quality buffer delivers a strong signal with low noise and exceptional clarity
• Direct Access, Presets, and MIDI integration expand the operation of your rig
• Transformer-isolated outputs and independent ground lift switches eliminate signal noise
• Custom nickel-core transformers preserve the integrity of your guitar tone
• Quiet Switching technology eliminates popping sounds for smooth transitions
• Selectable Phase Invert restores thin-sounding tone
• 1/4-in. Thru output designed for outboard tuners, DI, or console inputs for re-amping
• MIDI I/O integrates with more complex rigs and switching systems

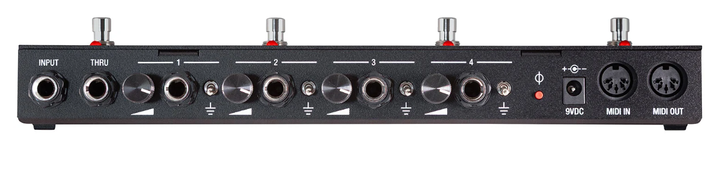

Specifications

• Type: Amp Switcher Pedal
• Inputs: 1 x 1/4"
• Outputs: 4 x 1/4"
• Other I/O: 1 x 1/4" (thru)
• MIDI I/O: 2 x 5-pin XLR (in/out)
• Power Source: 9V DC power supply
• Height: 1.38"
• Width: 11"
• Depth: 3.75"
• Weight: 1.3 lbs.
