Description

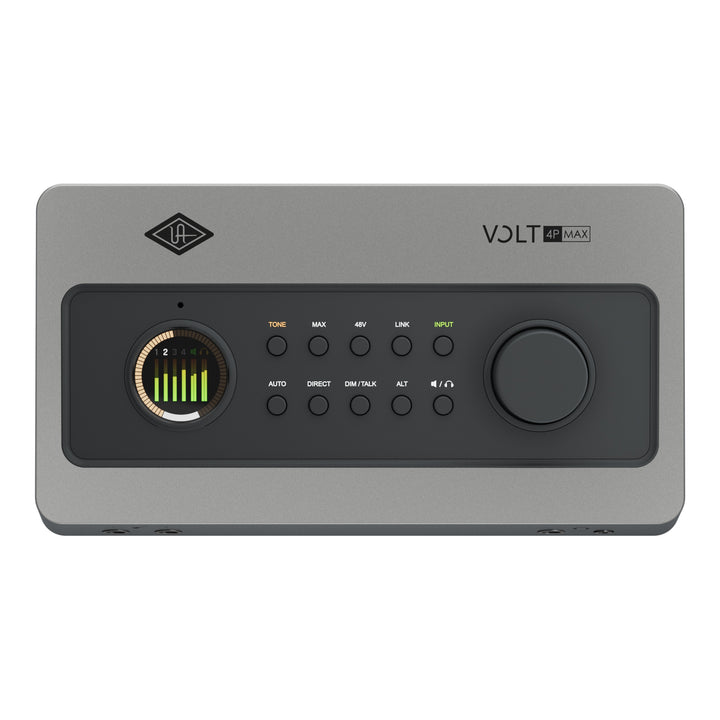

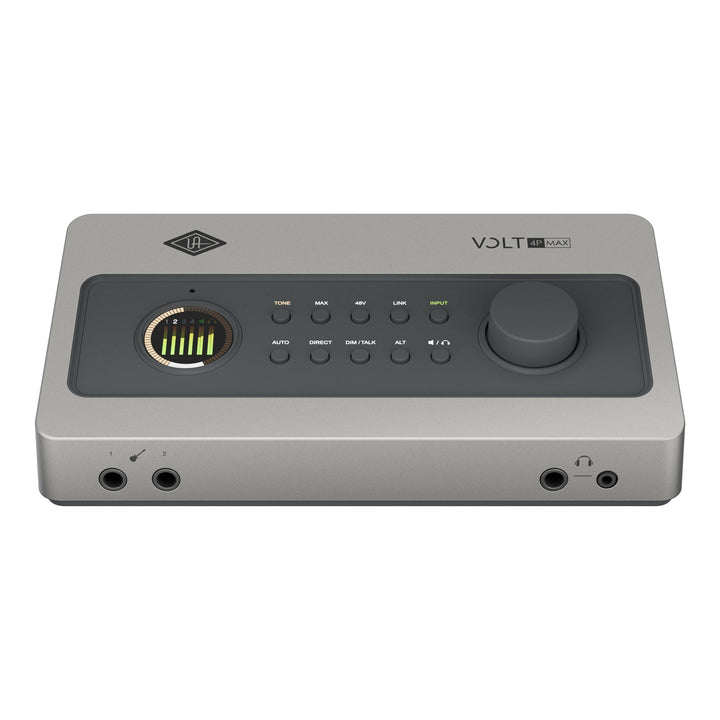

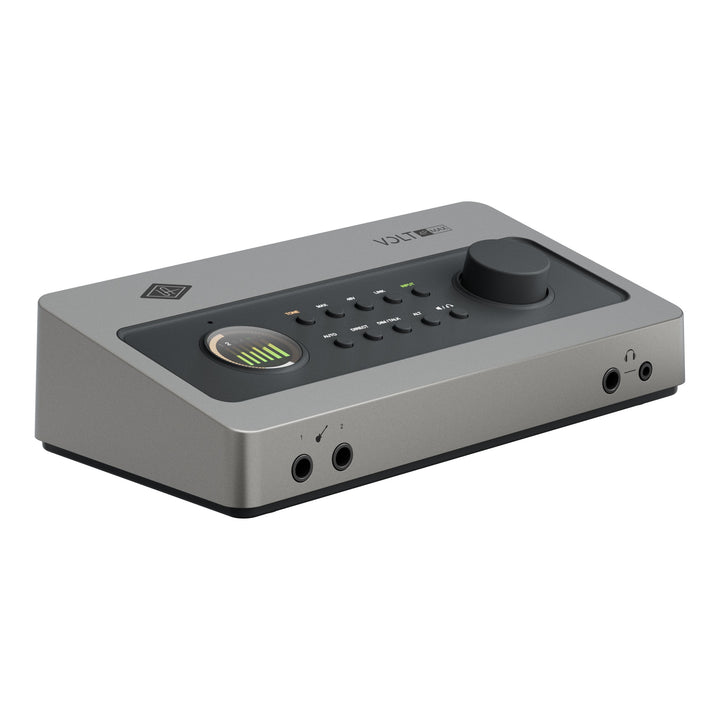

The Universal Audio Volt 4P Max is UA's flagship desktop Volt: a 12-in/6-out USB audio interface with four Tone Shaping mic preamps, so a drummer, a band or a table of podcast guests can record at once. Every preamp has Max compression with six presets modeled on the LA-2A and 1176, and the interface adds speaker switching, a talkback mic, MIDI, a USB hub and an ADAT or S/PDIF input for up to eight more channels. UA includes an external power supply in the box.
Tone Shaping and Max Processing
Each of the four preamps has its own Tone setting. Warmth takes its tube character from the UA 610 preamp, Focus brings the tight transients of American solid-state consoles, and Shine adds the open top end of British Class-A desks. Max Processing compresses in real time while you track, with presets named Great Vocal, Rap Vocal, Album Vocal, Electric Guitar, Jangly Acoustic and Tight Bass, and the Smart Display shows gain reduction next to the input level. Auto-Gain sets levels on every input at once, and Clip Protection catches stray peaks.
Monitoring, Connections and Software

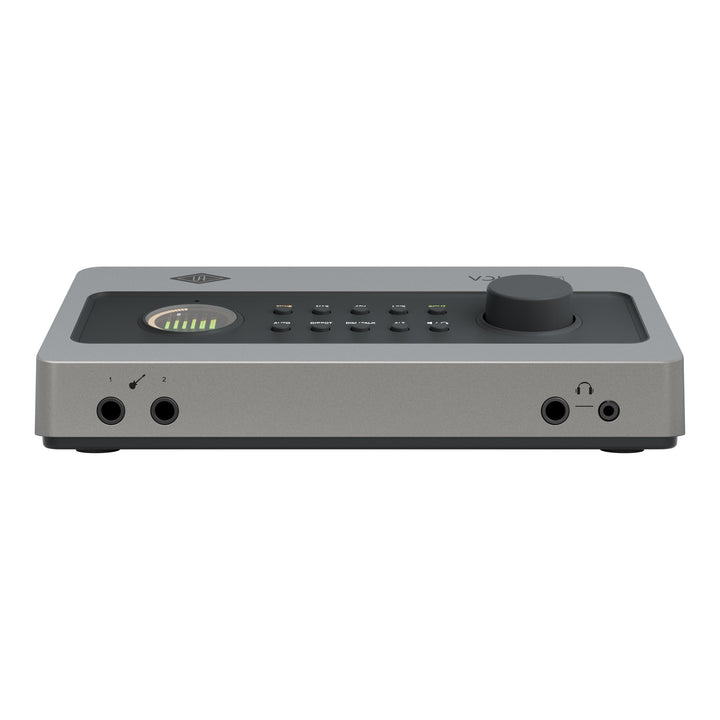

Two front-panel Hi-Z inputs take guitar and bass. Speaker switching moves the monitor feed between line outputs 1-2 and 3-4, and headphone outputs on 1/4" and 1/8" jacks share one cue mix. MIDI In and Out use 3.5 mm TRS jacks, and the USB-C hub port powers a controller or other peripheral. Volt 4P Max is class compliant on Mac, iPad and iPhone, and Windows uses the UA ASIO driver from the UA Connect app. UA includes LUNA Free and a bundle of UAD plug-ins and instruments, among them the Teletronix LA-2A and UA 1176 compressors and the UA 610 Tube Preamp & EQ Collection. UA sets the bundle contents and can change them.
Features
- 12-in/6-out desktop USB audio interface with 32-bit/192 kHz conversion
- Four Tone Shaping preamps with 60 dB of gain and Warmth, Focus and Shine modes
- Max Processing with six compressor presets per channel, modeled on the LA-2A and 1176
- Four rear XLR/TRS combo inputs and two front-panel Hi-Z instrument inputs
- Speaker switching between main and alternate monitors
- Built-in talkback microphone
- ADAT or S/PDIF optical input for up to eight more channels
- MIDI In and Out, plus a USB-C hub port for peripherals
- Full-color Smart Display with gain-reduction metering
- Assistive Auto-Gain and Clip Protection
- Two headphone outputs (1/4" and 1/8") with one shared cue mix
- Independent +48V phantom power on each channel
- Built-in loopback for podcasting and streaming
Specifications
- Simultaneous I/O: 12-in/6-out
- Inputs: Four XLR/TRS combo (mic/line), two 1/4" TS instrument on the front panel, one optical (ADAT or S/PDIF)

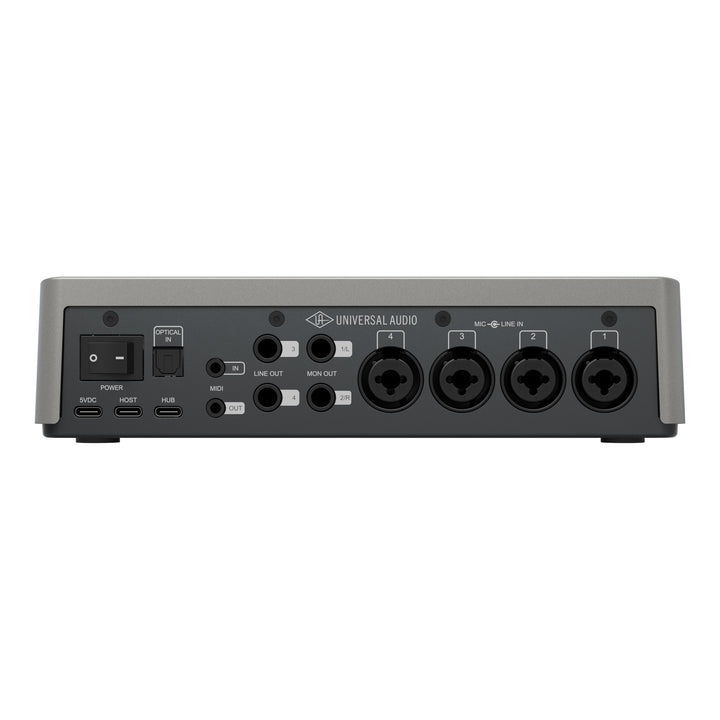

- Outputs: Four 1/4" TRS balanced line outputs (monitor on 1-2, alternate monitor on 3-4), two stereo headphone outputs (1/4" and 1/8")
- Max Processing presets: Great Vocal, Rap Vocal, Album Vocal, Electric Guitar, Jangly Acoustic, Tight Bass
- Talkback: Built-in microphone
- ADAT input: 8 channels at 44.1/48 kHz, 4 at 88.2/96 kHz, 2 at 176.4/192 kHz (S/MUX)
- MIDI: In and Out, 3.5 mm TRS (Type A)
- Conversion: 32-bit, 44.1 to 192 kHz
- Mic inputs: 14 dBu maximum input, 2 kilohms, switchable +48V per channel
- Instrument inputs: 13 dBu maximum input, 1 megohm
- Line inputs: 22 dBu maximum input, 10 kilohms
- Monitor and line outputs: 20.2 dBu maximum output
- USB: USB 2.0 host port, 5 VDC power port (2 A minimum, 3 A supply included) and hub port (5 VDC, 0.5 A maximum), all USB-C
- Power: 6.0 W typical, 9.1 W maximum, rear power switch
- Compatibility: macOS 12 or newer, Windows 10 64-bit or newer, iPadOS and iOS 16 or newer
- Dimensions (W x D x H): 8.5 x 4.5 x 2.1 in (21.6 x 11.5 x 5.4 cm)
- Weight: 1.5 lbs (0.7 kg)
In the Box
- Volt 4P Max USB audio interface
- 1 m USB-C to USB-C cable
- External power supply with AC adapter kit
