Description

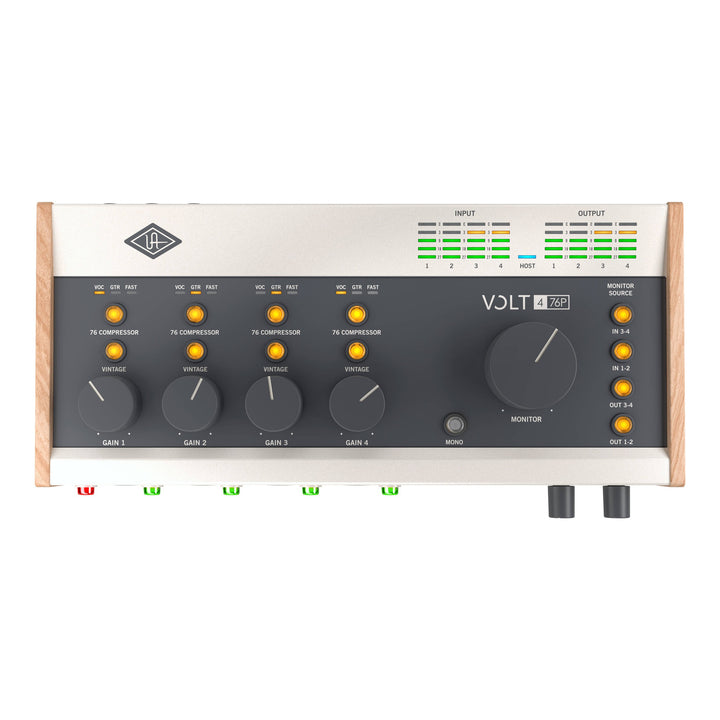

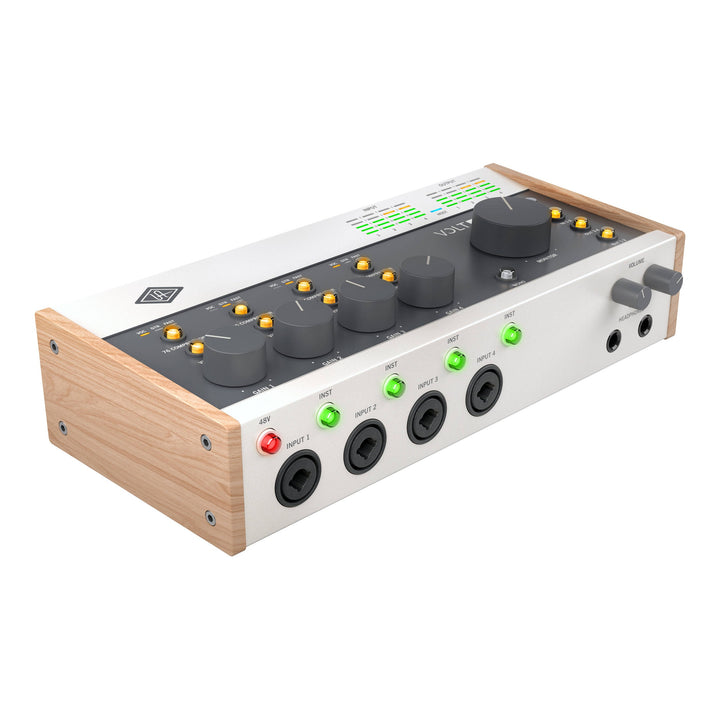

The Universal Audio Volt 476P is a 4-in/4-out USB audio interface with four mic preamps, built for recording several people or a small band at once. Every one of its four combo inputs has a Vintage preamp, inspired by UA's 610 tube preamp, and an analog 76 Compressor based on UA's 1176 Limiting Amplifier. Two headphone outputs with their own volume knobs let two performers monitor together. Conversion runs at up to 24-bit/192 kHz.
Four Channels of Analog Processing
Each input accepts a microphone, a line source or an instrument, with 55 dB of gain, its own INST button for guitar or bass and 48 V phantom power available on all XLR inputs. The 76 Compressor presets, all at 6:1, cover smooth vocals (VOC), guitar and bass with longer sustain (GTR) and fast, aggressive compression (FAST).
Monitoring and Outputs
Four Monitor Source buttons choose what reaches the speakers and headphones: inputs 1-2, inputs 3-4, computer outputs 1-2 and computer outputs 3-4, so you can hear the inputs, the computer or both. A Mono button centers the direct inputs. Four balanced line outputs carry audio from your software alongside the monitor outputs. Volt 476P runs from the included power supply.
Features
- 4-in/4-out USB audio interface with four XLR/TRS combo inputs for mic, line or instrument
- Four Vintage Mic Preamps, analog circuits inspired by the UA 610 tube preamp
- Four analog 76 Compressors based on the UA 1176, with VOC, GTR and FAST presets
- 24-bit/192 kHz conversion
- 48 V phantom power and INST buttons for guitar or bass
- Two headphone outputs, each with its own volume control
- Monitor Source buttons for inputs 1-2, inputs 3-4 and computer outputs 1-2 and 3-4, with a Mono button
- Four balanced line outputs plus stereo monitor outputs
- MIDI in and out on 5-pin DIN
- Included external power supply
- Works with macOS, Windows, iPad and iPhone
- LUNA recording software and UAD plug-ins included: UA 610 Tube Preamp & EQ Collection, UA 1176 Classic FET Compressor, Teletronix LA-2A Tube Compressor, Century Tube Channel Strip, Pure Plate Reverb, Vibe Analog Machines Essentials, UAD Showtime '64 Tube Amp and PolyMAX Synth, plus third-party titles
Specifications
- Simultaneous I/O: 4-in/4-out

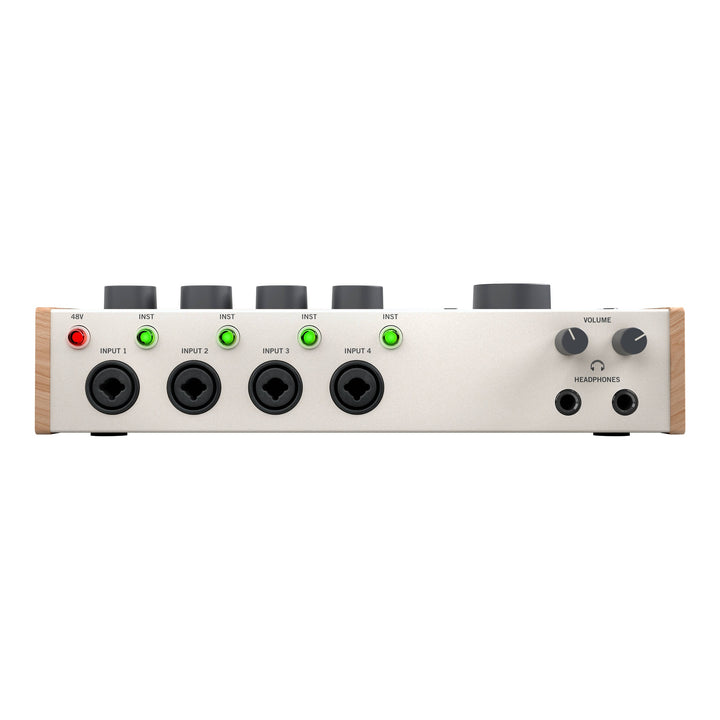

- Inputs: 4 XLR/TRS combo (mic, line, instrument)

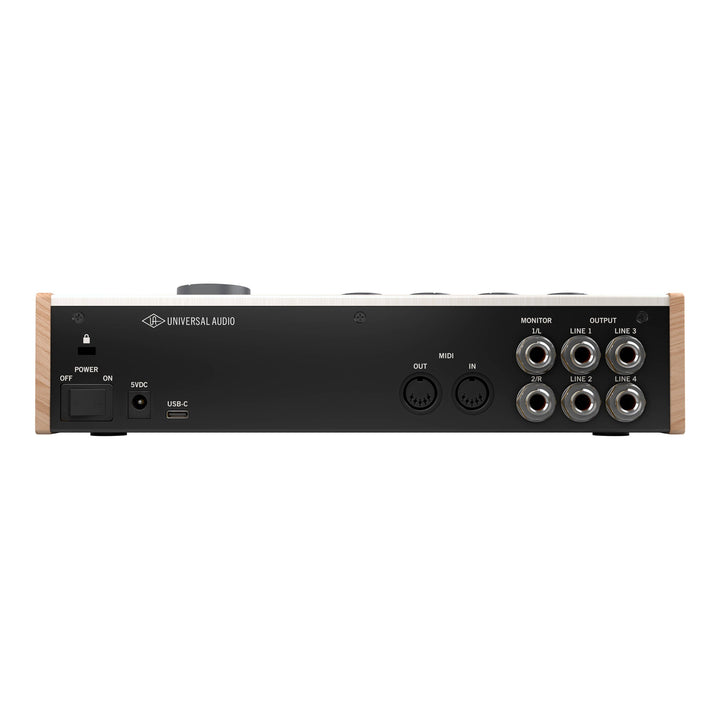

- Outputs: 2 x 1/4" monitor outputs, 4 x 1/4" line outputs, 2 x 1/4" stereo headphone outputs
- Conversion: 24-bit, 44.1, 48, 88.2, 96, 176.4 and 192 kHz
- 76 Compressor presets: VOC (2 ms attack, 300 ms release), GTR (1.5 ms attack, 700 ms release), FAST (30 µs attack, 35 ms release), all at 6:1
- Mic inputs: 55 dB gain, -127 dBu EIN (A-weighted), 112 dB dynamic range, 9 dBu maximum, 3 kilohms
- Instrument inputs: 1/4" TS, 1 megohm, 12.5 dBu maximum
- Line inputs: 1/4" TRS balanced, 15 kilohms, 22 dBu maximum
- Monitor and line outputs: 1/4" TRS balanced, 15 dBu maximum, 110 dB dynamic range
- Headphone outputs: 84 mW per channel into 32 ohms, 22 mW into 300 ohms
- Frequency response: 20 Hz to 20 kHz, ±0.1 dB (mic input)
- MIDI: In and out, 5-pin DIN
- Computer connection: USB 2.0 on a USB-C connector
- Power: Included 5 VDC power supply, center-positive barrel (5.5 mm OD, 2.1 mm ID); 6.6 W typical
- System requirements: macOS 10.15 or later, Windows 10 or 11 (64-bit), iOS and iPadOS 14 or later; Intel, AMD or Apple silicon
- Dimensions: 10.3 x 5.2 x 2.6 in (26.2 x 13.2 x 6.6 cm)
- Weight: 2.5 lbs (1.1 kg)
In the Box
- Universal Audio Volt 476P USB audio interface
- USB-A to USB-C cable
- External power supply with AC adapter kit
