Description

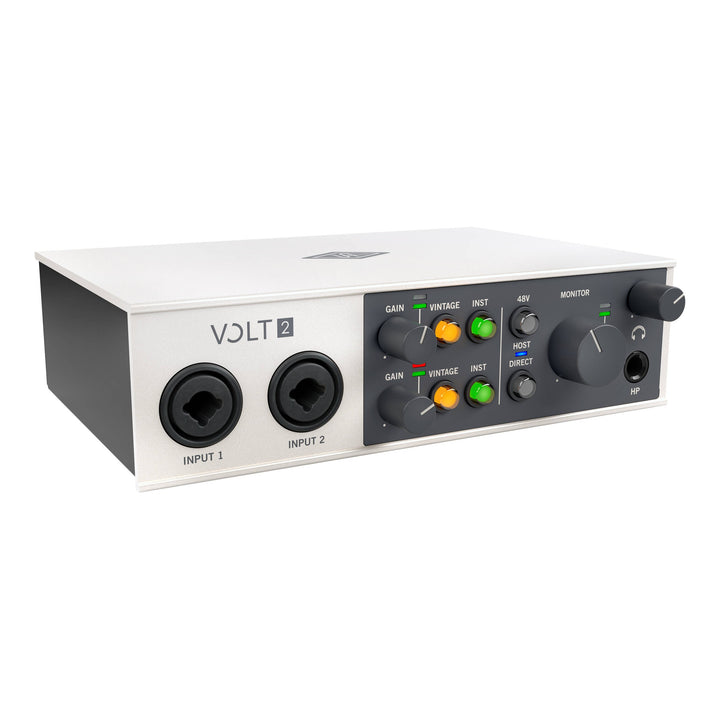

The Universal Audio Volt 2 is a 2-in/2-out USB audio interface for recording two sources at once, such as a singer playing guitar or two podcast hosts. Both combo inputs take a microphone, a line source or an instrument, and each has its own Vintage button that adds an analog preamp circuit inspired by UA's 610 tube console preamp. Conversion runs at up to 24-bit/192 kHz, and Volt 2 runs on USB bus power.
Two Vintage Preamps
Each channel has its own gain knob, Vintage button and INST button for guitar or bass, with 55 dB of gain on tap. One button sends 48 V phantom power to both XLR inputs for condenser microphones. Vintage mode shapes the sound in the analog stage, so the color is recorded along with the performance.
Monitoring, MIDI and Software
The direct monitoring button has two modes: stereo, with the two inputs panned left and right, and mono, with both inputs centered. MIDI in and out on 5-pin DIN connect a keyboard or drum machine. Volt 2 comes with UA's LUNA recording software and a set of UAD plug-ins for recording and mixing.
Features
- 2-in/2-out USB audio interface with two XLR/TRS combo inputs for mic, line or instrument
- Two Vintage Mic Preamps, analog circuits inspired by the UA 610 tube preamp
- 24-bit/192 kHz conversion
- 48 V phantom power for both mic inputs and INST buttons for guitar or bass
- Direct monitoring in stereo or mono
- Headphone output with its own volume control, separate from the monitor level
- MIDI in and out on 5-pin DIN
- Bus powered over USB-C, with a 5 VDC input for external power
- Works with macOS, Windows, iPad and iPhone
- LUNA recording software and UAD plug-ins included: UA 610 Tube Preamp & EQ Collection, UA 1176 Classic FET Compressor, Teletronix LA-2A Tube Compressor, Century Tube Channel Strip, Pure Plate Reverb, Vibe Analog Machines Essentials, UAD Showtime '64 Tube Amp and PolyMAX Synth, plus third-party titles
Specifications
- Simultaneous I/O: 2-in/2-out
- Inputs: 2 XLR/TRS combo (mic, line, instrument)
- Outputs: 2 x 1/4" monitor outputs, 1 x 1/4" stereo headphone output
- Conversion: 24-bit, 44.1, 48, 88.2, 96, 176.4 and 192 kHz
- Mic inputs: 55 dB gain, -127 dBu EIN (A-weighted), 112 dB dynamic range, 9 dBu maximum, 3 kilohms
- Instrument inputs: 1/4" TS, 1 megohm, 12.5 dBu maximum
- Line inputs: 1/4" TRS balanced, 15 kilohms, 22 dBu maximum
- Monitor outputs: 1/4" TRS balanced, 15 dBu maximum, 110 dB dynamic range
- Headphone output: 84 mW per channel into 32 ohms, 22 mW into 300 ohms
- Frequency response: 20 Hz to 20 kHz, ±0.1 dB (mic input)
- MIDI: In and out, 5-pin DIN
- Computer connection: USB 2.0 on a USB-C connector
- Power: USB bus power, or 5 VDC center-positive barrel input (5.5 mm OD, 2.1 mm ID); 2.5 W typical
- System requirements: macOS 10.15 or later, Windows 10 or 11 (64-bit), iOS and iPadOS 14 or later; Intel, AMD or Apple silicon
- Mobile use: iPhone and iPad use needs external 5 V power, and Lightning devices need Apple's Lightning to USB Camera Adapter
- Dimensions: 6.9 x 5.1 x 2.1 in (17.4 x 13.0 x 5.3 cm)
- Weight: 1.4 lbs (0.65 kg)
In the Box
- Universal Audio Volt 2 USB audio interface
- USB-A to USB-C cable
- USB-A to DC barrel power cable
