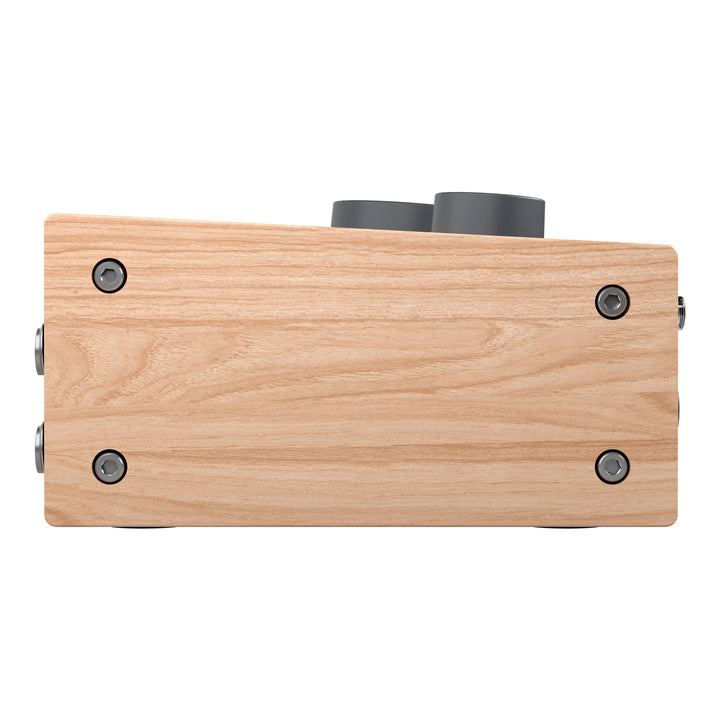

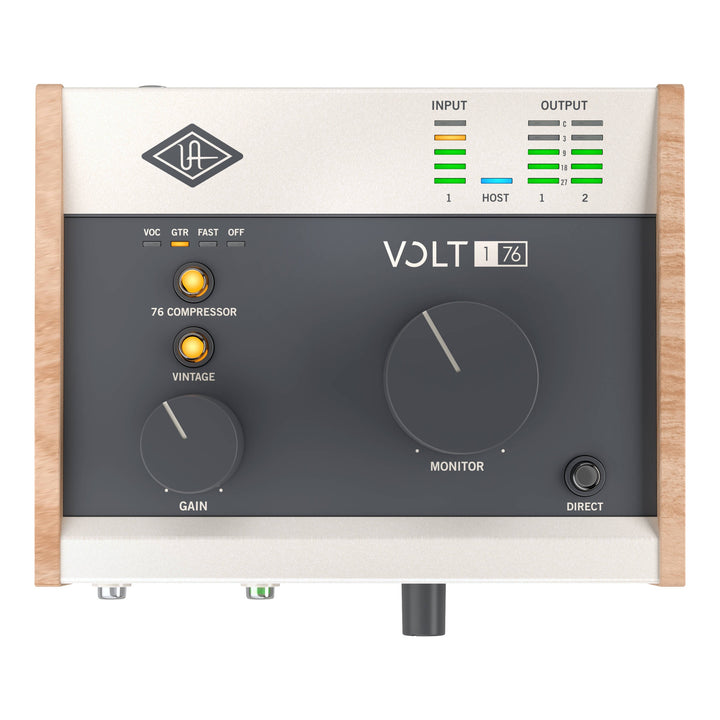

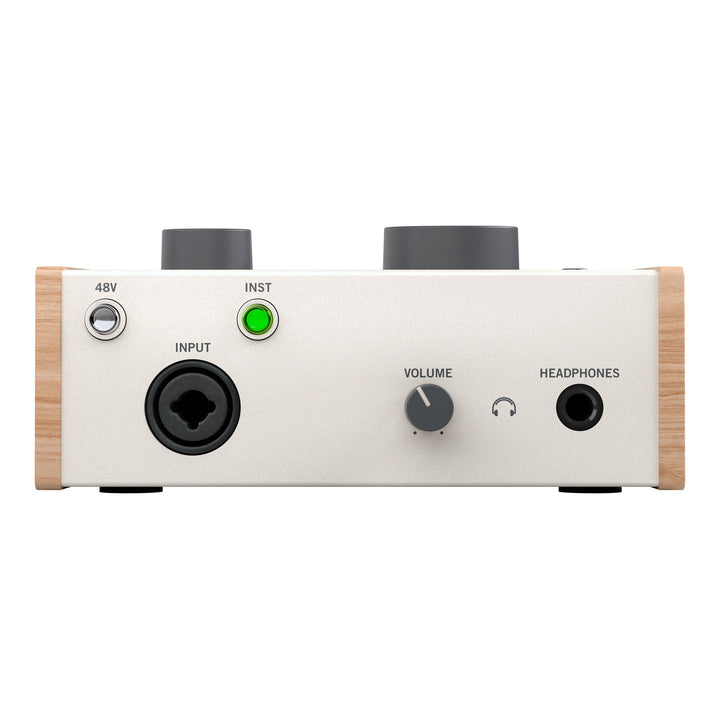

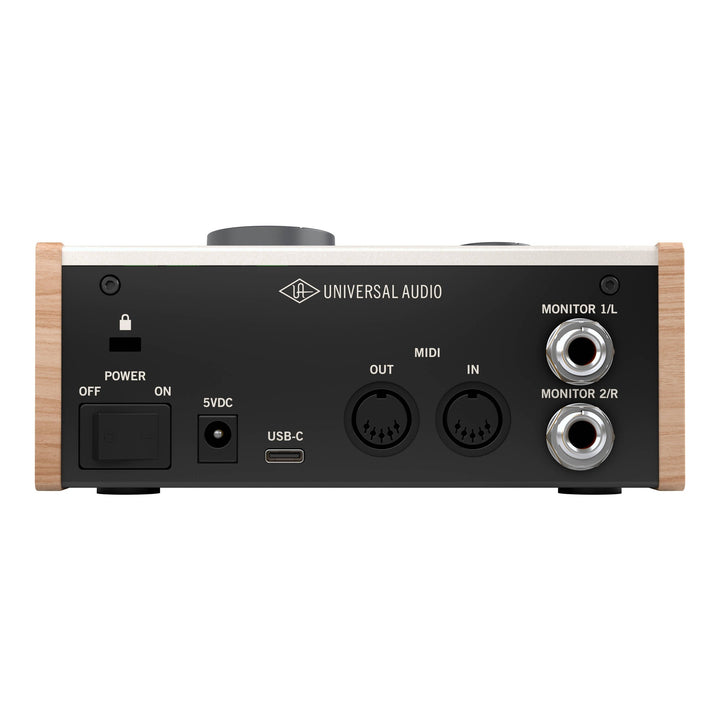

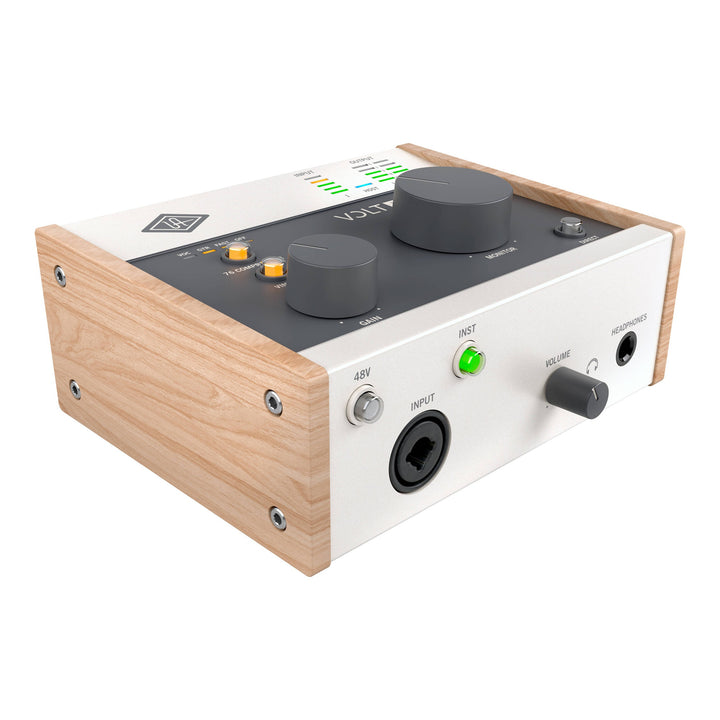

Universal Audio Volt 176 1-in/2-out USB Audio Interface
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
A few orders are not eligible: items that need specialty shipping (certain cases, stands and other gear that requires special handling), and orders shipping to Newfoundland and Labrador, the Northwest Territories or Nunavut.
Carriers sometimes charge far more for oversized freight to certain locations. In that rare case, we pay most of the extra and ask you to cover a small part.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm and Sezzle financing are available for most products. For Affirm, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Sezzle: eligible customers can split a purchase into 4 interest-free payments over 6 weeks. Approval and payment terms depend on the purchase amount and an eligibility check, may not be available in all provinces or territories, and are shown at checkout. Payment options are provided through Sezzle. For more information, please see sezzle.com/how-it-works.
Affirm: eligible customers can pay over time in monthly instalments. Your rate and available terms depend on an eligibility check based on creditworthiness, your purchase amount, and applicable provincial limits, and may not be available in all provinces or territories. Actual terms, the payment schedule, and any required down payment are shown at checkout. Payment options are provided through Affirm Canada Holdings Ltd. For more information, please see affirm.com/how-it-works.
Description
The Universal Audio Volt 176 is a 1-in/2-out USB audio interface with an analog compressor built in. Its single combo input takes a microphone, a line source or an instrument and offers two analog circuits: Vintage preamp mode, inspired by UA's 610 tube preamp, and the 76 Compressor, based on UA's 1176 Limiting Amplifier. It suits a singer, guitarist or podcaster recording one source at a time, with 24-bit/192 kHz conversion and USB bus power.
76 Compressor
The 76 Compressor has three presets, each at a 6:1 ratio. VOC uses the slowest attack with a slow release for smooth vocal compression. GTR pairs a medium attack with a very slow release, which lets guitar and bass transients through and lengthens sustain. FAST has the fastest attack and a fast release for aggressive compression, and all three work on mic, line and instrument sources.
Monitoring, MIDI and Software
Direct monitoring sends the input to the headphone and monitor outputs with no software delay. MIDI in and out on 5-pin DIN connect a controller or drum machine, and Volt 176 comes with UA's LUNA recording software and a set of UAD plug-ins.
Features
- 1-in/2-out USB audio interface with one XLR/TRS combo input for mic, line or instrument
- Vintage Mic Preamp mode, an analog circuit inspired by the UA 610 tube preamp
- Analog 76 Compressor based on the UA 1176, with VOC, GTR and FAST presets
- 24-bit/192 kHz conversion
- Switchable 48 V phantom power and INST button for guitar or bass
- Direct monitoring for recording without latency
- Headphone output with its own volume control
- MIDI in and out on 5-pin DIN
- Bus powered over USB-C, with a 5 VDC input for external power
- Works with macOS, Windows, iPad and iPhone
- LUNA recording software and UAD plug-ins included: UA 610 Tube Preamp & EQ Collection, UA 1176 Classic FET Compressor, Teletronix LA-2A Tube Compressor, Century Tube Channel Strip, Pure Plate Reverb, Vibe Analog Machines Essentials, UAD Showtime '64 Tube Amp and PolyMAX Synth, plus third-party titles
Specifications
- Simultaneous I/O: 1-in/2-out
- Inputs: 1 XLR/TRS combo (mic, line, instrument)
- Outputs: 2 x 1/4" monitor outputs, 1 x 1/4" stereo headphone output
- Conversion: 24-bit, 44.1, 48, 88.2, 96, 176.4 and 192 kHz
- 76 Compressor presets: VOC (2 ms attack, 300 ms release), GTR (1.5 ms attack, 700 ms release), FAST (30 µs attack, 35 ms release), all at 6:1
- Mic input: 55 dB gain, -127 dBu EIN (A-weighted), 112 dB dynamic range, 9 dBu maximum, 3 kilohms
- Instrument input: 1/4" TS, 1 megohm, 12.5 dBu maximum
- Line input: 1/4" TRS balanced, 15 kilohms, 22 dBu maximum
- Monitor outputs: 1/4" TRS balanced, 15 dBu maximum, 110 dB dynamic range
- Headphone output: 84 mW per channel into 32 ohms, 22 mW into 300 ohms
- Frequency response: 20 Hz to 20 kHz, ±0.1 dB (mic input)
- MIDI: In and out, 5-pin DIN
- Computer connection: USB 2.0 on a USB-C connector
- Power: USB bus power, or 5 VDC center-positive barrel input (5.5 mm OD, 2.1 mm ID); 2.3 W typical
- System requirements: macOS 10.15 or later, Windows 10 or 11 (64-bit), iOS and iPadOS 14 or later; Intel, AMD or Apple silicon
- Mobile use: iPhone and iPad use needs external 5 V power, and Lightning devices need Apple's Lightning to USB Camera Adapter
- Dimensions: 5.9 x 5.1 x 2.6 in (15.0 x 13.0 x 6.5 cm)
- Weight: 1.4 lbs (0.65 kg)
In the Box
- Universal Audio Volt 176 USB audio interface
- USB-A to USB-C cable
- USB-A to DC barrel power cable
