Description

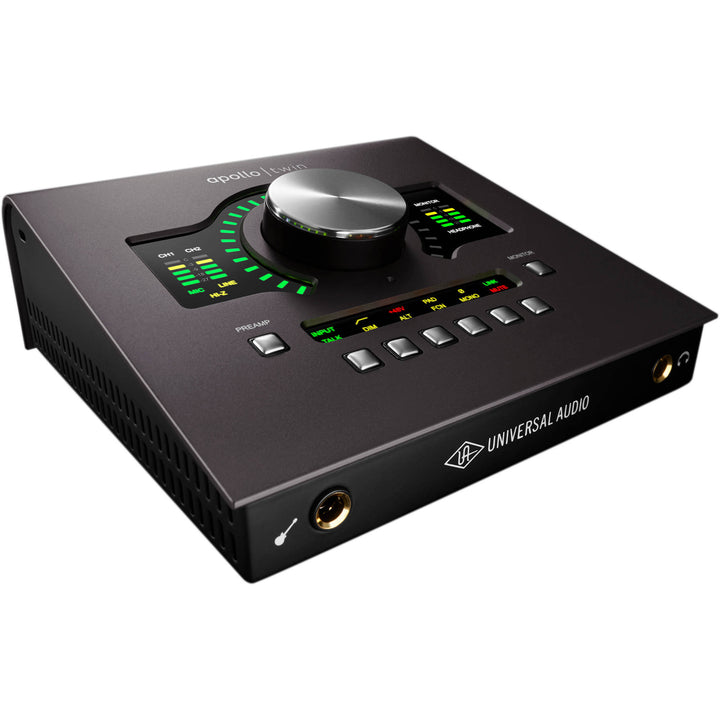

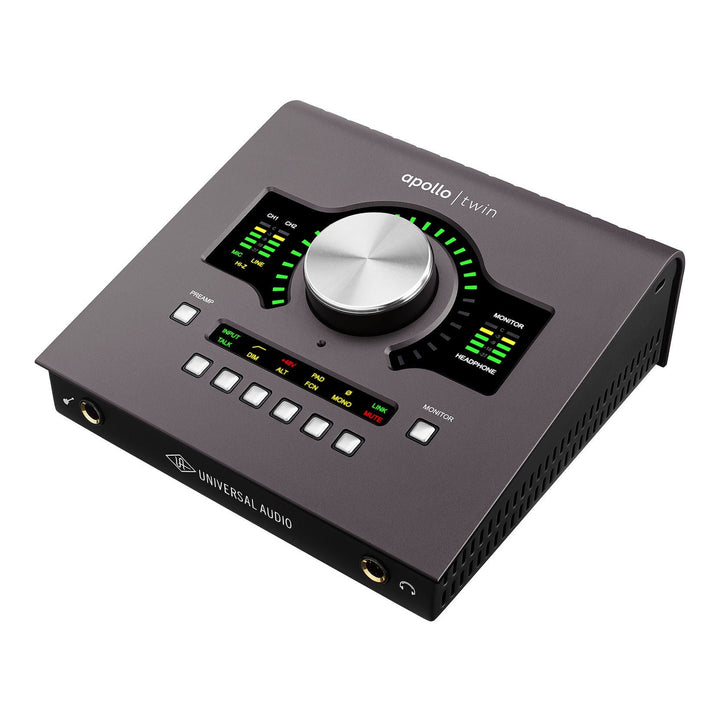

The Universal Audio Apollo Twin MkII DUO Heritage Edition is a desktop Thunderbolt audio interface for Mac and Windows, sized for songwriters, producers and engineers who record one or two sources at a time. It pairs two Unison mic preamps and 24-bit/192 kHz conversion with UAD-2 DUO processing, two SHARC DSP chips that run UAD plug-ins while you track with 1.1 ms round-trip latency at 96 kHz. The Heritage Edition adds five UAD plug-in titles to the Realtime Analog Classics bundle that comes with the interface.
Heritage Edition Plug-Ins

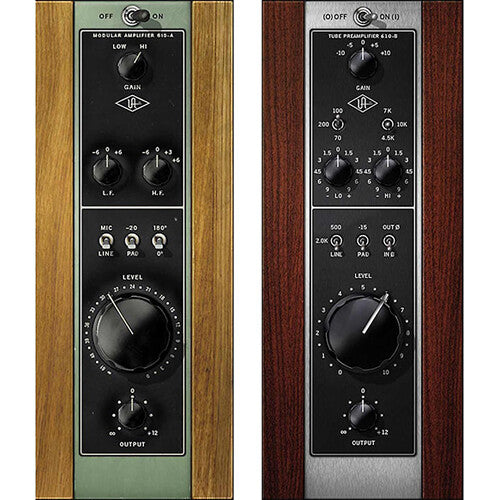

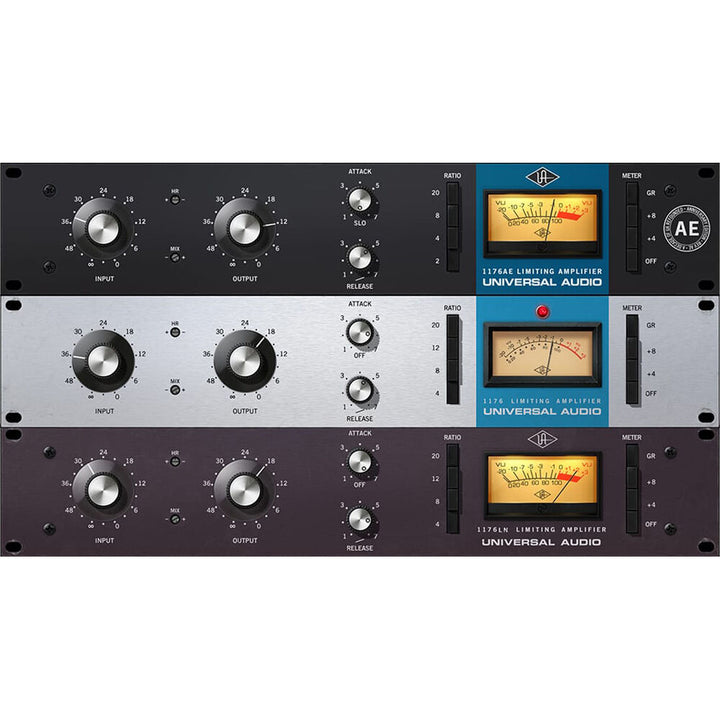

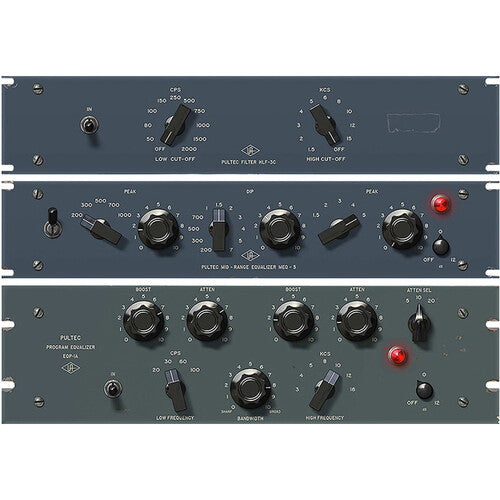

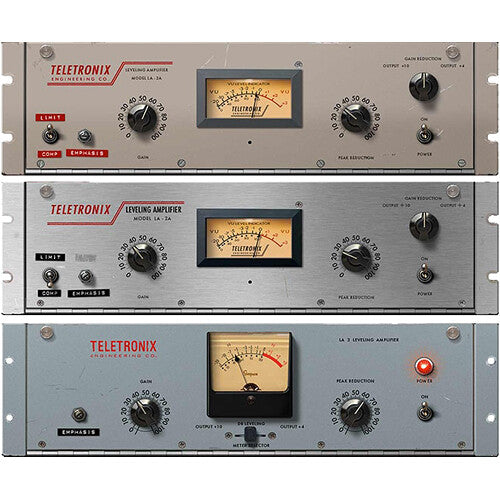

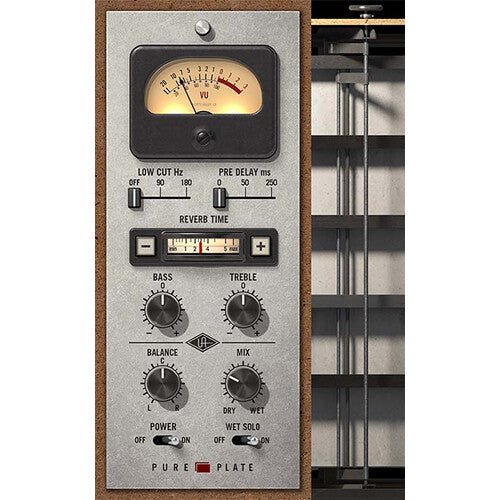

Registering a new Heritage Edition unit adds the UA 1176 Classic Limiter Collection, Teletronix LA-2A Classic Leveler Collection, Pultec Passive EQ Collection, UA 610 Tube Preamp & EQ Collection and UA Pure Plate Reverb to your UA account. Registration needs a computer with an internet connection and UAD software installed.
Connecting to Your Computer
Apollo Twin MkII has a Thunderbolt 2 port, and the Thunderbolt cable is not included. A Mac with Thunderbolt 3 or 4 needs Apple's Thunderbolt 3 to Thunderbolt 2 Adapter. A Windows computer needs a Thunderbolt 3 port and a qualified Thunderbolt 3 to Thunderbolt 2 adapter, since UA says Thunderbolt 2 devices do not work with Windows computers that have Thunderbolt 4 or 5. UA lists support for macOS 11 Big Sur through macOS 26 Tahoe and for 64-bit Windows 10 and Windows 11.
Features
- Desktop 10 x 6 Thunderbolt audio interface for Mac and Windows
- Two Unison mic/line preamps that take on the input impedance and gain behavior of UA preamp emulation plug-ins
- 48V phantom power, 20 dB pad, low cut filter, polarity and stereo link on each preamp

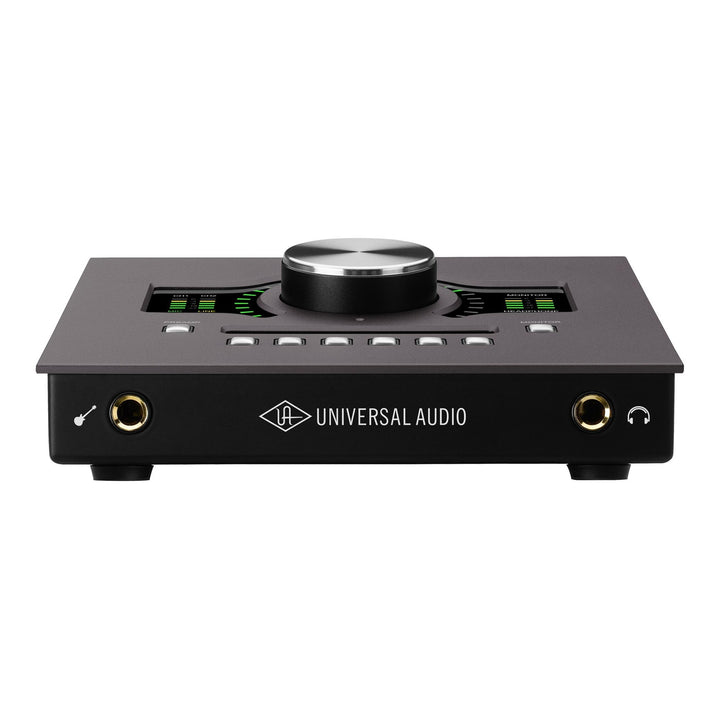

- Front-panel Hi-Z instrument input with Unison amp modeling, plus a front-panel headphone output
- 24-bit/192 kHz A/D and D/A conversion

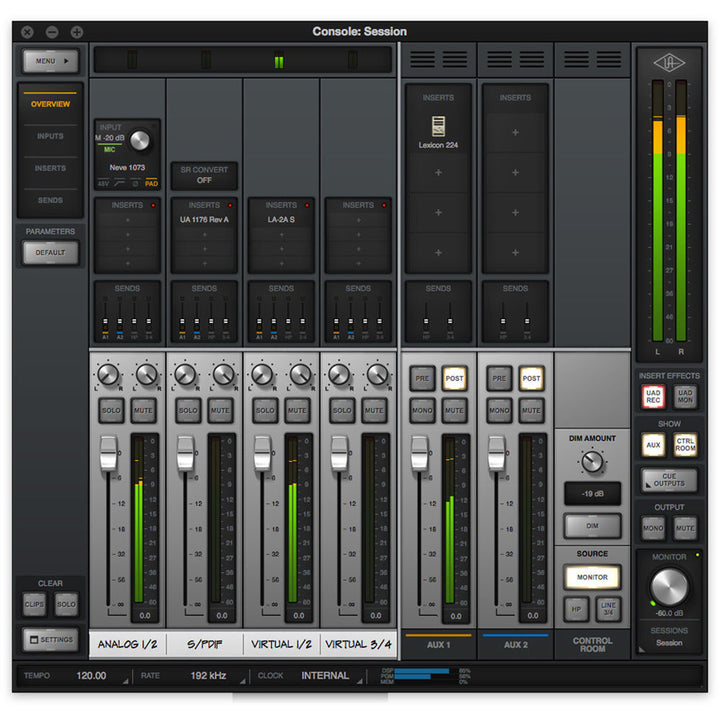

- UAD-2 DUO processing for Realtime UAD Processing in Console and UAD plug-ins in your DAW
- Built-in talkback mic

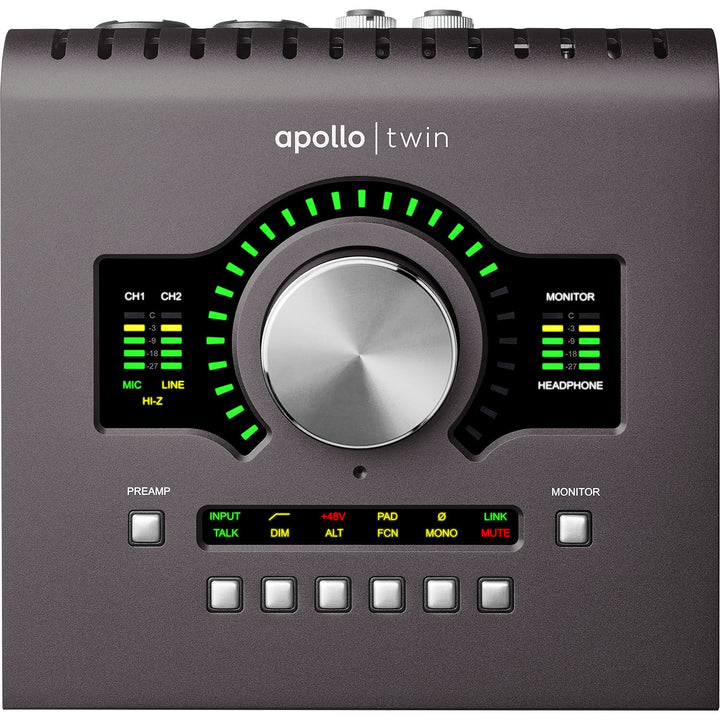

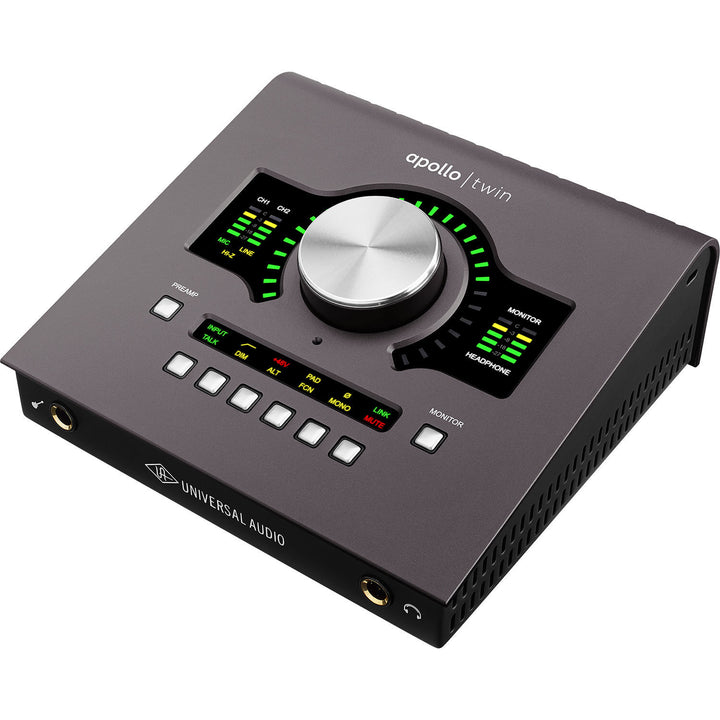

- Front-panel monitor control for level, mute, dim, mono, alternate speakers and talkback
- Optical input for 8 channels of ADAT or 2 channels of S/PDIF
- Cascade up to four Thunderbolt Apollos and six UAD-2 devices
- Locking power supply connector
Specifications

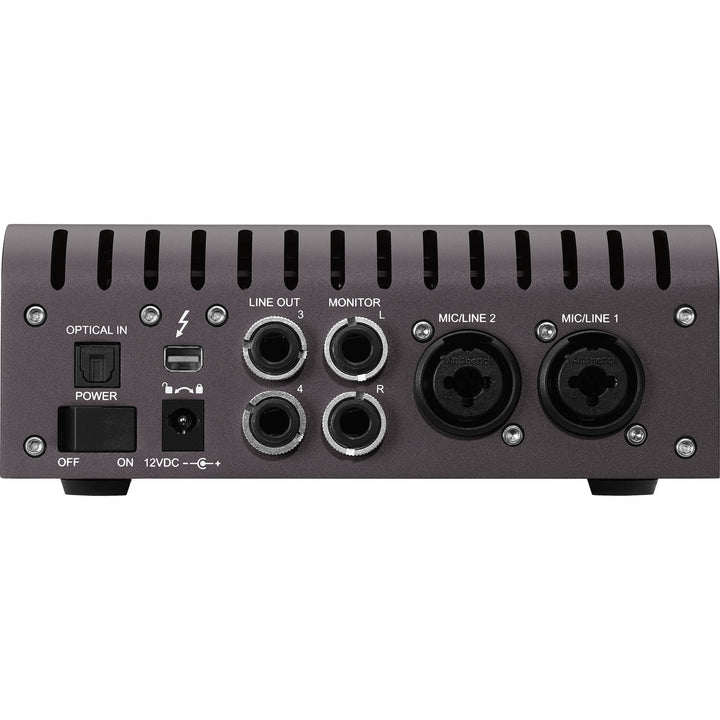

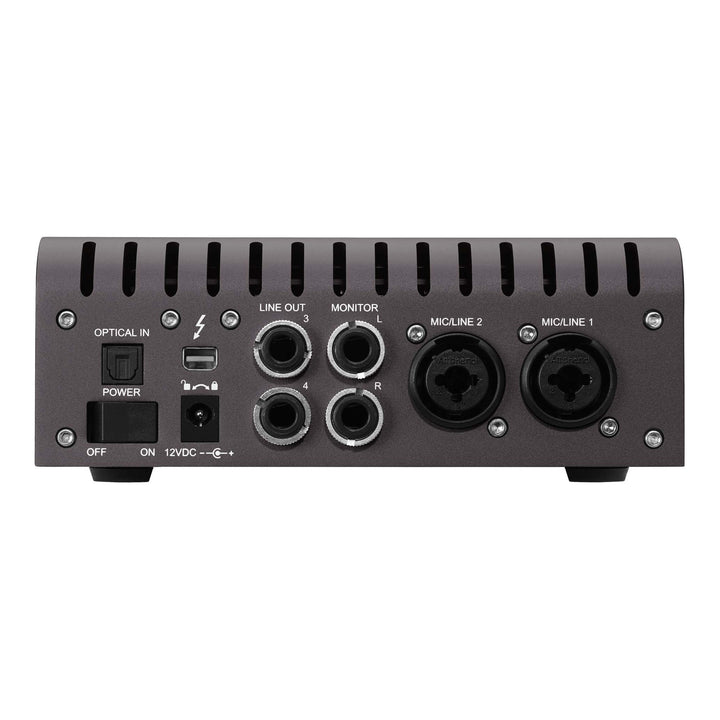

- Connection: Thunderbolt 2 port (Thunderbolt 1 and 2 compatible), cable not included
- Simultaneous I/O: Up to 10 in, 6 out
- Mic/line inputs: 2 x combo XLR/1/4" TRS, rear panel
- Instrument input: 1 x 1/4" TS Hi-Z, front panel, 1M ohm
- Monitor outputs: 2 x 1/4" TRS balanced
- Line outputs: 2 x 1/4" TRS balanced (outputs 3 and 4)
- Headphone output: 1 x 1/4" TRS stereo, 80 mW into 600 ohms
- Digital input: 1 x optical TOSLINK, ADAT with S/MUX or S/PDIF
- Sample rates: 44.1, 48, 88.2, 96, 176.4 and 192 kHz (S/PDIF up to 96 kHz)
- Bit depth: 24-bit
- Mic preamp gain range: +10 dB to +65 dB
- Mic input dynamic range: 118 dB (A-weighted)
- Mic input EIN: -127 dBu
- Line output dynamic range: 121 dB (A-weighted)
- Round-trip latency: 1.1 ms at 96 kHz, including up to four UAD plug-ins in Console

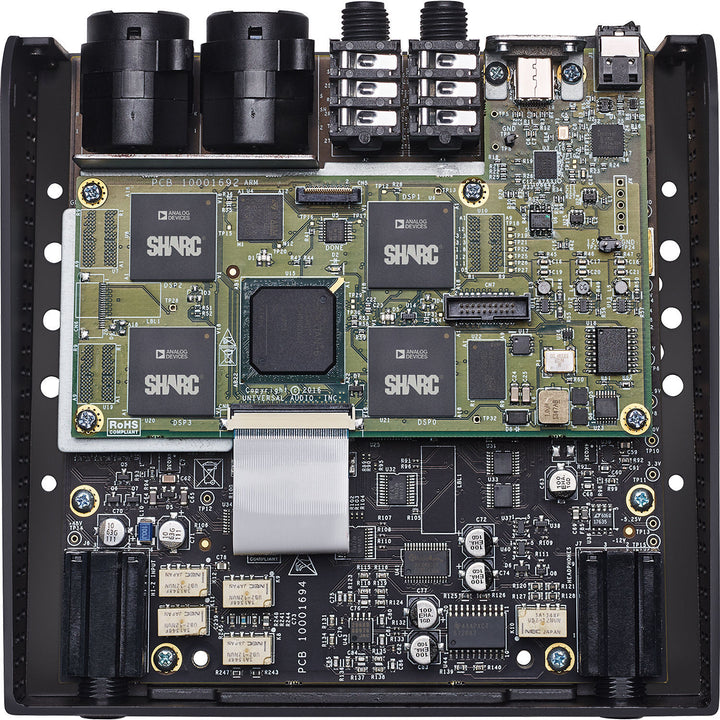

- DSP: UAD-2 DUO, two SHARC processors
- Power: External 12 VDC supply, 100-240 V AC, 12 W maximum
- Dimensions (W x H x D): 6.31 x 2.60 x 6.20 in, depth including knob and jacks
- Weight: 2.35 lb unit, 3.85 lb shipping
In the Box
- Apollo Twin MkII DUO Heritage Edition interface
- External power supply with four changeable AC plugs
- Getting Started URL card
