Description

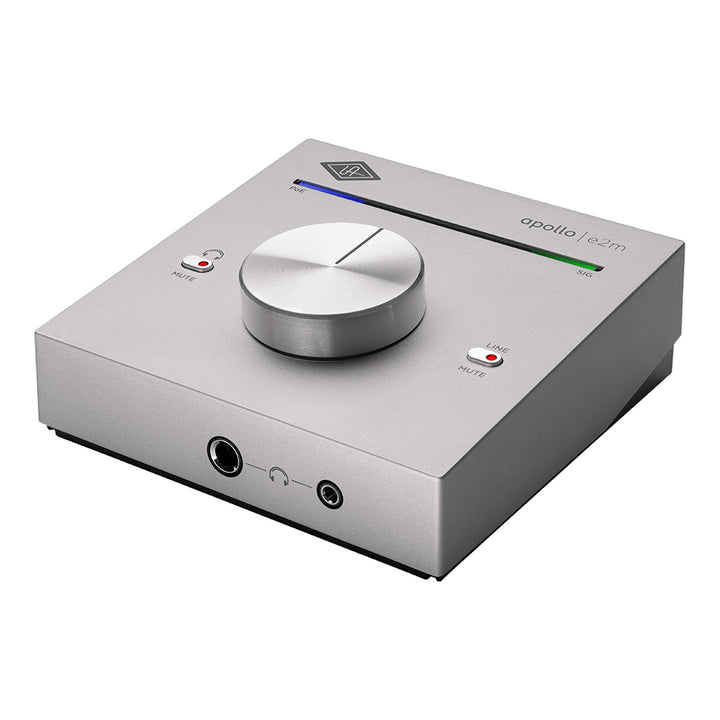

The Universal Audio Apollo e2m is a stereo headphone amplifier and line interface for Dante audio networks, powered over Ethernet. It puts local monitoring anywhere on the network, with parallel 1/4" and 1/8" headphone outputs for headphones or IEMs, stereo line outputs for powered monitors or wedges, and stereo line inputs that send keyboards, synths, amp emulators or playback devices onto the network.
Personal Monitoring with Apollo x16D
With an Apollo x16D, the Mirror to Cue option in UAD Console sends a headphone mix to the x16D's Dante outputs, and Dante Controller routes it to the Apollo e2m. It works the same way with any other Dante device, such as a digital console or audio interface. One knob sets the level of the line outputs and both headphone outputs together, and the line and headphone outputs have their own mute switches.
Placement and Power
A 5/8" thread on the bottom fits any mic stand or clamp, so the unit can sit next to the performer. It draws power from a PoE (802.3af) network switch over a single Cat5e or Cat6 cable, and an LED bar shows PoE status and output level.
Features
- 2 x 2 stereo headphone amp and line interface over Dante

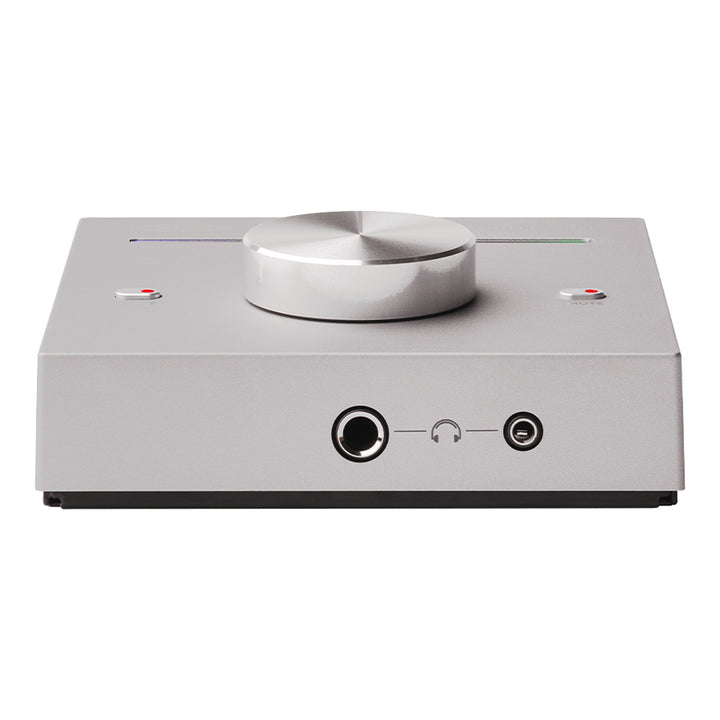

- Parallel 1/4" and 1/8" stereo headphone outputs, up to 300 mW into 32 ohms

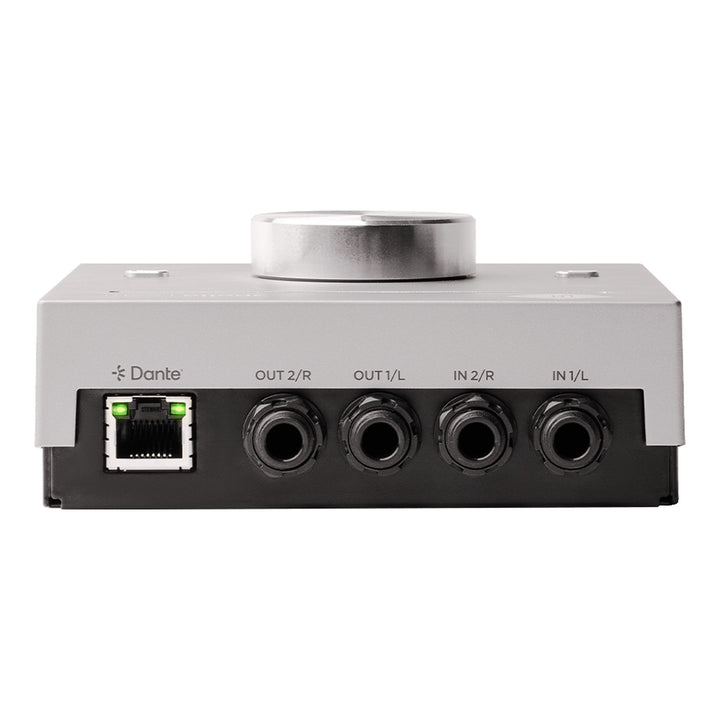

- Balanced 1/4" stereo line outputs
- Balanced 1/4" stereo line inputs into the Dante network

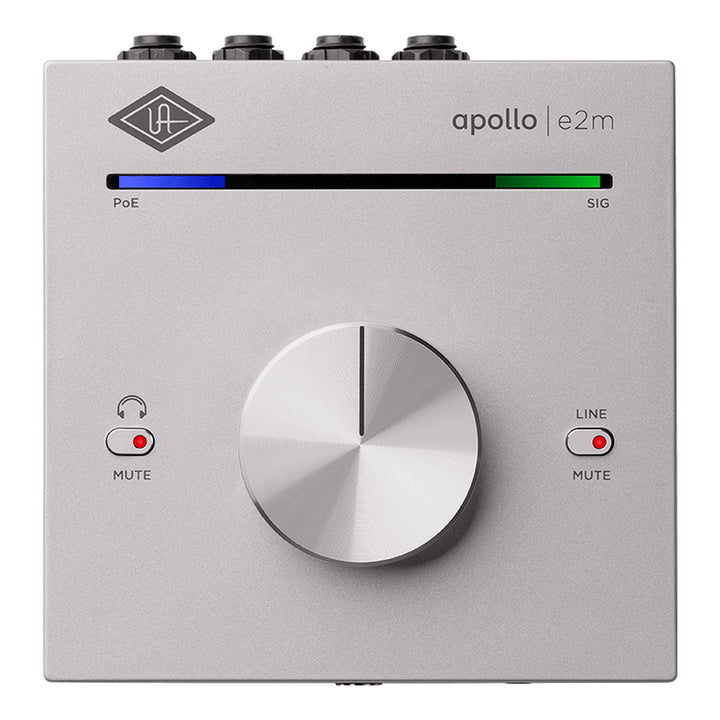

- One level knob for all outputs, separate mute switches for line and headphone outputs
- LED bar for PoE status and output level
- Power over Ethernet (802.3af) and built-in 5/8" mic stand mount
- Works with Apollo x16D and any Dante network, AES67 at 48 kHz
Specifications
- I/O: 2 x 2
- Line inputs: 2 x 1/4" TRS balanced, +18 dBu maximum, 10 kohm impedance, 120 dB dynamic range, -115 dB THD+N
- Line outputs: 2 x 1/4" TRS balanced, +14 dBu maximum, 100 ohm output impedance, 120 dB dynamic range, -109 dB THD+N
- Headphone outputs: 1 x 1/4" and 1 x 1/8" TRS, 119 dB dynamic range, -112 dB THD+N
- Headphone power (1/4"): 300 mW at 32 ohms, 86 mW at 300 ohms, 47 mW at 600 ohms
- Headphone power (1/8"): 200 mW at 32 ohms, 79 mW at 300 ohms, 45 mW at 600 ohms
- Frequency response: 20 Hz to 20 kHz, ±0.03 dB (inputs), ±0.05 dB (outputs)
- Sample rates: 44.1 kHz to 96 kHz, 24-bit
- Latency: Under 0.2 ms analog to network; network latency 1, 2 or 5 ms
- Network: 1 x RJ45 (100 Mbps), Dante or AES67 (48 kHz only)
- Power: PoE 802.3af, 5.2 W typical, 7.3 W maximum
- Dimensions (W x H x D): 4.73 x 1.88 x 4.87" (120 x 48 x 124 mm)
- Weight: 1.1 lbs (493 g)
- Shipping weight: 1.5 lbs (0.7 kg)
In the Box
- Apollo e2m
- Product safety sheet
