Description

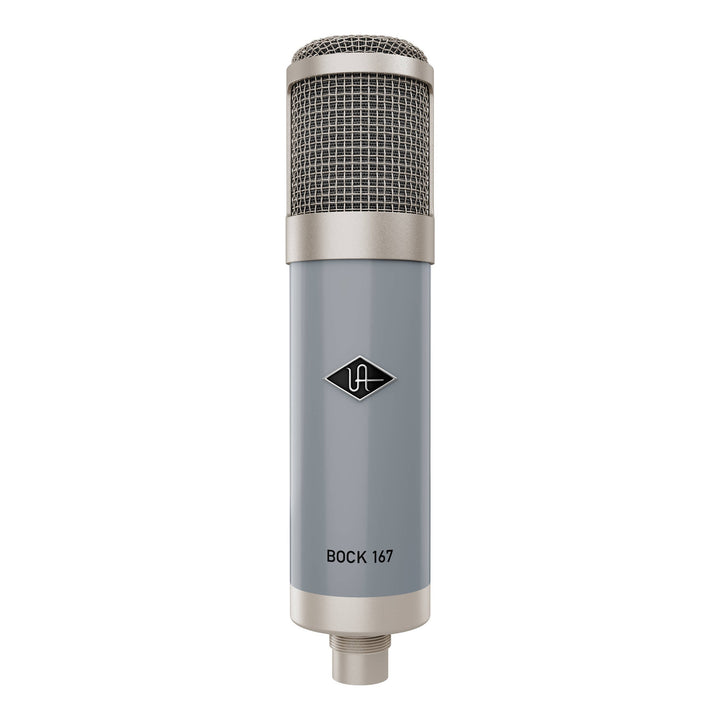

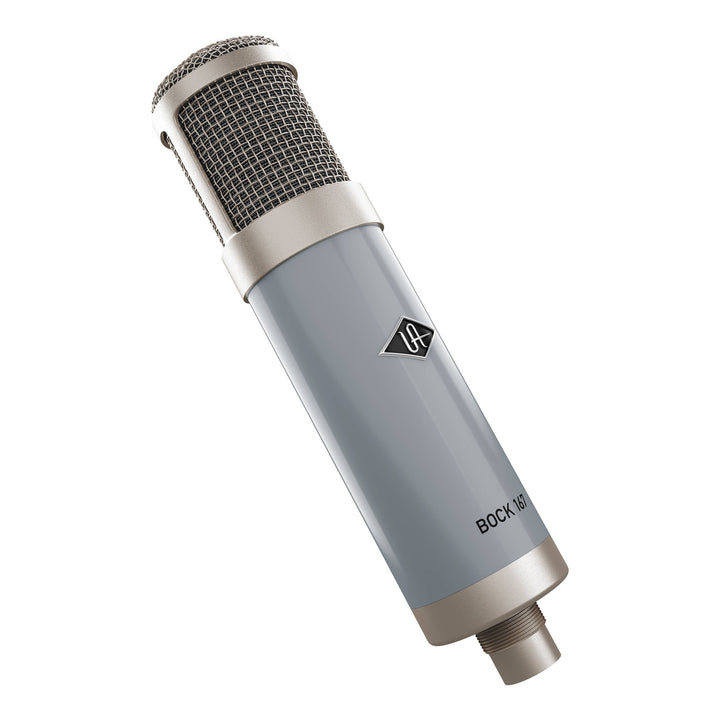

The Universal Audio Bock 167 is a large-diaphragm tube condenser microphone designed by David Bock and built by hand at the UA Custom Shop in Santa Cruz, California. It is David Bock's take on the classic U67, with a dual-diaphragm K67-type capsule, a Lundahl output transformer and a new old stock EF732 tube, plus tone controls the vintage mic never had. It suits singers, acoustic instruments, drums and voiceover.

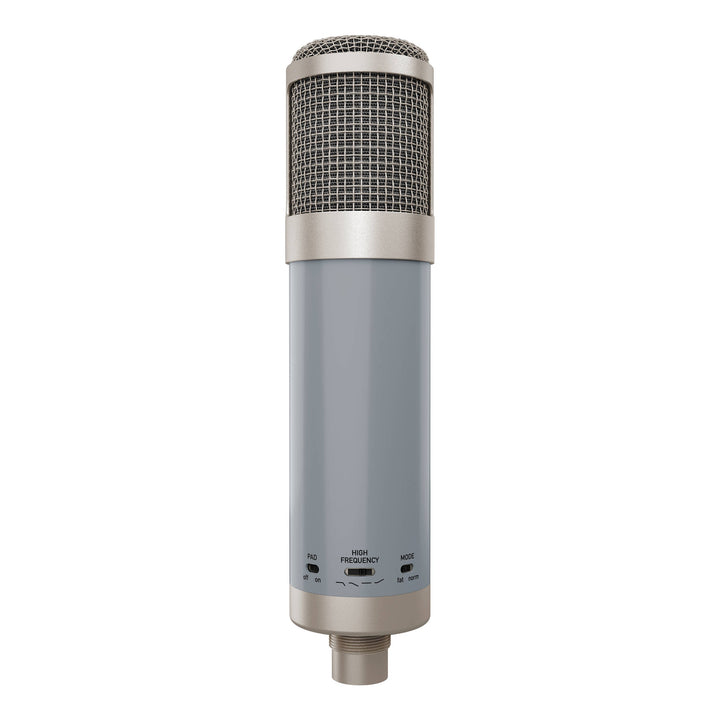

Tone Shaping on the Mic
Three switches on the body shape the sound before it reaches the preamp. The Mode switch picks Normal, a nominally flat response with a slight lift at the top, or Fat, which boosts the low end between 10 Hz and 400 Hz and drops the high lift. The High Frequency switch has four positions: a 3 dB shelving cut at 10 kHz, a 1.5 dB shelving cut at 5 kHz, flat, and a 2 dB shelving boost at 10 kHz. A 10 dB pad is there for drums, guitar amps and other loud sources.
Pattern Control on the Power Supply
The polar pattern is set with a continuously variable knob on the dedicated UA Bock 167 power supply: fully counterclockwise for omni, straight up for cardioid and fully clockwise for figure-8. Each power supply is adjusted at the factory for the microphone it ships with. The mic connects to it with the included six-pin XLR cable and does not need phantom power.
Features
- Large-diaphragm tube condenser, handmade at the UA Custom Shop in Santa Cruz, California
- Dual-diaphragm K67-type capsule with dual symmetrical backplate
- Lundahl output transformer and new old stock EF732 tube
- Continuously variable pattern from omni through cardioid to figure-8, set on the power supply
- Fat mode adds a low-end boost between 10 Hz and 400 Hz
- Four-position high frequency switch and -10 dB pad
- Apollo Channel Strip presets available through UA Connect
Specifications
- Type: Large-diaphragm tube condenser, side address
- Polar pattern: Continuously variable, omni to cardioid to figure-8 (on the power supply)
- Capsule: 1" dual-diaphragm K67 type, dual symmetrical backplate
- Tube: New old stock EF732
- Frequency range: 10 Hz to 18 kHz, ±2 dB
- Sensitivity: -29 dB (33 mV) re 1 V at 1 Pa, 1 kHz
- Self-noise: 19 dBA
- Maximum SPL: 118 dB SPL at 1% THD
- Dynamic range: 99 dB
- Signal-to-noise ratio: 75 dB
- Impedance: 200 ohms (recommended load above 2 kohms)
- Controls: Pad (-10 dB), Mode (Fat, Normal), High Frequency (-3 dB at 10 kHz, -1.5 dB at 5 kHz, flat, +2 dB at 10 kHz)
- Connectors: 6-pin XLR (mic), 3-pin XLR male (power supply output)
- Power supply: UA Bock 167 PSU, 100, 115 or 230 V AC, factory set for the region
- Dimensions: 9" (228 mm) long, 2" (50 mm) diameter
- Microphone weight: 1.58 lbs (716 g)
- Shipping weight: 12 lbs (5.4 kg)
In the Box
- UA Bock 167 microphone
- UA Bock 167 PSU power supply
- Six-pin XLR cable
- Shock mount
- Storage case
