Description

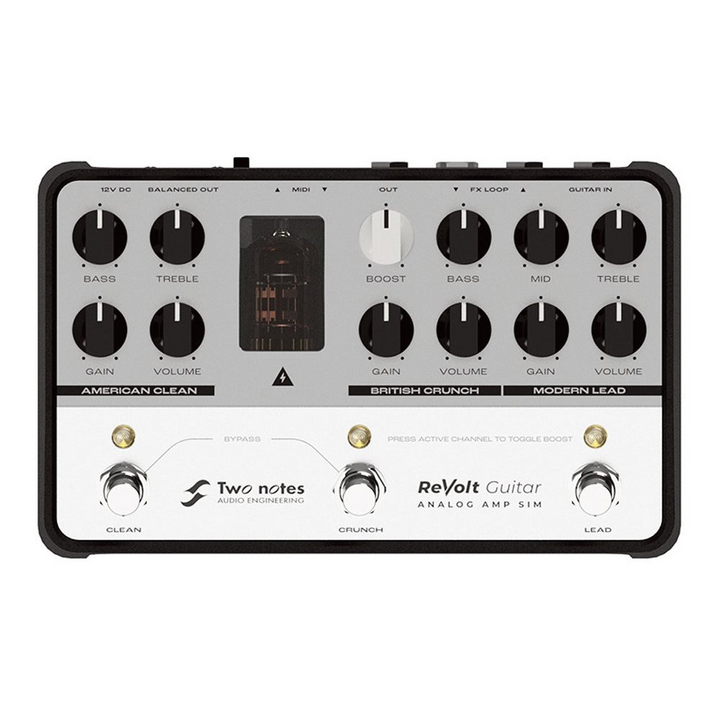

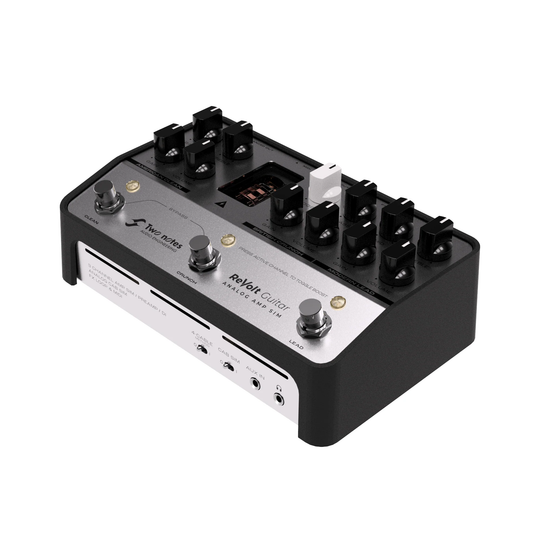

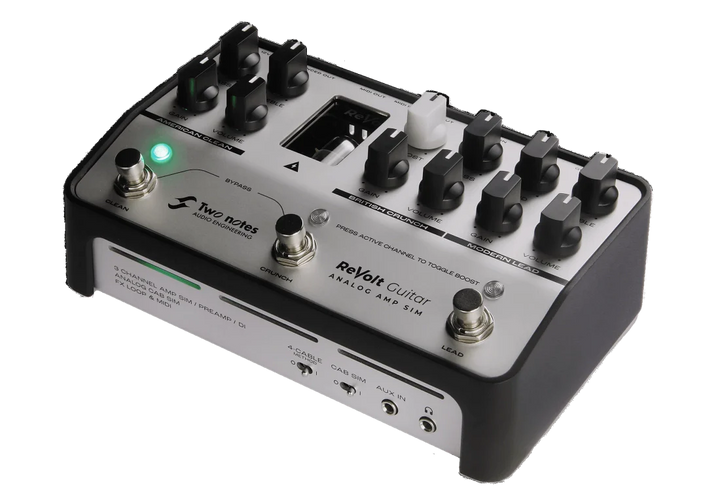

The Two Notes ReVolt Guitar is a three-channel all-analog guitar amp simulator and DI with a 12AX7 (ECC83) preamp tube running at 200V. Channels cover American clean, British crunch, and modern high-gain lead in a pedalboard-sized chassis with analog cab sim, FX loop, MIDI, and headphones.
Channels and Tone

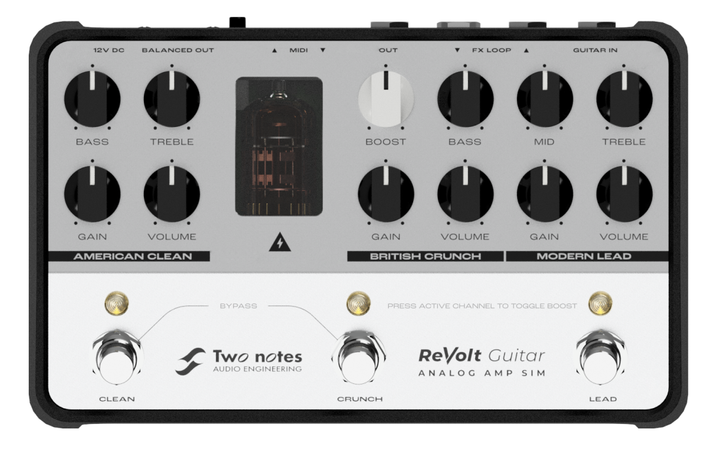

Channel 1 (American Clean) is voiced after a Fender Bassman 100-style clean with a 2-band EQ. Channels 2 and 3 share a 3-band EQ: British Crunch after a Marshall JMP Super Lead / Plexi style, and Modern Lead after a Soldano SLO 100-style high-gain preamp. An OD-Boost circuit (+0 to +20 dB, centered around 1.1 kHz) sits on the active channel footswitch for push and harmonic lift.
Routing

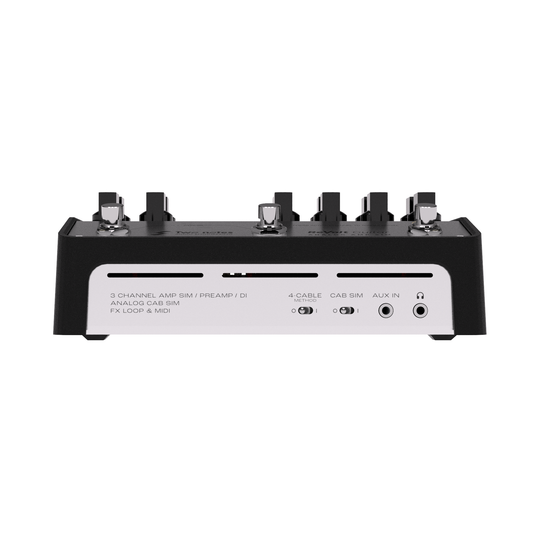

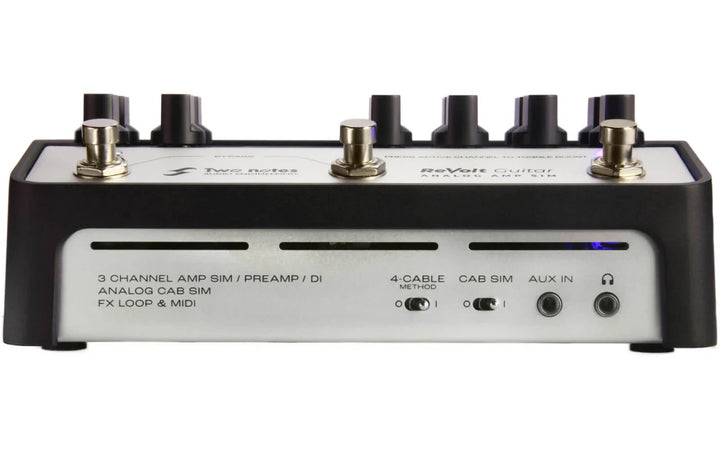

Run direct via XLR DI with analog cab sim, use 4-cable mode to add three channels in front of an amp, or feed an amp FX return for a hybrid setup. Series FX loop, Aux in, and headphone out cover practice and board use. Purchase includes a GENOME lifetime license with the ReVolt Series-G DynIR cabinet pack (10 cabs).
Specifications

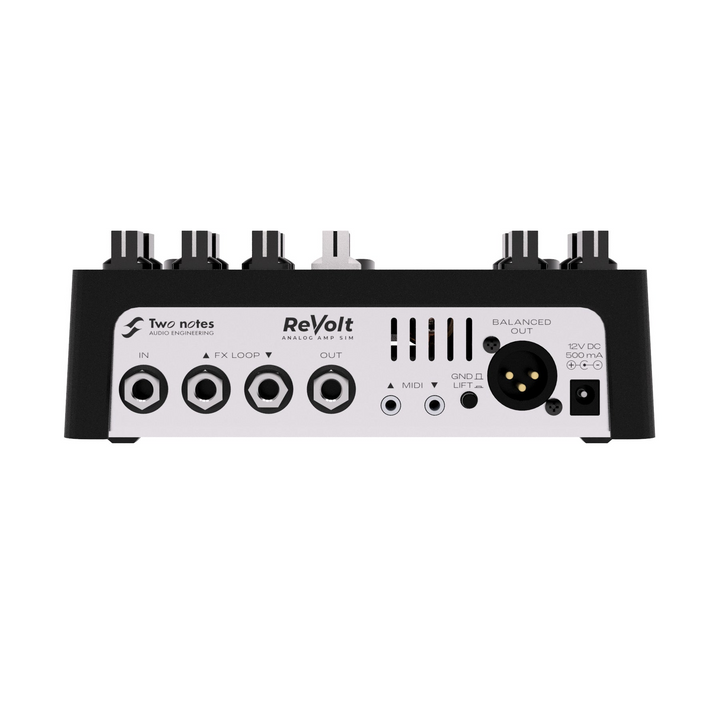

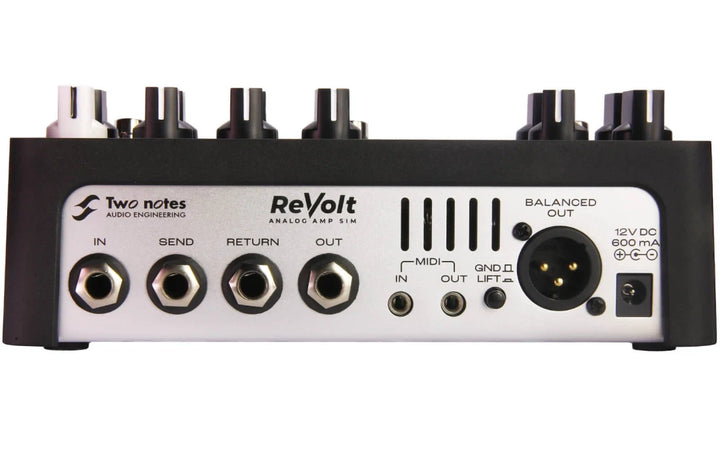

- Type: 3-channel analog guitar amp sim / DI
- Tube: PSVANE ECC83 (12AX7), high-voltage
- Input: 1/4" TS, 1 MĪ©
- FX loop: 1/4" send / return
- Outputs: 1/4" TS amp out, XLR DI (phantom-power protected), 1/8" headphones
- Aux in: 1/8" (3.5 mm) stereo
- MIDI: In and Out/Thru on 1/8" TRS Type-A (adapter cable included)
- Cab sim: Analog, guitar voicing
- Power: 12V DC, center negative, approx. 6W / 600 mA
- Dimensions: 192 x 117 x 70 mm (7.6" x 4.6" x 2.8"), including connectors and knobs
- Weight: 830 g (1.82 lb)
In the Box
- Two Notes ReVolt Guitar (with protective sleeve)
- 12V DC power adapter
- 1/8" TRS to MIDI Type-A adapter cable
- Quickstart guide
- GENOME lifetime license with Series-G DynIR cabinet pack (download)
