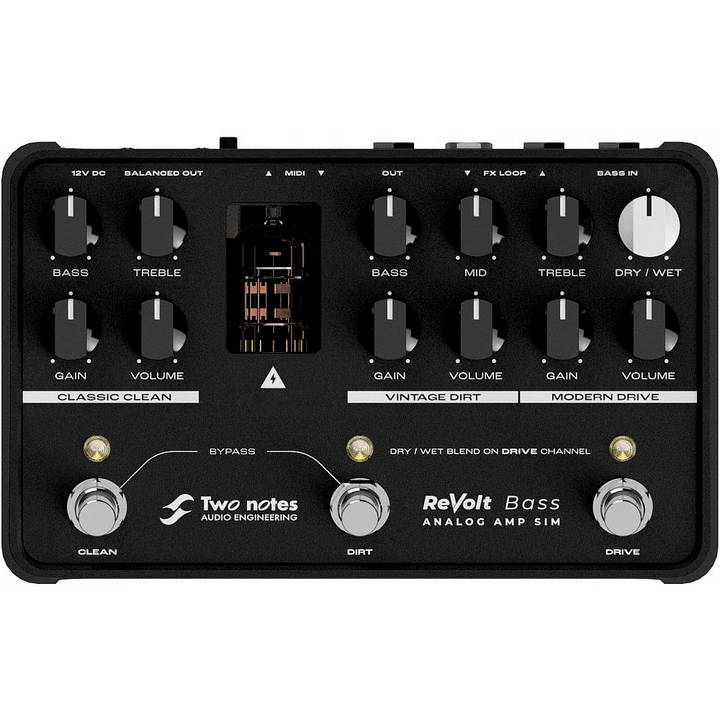

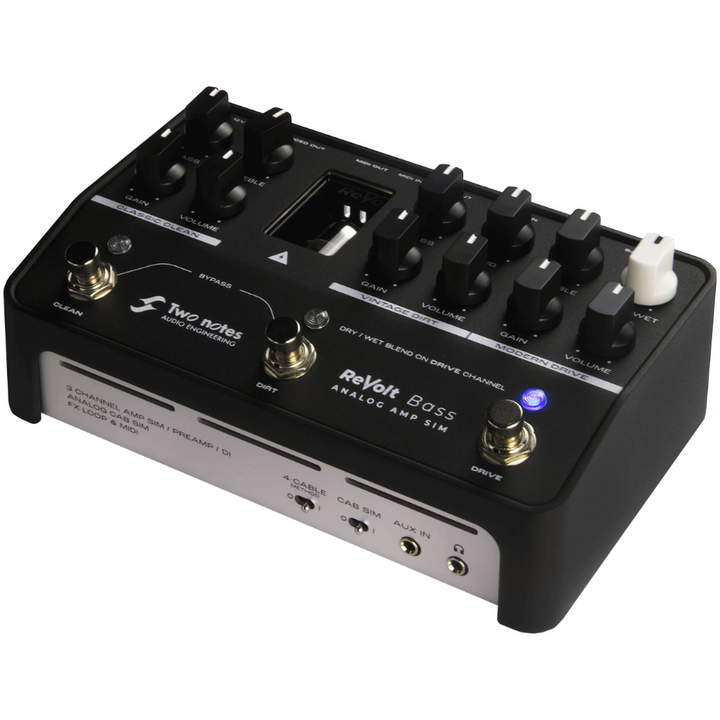

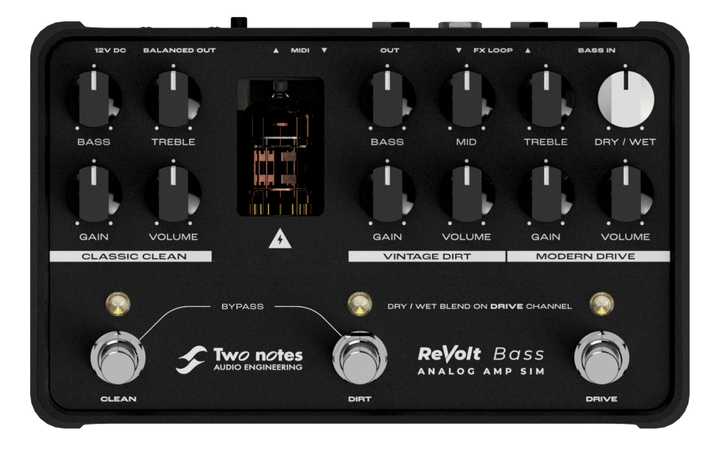

ReVolt Bass

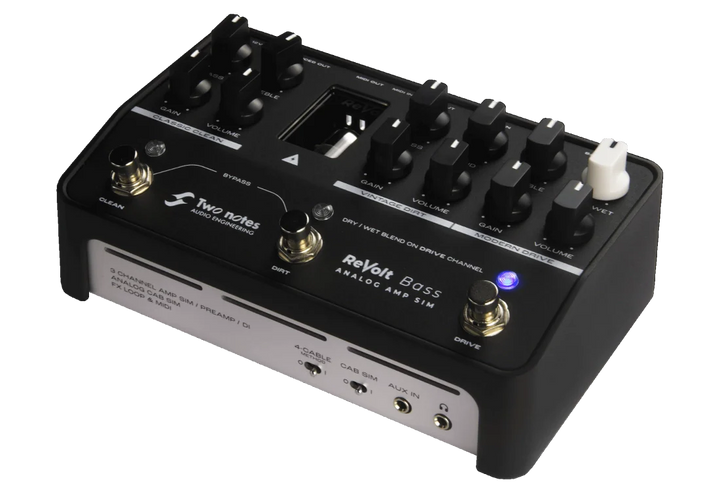

Two Notes' ReVolt Bass 3-channel all-analog bass amp simulator empowers players with the ultimate in rock-solid reliability and must-have foundation tone.

ReVolt Bass

has been engineered for nothing short of unbridled tonal excellence. With 3 channels inspired by legendary bass tones including an Ampeg® SVT '76, a Marshall® 1992 JMP Super Bass Mark II, and a custom proprietary high gain Bass amp, it's a sure-fire guarantee for reliable tone whatever the situation demands. When you need best-of-both-worlds - the rounded thump of your dry DI signal with the snarl of surgically tuned distortion - ReVolt Bass' Modern Drive channel is the answer. Dial in your wet/dry blend and enter a world of saturated Analog bliss without sacrificing the pin-point precision you need.

ReVolt Bass Key Features

• 3 channel bass amp simulator/DI featuring an all analog signal path
• Inject some warmth and bite into your tone courtesy of a 12AX7 preamp tube running at high voltage
• Integrated Drive Channel Dry/Wet Blend for enhanced tone-shaping
• Expertly engineered Analog Cab Sim for seamless DI whether it's in the studio or on stage
• 4-Cable mode, FX Loop and MIDI In/Out for effortless integration into existing setups
• Robust, made-to-move design that's perfectly sized for pedalboards and fly-rigs
• Includes the ReVolt: Series-B DynIR Cabinet Collection featuring 10 exquisite DynIR captures inspired by leading bass amplifier brands

Mojo Maker

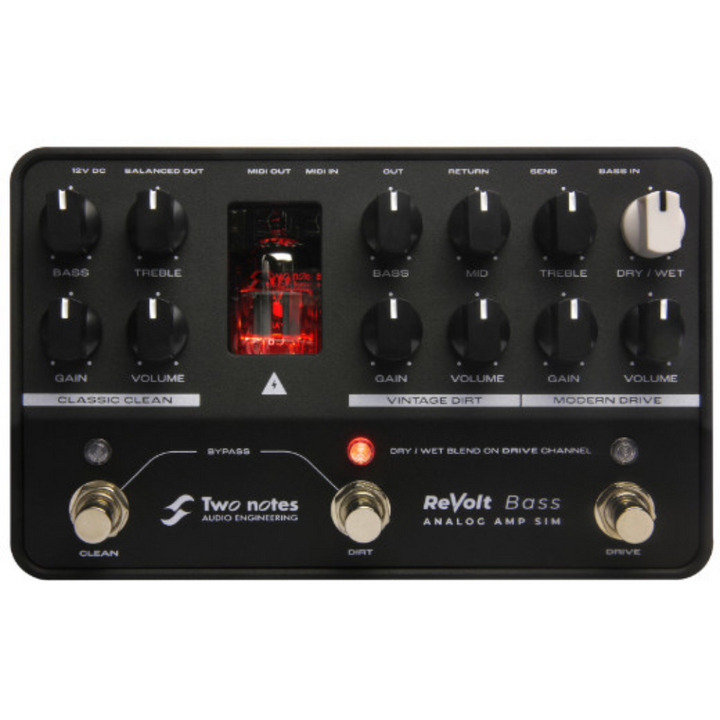

It's a fact: DI is convenient. It's reliable. It's a pure unadulterated tone that's surgically controlled to the smallest iota. There's just one snag; It lacks the all-important warmth synonymous with tube amps. The ReVolt Series' 12AX7 preamp tube running at 200V has been expertly tuned to enrich your tone with undeniable tube mojo. The result is revolutionary. You retain all the convenience of a DI signal, now with the warmth, the bite and the all-important response only tubes can provide.

Dial it in

The right EQ is paramount when shaping pristine guitar and bass tones. The ReVolt Series are outfitted with a two-band EQ on channel 1, and a shared 3-band EQ on channels 2 and 3. It's everything you demand from an EQ: musically harmonic in all the right places, and deftly tuned for precision.

Drop the Mic

A great space, pro-grade mics and an expansive recording gear arsenal are all vital ingredients in the recipe for stand-out tone. The problem? They're never a sure-fire guarantee. ReVolt Guitar's and ReVolt Bass' analog cabinet simulation gives you one less headache in the quest for reliable sonics. Switch on the cab sim, hookup to a mixer, PA or FRFR cabinet and you're set for virtually any recording or performance scenario.

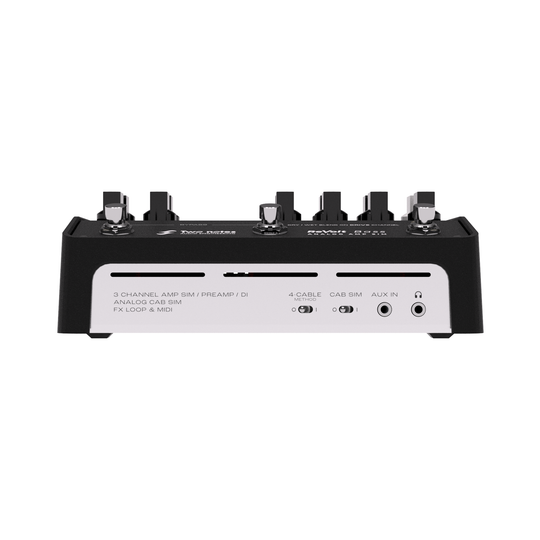

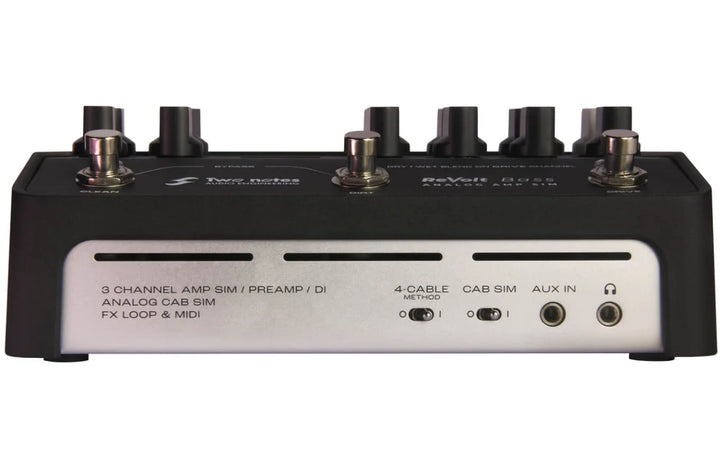

Hookup Flexibility

Any player understands, you expect the utmost versatility in the all-important connectivity department. The ReVolt Series delivers whatever the setup scenario. First, go direct - it's simple and sounds phenomenal. For total integration, switch on the 4-Cable mode and add 3 pristine channels to your amp head. Finally, get the most from a Hybrid setup and hook-up ReVolt to your amps FX return; you get the best out of its poweramp stage fused with the natural colour of your cab. For the Pedal fanatics, the ReVolt Series' FX return and stellar font-loading capability, offer versatile options when it comes to getting the best from your pedal collection.

Specs

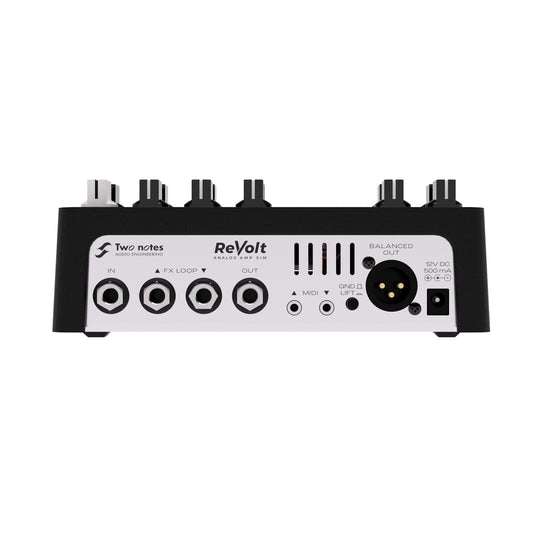

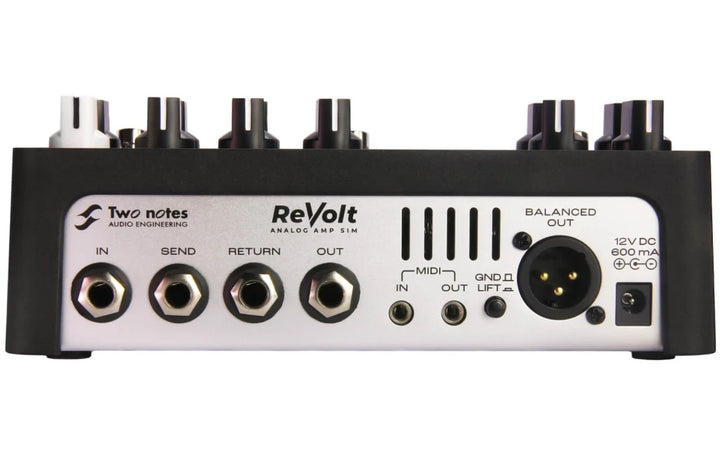

INPUT / OUTPUT Input: Jack 6.35 mm (1/4") unbalanced (TS, Tip/Sleeve) Impedance : 1 MOhms Send: Jack 6.35mm (1/4") unbalanced (TS) Max output level : +11dBu Impedance : 300 Ohms Return: Jack 6.35mm (1/4") unbalanced (TS) Max input level : +11dBu Impedance : 1 MOhms Unbuffered, directly connected to Output when active Output: Jack 6.35mm (1/4") unbalanced (TS) Max output level : +11 dBu Impedance : 300 Ohms DI Output: XLR, balanced Impedance : 600 Ohms balanced, 300 Ohms unbalanced Max output level : +11dBu Protected against +48V phantom power MIDI: MIDI In & Out / Thru TRS Jack Type-A Din-5 Pin converter cables included Phones: Jack 3.5 mm (1/8") stereo (TRS, Tip/Ring/Sleeve) Impedance : 39 Ohms Aux In: Jack 3.5 mm (1/8") stereo (TRS, Tip/Ring/Sleeve) Impedance : 10 kOhms PREAMP Tube: PSVANE ECC83 POWER Mains power adaptor: DC Jack 2.1mm, negative center Input voltage: 12V DC Power consumption: Approx. 6W Current draw: 600mA SIZE AND WEIGHT Dimensions (W x D x H): 19.2cm x 11.7cm x 7cm (7.6″ x 4.6″ x 2.8″) *Including connectors and knobs Weight: 845 g / 1.86 lbs
