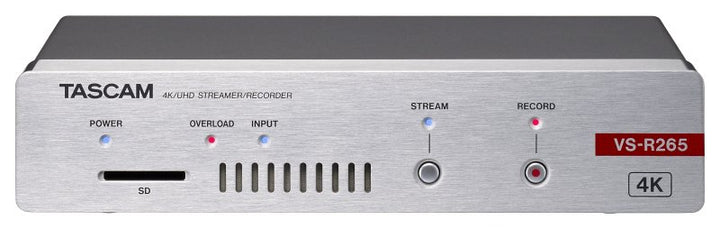

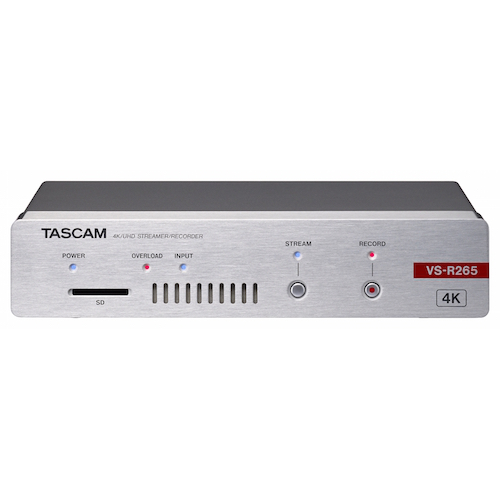

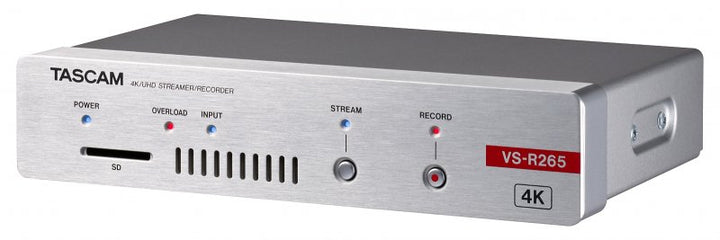

VS-R265 4K/UHD Video Streamer/Recorder

With power over Ethernet or external 12 Volt supply, HDMI in/out with audio embedding and de-embedding, and full control from a RESTful API allowing for integration into automation and control systems, these units are extremely versatile. Whereas many other products either lack professional audio levels or connectors, don’t record at all, or can’t simultaneously encode and decode, Tascam VS-R264 and VS-R265 sport fully balanced audio I/O via Euroblock connectors, with configurable reference levels for compatibility with professional audio systems. Unbalanced 3.5-mm stereo mini jacks are also provided for compatibility with consumer devices.

The bi-directional AV operation, live online streaming, secure capture to SD media then later upload for the web site, is ideal for live events, lectures, government sessions, boardroom presentations, concert venues and houses of worship, also for connections between rooms or locations. With a compact 1U, half-rack size, two units can be rack-mounted side by side. They can also be easily placed on a table or screwed under a shelf with the included mounting bracket.

Reliable AV Streaming With Encoding and Decoding.

When streaming the video signal of your online training session, presentation or event over the network, the VS-R264/VS-R265 is able to encode and downsample the signal according to the target format required for the service you are using. You can choose from several image resolutions and refresh rates or stream directly at 4K/UHD (VS-R265) or Full HD (VS-R264). By using another VS-R264/VS-R265 in a different room or even country, the same stream can be decoded and output to a TV or public viewing screen via HDMI.

The Tascam VS-R264/VS-R265 supports standard streaming protocols, including RTMP, RTP/RTSP, HLS as well as Multicast and Unicast to be compatible with a wide range of applications. Multiple streaming protocols can be output at once, enabling simultaneous streaming to multiple video streaming services. You can also choose between unicast and multicast transmission. Unicast sends the stream to one target only while multicast lets you transmit the stream to multiple hosts at once.

• Streams 4K/UHD (3840 × 2160p) video signals encoded to H.265
• High Efficiency Video Coding (HEVC) delivers the same video quality as H.264 at half the bit rate
• Compatible with major streaming protocols such as RTMP, RTSP and HLS
• Unicast and multicast streaming support
• Decodes streaming video signals to 4K/UHD (3840 × 2160p)
• RESTful API for integration into control systems in commercial AV installations

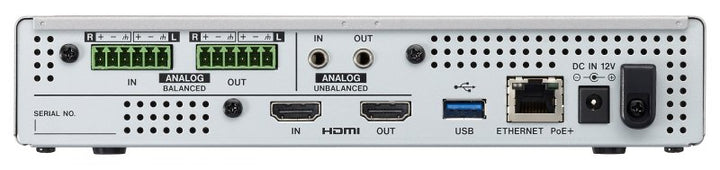

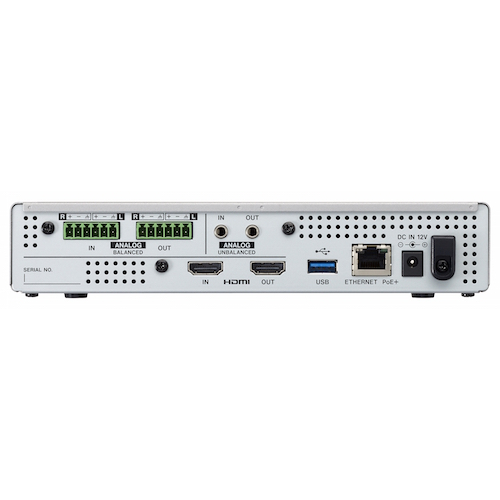

• Balanced analogue input and output for high-quality audio transmission (Euroblock connectors)
• Configurable audio output level and selectable audio reference level for easy integration into almost any environment
• Unbalanced audio input and output for easy interfacing with consumer equipment (3.5-mm stereo mini jacks)
• Audio from analogue sources can be embedded into the stream or separated from a stream to drive sound reinforcement systems
• HDMI input and output for connecting cameras and display devices

• Recorder function:
  • Records video data directly to SD cards
  • External video storage on USB 3.0 devices
• Ability to upload files from SD cards or external storage devices to FTP servers
• Clear web interface allows to configure unit settings over the network
• Supports Gigabit Ethernet
• Flexible power supply options:
  • over the Ethernet connection (PoE+)
  • by an optional AC adapter (Tascam PS-P1220E, sold separately)
• Compact half-rack size (1U)
• Included surface mount bracket allows the unit to be easily installed, for example, directly under a desk

• Records video data directly to SD cards
• External video storage on USB 3.0 devices

• over the Ethernet connection (PoE+)
• by an optional AC adapter (Tascam PS-P1220E, sold separately)

Optional accessories

• PS-P1220E AC adapter
• AK-RS1 rackmount shelf for two units to be mounted side by side
