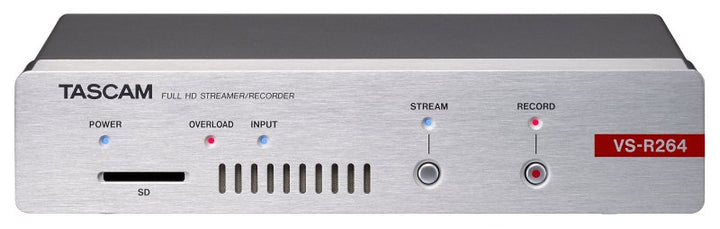

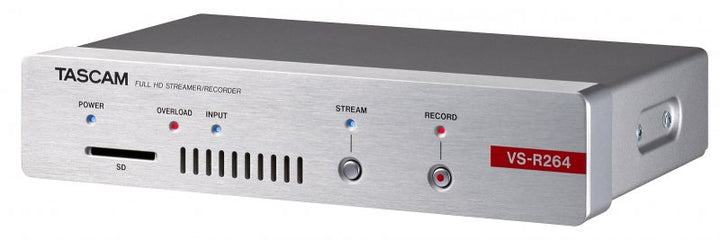

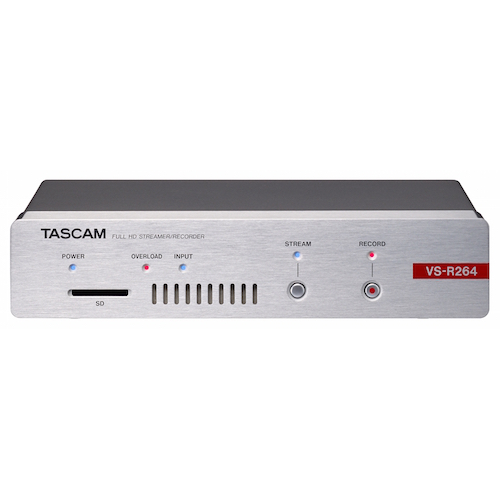

Tascam VS-R264 Full HD AV-over-IP Streaming Encoder/Decoder with SD Recording
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
A few orders are not eligible: items that need specialty shipping (certain cases, stands and other gear that requires special handling), and orders shipping to Newfoundland and Labrador, the Northwest Territories or Nunavut.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm and Sezzle financing are available for most products. For Affirm, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Sezzle: eligible customers can split a purchase into 4 interest-free payments over 6 weeks. Approval and payment terms depend on the purchase amount and an eligibility check, may not be available in all provinces or territories, and are shown at checkout. Payment options are provided through Sezzle. For more information, please see sezzle.com/how-it-works.
Affirm: eligible customers can pay over time in monthly instalments. Your rate and available terms depend on an eligibility check based on creditworthiness, your purchase amount, and applicable provincial limits, and may not be available in all provinces or territories. Actual terms, the payment schedule, and any required down payment are shown at checkout. Payment options are provided through Affirm Canada Holdings Ltd. For more information, please see affirm.com/how-it-works.
Description
The Tascam VS-R264 is a half-rack live-streaming hardware encoder/decoder that simultaneously encodes, streams, records, and decodes Full HD (1920x1080p) video using the H.264 codec. Designed as a stand-alone unit that requires no external computer, the VS-R264 provides stable, long-duration streaming for corporate, education, house-of-worship, government, and entertainment AV installations.
Streaming and Protocols
The VS-R264 supports up to eight simultaneous streams: three RTMP/RTMPS, one RTSP, one HLS, two RTP/UDP unicast, and one RTP/UDP multicast. Compatible with YouTube and other CDN platforms, it uses H.264 long GOP encoding with bit rates from 500 kbps to 30 Mbps over standard Gigabit Ethernet. A RESTful API (V2) enables integration with professional control systems.
Recording
Record directly to SD/SDHC cards, USB drives, or 17 GB of internal storage in MPEG2-TS or MP4 format. Automatic FTP upload sends recorded files to a network server for backup or repurposing. A continuous recording mode automatically deletes the oldest files when storage is full.
Audio Integration
Balanced Euroblock and unbalanced 3.5mm stereo mini-jack audio inputs and outputs support professional and consumer audio levels. Audio can be embedded from analog sources into the HDMI stream or de-embedded from HDMI for local playback. Reference level switching supports up to +20 dBu for professional installations.
Specifications
- Video Encoding: H.264, up to 1080p60
- Encoding Bitrates: 500 kbps to 30 Mbps
- HDMI In: HDMI 1.4a (Type A)
- HDMI Out: HDMI 2.0 (Type A)

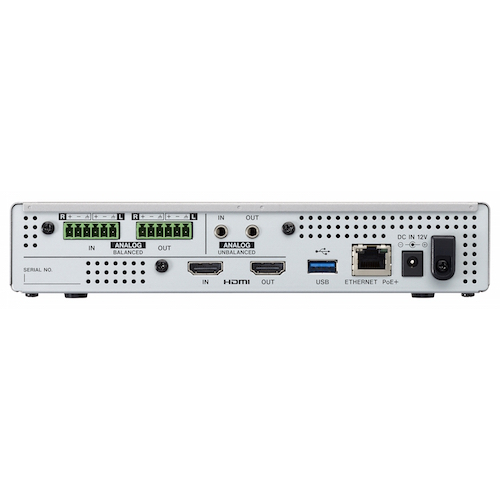

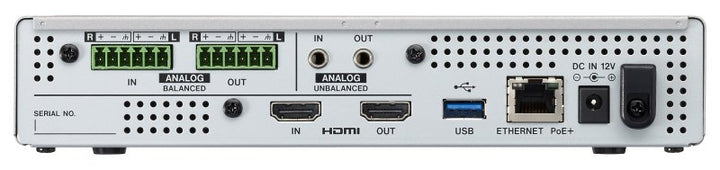

- Audio I/O: Euroblock balanced + 3.5mm unbalanced (in and out)
- Audio Codec: AAC, 64-512 kbps, 32/44.1/48 kHz
- Recording Media: SD/SDHC, USB drive, 17 GB internal storage
- Recording Format: MPEG2-TS, MP4
- Network: Gigabit Ethernet (RJ-45), PoE+ Class 4
- Streaming Protocols: RTMP, RTMPS, RTSP, HLS, RTP, UDP
- Power: PoE+ Class 4 or optional PS-P1220E AC adapter
- Power Consumption: 12.2W
- Dimensions: 8.43" x 1.75" x 5.36" / 214 x 44.5 x 136.1 mm (W x H x D)
- Weight: 1.87 lbs / 850 g
In the Box
- Tascam VS-R264
- USB flash drive (with TASCAM DISCOVERY app and Reference Manual)
- Installation brackets (x2)
- Euroblock plugs (x4)
- Cable band kit
- Owner's Manual (including warranty)
